My findings..
well, ive mentioned i want to do a S5 13b motor swap into my car with a street port and racing beat header.
looking into the porting, i found this on mazda trix's

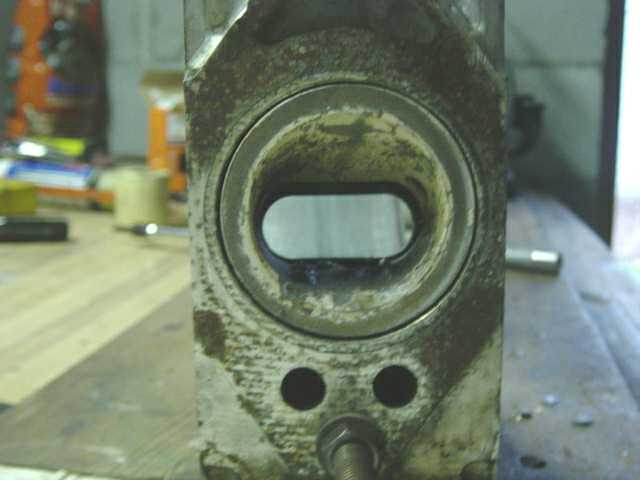

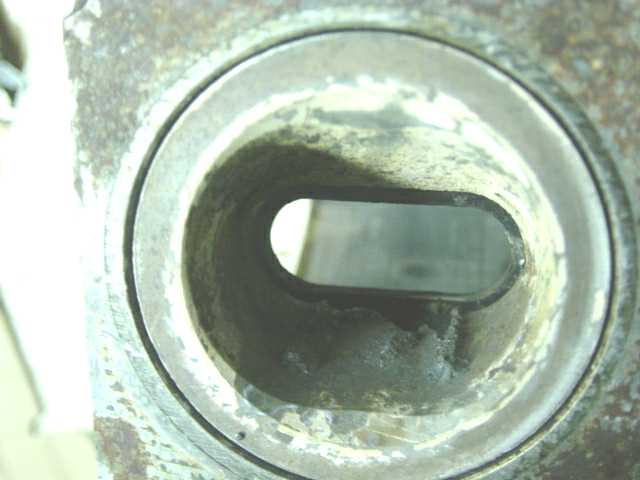

if youll notice the "diffuser" on the n/a housing, and no "diffuser" on the turbo housing. mazda trix states when doing a port job, they simply use the turbo housing on n/a motors so they dont need to grind it out because its hardened steel. well, this is a big problem for me since i cant afford $400 a piece rotor housings. i made a trip to the junk yard, and i luckily someone had already pulled and taken apart a motor to see if it was good (it wasnt) so it was ALL over the interior. i finished part of the job, and took the better housing. today was the first day back to school, and i had shop class, so we took the ocy-actylene torch (dont think i spelt that right) and "blew" it out. this is the results...

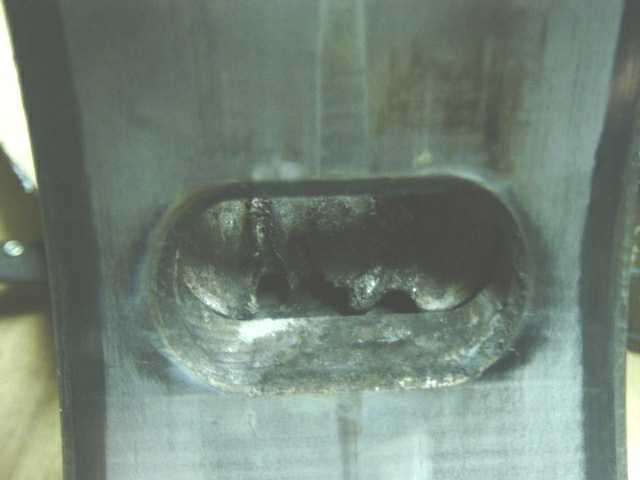

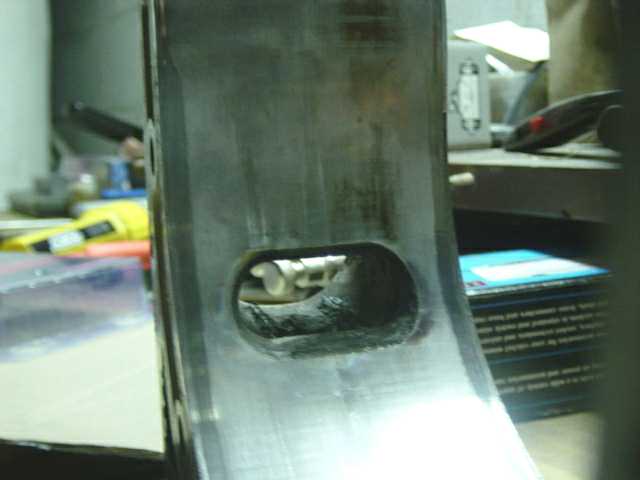

on one of the pictures, you can see we took too much out of the insert. i think wiht a little more care this can be done properly. just thought i would share...
looking into the porting, i found this on mazda trix's
if youll notice the "diffuser" on the n/a housing, and no "diffuser" on the turbo housing. mazda trix states when doing a port job, they simply use the turbo housing on n/a motors so they dont need to grind it out because its hardened steel. well, this is a big problem for me since i cant afford $400 a piece rotor housings. i made a trip to the junk yard, and i luckily someone had already pulled and taken apart a motor to see if it was good (it wasnt) so it was ALL over the interior. i finished part of the job, and took the better housing. today was the first day back to school, and i had shop class, so we took the ocy-actylene torch (dont think i spelt that right) and "blew" it out. this is the results...
on one of the pictures, you can see we took too much out of the insert. i think wiht a little more care this can be done properly. just thought i would share...
01-06-03, 09:36 PM
#2
Open up! Search Warrant!
Join Date: May 2002
Location: Kicking down doors in a neighborhood near you
Posts: 3,838
Likes: 0
Received 2 Likes
on
2 Posts
I just sold a pair of TII rotor housing for $200. I've talked to people who cut that out with a dremel and a cold chisel. I've talked to one guy who took out the roll pin that hold the whole steel insert in the housing. It opens the port up way big, but it lets more heat get to the aluminum.
Nice zoom and focus on the camera. my digital camera sucks
Nice zoom and focus on the camera. my digital camera sucks
01-06-03, 09:41 PM
#3
i say what i want
Thread Starter
Join Date: Aug 2002
Location: richmond, va
Posts: 1,866
Likes: 0
Received 0 Likes
on
0 Posts
Originally posted by Project84
I just sold a pair of TII rotor housing for $200. I've talked to people who cut that out with a dremel and a cold chisel. I've talked to one guy who took out the roll pin that hold the whole steel insert in the housing. It opens the port up way big, but it lets more heat get to the aluminum.
Nice zoom and focus on the camera. my digital camera sucks
I just sold a pair of TII rotor housing for $200. I've talked to people who cut that out with a dremel and a cold chisel. I've talked to one guy who took out the roll pin that hold the whole steel insert in the housing. It opens the port up way big, but it lets more heat get to the aluminum.
Nice zoom and focus on the camera. my digital camera sucks
also.. the camera is my girlfriend's.. i want one, but atleast i have access to a decent one now
01-06-03, 09:47 PM
#4
Open up! Search Warrant!
Join Date: May 2002
Location: Kicking down doors in a neighborhood near you
Posts: 3,838
Likes: 0
Received 2 Likes
on
2 Posts
I was told it takes a while. Just gotta take your time.
You did a good job though. I got a 86-88 13B N/A gasket set from atkins rotary. I don't need it now cause I sold the engine I was going to rebuild. They sell them for $140+. If you need a rebuild kit, I'll sell it to you for $115 (including shipping to your door.)
You did a good job though. I got a 86-88 13B N/A gasket set from atkins rotary. I don't need it now cause I sold the engine I was going to rebuild. They sell them for $140+. If you need a rebuild kit, I'll sell it to you for $115 (including shipping to your door.)
