Crispin38

iTrader: (3)

Since i bought my car my low fuel light hasn't worked. Or do RX7's even have one? I have nothing to do on my car this week so i figured i'd go ahead and fix this.
How do i make my low fuel warning light work?

Thanks,
-Crispin

flight_of_pain

Check the connector at the tank first, out of the 13 first gens I have owned all but 2 had the terminal at the tank dissolved in corrosion.

Isaac

Crispin38

iTrader: (3)

Can I see pics or something of where this is at exactly?

LongDuck

You're kidding, right?

My 84SE has never had a low-fuel light. it has an 'Add Coolant' light, and an 'EXH Sys Heat' light, but never had a low-fuel light...

If you get that hooked up - post for everyone to see!

Jibaro 12A

iTrader: (8)

I've owned 9 FB/SA'S I dont think I ever saw a low fuel light. If you gets your working I demand pics! lol

rotor motor 85

iTrader: (1)

My fuel light works in my 85 se but my gas gauge doesn't ha ha ha.....
psst.......(i just go off the mileage)

Crispin38

iTrader: (3)

I know, but it's still something I'd like to fix. I like everything to work in my car, even if it's useless.

flight_of_pain

On the tanks bulkhead fitting area there is a connector, it is for the level sender and the low fuel light. If you remove the drivers rear wheel and remove the plastic splash guard you can see it on the tank. Judging from this thread you aren't the only person that needs to climb under there .

Isaac

DarrenTRS

iTrader: (1)

*hi5* hell yea! a year and a half of daily driving without a working gas gauge and only ran outta gas once! My light worked but it went on/off in stages:
1. Long left bank turn on highway = take note
2. left on street corner = ok...need to fill up
3. Accelerating in a straight line = Where's a gas station?!
4. On all the time = oh f***.

Crispin38

iTrader: (3)

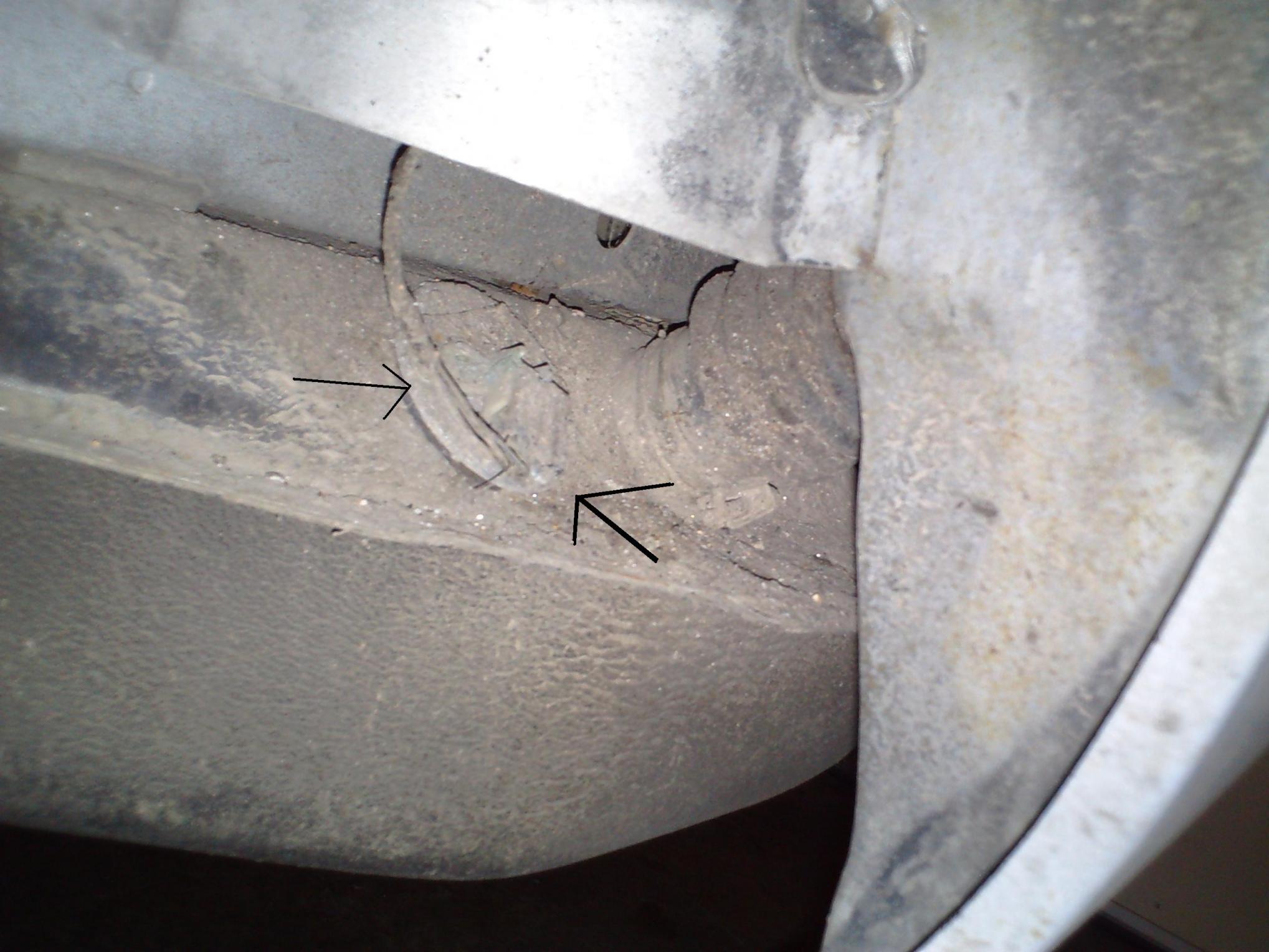

So i got the wheel off and cover and took a peek.
Here's the connecter, do i need to replace something or do all i need to do is clean it up??

flight_of_pain

Pull the connector and inspect the contacts on the tank, and the contacts in the connector, you will see the problem. Typically the spade on the tank side of the connector has dissolved into a green dust and is long since gone. I have soldered a new copper spade onto the small nub that remains and coated the whole thing with di-electric grease to remedy the problem on several cars.

Isaac

Directfreak

iTrader: (2)

Where have you been?!

Crispin38

iTrader: (3)

Honestly, all the connectors looked good. On tank, and the connector. I just cleaned all 6 terminals with Goof Off and a Q-Tip. Looked good when I got done.

Crispin38

iTrader: (3)

If it's not the Low Fuel Light Sender itself what else could it be? Should I pull the sender out of the Tank?

trochoid

iTrader: (6)

The light bulb in the dash, but those rarely don't burn out.

flight_of_pain

To test the light, ground the Yellow w/blue stripe wire in that 3 pin harness and turn teh key on.

The connector has three slots if you look at the end of it, 2 vertical, one horizontal.
_____
| 1 2
|
|_3__

pin 1 is the wire you want.



If the light illuminates then it is the sending unit, if the light fails to illuminate it is a failure between the connector and the bulb, or the bulb itself.

Isaac

mazdaverx713b

iTrader: (91)

installed a new sender in my 85 GS (converted to 13B from an SE) and the low fuel light works properly. comes on when i have about 3 gallons left. its a little orange light in the warning lights and it will fade in and out as the fuel sloshes.

peejay

The low fuel light worked in my '85 and it worked in my '84 until I broke the terminal off when I went to remove the connector to fix the ground problem that the sending units all seem to get. D'OH.

Every Series 3 I've seen has the wiring for a low fuel light.

Crispin38

iTrader: (3)

Thanks, I might take another swing at it today. I'll post my progress.

cshaw07

iTrader: (14)

grind off a part on the top of the sending unit and solder a piece of wire from the now clean ground part, to the ground pin on the sending unit, the ground goes bad and nothing works. does your fuel gauge still work?

Crispin38

iTrader: (3)

Yes, my fuel gauge does still work.

RX-7 Chris

iTrader: (19)

This is good info. My low fuel light is also not working. I was going to replace the sending unit to fix the problem because mine is all green dust on the fuel light connector. I do have a working fuel gauge. I'm going to try soldering a wire in and see if that fixes it.

Crispin38

iTrader: (3)

+1

WIll you also post pics?
Thanks,

cshaw07

iTrader: (14)

ill post pics later if i have time, it doesnt fix everything all of the time, only if you have a ground issue, but it did fix mine. i just happen to have my tank out too, for my sump and 3/8" lines

Twilightoptics

iTrader: (1)

Is this a GSL- SE only thing?

I'm going to have to put mine on the rack tonight and work and look for two wires! I'd love to have a light! Mines an '82 GSL.
