internal measurments
06-17-06, 12:56 PM
#1
Senior Member
Thread Starter
iTrader: (1)
Join Date: Apr 2005
Location: Marlborough,Ma
Posts: 266
Likes: 0
Received 0 Likes
on
0 Posts
internal measurments
I've tried the search and the faq, but for some reason I keep coming up empty,,,I am trying to find out the measurements of the apex,side seals to see if I can reuse anything for my rebuild... 85 GSL 12A
All help is appreciated...
And also I bought a digital clibrater, in mm and inc's would this work for finding out if parts are reusable...
Thanks
Jose L CRuz
All help is appreciated...
And also I bought a digital clibrater, in mm and inc's would this work for finding out if parts are reusable...
Thanks
Jose L CRuz
06-17-06, 02:19 PM
#2
Senior Member
Thread Starter
iTrader: (1)
Join Date: Apr 2005
Location: Marlborough,Ma
Posts: 266
Likes: 0
Received 0 Likes
on
0 Posts
Ok found my answers @ http://www.mazdamotorsports.com/weba...1&subject=apex
My question is now when determining if the apex seal is reusableshould I measure from the wider part where the springs sit or from the space in the middle..
these are the measurments so far at the thicker part 8.35mm
and in the middle we are at 7.35mm
My question is now when determining if the apex seal is reusableshould I measure from the wider part where the springs sit or from the space in the middle..
these are the measurments so far at the thicker part 8.35mm
and in the middle we are at 7.35mm
06-17-06, 03:27 PM
#3
Originally Posted by borinquen7
Ok found my answers @ http://www.mazdamotorsports.com/weba...1&subject=apex
My question is now when determining if the apex seal is reusableshould I measure from the wider part where the springs sit or from the space in the middle..
these are the measurments so far at the thicker part 8.35mm
and in the middle we are at 7.35mm
My question is now when determining if the apex seal is reusableshould I measure from the wider part where the springs sit or from the space in the middle..
these are the measurments so far at the thicker part 8.35mm
and in the middle we are at 7.35mm
the wear limit is 7mm (on the thick part)
06-17-06, 04:37 PM
#4
Senior Member
Thread Starter
iTrader: (1)
Join Date: Apr 2005
Location: Marlborough,Ma
Posts: 266
Likes: 0
Received 0 Likes
on
0 Posts
Yap I just read, at new they are about 8.5mm, mine being at what they are I believe they are reusable but everyone always says replace... What are you r thought on this,,.....

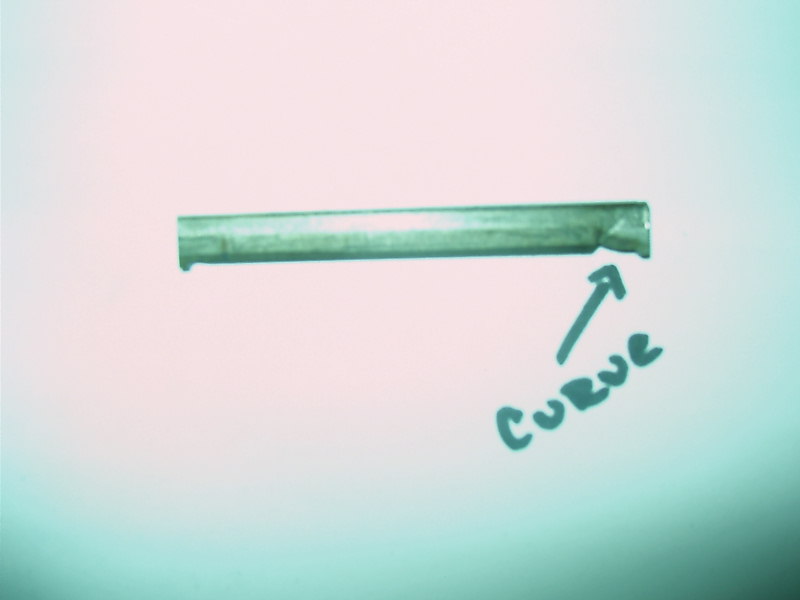

One question I have is that the second piece on the apex seals has a weird curve to them,,, This curve is exactly the same on all the apex seals,,, Do they have to be replaced, or is the way they are suppose to be?
Thanks for all your advise
One question I have is that the second piece on the apex seals has a weird curve to them,,, This curve is exactly the same on all the apex seals,,, Do they have to be replaced, or is the way they are suppose to be?
Thanks for all your advise
06-17-06, 04:49 PM
#6
Senior Member
Thread Starter
iTrader: (1)
Join Date: Apr 2005
Location: Marlborough,Ma
Posts: 266
Likes: 0
Received 0 Likes
on
0 Posts
Man really that sucks,,, Not trying to be cheap just aint got the loot my housings were pretty messed up, so I need to get another set, But the only way to do it is the right way..
Damn 75% @8.35mm is that right?
Damn 75% @8.35mm is that right?
Trending Topics
06-17-06, 09:29 PM
#9
Go Hawks!
iTrader: (1)
Join Date: May 2004
Location: Cedar Rapids, Iowa
Posts: 1,933
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by blwfly
i think its the tool that can mesure 1/100th of an inch usally had a gauge on the top
i could be wrong
i could be wrong
Rich
06-18-06, 01:15 PM
#13
https://www.rx7club.com.ar/tech/medi...ia/album0.html
this is how a new apex with corner piece looks like
new 8.5mm
used 8.35
limit 7.5
how come 8.35 is 75% worn?
looks like 75% new, or 25% used.
They should last a long time...
this is how a new apex with corner piece looks like
new 8.5mm
used 8.35
limit 7.5
how come 8.35 is 75% worn?
looks like 75% new, or 25% used.
They should last a long time...
06-18-06, 03:27 PM
#14
Originally Posted by borinquen7
Man really that sucks,,, Not trying to be cheap just aint got the loot my housings were pretty messed up, so I need to get another set, But the only way to do it is the right way..
Damn 75% @8.35mm is that right?
Damn 75% @8.35mm is that right?
No, that's not a mis-spell.
06-18-06, 04:32 PM
#15
Senior Member
Thread Starter
iTrader: (1)
Join Date: Apr 2005
Location: Marlborough,Ma
Posts: 266
Likes: 0
Received 0 Likes
on
0 Posts
Hey I'de like to thank you guys, for all your help in my first attempt at a rebuild.. But after counting the numbers I fiqured it would be cheaper to buy a medium milage 12a about 30 - 60,000 for about the same money or less and be on the road right away, I have little time as it is,, It took me 2 months just to open the engine after I got it. Anyways I can Start driving,,, Once I get in a better place finacially, I'de like to try to rebuild. I've learned alot from this forum, alot from all you guys, and with you guy's help, time and a proper budget I am sure when I am ready. It' will be something i can be proud of...
Thanks again,, Peace Out
Cruz
Thanks again,, Peace Out
Cruz
