I never thought I'd be in this section... new FB!
#52
Originally Posted by Ray Green
Thanks Brett. I guess. I just seem old because you're only 18 and I'm over 50. OK, I guess that's old.
Congrats on getting it to start up! Did you check the view windows on the front and back of the carb to see if the bowls were filled correctly? (Hint: Borrow your mother's make up mirror for that one in the back). If you've got fuel in both bowls your fuel delivery issues should be more or less settled for now.
Congrats on getting it to start up! Did you check the view windows on the front and back of the carb to see if the bowls were filled correctly? (Hint: Borrow your mother's make up mirror for that one in the back). If you've got fuel in both bowls your fuel delivery issues should be more or less settled for now.
I wouldn't worry too much about the smoke for now, it will probably burn off and correct itself once the engine has a chance to even out. You might want to pull your plugs and inspect them if you haven't done that already, this can tell you alot (including whether you need new plugs).
Also chances are your throttle connection is way out of adjustment at this point so you may need to manually operate the throttle to keep it running, then adjust that cable so it's just tight.
I have a spare battery here that should still have plenty of life in it, you should'a asked!
I have a spare battery here that should still have plenty of life in it, you should'a asked!
Also it occurred to me that you should have taken the White One out for a spin around the block, by the time you got back you'd have decided to sell the FC, which would give you plenty of bucks for the Red One.
Oh yeah, here's some real dressed Nikki photos for reference:
And I figured out why my choke isn't working right- the wire was broken right behind the handle. And the car didn't have the hatch release stock, there's a little plastic plug there.
So here's my list so far:
- Front Coil
- Wire from front coil to Dizzy
- Tube going from 2nd afterburn valve to the blue air breather/ filter cover
- Battery
- Choke cable
- Detailed vacuum diagram
- Wing-nut holding blue breather to carb
That's just to get it to run good, as far as I know
#53
Censored
iTrader: (14)
I was nodding because that FC sure makes a lot of noise. I was also thinking you should have taken the White One out for the spin (and I could try to follow in your FC).
You've got the right plugs in there, Denso also makes a good plug for FBs that is usually less expensive.
I've got all the things you need except the choke cable (these are semiprecious because of the magnetic lock on them) and the breather wing nut. But we might be able to fix your choke cable or combine it with one of my broken ones and get something to work. However if you get the car running even half decently you won't need you choke for now, you can just give it a couple extra pumps of gas. It is handy to have in the winter though.
You've got the right plugs in there, Denso also makes a good plug for FBs that is usually less expensive.
I've got all the things you need except the choke cable (these are semiprecious because of the magnetic lock on them) and the breather wing nut. But we might be able to fix your choke cable or combine it with one of my broken ones and get something to work. However if you get the car running even half decently you won't need you choke for now, you can just give it a couple extra pumps of gas. It is handy to have in the winter though.
#54
I've got all the things you need except the choke cable (these are semiprecious because of the magnetic lock on them) and the breather wing nut. But we might be able to fix your choke cable or combine it with one of my broken ones and get something to work. However if you get the car running even half decently you won't need you choke for now, you can just give it a couple extra pumps of gas. It is handy to have in the winter though.
Speaking of a job, I think I found one today. If anyone's familiar with Dawsonville, GA, you know Bill Elliot's from here. The City Hall over there's filled with all kinds of neat racing/ automotive junk, and I went through it 3 times today. Anyways there's a restraunt inside in it that's re-opening and I talked to the owner and I'm guranteed a job if they open, but he's totally redoing the place so it could be 1-4 weeks before I start. Good thing is, they're not open Tuesdays so the OGTA meets won't be a problem to get to!
#56
Originally Posted by Ray Green
Yur on Brett, but now post a bunch of photos of your progress for the others (and me) to see, we want to know what you've got there.
Progress pictures when I get back!
#57
Alright, I lied about the progress pictures I think I just might know what the problem with the car is though. The coils next to the battery aren't too dandy. The front one is all grimed up and barely, barely sparks, and the rear one isn't even sparking at all. So I think if I replace those 2 coils and get these last few vacuum leaks sealed up, the car just might start by itself.
Now I'm off to fix the ignition problem on the FC- I swapped ignition switches and it doesn't change a thing. I've got to give a black/yellow wire on the switch + current from the battery for the car to start and run... Fun fun.
Now I'm off to fix the ignition problem on the FC- I swapped ignition switches and it doesn't change a thing. I've got to give a black/yellow wire on the switch + current from the battery for the car to start and run... Fun fun.
#58
FC's fixed, with a perfectly working ignition switch and tilt steering. Now I've just got to get on this noisy hub issue. I thought about trying the direct fire ignition thing on the FB, but I read you've got to cut up your coil pack and I don't have any spares. Anyways, tomorrow after work I'll get more progress on it.
#59
Censored
iTrader: (14)
You don't need to cut up the FC coil pack, it can be installed without mutilation and could be reinstalled in an FC (I'll show you how later). But I wouldn't recommend moving your 2G coil pack back and forth between the two cars, that would be too much trouble.
I would just get the stock ignition system working, even if you then add the 2GDFI afterward you will still use one of the stock 1G coils and if you keep the second stock 1G coil you can always reconnect your stock system should you have any question about the 2GDFI. Start shopping for a spare 2G leading coil pack, they are usually available for around $20-25.
I have a spare pair of stock 1G coils, if that's all it is these are easy to replace. I'm working at home today, will be home all day.

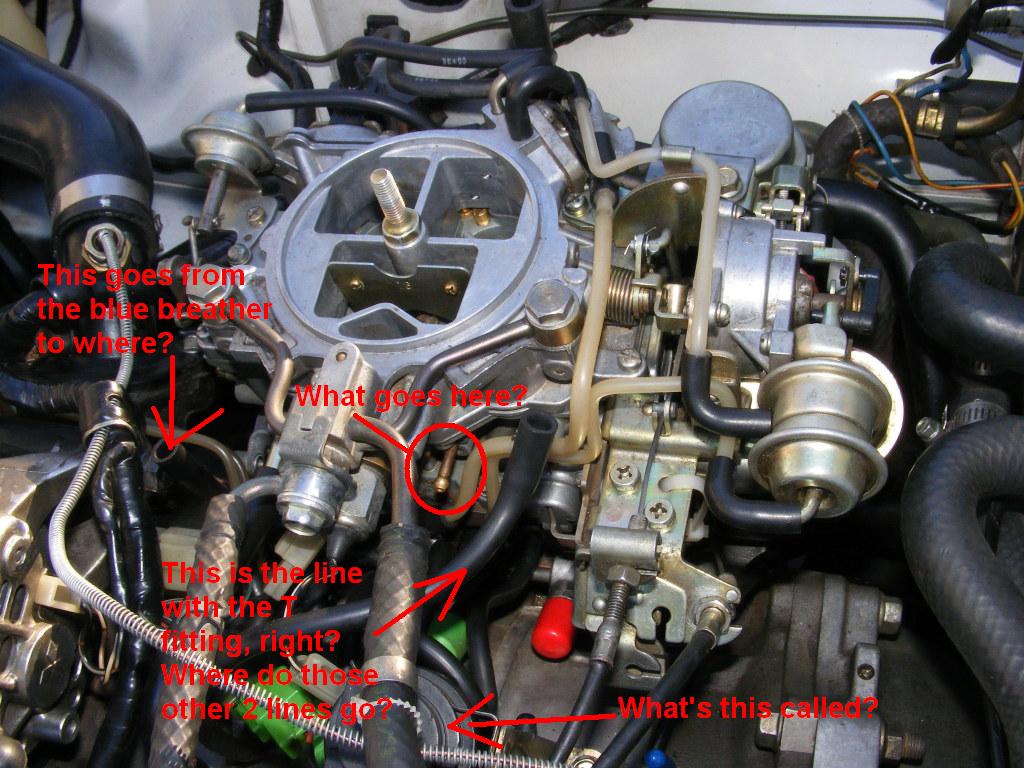

Questions left to right on your photo:
1) yes that tube connects to the breather
2) see your Hayne's manual pages 254-263 for diagrams showing correct connections for the emissions plumbing.
3) that mushroom shaped thing is the purge valve
4) the brass nipple sticking out is one of the two nipples that connect to the oil metering pump (OMP) lines
I would just get the stock ignition system working, even if you then add the 2GDFI afterward you will still use one of the stock 1G coils and if you keep the second stock 1G coil you can always reconnect your stock system should you have any question about the 2GDFI. Start shopping for a spare 2G leading coil pack, they are usually available for around $20-25.
I have a spare pair of stock 1G coils, if that's all it is these are easy to replace. I'm working at home today, will be home all day.
Questions left to right on your photo:
1) yes that tube connects to the breather
2) see your Hayne's manual pages 254-263 for diagrams showing correct connections for the emissions plumbing.
3) that mushroom shaped thing is the purge valve
4) the brass nipple sticking out is one of the two nipples that connect to the oil metering pump (OMP) lines
#60
Super Moderator
iTrader: (3)
Alright, I lied about the progress pictures I think I just might know what the problem with the car is though. The coils next to the battery aren't too dandy. The front one is all grimed up and barely, barely sparks, and the rear one isn't even sparking at all. So I think if I replace those 2 coils and get these last few vacuum leaks sealed up, the car just might start by itself.
Now I'm off to fix the ignition problem on the FC- I swapped ignition switches and it doesn't change a thing. I've got to give a black/yellow wire on the switch + current from the battery for the car to start and run... Fun fun.
Now I'm off to fix the ignition problem on the FC- I swapped ignition switches and it doesn't change a thing. I've got to give a black/yellow wire on the switch + current from the battery for the car to start and run... Fun fun.
The coils are easy enough to swap. I'm sure Ray or Crit have a few spares that you could use for testing purposes.
#61
No distributor? No thanks
iTrader: (6)
Join Date: Oct 2003
Location: Outskirts of Road Atlanta
Posts: 3,438
Likes: 0
Received 6 Likes
on
4 Posts
If you can't get with Ray for some reason, I've got a free pair of stock FB coils for you as well. I work 3 miles down the road from my house, so I can meet you if you need to pick them up during the day.
#62
Then if the car runs and drives decently, I could just go see Ray for the other stuff
I'll get pictures soon once I get finished with the FC's brakes
#63
No distributor? No thanks
iTrader: (6)
Join Date: Oct 2003
Location: Outskirts of Road Atlanta
Posts: 3,438
Likes: 0
Received 6 Likes
on
4 Posts
I've got a HUGE proposal to read for work, so I'll likely stay home much of the day. I'll run into the office to drop off my corrections, but my day's pretty open. Let me know when you can swing by.
#64
I dropped these new coils in tonight, and the car's doing the same thing! I checked and the front one is still sparking, but the rear one isn't doing a damn thing. I switched the wires and the rear coil works, so I know it's good. Where should I go now? I'm going to fix a fusable link tomorrow that could possibly be the culprit, but I don't really know for sure. Whats really on my mind is ZOOMFEST!
#66
Super Moderator
iTrader: (3)
Brett must not have read my post about that.
Check the connections at the distributor 1st (make sure the the tabs are not bent down on connectors). Since leading ignition (rear coil) is not firing, it is the little black box on the front of the distributor (facing radiator) that may need to be replaced (assuming the electrical connections are good).
Check the connections at the distributor 1st (make sure the the tabs are not bent down on connectors). Since leading ignition (rear coil) is not firing, it is the little black box on the front of the distributor (facing radiator) that may need to be replaced (assuming the electrical connections are good).
#67
Brett must not have read my post about that.
Check the connections at the distributor 1st (make sure the the tabs are not bent down on connectors). Since leading ignition (rear coil) is not firing, it is the little black box on the front of the distributor (facing radiator) that may need to be replaced (assuming the electrical connections are good).
Check the connections at the distributor 1st (make sure the the tabs are not bent down on connectors). Since leading ignition (rear coil) is not firing, it is the little black box on the front of the distributor (facing radiator) that may need to be replaced (assuming the electrical connections are good).
#69
Super Moderator
iTrader: (3)
Yep. The distributor should have two little boxes on the side of it (outside, just below distributor cap..not inside of the distributor cap) with electrical connectors on top of each one. The one more towards the front of the distributor (facing radiator) is for leading ignition. The other (facing alternator) is trailing. By the tabs, pull one of the connectors on one of the black boxes (squeeze and pull). There are two metal tabs to electrically connect the connector/wires to the ignitor. Sometimes these tabs get bent down. Then when you plug the connector on there, it looks connected, but it isn't really (when the tabs are tweaked).
Probably the leading ignitor is toast, but best to check the electrical connection 1st (easy and free). What year is the car again? If it is '83 or older, you can simply swap the ignitors around. You will lose the tach, but the car will still run fine. If your car is 84/85, you can't do that since the car uses the trailing signal to tell the fuel pump to run (no trailing spark = no fuel).
Good luck.
Kent
Probably the leading ignitor is toast, but best to check the electrical connection 1st (easy and free). What year is the car again? If it is '83 or older, you can simply swap the ignitors around. You will lose the tach, but the car will still run fine. If your car is 84/85, you can't do that since the car uses the trailing signal to tell the fuel pump to run (no trailing spark = no fuel).
Good luck.
Kent
#70
Yep. The distributor should have two little boxes on the side of it (outside, just below distributor cap..not inside of the distributor cap) with electrical connectors on top of each one. The one more towards the front of the distributor (facing radiator) is for leading ignition. The other (facing alternator) is trailing. By the tabs, pull one of the connectors on one of the black boxes (squeeze and pull). There are two metal tabs to electrically connect the connector/wires to the ignitor. Sometimes these tabs get bent down. Then when you plug the connector on there, it looks connected, but it isn't really (when the tabs are tweaked).
Probably the leading ignitor is toast, but best to check the electrical connection 1st (easy and free). What year is the car again? If it is '83 or older, you can simply swap the ignitors around. You will lose the tach, but the car will still run fine. If your car is 84/85, you can't do that since the car uses the trailing signal to tell the fuel pump to run (no trailing spark = no fuel).
Good luck.
Kent
Probably the leading ignitor is toast, but best to check the electrical connection 1st (easy and free). What year is the car again? If it is '83 or older, you can simply swap the ignitors around. You will lose the tach, but the car will still run fine. If your car is 84/85, you can't do that since the car uses the trailing signal to tell the fuel pump to run (no trailing spark = no fuel).
Good luck.
Kent
So now I just need another ignitor... Question- with only the leading ignitor firing, are the other 2 plugs firing at all or are they all firing?
I made an attempt at a video, too... Don't judge me
#72
Super Moderator
iTrader: (3)
With swapping them around, only the leading plugs are firing. The leading are all that really matter. Trailing is mostly for pollution control.
If you are going to drive it like this, you want to swap the boxes themselves (with the wiring how it was) rather than just swapping the wiring. When you just swap the wiring, you change the timing. They are easy to swap around (just 2 Phillips screws each). Before you put them back on, it is a good idea to coat the back of them with heatsink compound (RadioShack or a computer store should have it). This will help the heat to be carried away from the ignitor.
If you are going to drive it like this, you want to swap the boxes themselves (with the wiring how it was) rather than just swapping the wiring. When you just swap the wiring, you change the timing. They are easy to swap around (just 2 Phillips screws each). Before you put them back on, it is a good idea to coat the back of them with heatsink compound (RadioShack or a computer store should have it). This will help the heat to be carried away from the ignitor.
#73
Censored
iTrader: (14)
Well Brett, that's great progress, you've diagnosed your first igniter!!
However the video is crap and I'm worried you are going to catch your car and yourself on fire with that fuel pump set up.
Without the trailing ignitor your trailing plugs are not firing, however since the leading plugs provide most of the spark the engine will still run pretty well when you did Kent's igniter swap trick. (Your fuel pump is supposed to also be disabled when the trailing igniter isn't working, but it sounds like the PO fixed this with his Molotov cocktail mod).
You do have a fire extinguisher nearby, right?
However the video is crap and I'm worried you are going to catch your car and yourself on fire with that fuel pump set up.
Without the trailing ignitor your trailing plugs are not firing, however since the leading plugs provide most of the spark the engine will still run pretty well when you did Kent's igniter swap trick. (Your fuel pump is supposed to also be disabled when the trailing igniter isn't working, but it sounds like the PO fixed this with his Molotov cocktail mod).
You do have a fire extinguisher nearby, right?
#74
Damnit Ray, I said don't judge me Haha. The camera died, that's my excuse. And I'll get the ignitor and fuel pump straightened out soon, no worries!
Crit- I'll gladly take that off your hands at ZoomFest Or buy it if that's what you meant, whichever.
Kent- I won't be driving the car like this. I really just wanted to see it start . If Crit brings that ignitor, I'll swap it on and get the wiring back to normal. Thanks for the help with that too, btw. You first gen guys are much, much more helpful that the FC crowd. I'd get beaten for asking where something as simple as an ignitor was
Off to a friends for ZoomFest! The FC's bathed inside and out, the bad's packed, and the OGTA sign's ready.
Edit- look at all those smileys...
Crit- I'll gladly take that off your hands at ZoomFest Or buy it if that's what you meant, whichever.
Kent- I won't be driving the car like this. I really just wanted to see it start . If Crit brings that ignitor, I'll swap it on and get the wiring back to normal. Thanks for the help with that too, btw. You first gen guys are much, much more helpful that the FC crowd. I'd get beaten for asking where something as simple as an ignitor was
Off to a friends for ZoomFest! The FC's bathed inside and out, the bad's packed, and the OGTA sign's ready.
Edit- look at all those smileys...
#75
Censored
iTrader: (14)
OK the video came through this time Brett, it isn't crap, but man that car sure needs a lot of TLC. Sounds like a lot of satisfaction coming.
I'll go out and wash the White One off, see you tomorrow!
She sounds sweet.
http://s30.photobucket.com/albums/c3...t=100_2750.flv
Do me a favor and check the oil level to make sure that oil pressure gauge is misbehaving.
I'll go out and wash the White One off, see you tomorrow!
She sounds sweet.
http://s30.photobucket.com/albums/c3...t=100_2750.flv
Do me a favor and check the oil level to make sure that oil pressure gauge is misbehaving.
