how to: gm igniters replace j-109
#1
how to: gm igniters replace j-109
ok iv had trouble with my j-109s and read i can use these gm ones
i thought ild write up how iv done it since the j-109s are 300bucks new at a auto store and the gm ones are under 20 each.
whats needed
2 wells ignition module for a 1979 chevrolet nova
8 female spade connectors
4 male spade connectors
4 .250" male spade connectors(not sure if thats correct easey to figure)
wire or choice im usin 12gauge
some heat sink grease(usally comes with the igniters)
note im not psotive this works 100% this was my resort to get my car runnin so i take no resposability and also any helpfull info or suggestions or just plane comments are fully welcome
1st step
take dizzy out take the j-109s off
i mounted the gm modules onto the dizzy )not sure its a good idea you could mount to a plate somewhere for beat heat transfer but i thought ill try it like this and see how it works)

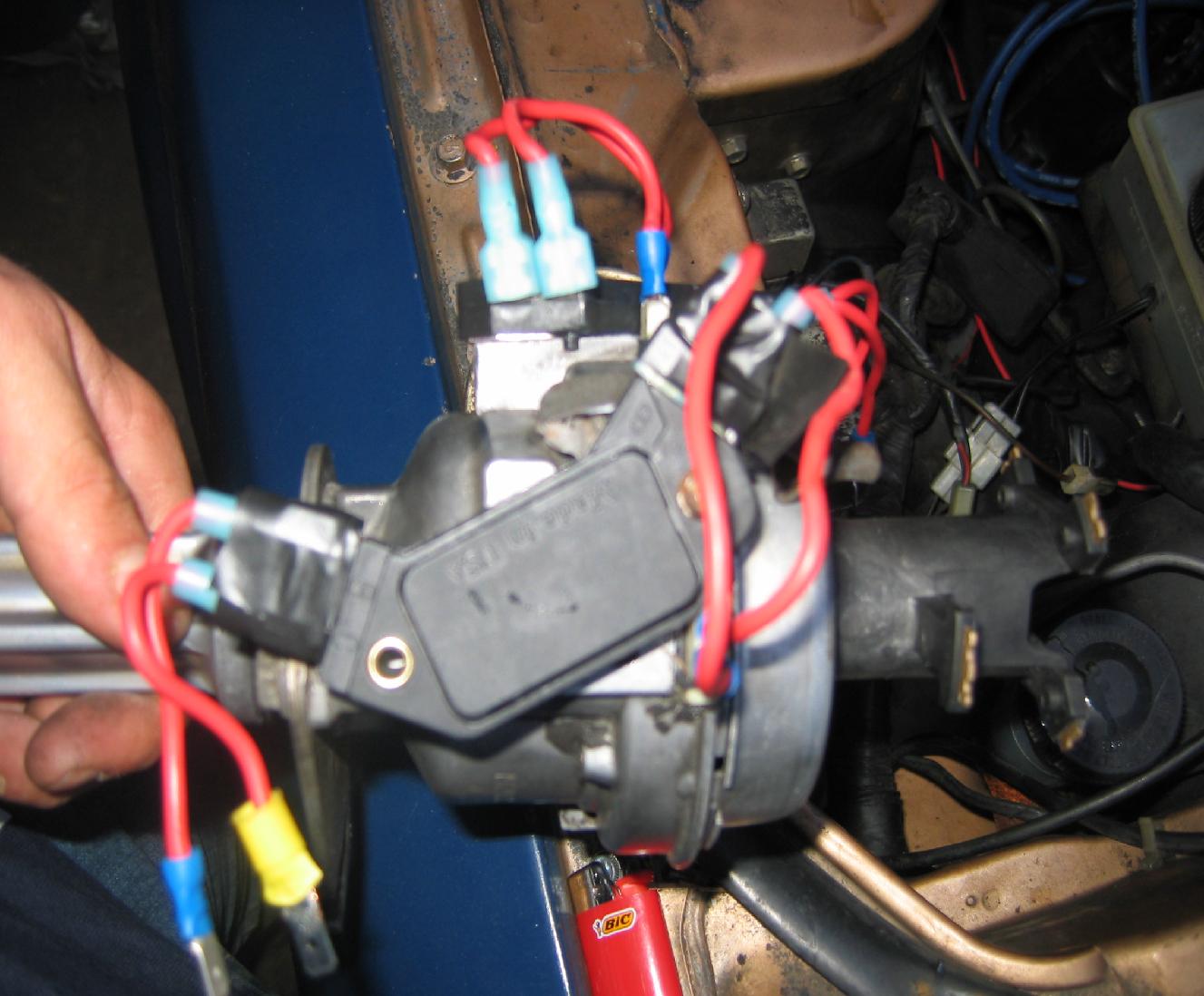

ok for the leading as you see in the first picture it pretty much explanes it i used the mitzi screw and put it to the top hole with w&g up top but first apliy the heat sink grease to the igniter and the mounting position for assurance.

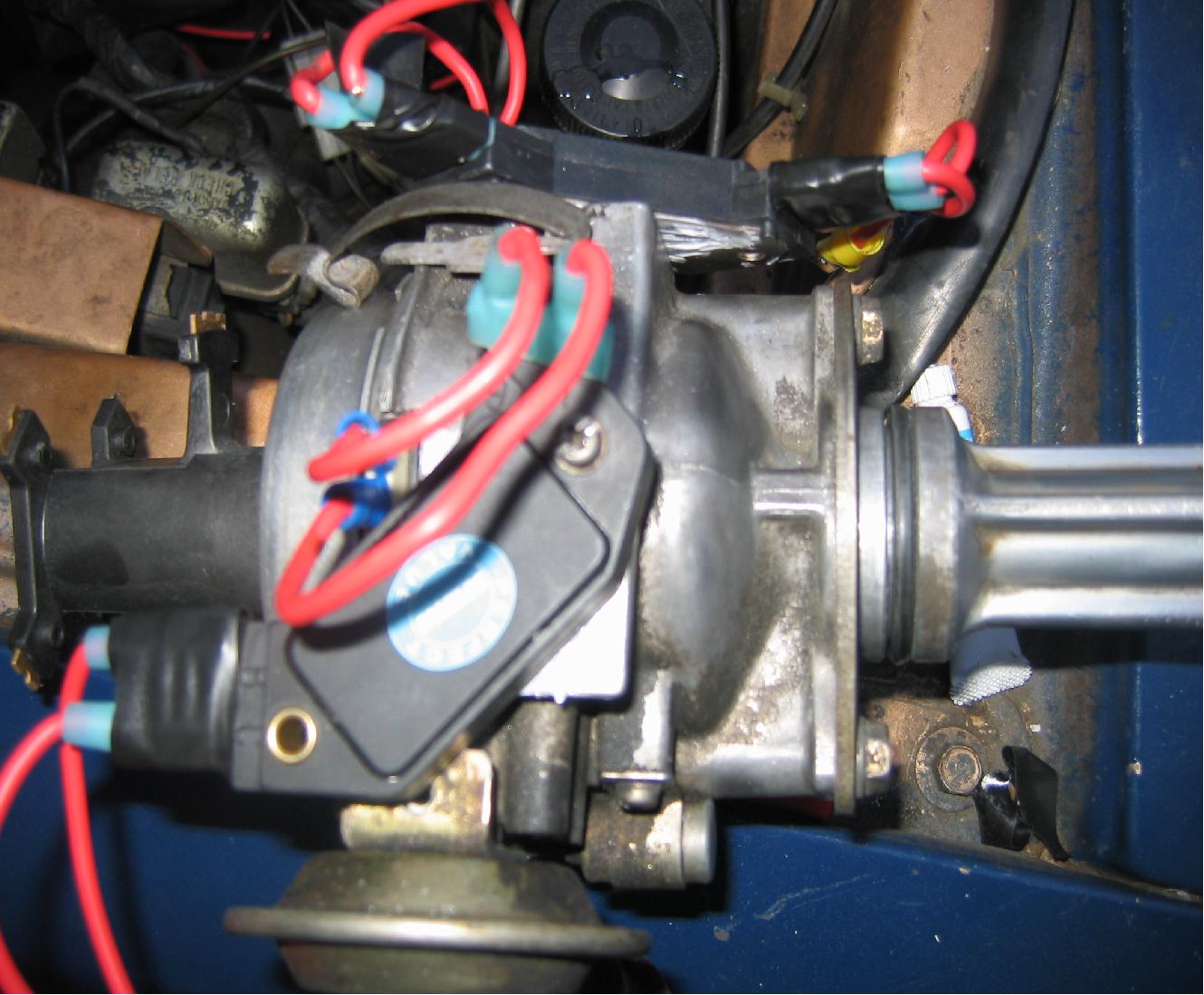

trailingi mounted w&g down bottom with the screw down bottom aswell its the only way i could get it to fit also i had to bend the tabs 90degrees also for fitting purposes
dont forget the grease
step 2

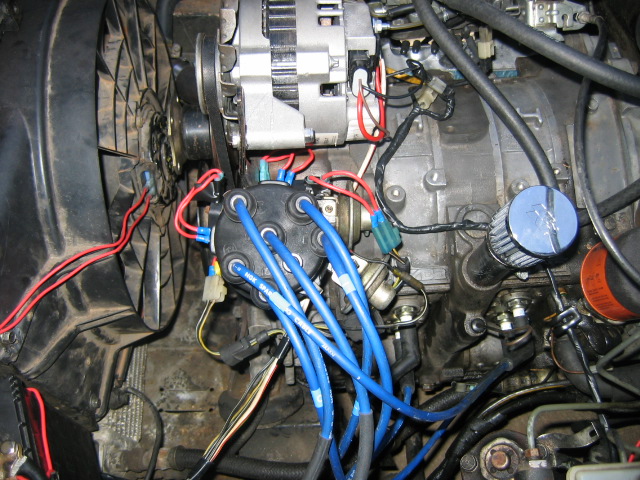

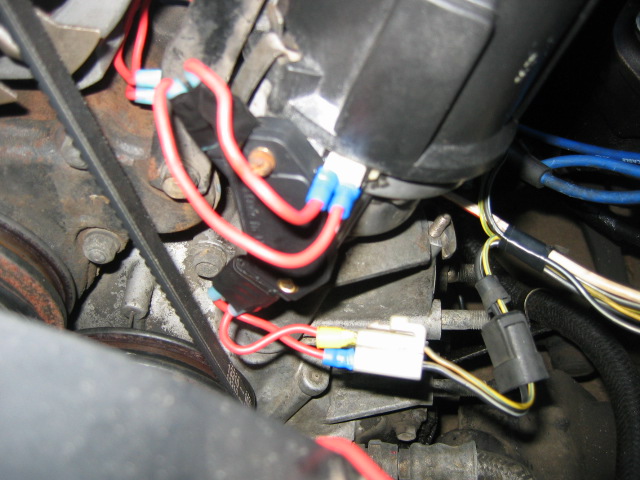

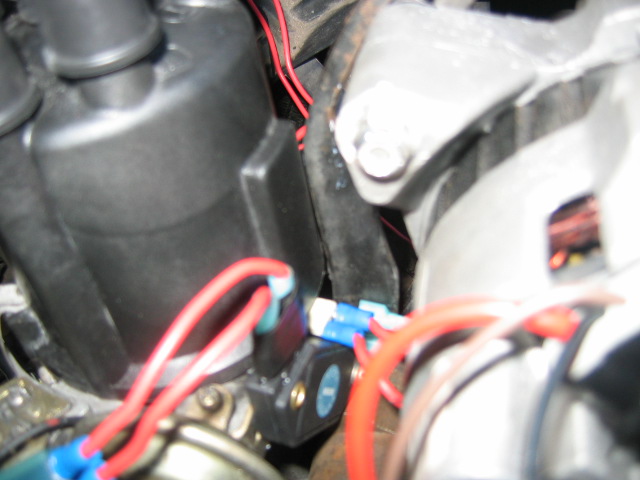

wiring as you see self explanitory main things you have to take note is
on the igniters theres 4 tabs b,c one side and w,g on the other
g-red on the distributor(remove steal cap off dizzy to see the wires)
w-green on the distributor
as i understand reds negitive and green is positive
use the .250" conneters and fold the spade in half to make a tight fit on the dizzy
this applys to both leading and trailing
for b&c on the igniters
b=positive
c=negitive
so obivosuly black wire from coil is positive
and yelow is negivtive
wire up make sure wires dont hit the pullys and makes sure they dont touch together or earth
well i hope ya can understand my lingo iv got a headache so i hope its clear ill be glad to anwser anything
ohh yeah most of all hehe my cars runnin better my tach actually works now i can also get my revs down under 1000 but im still tunnin as i have a stumble maybe due to my igniters or maybe just timing or a/f ratios
thanks
chris
i thought ild write up how iv done it since the j-109s are 300bucks new at a auto store and the gm ones are under 20 each.
whats needed
2 wells ignition module for a 1979 chevrolet nova
8 female spade connectors
4 male spade connectors
4 .250" male spade connectors(not sure if thats correct easey to figure)
wire or choice im usin 12gauge
some heat sink grease(usally comes with the igniters)
note im not psotive this works 100% this was my resort to get my car runnin so i take no resposability and also any helpfull info or suggestions or just plane comments are fully welcome
1st step
take dizzy out take the j-109s off
i mounted the gm modules onto the dizzy )not sure its a good idea you could mount to a plate somewhere for beat heat transfer but i thought ill try it like this and see how it works)
ok for the leading as you see in the first picture it pretty much explanes it i used the mitzi screw and put it to the top hole with w&g up top but first apliy the heat sink grease to the igniter and the mounting position for assurance.
trailingi mounted w&g down bottom with the screw down bottom aswell its the only way i could get it to fit also i had to bend the tabs 90degrees also for fitting purposes
dont forget the grease
step 2
wiring as you see self explanitory main things you have to take note is
on the igniters theres 4 tabs b,c one side and w,g on the other
g-red on the distributor(remove steal cap off dizzy to see the wires)
w-green on the distributor
as i understand reds negitive and green is positive
use the .250" conneters and fold the spade in half to make a tight fit on the dizzy
this applys to both leading and trailing
for b&c on the igniters
b=positive
c=negitive
so obivosuly black wire from coil is positive
and yelow is negivtive
wire up make sure wires dont hit the pullys and makes sure they dont touch together or earth
well i hope ya can understand my lingo iv got a headache so i hope its clear ill be glad to anwser anything
ohh yeah most of all hehe my cars runnin better my tach actually works now i can also get my revs down under 1000 but im still tunnin as i have a stumble maybe due to my igniters or maybe just timing or a/f ratios
thanks
chris
#3
Old Fart Young at Heart
iTrader: (6)
Jeff, I have a question on your write up regarding the DLIDFIS. I had a member PM me about it and ask how many ignitors needed to be gutted when using all J-109 ignitors. My answer was only the one on the dizzy for the leading because all it did, being gutted, was act as a pass through for the signal to the other 2 ignitors, so they could fire seperate coils.
Is that correct?
Is that correct?
#4
Senior Member
Join Date: Mar 2005
Location: massachusetts
Posts: 697
Likes: 0
Received 0 Likes
on
0 Posts
yes, i was also looking for that awnser also a few days ago. I wonder if it was me that asked. I found out that if there good you don't need to gut any ignitors. You only gut ignitors if there bad. You can branch off the dizzy with a couple of grinded male spade connectors and then feed the 2 ignitors. This is what I should be finishing later today.
#7
callin' tokyo
Join Date: Dec 2002
Location: Windsor, Ontario
Posts: 1,353
Likes: 0
Received 0 Likes
on
0 Posts
This is the type of thread I always save for future reference. I go under 'thread tools' and select 'show printable version'. I then copy and paste the whole thing into a Wordpad document. I then copy and paste all the pictures into the same document.
Thanks blwfly
Thanks blwfly
Trending Topics
#10
Just to add in here, to make this more durable/reliable, eaither get the connectors without any insulation, or remove it from the ones you have and solder them on, and the heat shrink as much as you can.
You'll all thank me in the end for it.
You'll all thank me in the end for it.
#11
yep i agree on that one iv just done this as a tempory to get the car goin still deciding what to do as i have not seen any facts to how the gm igniters effect compared to origanl j-109s
i may try the dflis with the gms since i have spare one i thought dont go but maybe it does and i have two spare coils
but whatever i did i couldnt get my car to stop stumbling its not bad just noticable ild say its fluxing 100-300revs
dont ask why but i see that i havnt got the vaccum tubes up for the dizzy could this affect my idel
and also can i just t both to one souce on the carb spacer i think its the 3rd nipple in from the radiator side
i may try the dflis with the gms since i have spare one i thought dont go but maybe it does and i have two spare coils
but whatever i did i couldnt get my car to stop stumbling its not bad just noticable ild say its fluxing 100-300revs
dont ask why but i see that i havnt got the vaccum tubes up for the dizzy could this affect my idel
and also can i just t both to one souce on the carb spacer i think its the 3rd nipple in from the radiator side
Last edited by blwfly; 04-07-06 at 11:39 PM.
#12
im gonna try the nova igniters on directfire
ill leave the j109 on trailing for the tach

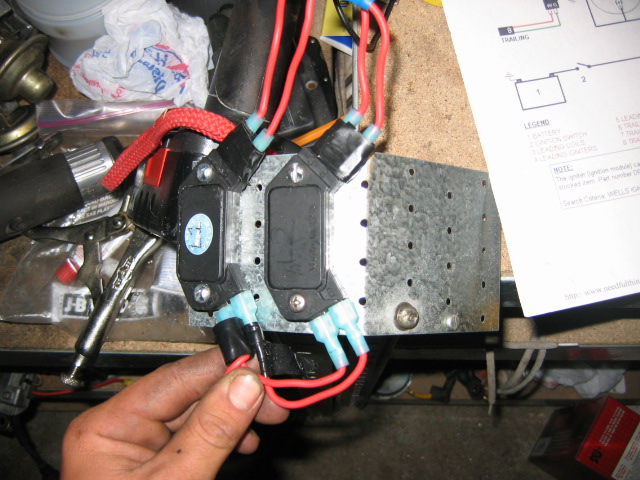

the 1st pic below is how it will be and mounts to the strut horizontal
how can i mount the 3rd coil the the strut?

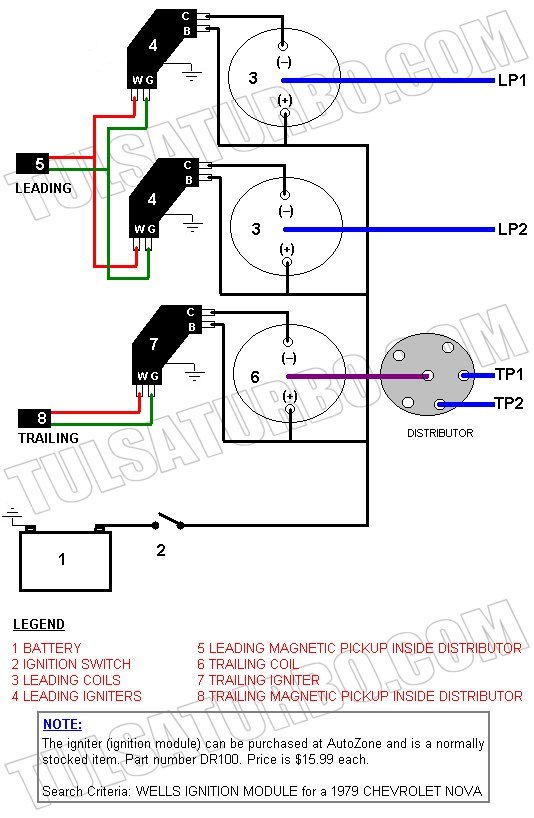

the 2nd pic is the diagram i am following
and what exsactly is the igniton swith the diagram is refering to
ill leave the j109 on trailing for the tach
the 1st pic below is how it will be and mounts to the strut horizontal
how can i mount the 3rd coil the the strut?
the 2nd pic is the diagram i am following
and what exsactly is the igniton swith the diagram is refering to
Last edited by blwfly; 05-01-06 at 12:09 AM.
#17
ok just to let ya know how it went
the car run but very rough and any accelleraton was very difficalt and when reves got up a lil it back fired flames lol but theres no loss
now iv got all the wires cut to length
the j109 dilfids should be very easey
just need some cash
ohh and what a shame i think i blew one of my new accel coils gotta fine me reciet and get another
the car run but very rough and any accelleraton was very difficalt and when reves got up a lil it back fired flames lol but theres no loss
now iv got all the wires cut to length
the j109 dilfids should be very easey
just need some cash
ohh and what a shame i think i blew one of my new accel coils gotta fine me reciet and get another
#18
RX for fun
iTrader: (13)
Originally Posted by Jeff20B
Then why not send some to me instead.
Jeff & Bflywl, Send me a SASE and I will share my junks. In fact, this past weekend, I got tired of pulling dizzy and pocketing the igniters. Jeff, you got to move to SOCAL. We're surrounded with junkyards. There are at least a dozen within LA Counnty.
#19
This really NEEDs to be added to the thread. Switch around the G and W around like jeff20b said: https://www.rx7club.com/1st-generation-specific-1979-1985-18/i-did-gm-igniter-mod-need-help-asap-654018/
#20

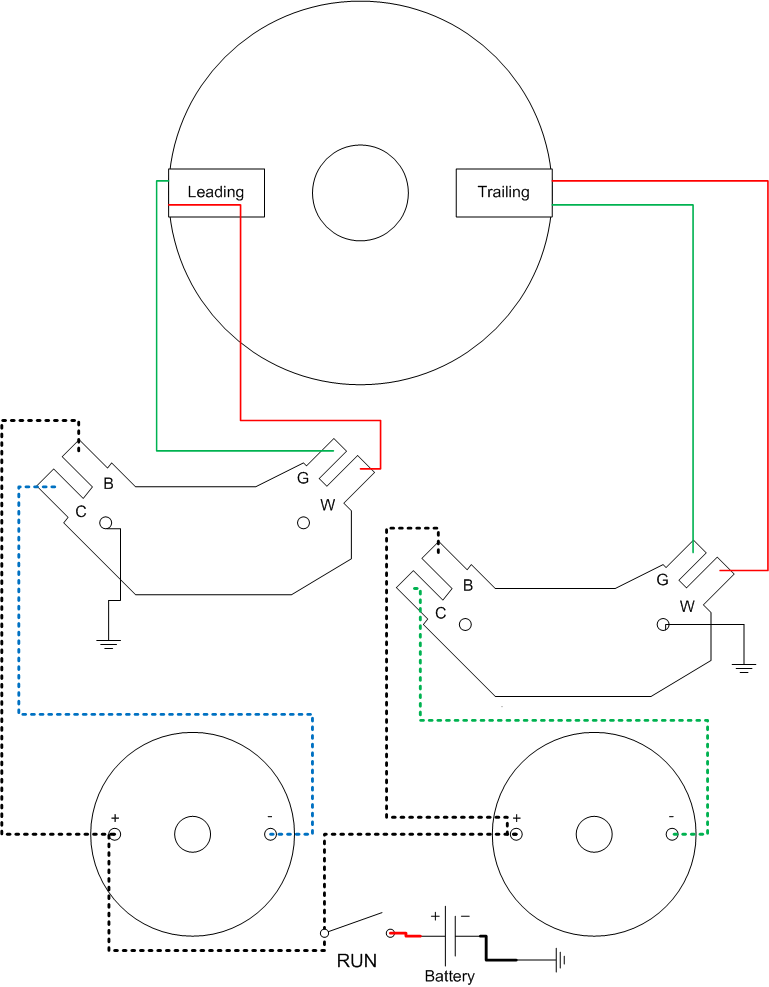

My stepfathers '79 needs ignitiors ('82 engine & dizzy), so I'm going to do a quick HEI swap on it while I'm in town for Christmas. I made a diagram of what I plan to do based on this thread--can anyone confirm it's correct? There seems to be a bit of confusion about which way the G/W trminals hook up. Thanks!
Last edited by Rodder; 12-23-07 at 12:23 PM.
