Headlight assembly pic needed
#1
Admitted 'rexaholic'
Thread Starter
Headlight assembly pic needed
Well this is a tad embarrassing... but a year ago I removed everything from the engine bay of my 79 for paint.
Now that it’s back I’m having trouble reassembling the headlights.
I need a pic of the motor attached to the bucket. Maybe the motor itself too, I disassembled this to clean and put in new bushings.
Now that it’s back I’m having trouble reassembling the headlights.
I need a pic of the motor attached to the bucket. Maybe the motor itself too, I disassembled this to clean and put in new bushings.
#4
Admitted 'rexaholic'
Thread Starter
#5
Admitted 'rexaholic'
Thread Starter
Check out Post #4, should show you what you need.
https://www.rx7club.com/1st-generati...ement-1079436/
https://www.rx7club.com/1st-generati...ement-1079436/
weird ..
#6
Rotary Enthusiast
That happens to me sometimes too, right click on the thumbnail and choose open in a new tab and the photos will show.
The following users liked this post:
LEGALIZECHEY (11-02-20)
Trending Topics
#8
Admitted 'rexaholic'
Thread Starter
Thanks that’s a big help!
QUOTE=yeti;12438752]Damn it! I'm sorry I completely forgot all about this. Once I get out of this meeting I'll get a few shots.
[/QUOTE]
QUOTE=yeti;12438752]Damn it! I'm sorry I completely forgot all about this. Once I get out of this meeting I'll get a few shots.
[/QUOTE]
#10
Admitted 'rexaholic'
Thread Starter

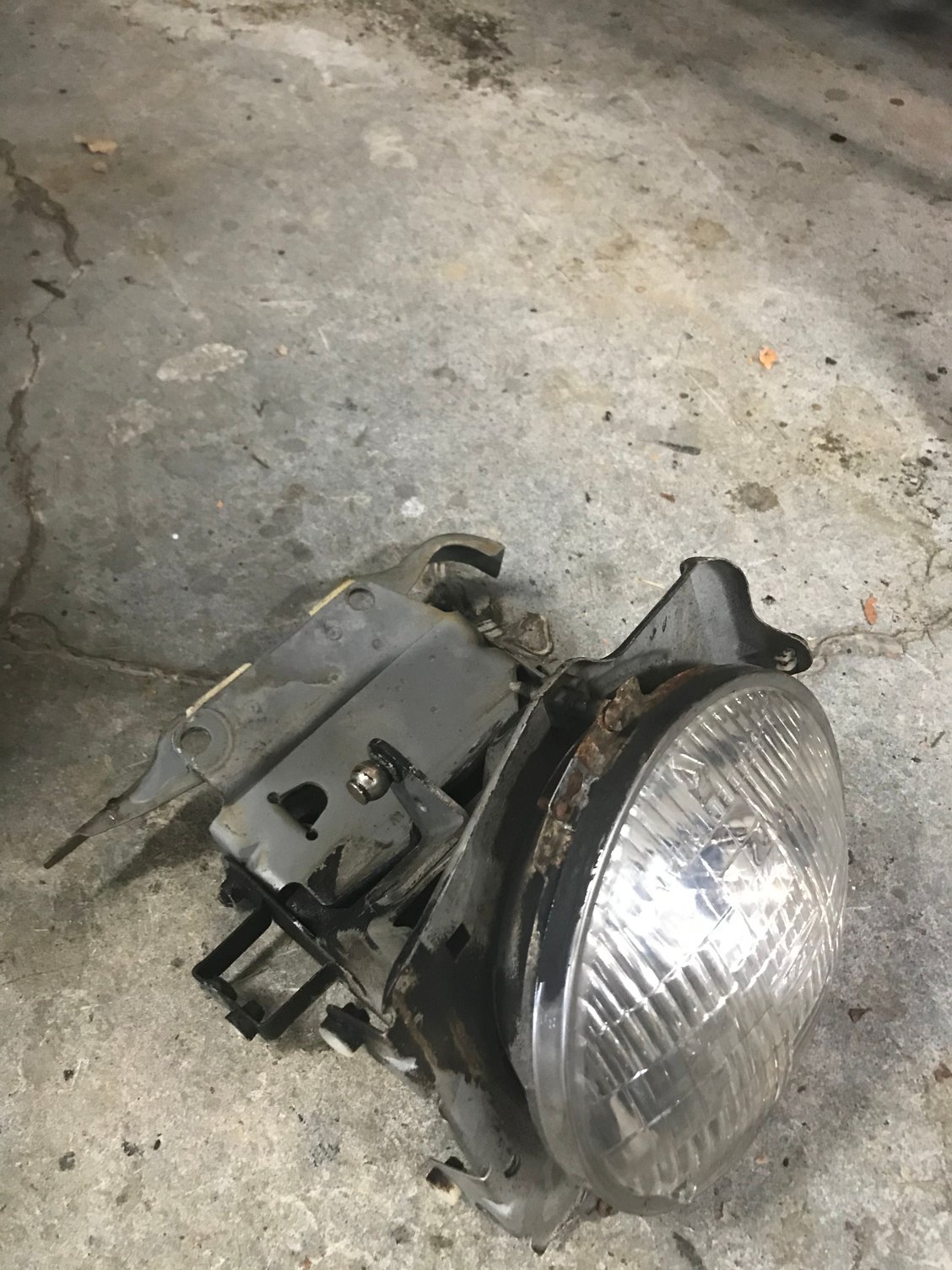

Here’s where I’m at guys. I have the headlight motors installed. Can’t figure out how the headlights themselves install. I’m thinking I’ve got a bracket or something missing. Pics show what I have.
Something stupid I’m overlooking I bet..
Something stupid I’m overlooking I bet..
#11
Moderator
iTrader: (2)
the headlight pictured goes on the driver side. the mechanism pushes the light up from the bottom, and that hook shape follows the hood line around it. being as these r specific to it L & R, the bracket should have something stamped or embossed to designate this.
Last edited by rxtasy3; 11-01-20 at 09:29 AM.
#12
Admitted 'rexaholic'
Thread Starter
[QUOTE=rxtasy3;12441608]the headlight pictured goes on the driver side. the mechanism pushes the light up from the bottom, and that hook shape follows the hood line around it. being as these r specific to it L & R, the bracket should have something stamped or embossed to designate
Got it, thanks a lot!
Got it, thanks a lot!
Last edited by mwpayne; 11-01-20 at 01:51 PM.
