chuyler1

iTrader: (1)

I read through the archived thread, which is locked from further posting.
https://www.rx7club.com/1st-gen-arch...p-pics-478521/

I've got a GSL-SE Oil Cooler which should mount right up to the front of my FB. I've got a custom AN fitting kit from Racing Beat to run new lines. I've got the oil filter pedestal without the beehive.

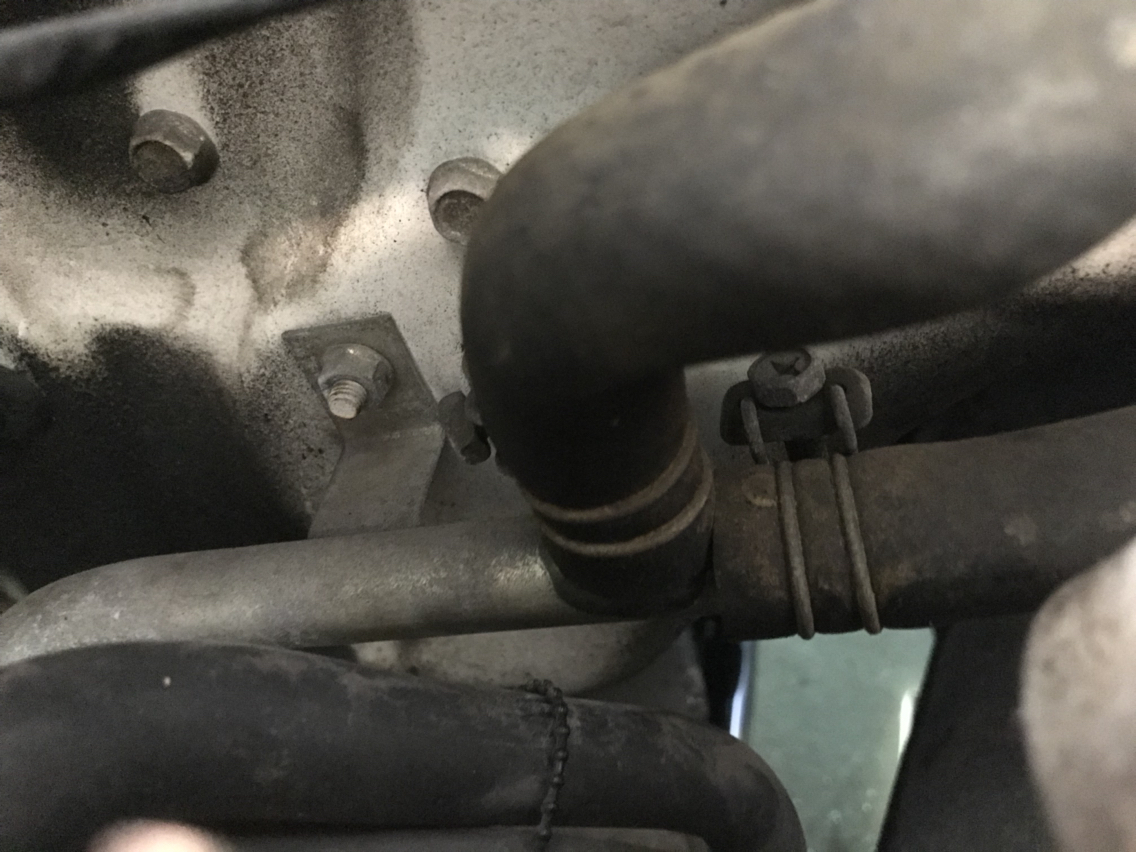

The item that was not discussed in the link above was the rest of the water hoses. There is a T coming out of my block, and a T at the end of the heater hardline. Can I just connect the two, or will that limit pressure to the heater core?

chuyler1

iTrader: (1)

KansasCityREPU

iTrader: (9)

I used caps and clamps on mine the first time I did it. I'm now using a GSL-SE heater hard line that goes on the passenger side. I guess any 1979-1983 one would work.

For the engine "T" if I had to do it again, I'd just weld it closed.

Qingdao

iTrader: (3)

Welding would look best for sure.

If you can't cap it off and run a heater hose to the heater core. Do the same for the heater core ports.

I guess a super easy but strange looking solution would be to run two heater core hoses to the heater core. Might look weird but it will work for sure.

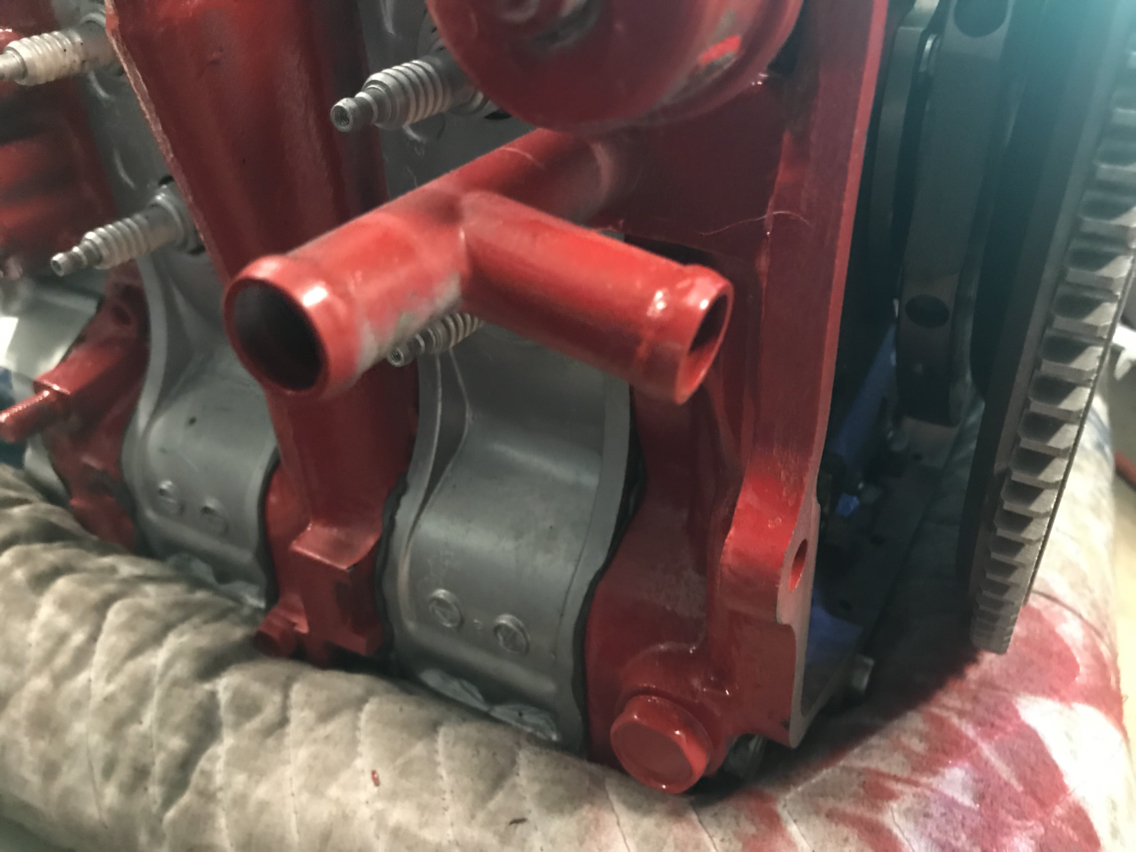

I never knew that the output on the 12A had two water outlets for the engine. Makes sense, but I haven't ever seen one close up like that. All I've ever dealt with are SA 12A's or my own cobbled S5 engine on a 12A car.

rxtasy3

iTrader: (2)

that's for the bee hive oil cooler. i've just cut it off just behind where it makes the tee. still leaves enough to clamp a hose to.

NCross

iTrader: (18)

Jeff20B

iTrader: (13)

You need to flair the end a little bit if you go that route. And two clamps, too.
