FYI--OMP Lines.
#1
84 SE
Thread Starter
FYI--OMP Lines.

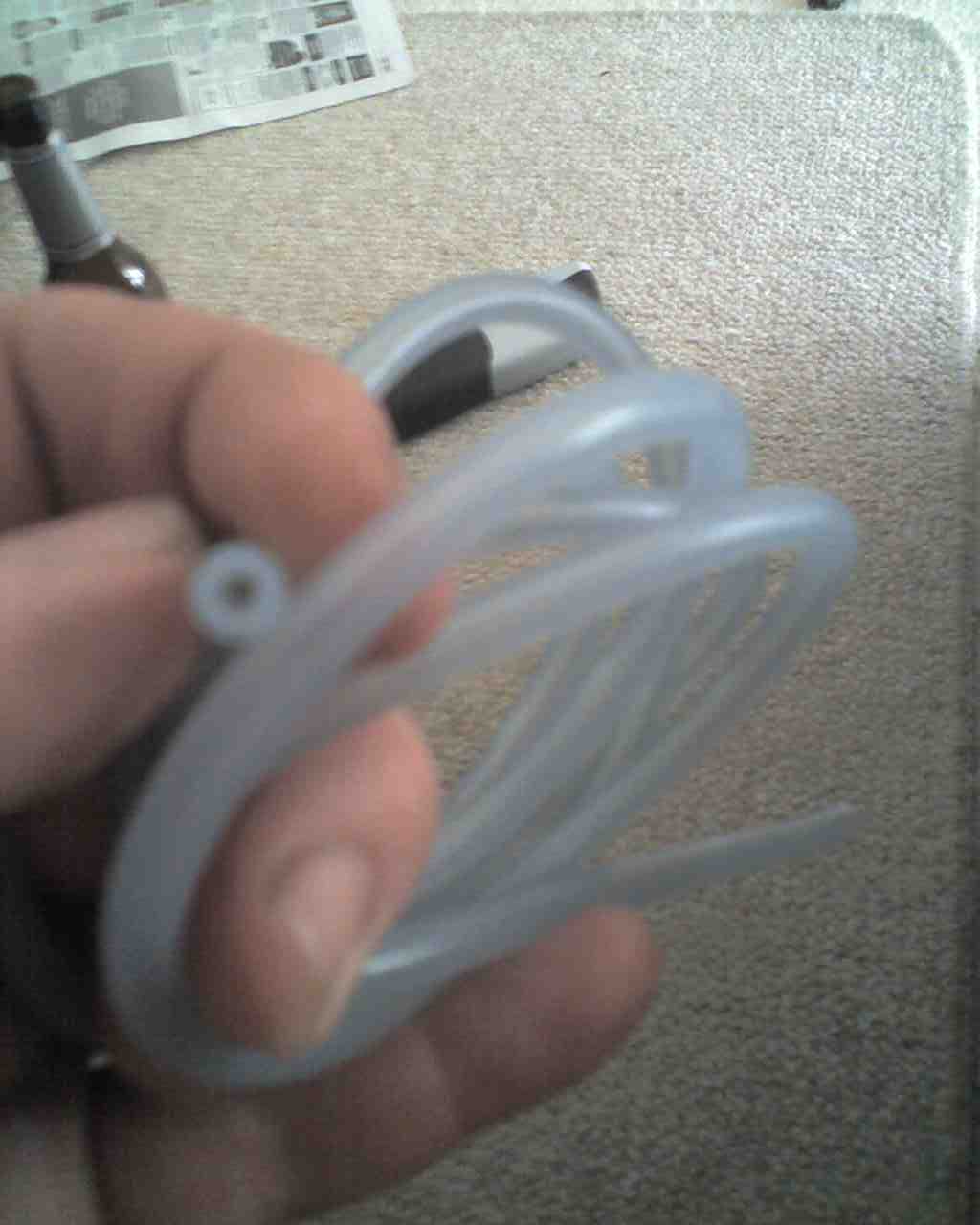

I was looking for a cost-effective way to replace the old, brittle, OMP lines. I went to the local motorcycle shop and purchased the smallest fuel hose that they sell. It's blue in color and and you can see through it. Anyway, it fits so snug on the injector that I didn't even need to use any clamps. So far, no leaks, and I can clearly see the oil working its way through the lines. It cost me $1 per foot. I'm going to put some wire loom over the lines to protect them from heat. I just thought I would pass this on :-)
Mike
Mike
#3
djessence
Were the OMP line, when original, a harder line?
I know its not a high pressure system, but if the originals were hard (then became brittle), I would have reservations about using a soft fuel hose for it. I would also consider clamps as a precation as well, because one of those falls off and you just toasted half your engine. I personally run premix, but thats my thoughts.
I know its not a high pressure system, but if the originals were hard (then became brittle), I would have reservations about using a soft fuel hose for it. I would also consider clamps as a precation as well, because one of those falls off and you just toasted half your engine. I personally run premix, but thats my thoughts.
#5
Moderator
iTrader: (3)
Join Date: Mar 2001
Location: https://www2.mazda.com/en/100th/
Posts: 30,835
Received 2,604 Likes
on
1,847 Posts
Were the OMP line, when original, a harder line?
I know its not a high pressure system, but if the originals were hard (then became brittle), I would have reservations about using a soft fuel hose for it. I would also consider clamps as a precation as well, because one of those falls off and you just toasted half your engine. I personally run premix, but thats my thoughts.
I know its not a high pressure system, but if the originals were hard (then became brittle), I would have reservations about using a soft fuel hose for it. I would also consider clamps as a precation as well, because one of those falls off and you just toasted half your engine. I personally run premix, but thats my thoughts.
the only consideration for a flexible line is to make sure its not rubbing anywhere, or could get caught in a belt or something. even though its simple i have seen even the stockers misrouted to the point where they are sitting on headers and stuff.
#7
weak minds wear the crown
iTrader: (2)
i did something similar except i was in wal-mart at the fish tank section and grabbed some of the medium? (very easy to tell which one you'll need) line it was like 2 bucks for about 8 feet lol, i've had it for about 8 months (daily driver) just make sure it doesn't touch the exhaust or make constant contact with the engine and you should be fine, i don't have clamps it does an awesome job of sealing itself and its very tight fit, but if i see any leak come at the ends that's the first thing that's going on there lol. the good thing about this is that it's a cheap alternative and you can see the oil running very clearly. plus i suppose you can use the extra tubing for cool/clear vacuum hoses lol.
Trending Topics
#8
1st-Class Engine Janitor
iTrader: (15)
The original OMP lines are very small diameter inside, as I recall. Much smaller than the barbs on the OMP or carb. That's probably to insure that if the lines drain down when the engine is not run for a time (and they do, though slowly), they refill and flow quickly after starting.
If line diameter is too large, then the overall volume of the line that has to be filled before any 'comes out the top' will cause a long delay between engine start and first oil delivery. The pump doesn't pump much, less than a ml over several minutes, I think. If your lines have a volume of a few CCs total, thats many minutes of running with no oil to the rotors, each time it's been stopped long enough to bleed down.
Thinner lines also resist bleed-down, since the small amount of oil has ilttle mass relative to it's viscosity & surface area.
If line diameter is too large, then the overall volume of the line that has to be filled before any 'comes out the top' will cause a long delay between engine start and first oil delivery. The pump doesn't pump much, less than a ml over several minutes, I think. If your lines have a volume of a few CCs total, thats many minutes of running with no oil to the rotors, each time it's been stopped long enough to bleed down.
Thinner lines also resist bleed-down, since the small amount of oil has ilttle mass relative to it's viscosity & surface area.
Last edited by DivinDriver; 10-10-08 at 04:48 PM.
#9
84 SE
Thread Starter
You all have legit concerns. I guess time will tell if it was a good mod or not. All I can say is the the inside diameter of this hose is pretty close to stock and it is such a snug fit that a clamp would not do anything. As a matter of fact, once the hose is on, you can even pull it off without some help with a screwdriver. If you route the hoses through the clamps where the stock lines are, there is nothing that it can touch.
Mike
Mike
#11
aint a rotor aint a motor
I used some small surgical grade sillicon hose
cost me like $15 for 3m
exactly the same dia as std OPM hose
its almost clear/slightly opaque, can see the oil
is resistant to high temp, and is extremely flexible
it fits snugly over the nipples but i used the smallest black cable/zip ties
to make sure they dont come loose and also tied the lines together
simmilar to ign wire plastic clips so its neat and wont foul or touch anything
been on for almost 2 years now its perfect!!!!!!
cost me like $15 for 3m
exactly the same dia as std OPM hose
its almost clear/slightly opaque, can see the oil
is resistant to high temp, and is extremely flexible
it fits snugly over the nipples but i used the smallest black cable/zip ties
to make sure they dont come loose and also tied the lines together
simmilar to ign wire plastic clips so its neat and wont foul or touch anything
been on for almost 2 years now its perfect!!!!!!
#12
84 SE
Thread Starter
I used some small surgical grade sillicon hose
cost me like $15 for 3m
exactly the same dia as std OPM hose
its almost clear/slightly opaque, can see the oil
is resistant to high temp, and is extremely flexible
it fits snugly over the nipples but i used the smallest black cable/zip ties
to make sure they dont come loose and also tied the lines together
simmilar to ign wire plastic clips so its neat and wont foul or touch anything
been on for almost 2 years now its perfect!!!!!!
cost me like $15 for 3m
exactly the same dia as std OPM hose
its almost clear/slightly opaque, can see the oil
is resistant to high temp, and is extremely flexible
it fits snugly over the nipples but i used the smallest black cable/zip ties
to make sure they dont come loose and also tied the lines together
simmilar to ign wire plastic clips so its neat and wont foul or touch anything
been on for almost 2 years now its perfect!!!!!!
Sounds good. I love it when people think creatively :-)
#13
my fb is older than me
iTrader: (1)
Join Date: Aug 2004
Location: San Jose
Posts: 690
Likes: 0
Received 0 Likes
on
0 Posts
https://www.rx7club.com/showthread.p...tor+resistance
Rebuilding the OMP oil injection lines
found that on a search. it'll help
Rebuilding the OMP oil injection lines
found that on a search. it'll help
#14
Too many vehicles
Join Date: Jul 2008
Location: Kenosha, Wisconsin
Posts: 139
Likes: 0
Received 0 Likes
on
0 Posts
I used some small surgical grade sillicon hose
cost me like $15 for 3m
exactly the same dia as std OPM hose
its almost clear/slightly opaque, can see the oil
is resistant to high temp, and is extremely flexible
it fits snugly over the nipples but i used the smallest black cable/zip ties
to make sure they dont come loose and also tied the lines together
simmilar to ign wire plastic clips so its neat and wont foul or touch anything
been on for almost 2 years now its perfect!!!!!!
cost me like $15 for 3m
exactly the same dia as std OPM hose
its almost clear/slightly opaque, can see the oil
is resistant to high temp, and is extremely flexible
it fits snugly over the nipples but i used the smallest black cable/zip ties
to make sure they dont come loose and also tied the lines together
simmilar to ign wire plastic clips so its neat and wont foul or touch anything
been on for almost 2 years now its perfect!!!!!!
#15
84 SE
Thread Starter
Where can I get the surgical grade hose? I have stock lines with rubber hose extensions to get them to reach the sidedraft carb. Since the rubber extensions are thicker then the originals, they take a long time to fill up prior to delivering the oil. I am running pre-mix until I repair these, maybe afterward, too, since the actuator linkage is tied off in a fixed position.
Check out this link. These hoses are used in hospital and the heat range is -120 to 500 degrees F. I think it's 1/8". Just make sure that the inside diameter of this hose will fit real tight on the injector nipple.
http://pep-plastic.com/manufacturers...e/slbrdmdx.htm
Mike
#16
84 SE
Thread Starter
BTW---I did not buy my hose from this company, so I have no idea how much it costs. There is a 1-800 number to call to find out the details on the web page.
#18
Too many vehicles
Join Date: Jul 2008
Location: Kenosha, Wisconsin
Posts: 139
Likes: 0
Received 0 Likes
on
0 Posts
#19
aint a rotor aint a motor
sorry cant tell u the exact spec of the stuff but i just went into a couple of rubber/sillicone hose suppliers/wholesalers and busted the chops of the bloke on the counter and scored this stuff
