fuel problems with holley blue pump and reg.
#1
Full Member
Thread Starter
Join Date: Nov 2005
Location: england
Posts: 52
Likes: 0
Received 0 Likes
on
0 Posts
fuel problems with holley blue pump and reg.
hey just installed a holley blue pump and low pressure (1-4psi) reg,
i plummed and wired the pump as stated in the instructions using a relay.
the problem is that the pump blows fuel back into the tank working backwards, i have checked and the 'in' on the pump is connected to the fuel tank and the 'out' is connected to the reg. i checked the polarity on the electrical connections and the black is -ve (says so on the pump) and the red is connected to the switched side of the relay. the relay is switched by the old fuel pump wires.
Were have i gone wrong?
so i swopped the pump round and it pumps the right way now but the pressure is 8psi out of the reg!? (which was 3psi on the stock pump) should i ajust the reg or have i screwed up the install on the pump?
Were do i go from here?
the pump was serviced by holley when last used and was found to be ok.
Any input greatly Appreciated!
cheers Ollie
i plummed and wired the pump as stated in the instructions using a relay.
the problem is that the pump blows fuel back into the tank working backwards, i have checked and the 'in' on the pump is connected to the fuel tank and the 'out' is connected to the reg. i checked the polarity on the electrical connections and the black is -ve (says so on the pump) and the red is connected to the switched side of the relay. the relay is switched by the old fuel pump wires.
Were have i gone wrong?
so i swopped the pump round and it pumps the right way now but the pressure is 8psi out of the reg!? (which was 3psi on the stock pump) should i ajust the reg or have i screwed up the install on the pump?
Were do i go from here?
the pump was serviced by holley when last used and was found to be ok.
Any input greatly Appreciated!
cheers Ollie
#2
you gotta remember that the stock fuel pump only pushes i believe about 3-4 psi. so in that case if the regulator was completly open it won't push no more. so when you put a holley blue on wich pushes op to 15 psi you are going to have to set the regulator again.
#4
Fat chicks hurt the 7
Join Date: Jun 2002
Location: behind you
Posts: 520
Likes: 0
Received 0 Likes
on
0 Posts
The Holley blue comes with a regulator that is not in the 1-4 psi range but more into the 14 psi? range
If you are running a Holley carb you need 6-7 PSI.
Show pics of your regulator.Also if you have a turn diel regulator,I personally wouldnt use them,and always run a gauge to get accurate PSI reading
If you are running a Holley carb you need 6-7 PSI.
Show pics of your regulator.Also if you have a turn diel regulator,I personally wouldnt use them,and always run a gauge to get accurate PSI reading
#6
Full Member
Thread Starter
Join Date: Nov 2005
Location: england
Posts: 52
Likes: 0
Received 0 Likes
on
0 Posts
running su carb that requires 4psi, so am running 1-4 psi reg, im using the holley low pressure reg. i have a guage installed in one output of the reg. ill take pics and try resetting the reg tonight.
Ollie
Ollie
Trending Topics
#8
Full Member
Thread Starter
Join Date: Nov 2005
Location: england
Posts: 52
Likes: 0
Received 0 Likes
on
0 Posts
http://www.bitterendchoppers.com/sit...im-278x425.jpg

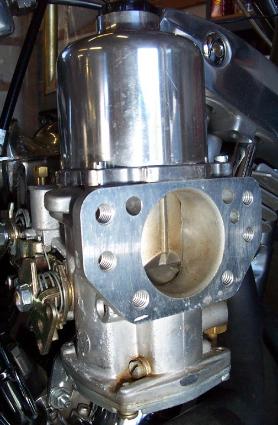

this is an su carb! ok i found part of the problem there is air in the system and the reg works purfectly if you bleed all the air out of the system. if you then reconnect the pipes there is air in it again.
any one had this or know were i messed up?
the pump is very loud also, is this normal?
Ollie
this is an su carb! ok i found part of the problem there is air in the system and the reg works purfectly if you bleed all the air out of the system. if you then reconnect the pipes there is air in it again.
any one had this or know were i messed up?
the pump is very loud also, is this normal?
Ollie
