Sparky69

Ok.. so im sick and tired of my flooding all the time. So i decided to put in a fuel cutoff switch. But I dont know where the wiring is and how to set this up. Has anyone done this before and could give me some advice? i search around but there was no info about this. thaxs

cdrad51

liar.

Sparky69

liar eh? well there is info, but no good info

cdrad51

lol just ******* with ya. Here you go. Read this thread.

https://www.rx7club.com/showthread.p...uel+pump+relay

tempusfugitive

take a look under you driver side passenger bin

Sparky69

ok... i looked at this thread. and the relay has three black wire to it and one blue wire. I have a pic to show where the wires are. Could i use the relay to have a cutoff switch? and how do i go about to rewire?

cdrad51

you throw the relay away, and connect a switch instead. One of the cables out of the switch goes to the upper left connection, the other to the middle low. Now you have complete control over when the fuel pump operates. Capisce?

John64

Siraniko

iTrader: (13)

why throw away a relay. leave it there to protect your circuit. You can either put a switch on the relay's controller (I cant remember the color but its in the on-line diagram) OR put a switch on the negative wire.

1stgen4life

iTrader: (1)

In my 80 there were only two wires. That made it really easy to wire a switch. I guess I'm just lucky.

Hyper4mance2k

iTrader: (40)

you know every one is allways bitching about flooding and all the time I have to help people un flood. I've oned rotaries for 5 years now and I've never flodded one. huh....

Sparky69

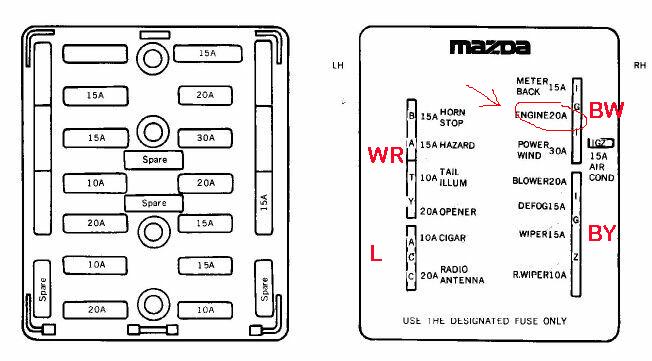

Could i just pull out the fuse to the fuel pump. and if i could is it this one?

candyassmiler

i just unplug a wire from the pump. this wouldnt work on one without the slip on terminals, i suppose.

coldy13

Unbolt the fuse box from the car, cut one of the wires going to the 20A engine fuse, extend the 2 ends of wire to a switch, screw the fuse box back to the car.

bliffle

Good point. The only times I've thought it was flooding it was REALLY the internal water leak that was causing it to start slow. Last time was on the SE. The famous Colloidal Copper fix did the trick!

With the REPU I always start it with the pedal on the floor when it is hot.

B
