Exhaust system setup (diagram)

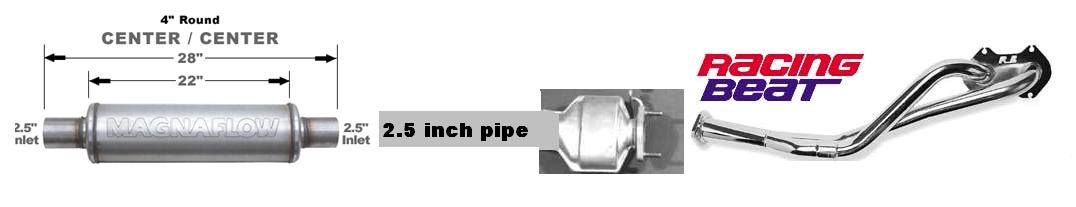

I was wondering if I could get some feedback on this setup, please excuse the rough sketch. The RB header is the collected type and this is for a 12a stock port, possible streetport later on (much later on, lol). Pt 1 is right now so I can mount the header, Pt 2 is for when I can get the money.
Midpipe: 2.5" piping into a midpipe with either a round type magnaflow or a dynomax bullet.
Muffler: 2.5" piping with mandrel bends, over the axle, into a magnaflow round type with downturned tip.
Aluminum heatshield over the header, mounted on exhaust lugs also.
Now for the questions:
1. Should I have some sort of transition pipe from the 2" header outlet into the 2.5" piping?
2. Would the volume/tone of the mid pipe + stock muffler be somewhat equivalent to what I have now (no cats, cheap fiberglass packed resonator, stock muffler)? What about with the new muffler in place?
3. Any problems with the heat shield/anything?
Thanks for your help!
#3
Senior Member
Join Date: Jul 2003
Location: burkesville, kentucky
Posts: 342
Likes: 0
Received 0 Likes
on
0 Posts
make sure your presilencer is ss packed. a magnaflow 4 inch will work. also, id go 2.25. 2.5 is pretty large. its heavier and more expensive. the magnaflow setup will sound great though.
#4
Rotary Enthusiast
wow, you sketch pretty good! I've tried so many times to draw an rx7, but they all turn out like crap.
Anyway, yeah, the setup looks great.
Aren't heat shields supposed to be made of steel, not aluminum, (because Al transfers heat faster), or am I wrong?
Anyway, yeah, the setup looks great.
Aren't heat shields supposed to be made of steel, not aluminum, (because Al transfers heat faster), or am I wrong?
#6
-------------------
iTrader: (5)
Join Date: Apr 2004
Location: Raleigh
Posts: 1,798
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by perfect_circle
that would be pretty good, excet i think turn downs are gay, but as long as your no aiming to please me..your fine
#7
Absolute Power is Awesome
Originally Posted by rbf41182gt
Aren't heat shields supposed to be made of steel, not aluminum, (because Al transfers heat faster), or am I wrong?
Trending Topics
#10
ROTISSERIE ENGINE POWER!
Thread Starter
Join Date: Jul 2003
Location: Winterpeg, Canada
Posts: 245
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by perfect_circle
that would be pretty good, excet i think turn downs are gay, but as long as your no aiming to please me..your fine
Oh, and about the heatshield. I thought aluminum would be good because of its good heat reflectivity and absorption properties. Isn't it able to absorb more heat than steel? Thanks for everyones help.
#11
-------------------
iTrader: (5)
Join Date: Apr 2004
Location: Raleigh
Posts: 1,798
Likes: 0
Received 0 Likes
on
0 Posts
People have done this exhaust system before..pretty much same style. I think it will be too loud. Im running a copy of a Racing Beat Streetport Exhaust system, with dual presilencers, and an Edelbrock RPM Series muffler..its way loud. But I do think I have toasted the presilencers...Ill have to replace those with SS packed Silencers to see if that fixes it, or gets it quieter. Id be intrested in this setup...Just what I was thinking...but maybe you should have 2 presilencers?? The magnaflow is a very well flowing muffler, so it will be loud. Carl
#12
Absolute Power is Awesome
Originally Posted by EonBlue
Oh, and about the heatshield. I thought aluminum would be good because of its good heat reflectivity and absorption properties. Isn't it able to absorb more heat than steel? Thanks for everyones help.
Basically, you're trying to block radiative emissions from the exhaust to the intake. Raidative emissions, for reference, is heat that's transfered from one object to another through electormagnetic waves. The other purpose of the heat shield is to keep the hot air that's coming off the exhaust from swirling around in the engine bay and making it's way into your intake or from heating up the intake of the engine.
The object is to keep the heat shield as cold as possible as it absorbs the radiation from the exhaust and helps redirect the air from the exhaust out under the car instead of back into the engine bay. The conductivity of steel is terrible compared to aluminum, so it will do a better job of keeping the heat on the exhaust side of the shield and keep the intake side cooler.
Also, make sure the shield is as polished as possible. This minimizes the amount of heat that it will absorb through radiation.
