1st Generation Specific (1979-1985) 1979-1985 Discussion including performance modifications and technical support sections

Engine ID

Thread Tools

Search this Thread

Old 06-07-13, 09:40 PM
  #1
Work in Progress

Thread Starter
iTrader: (9)

82FanTC's Avatar

Join Date: Aug 2006
Location: Minneapolis
Posts: 569
Likes: 0
Received 1 Like on 1 Post
Engine ID

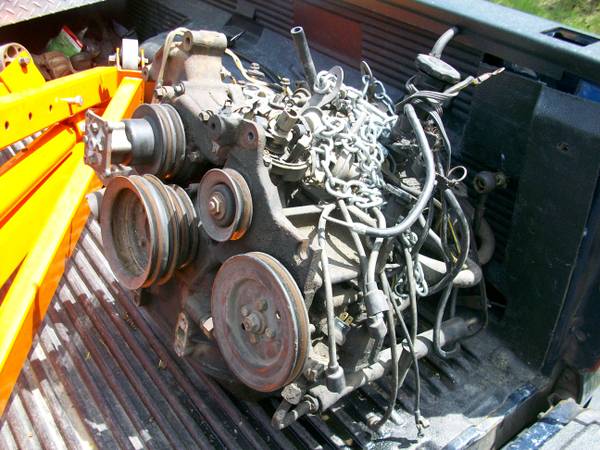

A guy has this 12a listed on craigs list locally. What in the hell are the 2 pullies on the right? I have never seen this before. It looks like the whole front cover is different.
Attached Thumbnails Engine ID-3ka3f33nb5ne5l85m1d5bd246435839e919e2.jpg
Old 06-07-13, 09:44 PM
  #2
Rotary Enthusiast

iTrader: (1)

Nicholas P.'s Avatar

Join Date: Jun 2005
Location: Louisiana
Posts: 1,415
Received 0 Likes on 0 Posts
Idler pulley and power steering pump. Mine has it them, the compressor goes on top above power steering.
Old 06-08-13, 01:31 PM
  #3
Work in Progress

Thread Starter
iTrader: (9)

82FanTC's Avatar

Join Date: Aug 2006
Location: Minneapolis
Posts: 569
Likes: 0
Received 1 Like on 1 Post
when did a vehicle with a 12a get power steering? Add says its out of an '81 Rx7
Old 06-08-13, 02:20 PM
  #4
Moderator

iTrader: (3)

diabolical1's Avatar

Join Date: Feb 2002
Location: FL
Posts: 10,817
Received 306 Likes on 267 Posts
some of the Series 3 cars had power steering. the ad could be wrong.
Old 06-08-13, 02:55 PM
  #5
Out In the Barn


iTrader: (9)

KansasCityREPU's Avatar

Join Date: Mar 2005
Location: KC
Posts: 6,053
Received 1,014 Likes on 800 Posts
Does it still have the flywheel? If so check the number on the flywheel.

81-82 12A = 21
83-85 12A = 31

You can also check just below the oil pedestal to see if there is a "T" that would be used to supply water to a late model 83 84/85 beehive oil cooler. If it does not have the "T", then it's not a late model 83 or 84/85
Old 06-08-13, 04:28 PM
  #6
Moderator

iTrader: (3)

j9fd3s's Avatar

Join Date: Mar 2001
Location: https://www2.mazda.com/en/100th/
Posts: 30,825
Received 2,591 Likes on 1,840 Posts
Originally Posted by 82FanTC
when did a vehicle with a 12a get power steering? Add says its out of an '81 Rx7
its was optional on the 84-85 GSL and GSL-SE's
Old 06-08-13, 06:23 PM
  #7
Always Wanting to Learn

iTrader: (49)

DreamInRotary's Avatar

Join Date: Aug 2011
Location: Cambridge, Minnesota
Posts: 3,078
Received 42 Likes on 40 Posts
I saw the ad as well. Couldn't hurt to pick it up for spare housings, they aren't making any more!
I guess I didn't know that they gave people the option for PS in S2 cars, must have been dealer installed correct?
Old 06-08-13, 11:14 PM
  #8
Lapping = Fapping

iTrader: (13)

Jeff20B's Avatar

Join Date: Aug 2001
Location: Near Seattle
Posts: 15,725
Received 70 Likes on 64 Posts
84-85 cars only. The red car has it. Glad the brown one doesn't.
Old 06-09-13, 09:48 AM
  #9
Moderator

iTrader: (3)

j9fd3s's Avatar

Join Date: Mar 2001
Location: https://www2.mazda.com/en/100th/
Posts: 30,825
Received 2,591 Likes on 1,840 Posts
Originally Posted by lindahlish
I saw the ad as well. Couldn't hurt to pick it up for spare housings, they aren't making any more!
I guess I didn't know that they gave people the option for PS in S2 cars, must have been dealer installed correct?
S3, only, factory installed
