Hey Guys,
Can anyone send me pictures of the electrical stuff behind the dash, more so behind the radio and glovebox area? I'm trying to figure out if I'm missing a harness or what, because things just don't seem to be fitting together.

Thanks

64mgb

iTrader: (1)

I have the dash out of both my GS project car and my GSL-SE parts car, so I'll try to get some pictures. It'll be sometime tomorrow though...I am FINALLY going to play golf in a little while

Rich

dj55b

iTrader: (2)

If you could get it by tomorrow that would be great. It would probably have to be out of the GSL-SE as it has the power window harness in there too and what not .

bugman1973

what car us this for?

Scott1982

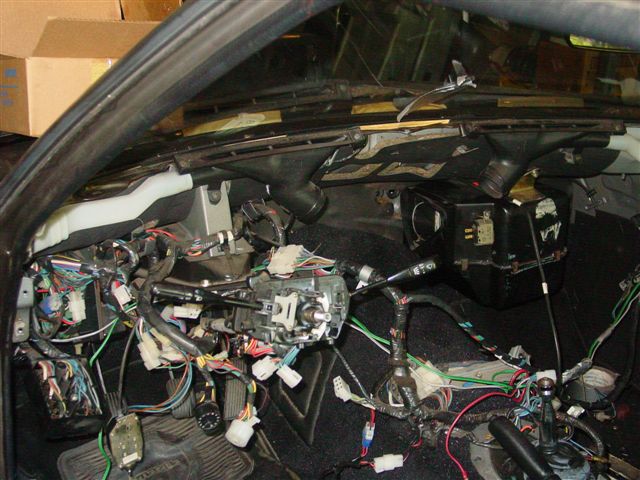

Is this what you need (82 GS)

64mgb

iTrader: (1)

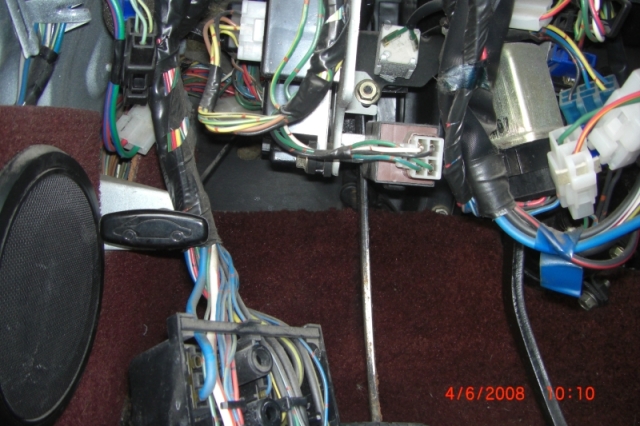

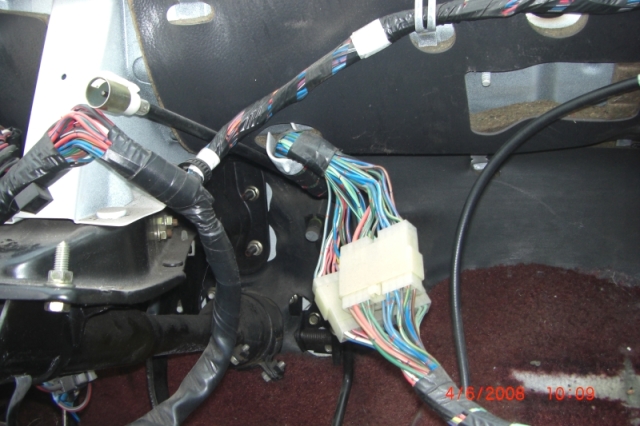

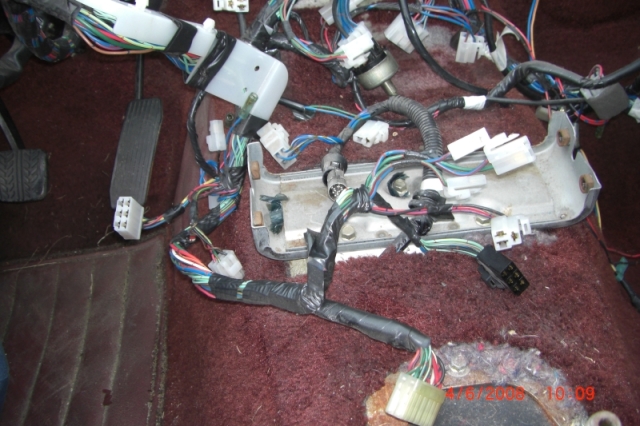

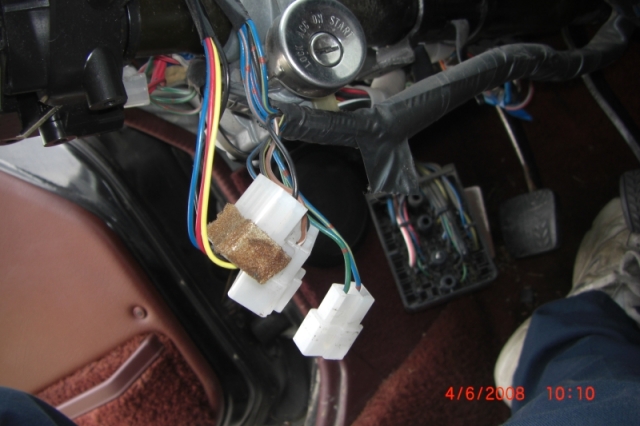

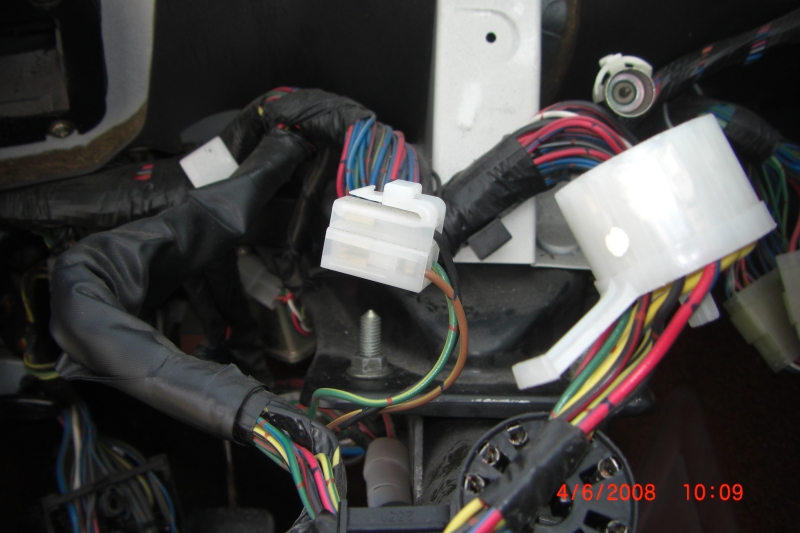

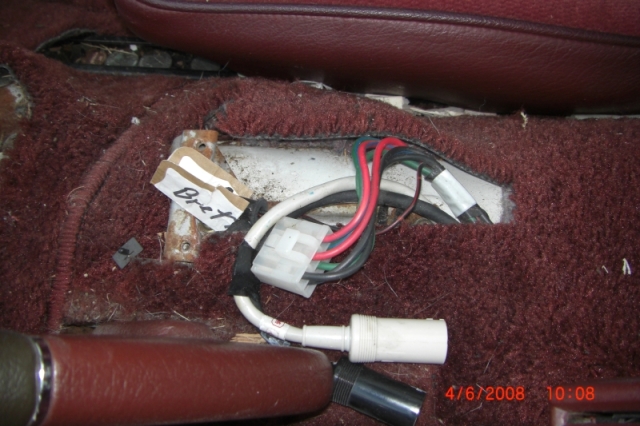

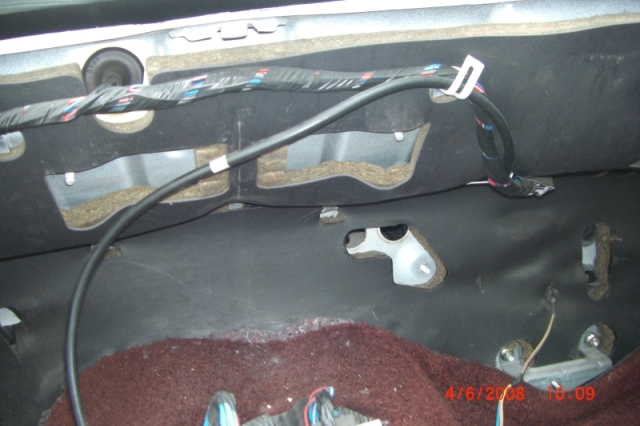

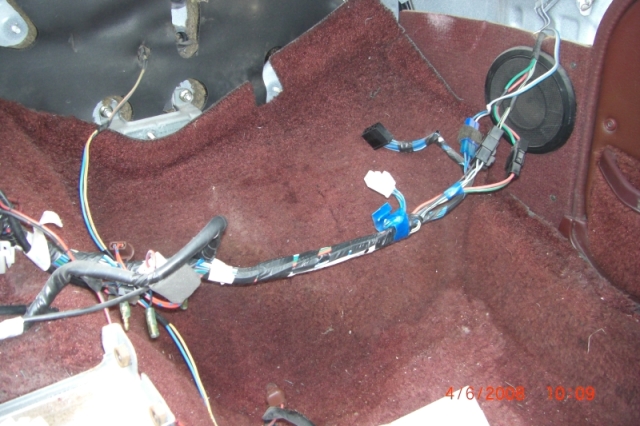

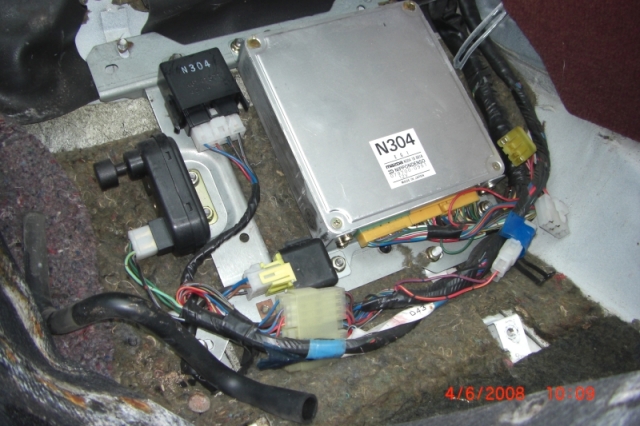

OK...here are the first 4 pictures. Let me know if you need more detail on anything.

Rich

64mgb

iTrader: (1)

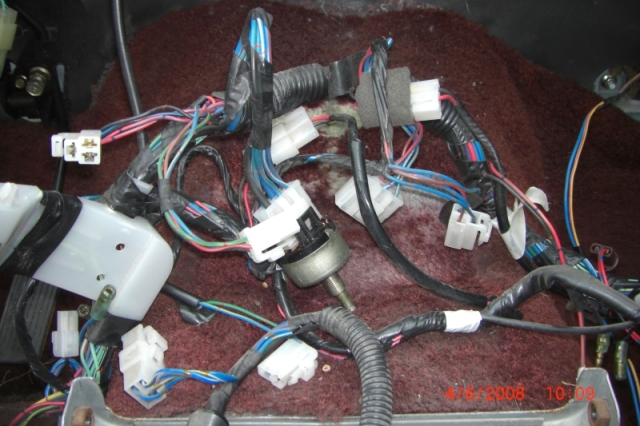

Next 4 pictures...

Rich

64mgb

iTrader: (1)

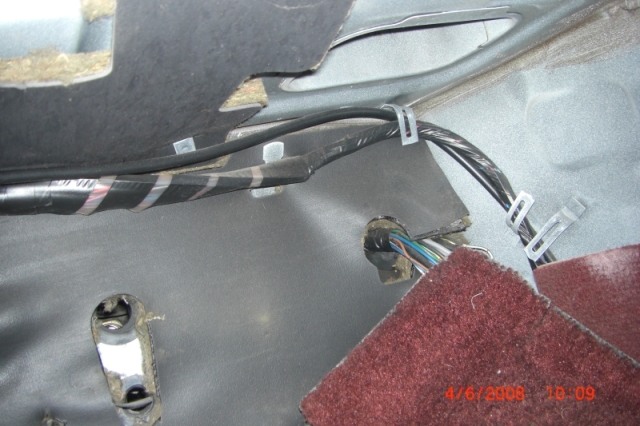

...and the final 3 pictures.

I had to resize them pretty small to get the under the 250k limit, and still have the originals that are much larger, so let me know if you need to see any of them.

Rich

dj55b

iTrader: (2)

Post number 7, picture number 2, is there a small harness about 2 feet or so that goes from the power window, speaker, ... area to the center?

64mgb

iTrader: (1)

Sorry dj55b - I haven't been able to get back out there to take a look and get a fix on what you're asking. Have you checked the factory wiring diagram? They idientify which harness each connector is in.

Rich
