Electric Fan Mounting Question
#1
Full Member
Thread Starter
Electric Fan Mounting Question
Hey all,
I have an electric fan rated at 2500 CFM mounted on the front of the A/C condenser in push config. I am afraid sitting in traffic the fan wont push enough to cool the car down on the 90+ days here in TN. The issue I have is the fan is to thick to fit between the radiator and the front pulley in order to keep A/C on the car.
Can I move the A/C condenser forward to fit the fan in front of the radiator instead or am I going to run into clearance issues there as well?
Sadly I can't look at the car and figure this out since I can only work on the car on Fridays at my buddy's house.
If anyone has done this before do you have photos.
Thanks
I have an electric fan rated at 2500 CFM mounted on the front of the A/C condenser in push config. I am afraid sitting in traffic the fan wont push enough to cool the car down on the 90+ days here in TN. The issue I have is the fan is to thick to fit between the radiator and the front pulley in order to keep A/C on the car.
Can I move the A/C condenser forward to fit the fan in front of the radiator instead or am I going to run into clearance issues there as well?
Sadly I can't look at the car and figure this out since I can only work on the car on Fridays at my buddy's house.
If anyone has done this before do you have photos.
Thanks
#5
84SE-EGI helpy-helperton
You could also mount the electric fan in front of the Radiator and pushing air through it, but it would need to be between the A/C condenser an the radiator for that to work. Otherwise, your 'pushed' air will get through the condenser and then bypass the radiator entirely. The best way to do this is to use plastic sheet as a 'shroud' around the fan to space the condenser in the middle. This then sucks intake air through the condenser, and blows it through the radiator.
The side-benefit is that your A/C will probably work better, as the condenser would have much more airflow than the stock design.
I put a KOYORAD 2-row in my 84SE a few months back, and as you mention, the aluminum radiators are much thicker than stock. My engine-driven fan (and clutch) is a lot closer to the radiator fins with the aftermarket radiator, but no problems as there's still plenty of clearance using the stock fan assembly.
The side-benefit is that your A/C will probably work better, as the condenser would have much more airflow than the stock design.
I put a KOYORAD 2-row in my 84SE a few months back, and as you mention, the aluminum radiators are much thicker than stock. My engine-driven fan (and clutch) is a lot closer to the radiator fins with the aftermarket radiator, but no problems as there's still plenty of clearance using the stock fan assembly.
#7
Moderator
iTrader: (3)
Join Date: Mar 2001
Location: https://www2.mazda.com/en/100th/
Posts: 30,780
Received 2,564 Likes
on
1,824 Posts
i ran into this with my 20B FC, and i ran two fans, offset.
Trending Topics
#8
Full Member
Thread Starter
Will get photos next time I am with the car. My main question was is there a way to move the A/C condenser forward?
That was my plan all along. Just not sure how much you can move it since it is hard lines and all.
That was my plan all along. Just not sure how much you can move it since it is hard lines and all.
#10
I ran a black magic fan from Summit racing for awhile on an 85 GSL, mounted in puller configuration behind the radiator. Pulled air through condenser and radiator. I removed the spacer for the mechanical fan and had enough clearance. Worked fine in lower Alabama summers (LA). However I went back to the mechanical fan after the electric fan motor quit. Sounds like you have already tried to make it work inside the engine compartment and could not make it work.
#12
Full Member
Thread Starter
I measured the other day. I have 3" to radiator fins and 2 3/4" at the narrowest sport where the seam weld is on the radiator. I am going to try to move the A/C forward and if I can't then I will use a extra fan I have laying around that will fit between the engine and radiator. Sadly it only pulls ~1300 CFM but with the other fan pushing it shouldn't matter.
#13
Senior Member
Having both a pusher and puller is a bad idea. Find a decent slim fan from Spal automotive. They're bound to have some that fit fine with enough air movement.
I recommend a Davies Craig fan controller also. Cheap and awesome units!
I recommend a Davies Craig fan controller also. Cheap and awesome units!
#14
Rotary Freak
iTrader: (1)
Clearance to SPAL Fan

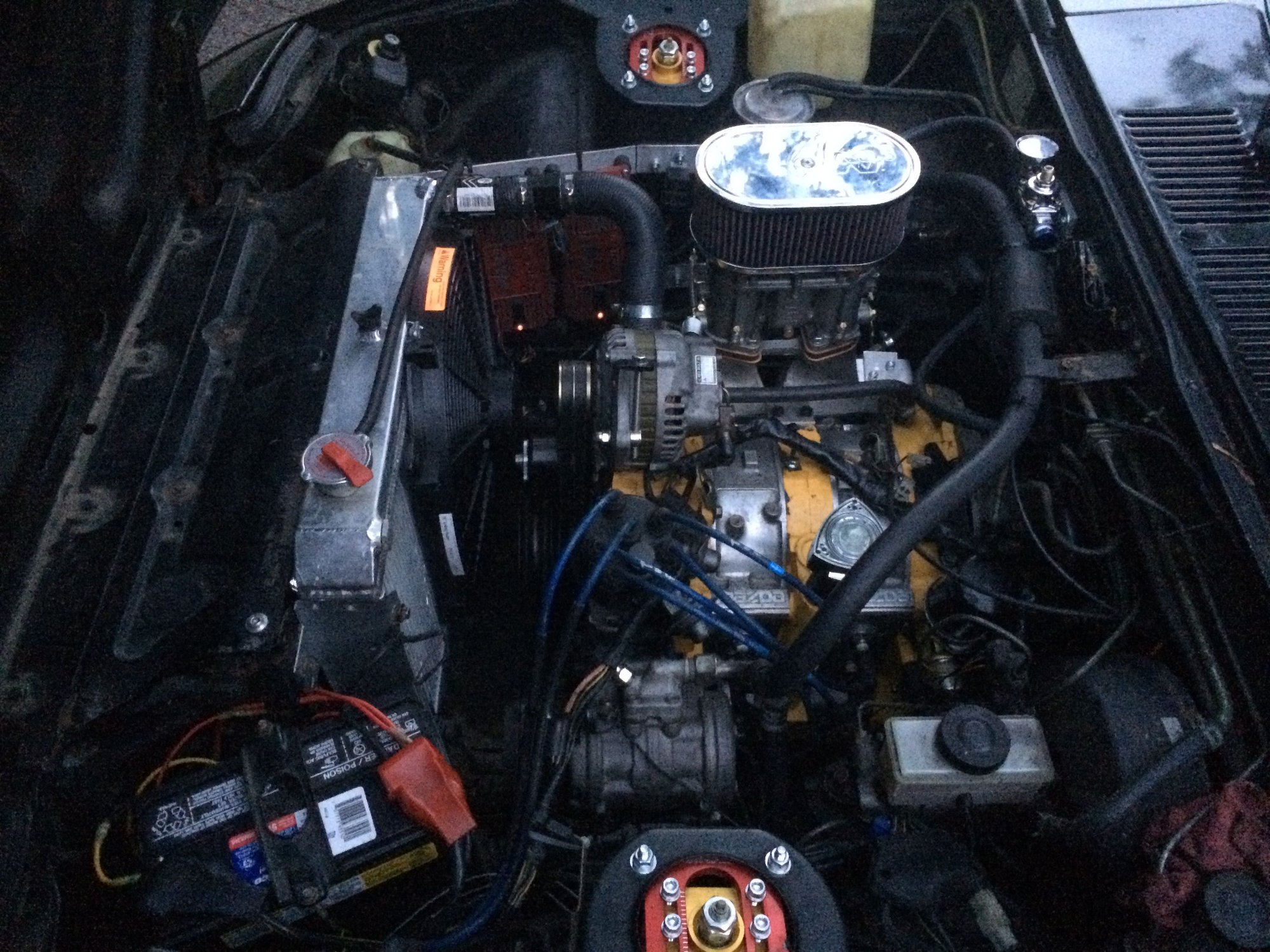

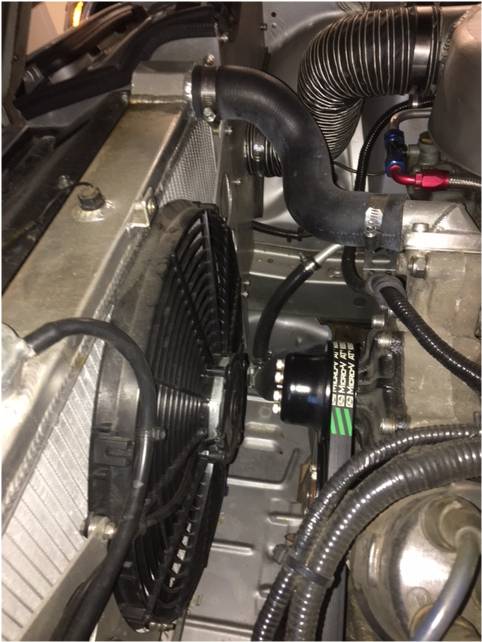

This is my 12A with an aftermarket rad that's significantly thicker than OEM. As you can see, there's plenty of clearance. The fan is a SPAL 30101516 -- it's 16 inches in diameter and less than 2.5" thick. It seems to flow plenty of air. SPAL is a good aftermarket choice because they're also an OEM supplier (better quality).
Instead of a fan controller, I use a switch that I screwed into the rear of the thermostat housing (Jet 60601). It closes at 195deg and opens at 185 deg. With our OEM 180 deg thermostat, this is a good setup. The fan only comes on if I'm stationary for a long time, and the window between closed and open temps keeps it from oscillating between fan on and fan off. You'll need a good relay too, of course.
Instead of a fan controller, I use a switch that I screwed into the rear of the thermostat housing (Jet 60601). It closes at 195deg and opens at 185 deg. With our OEM 180 deg thermostat, this is a good setup. The fan only comes on if I'm stationary for a long time, and the window between closed and open temps keeps it from oscillating between fan on and fan off. You'll need a good relay too, of course.
#15
Full Member
Thread Starter
well pulled the push fan off and got a Flex-a-lite 118 fan. It is skinny enough to mount on the motor side of the radiator. Took some fab work on the fan itself to fit but the fan actually kicks on and off now and the bottom of the radiator is so cool you can grab it.
