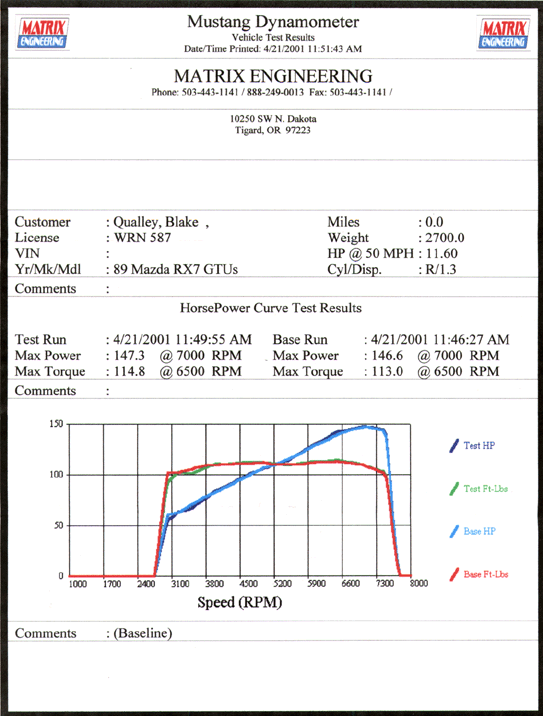

dyno sheet
#1
Senior Member
Thread Starter
dyno sheet
s5 tii motor (ex turbo)
street port
weber 48 ida
rb header and 'street' system
850 miles since rebuild
first run was a base run, second run got slightly higher results after adjusting the timing. Never touched the jets (no spare ones handy)
so...117kw (157hp) at the wheels is not shooting the lights out. But its no poor result either. It is quite driveable as a daily driver and the power band comes in nice and early...from 3500 onwards. We peaked the test at 7,500 in third. At that point the dyno was reading 138kmh (86mph)
street port
weber 48 ida
rb header and 'street' system
850 miles since rebuild
first run was a base run, second run got slightly higher results after adjusting the timing. Never touched the jets (no spare ones handy)
so...117kw (157hp) at the wheels is not shooting the lights out. But its no poor result either. It is quite driveable as a daily driver and the power band comes in nice and early...from 3500 onwards. We peaked the test at 7,500 in third. At that point the dyno was reading 138kmh (86mph)
#4
'Nothing like a rotary'
Join Date: Jul 2006
Location: worcester, mass
Posts: 464
Likes: 0
Received 0 Likes
on
0 Posts
what is the wheels hp/and hp for a stock first gen, and how much do u think i havein mine if i have a kand n filter, noa/c, no p/s(ofcourse) headers,highflow cat, rb power pulse muffler, blaster 2 coils, ngk spark plugs and mech secondaries?if anyone knows please tell me. my friends ask me how much wheel hp i have and how much stock and idk. so thanks for the info anywys,thanks.
#5
Senior Member
Thread Starter
Jon
yeah, still tii rotors in there - 9.0 compression.
from the manuals the n/a rotors have 9.7 compression
just as an idea, what sort of hp do you think those rotors would yield ?
do you think like +10% or more significant, at like +20% ?
yeah, still tii rotors in there - 9.0 compression.
from the manuals the n/a rotors have 9.7 compression
just as an idea, what sort of hp do you think those rotors would yield ?
do you think like +10% or more significant, at like +20% ?
#6
Senior Member
Thread Starter
just had a look thru the manuals
stock tii is 200hp at the flywheel. stock s5 na is 160hp at the flywheel
assuming 17% drivetrain loss, the tii comes in at 166rwhp and the s5 na at 133rwhp
i'm at 157rwhp...so significantly better than a stock s5na and less than 10hp shorter than a stock tii, which i think is impressive considering i'm ex the turbo !
stock tii is 200hp at the flywheel. stock s5 na is 160hp at the flywheel
assuming 17% drivetrain loss, the tii comes in at 166rwhp and the s5 na at 133rwhp
i'm at 157rwhp...so significantly better than a stock s5na and less than 10hp shorter than a stock tii, which i think is impressive considering i'm ex the turbo !
Trending Topics
#8
Originally Posted by craigw1
just had a look thru the manuals
stock tii is 200hp at the flywheel. stock s5 na is 160hp at the flywheel
assuming 17% drivetrain loss, the tii comes in at 166rwhp and the s5 na at 133rwhp
i'm at 157rwhp...so significantly better than a stock s5na and less than 10hp shorter than a stock tii, which i think is impressive considering i'm ex the turbo !
stock tii is 200hp at the flywheel. stock s5 na is 160hp at the flywheel
assuming 17% drivetrain loss, the tii comes in at 166rwhp and the s5 na at 133rwhp
i'm at 157rwhp...so significantly better than a stock s5na and less than 10hp shorter than a stock tii, which i think is impressive considering i'm ex the turbo !
I am not one of those people who subscribe to the tenuous theory of a fixed driveline loss. Lower HP cars lose a higher percentage; high HP cars lose a lower percentage. And every car is unique unto itself. Still, it's not bad to guestimate that way, but don't go putting any faith in the results. Rear wheel power is the only kind you can use, so it's usually better not to work backwards. Far better to find out (from actual tests) what the stock vehicle did at the rear wheels and compare to that, instead of extrapolating a fuzzy guess at how they compare at the FW. Just my $0.02.
#9
Senior Member
Join Date: Jan 2004
Location: Pittsburgh/Johnstown, PA
Posts: 476
Likes: 0
Received 0 Likes
on
0 Posts
Believe it or not, the high compression rotors won't do THAT much for overall power if the engine is tuned properly in both cases. Likely around 5%. They will, however help out with fuel economy and drivability. The reason for this is that if you have lower compression rotors, you can run more ignition advance at WOT, producing a bit of extra power, making up for the lower compression. At part throttle, your timing will be hardly changed, if at all so you will notice a benefit from higher compression. Again, this is assuming that you are using a full standalone with timing control and exerting a great deal of time and detail to tuning your ignition timing and fuel maps using at minimum a wideband and an EGT sensor for each rotor. For a carb and distributor setup, you may notice a greater benefit with the higher comp rotors.
#10
Just for a comparison...
My GSLSE is mostly stock, just intake and the cats replaced with a straight pipe. It puts down 125 RWHP. So, you've got me beat by a bit, and my car is a little more powerful than most GSLSEs, and quite a bit more than the 12a stock first gen.

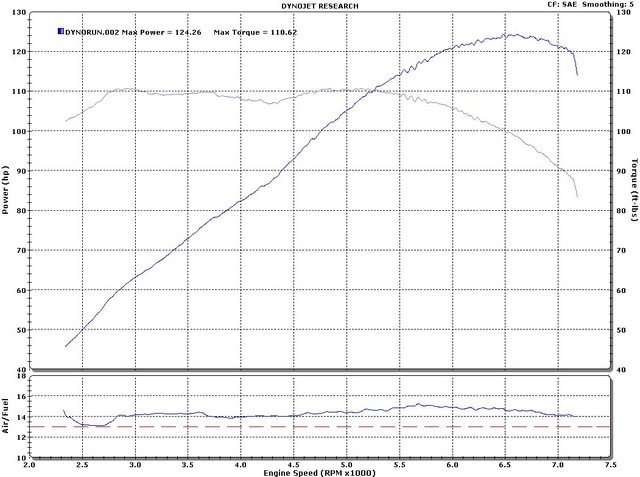

Here is my dyno:
My GSLSE is mostly stock, just intake and the cats replaced with a straight pipe. It puts down 125 RWHP. So, you've got me beat by a bit, and my car is a little more powerful than most GSLSEs, and quite a bit more than the 12a stock first gen.
Here is my dyno:
#11
Lives on the Forum
iTrader: (5)
I think you have a great setup, and with those rotors you're ok. At least you have the option of adding a turbo someday. I run the same rotors and 6 port housing with my camden in my 85SE http://media.putfile.com/compilation2-57 , I have a smilar hp curve but a much better torque curve. Stick with what you've got and build from there year by year, first standalone and efi one year. Then stock turbo the next. Then upgrade the turbo the next. Every winter I do something, my budget is $1000 or so per year. This winter will bring about bridgeporting http://media.putfile.com/short-bridge and a small shot of nitrous. So far I've accumulated 4 different carbs and still want another as well, they all have different characteristics. 3 holleys, 1 demon and an edlebrock. I want to find an old school big spreadbore carter to rebuild and modify.
#12
Lives on the Forum
iTrader: (5)

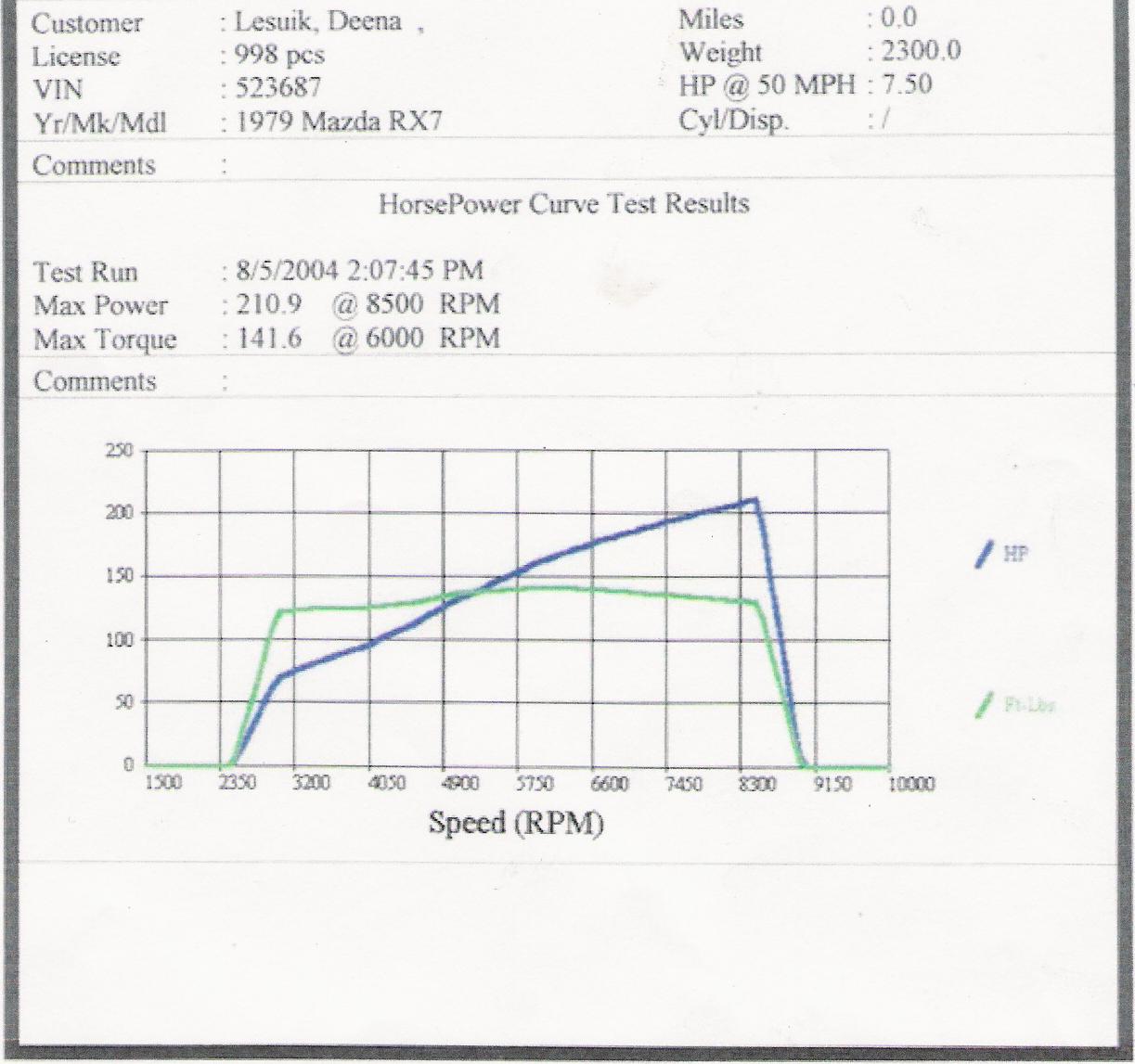

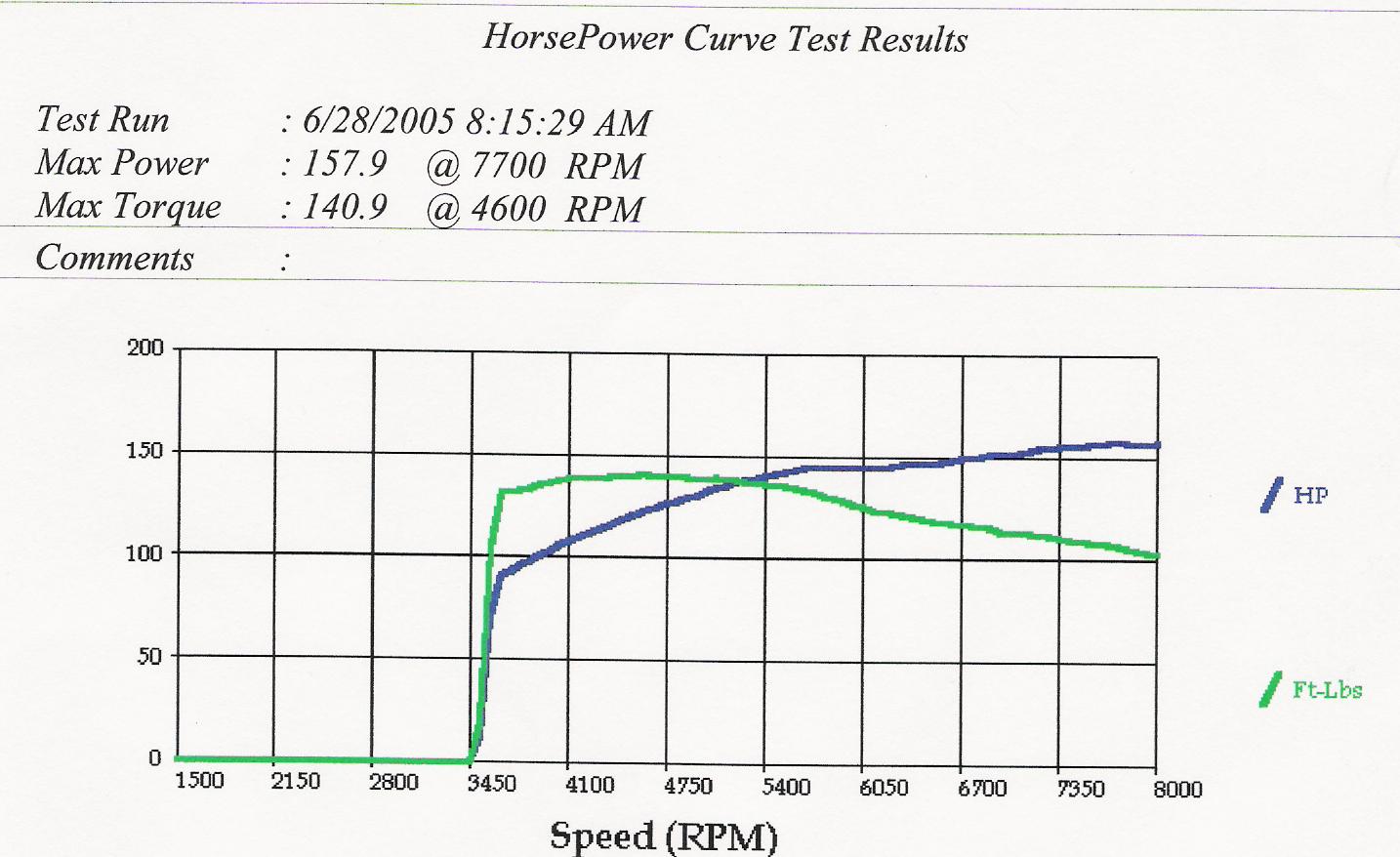

Attached is codeblues camden dyno running efi and standalone, this is probably about the best I'll be able to achieve unitl I bridgeport mine. My mustang dyno sheet is also attached but this was from last year, many changes since and expect better results if I test it this year.
#13
Lives on the Forum
iTrader: (5)
Last years dyno had conservative timing and boost and less carb than I run now. I am much stronger above 500 than last year where i started to fall off. You see codeblues climbs steadily and that is where the standalone and unlimited fuel makes a difference. I can throw on my holley 850 and she moves great on top end and throttle response but you lose on economy and cruise. Since the throttle is barely open when cruising I have to enrich the idle circuit to keep things smooth. My smaller edelbrock (used on last years dyno) is by far the most streetable and economical carb but everything has some drawbacks.
#16
Senior Member
Thread Starter
Originally Posted by rotor vs. piston
what gears do you have to only be doing ~86mph in 3rd at 7500?
its a tii box with custom driveshaft and original 12A diff
#17
Function > Form
Join Date: Nov 2002
Location: Catonsville MD (baltimore suburb)
Posts: 10,890
Likes: 0
Received 3 Likes
on
1 Post
I think so. Granted we don't have the same gears, but close, in third I'd top out around 100mph at 7200rpm with my 4.09 -SE rear. But then too, I have 225-50-16's on the rear which helps.
#18
RX for fun
iTrader: (13)
size of your venturies, main, air and e-tube??
Originally Posted by craigw1
s5 tii motor (ex turbo)
street port
weber 48 ida
rb header and 'street' system
850 miles since rebuild
first run was a base run, second run got slightly higher results after adjusting the timing. Never touched the jets (no spare ones handy)
so...117kw (157hp) at the wheels is not shooting the lights out. But its no poor result either. It is quite driveable as a daily driver and the power band comes in nice and early...from 3500 onwards. We peaked the test at 7,500 in third. At that point the dyno was reading 138kmh (86mph)]
street port
weber 48 ida
rb header and 'street' system
850 miles since rebuild
first run was a base run, second run got slightly higher results after adjusting the timing. Never touched the jets (no spare ones handy)
so...117kw (157hp) at the wheels is not shooting the lights out. But its no poor result either. It is quite driveable as a daily driver and the power band comes in nice and early...from 3500 onwards. We peaked the test at 7,500 in third. At that point the dyno was reading 138kmh (86mph)]
#20
Senior Member
Thread Starter
Originally Posted by wackyracer
size of your venturies, main, air and e-tube??
you'll see i started a seperate thread about the jettings.
the engine builder, another tuner and myself debated some charts today along with the base run we did yesterday
the jetting is currently as follows :
200 main, 150 air and F11 emulsion tube
also, 36mm choke
our first collective comment was that we should increase the choke to 38mm
then secondly, a reduction in main jet to say 160 and an increase in air jet to say 190
what are your thoughts on this ?
thanks
