Distributors and Ignition

Did some testing on distributor pickups and ignition configuration:
RX-7 first gen distributor tests at RX for your 7 October 12, 2016
RX-7 first gen distributor testing
Key observations:
1.MSD recommends using Mazda OEM ignitors to trigger their units. This gives a nice square trigger pulse. When doing this:
a)Use MSD red to ignitor +
b)MSD white to ignitor -
2.When using Mazda magnetic pickups to trigger MSD boxes, need to use MSD polarity which is the reverse of Mazda factory polarity, thus:
a)MSD purple connects to Mazda green lead from pickup
b)MSG green connects to Mazda red lead from pickup
3.When using an oscilloscope to observe signals, check:
a) for electrical noise in test setup on power supply to ignitors and on power supply to laptop/oscilloscope
b)Make sure the scope sampling rate is fast enough, need 5 millisec per division or faster

See attachment for full details
Attached Files
File Type: pdf
eaviles105 is offline
Reply With Quote
Old 09-06-17, 07:47 PM
  #2
Waffles - hmmm good
iTrader: (1)

t_g_farrell's Avatar

Join Date: Jul 2004
Location: Huntersville, N.C.
Posts: 6,877
Thanked 9 Times in 9 Posts
Nice writeup. Confirms some things I think.

Anyway, we know 80 reluctor is a poor design compared to the 81-85 design. I found this out the hard way way doing my TFIDFIS solution a few years ago.
t_g_farrell is offline
Reply With Quote
Old 09-07-17, 07:35 AM
  #3
Full Member

Toruki's Avatar

Join Date: Oct 2010
Location: MA USA
Posts: 247
Thanked 1 Time in 1 Post
Interesting stuff, great to see quantification of the signals from the pickups and the J109's themselves.

I gather you are going to use J109's to trigger MSD 6A/6AL boxes? I'd be curious to see the difference between the J109 overlayed with an MSD output.

I am looking at this test run:




Like you said, the J109 looks like it outputs a decent enough square wave, getting to 0V in about 2 mSec. I wonder if the MSD box just gets there faster and if that's "better". But if MSD is using the J109 to trigger, I don't see how that would be possible, as the MSD would be dependent on the J109. Maybe at that point you have to mess with timing.

It would be cool to see oscope ch1 on the J109 and ch2 on the MSD.

It's interesting, also, that the J109's can go a bit negative (looks like about - 0.25V counting the divisions to 12V)
Toruki is offline
Reply With Quote
Old 09-07-17, 11:07 AM
  #4
Junior Member
Thread Starter

Join Date: Jun 2009
Location: Tucson Arizona
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
MSD configuration

Here is more info:

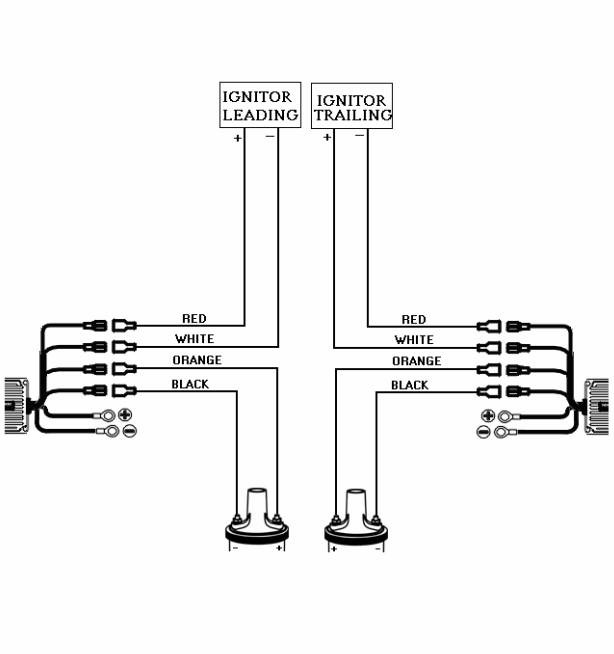

I am running dual MSD-6ALs triggered by J109 on my 12A bridgeport - I used this config because (1) MSD recommended it, and (2) I wanted minimal timing variation with RPM. This config for me runs clean to 9500 RPM. Some of the trace details may vary with quality of scope and scope sampling rate, this work was done with a PC-based scope. Wiring config and more pix of test setup attached.
Thanks and hope this is helpful
Attached Thumbnails

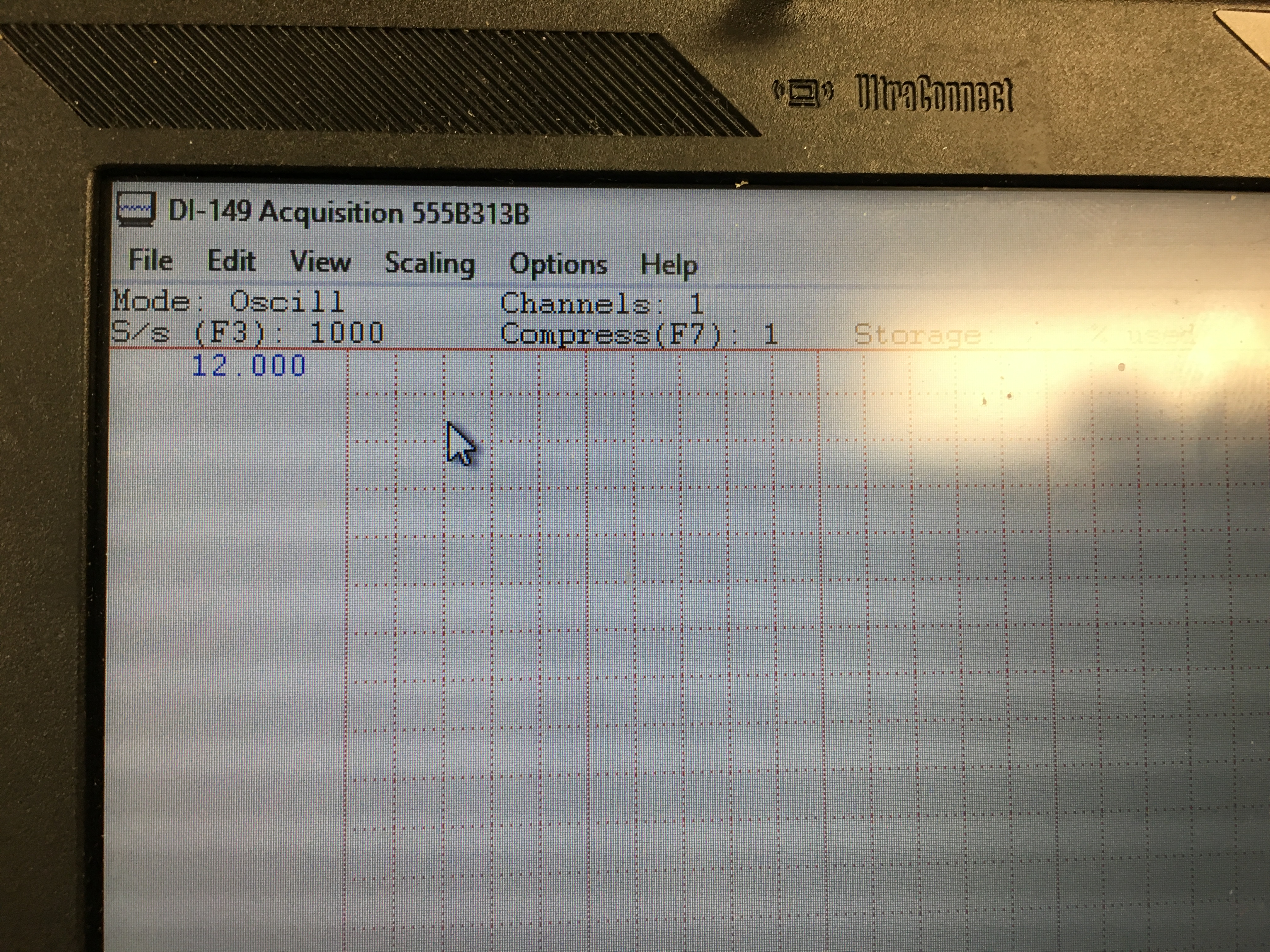

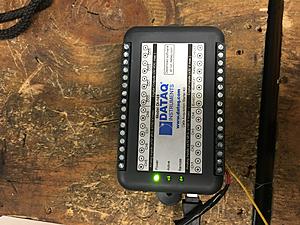

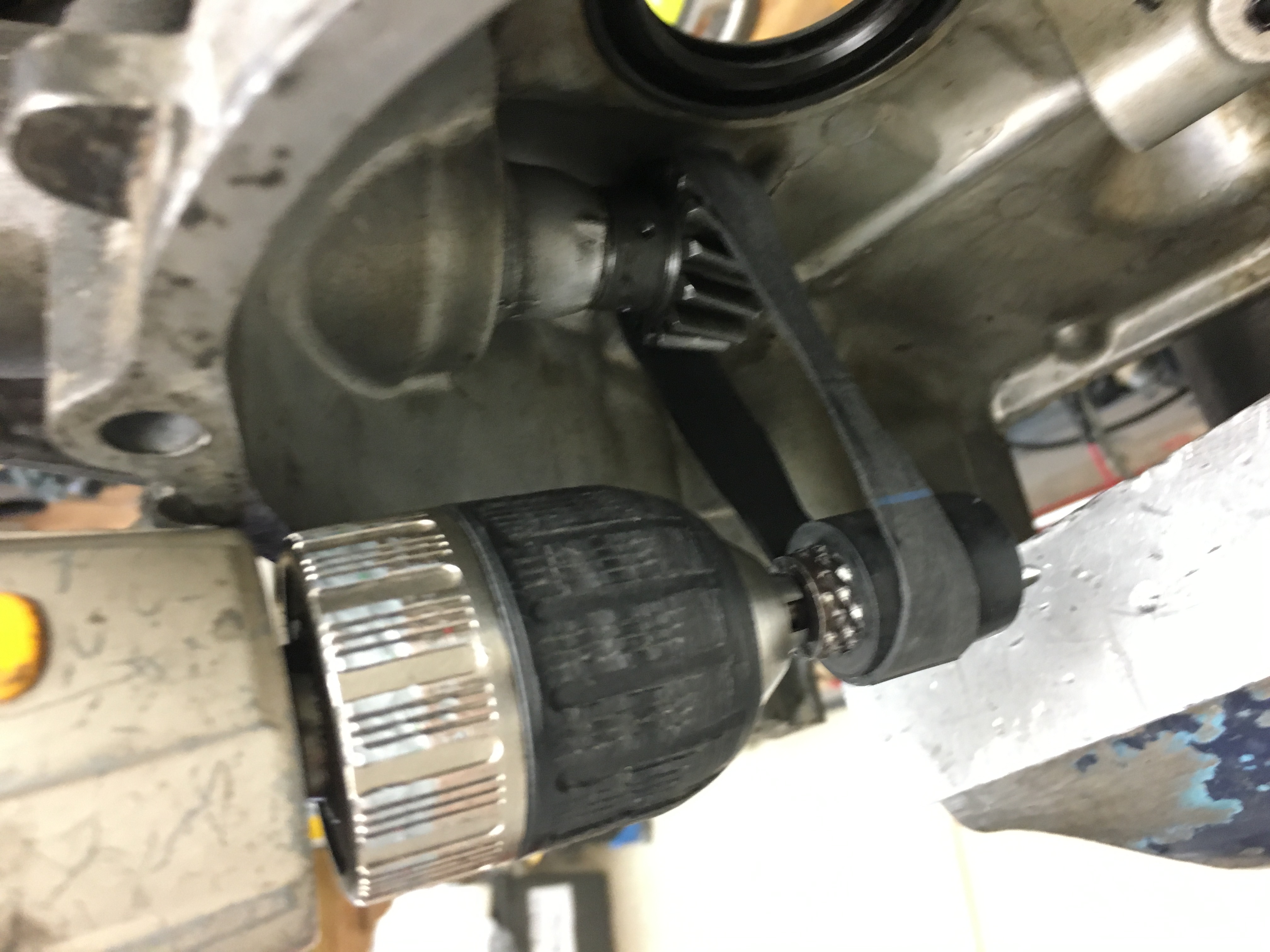

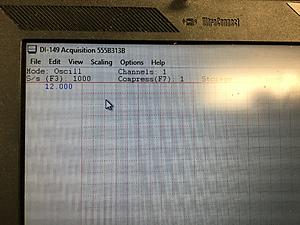

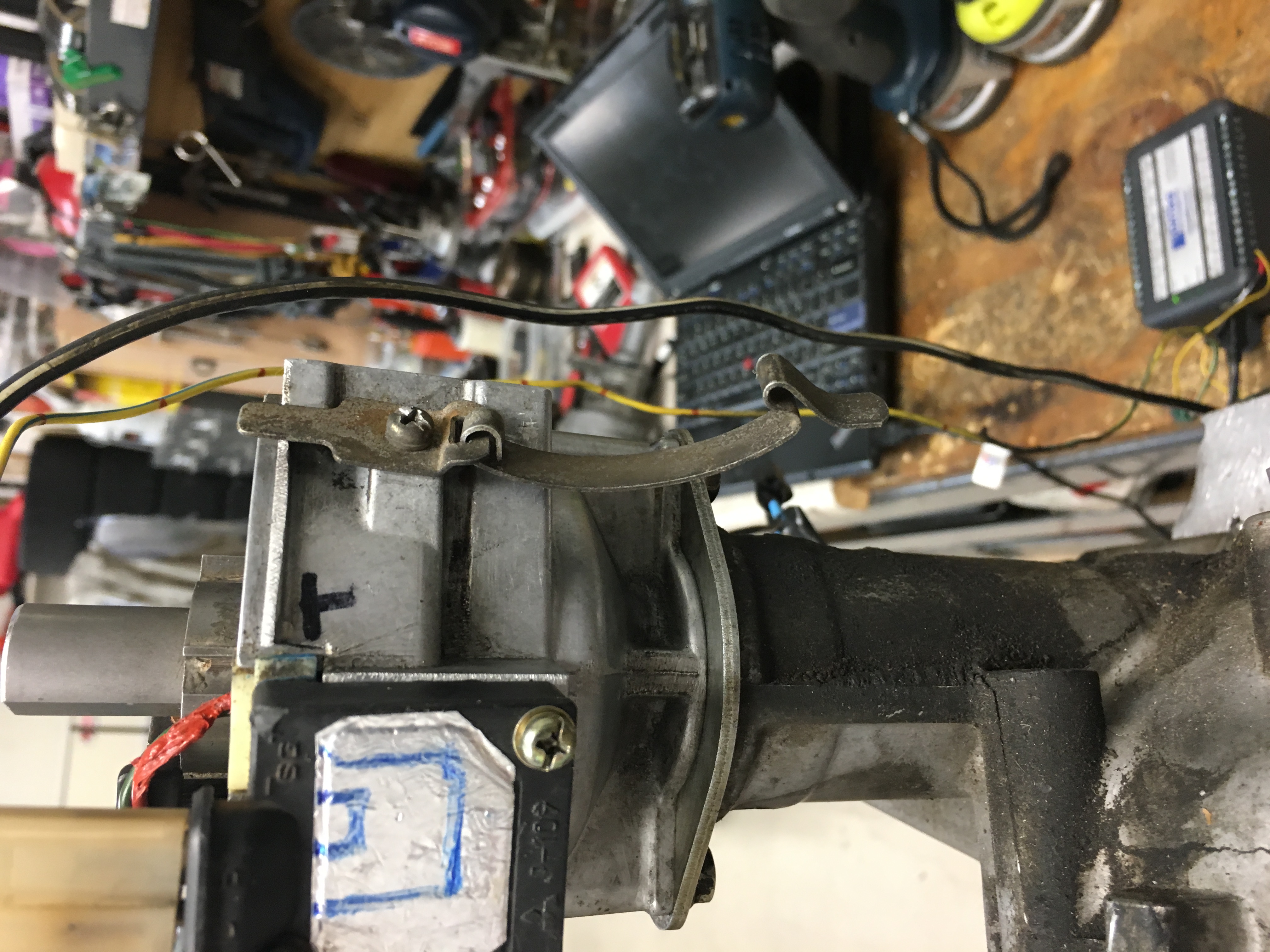

Distributors and Ignition-msd_wiring.jpg   Distributors and Ignition-140-tester.jpg   Distributors and Ignition-145-test-display.jpg   Distributors and Ignition-150-test-setup.jpg   Distributors and Ignition-155-distrib-drive.jpg

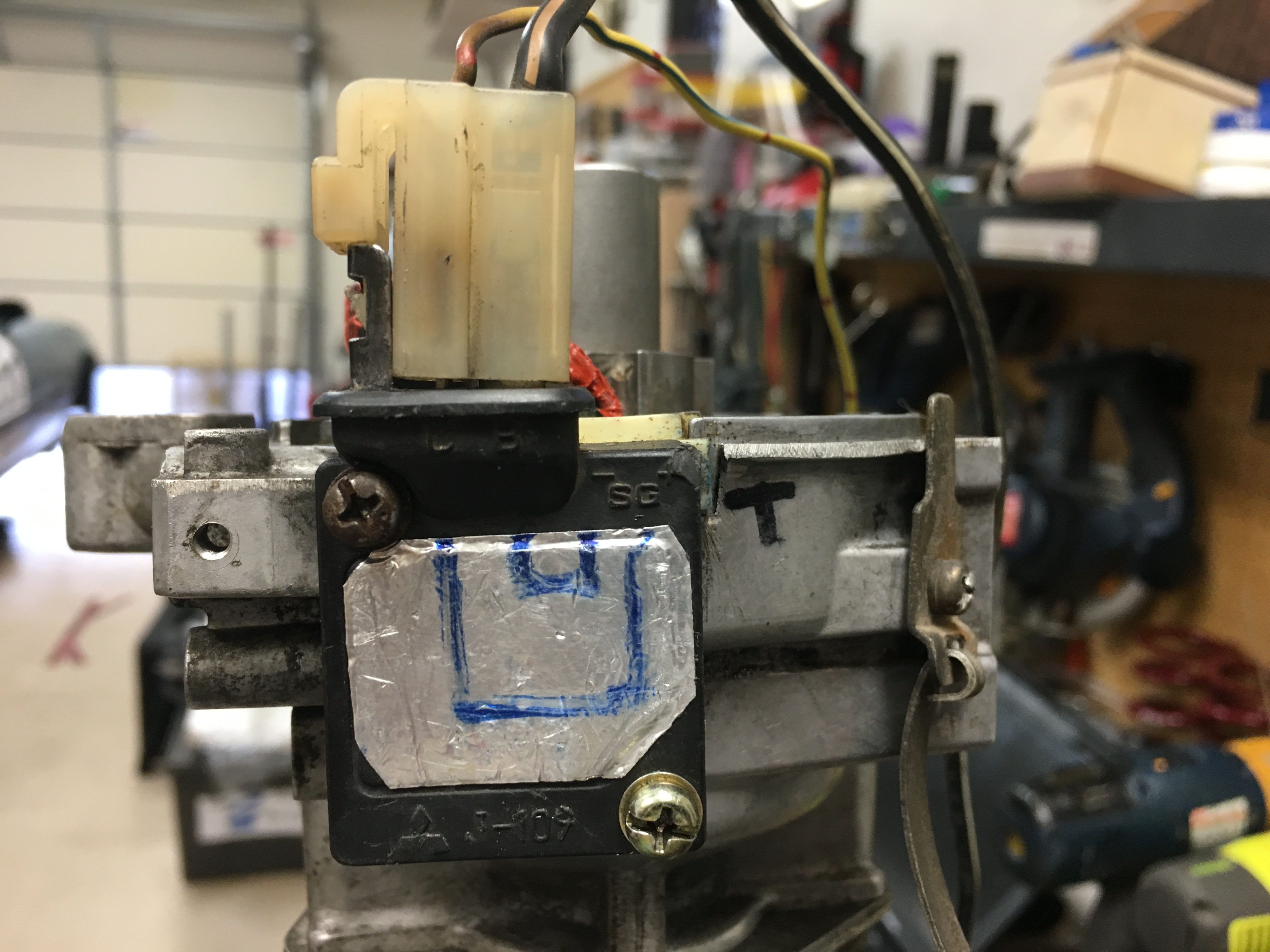

Distributors and Ignition-165-testing-mag-pickup.jpg
eaviles105 is offline
Reply With Quote
Old 09-07-17, 11:52 AM
  #5
Full Member

Toruki's Avatar

Join Date: Oct 2010
Location: MA USA
Posts: 247
Thanked 1 Time in 1 Post
Nice!

If you still have the setup, it would be cool to see what this looks like, to quantify what the MSD box does compared to the J109's.




My basic assumption is that the faster the coil's magnetic field collapses, the stronger the spark is. Maybe that's just a small aspect in the face of much higher RPM's, dwell time, and coil charging.

Time to set the drill at 11
Toruki is offline
Reply With Quote
Old 09-07-17, 12:15 PM
  #6
Waffles - hmmm good
iTrader: (1)

t_g_farrell's Avatar

Join Date: Jul 2004
Location: Huntersville, N.C.
Posts: 6,877
Thanked 9 Times in 9 Posts
Why trigger the MSD with the J109? Why not remove it and trigger the MSD with the reluctor signal directly? Since the MSD is basically an ignitor anyway.
t_g_farrell is offline
Reply With Quote
Old 09-12-17, 12:57 PM
  #7
1st-Class Engine Janitor
iTrader: (15)

DivinDriver's Avatar

Join Date: Jun 2008
Location: Chino Hills, CA
Posts: 8,296
Thanked 4 Times in 4 Posts
Originally Posted by t_g_farrell View Post
Anyway, we know 80 reluctor is a poor design compared to the 81-85 design.
Isn't it just the same reluctor, mounted upside down?
DivinDriver is offline
Reply With Quote
Old 09-12-17, 03:15 PM
  #8
Stu-Tron Get Yo Groove On
iTrader: (4)

Jeezus's Avatar

Join Date: Nov 2006
Location: Huntsville AL
Posts: 8,391
Thanks: 0
Thanked 2 Times in 2 Posts
Originally Posted by t_g_farrell View Post
Why trigger the MSD with the J109? Why not remove it and trigger the MSD with the reluctor signal directly? Since the MSD is basically an ignitor anyway.
Thats what I do. Gut the ignitor, connect the two inner tabs together, and the two outer tabs together, then use the stock ignitor plugs to run the MSD
Jeezus is offline
Reply With Quote
Old 09-12-17, 08:21 PM
  #9
Waffles - hmmm good
iTrader: (1)

t_g_farrell's Avatar

Join Date: Jul 2004
Location: Huntersville, N.C.
Posts: 6,877
Thanked 9 Times in 9 Posts
Originally Posted by DivinDriver View Post
Isn't it just the same reluctor, mounted upside down?
Not exactly. See the pics in my TFIDFIS thread of both to see the difference.
t_g_farrell is offline
Reply With Quote
Old 09-13-17, 12:04 PM
  #10
Junior Member
Thread Starter

Join Date: Jun 2009
Location: Tucson Arizona
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
Hi, test setup taken down, may be a while before I can get to this again. Will have to make sure MSD output does not fry the scope. J109 output is 12V max, MSD capacitive discharge I think is much higher
eaviles105 is offline
Reply With Quote
Old 09-13-17, 12:07 PM
  #11
Junior Member
Thread Starter

Join Date: Jun 2009
Location: Tucson Arizona
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
My reason for triggering with the J109 was (1) this is what MSD recommends, and (2) this setup should minimize timing shift with RPM, and (3) possibly more resistance to electrical noise affecting the trigger signal going to MSD. That said, I ran with straight magnetic trigger to MSD for years with no issue on the streetport version of this engine. Changed to this setup when I went bridgeport
eaviles105 is offline
