Changing my front rotors (brakes)
#1
Rotary Enthusiast
Thread Starter
Join Date: May 2007
Location: Canada
Posts: 770
Likes: 0
Received 0 Likes
on
0 Posts
Changing my front rotors (brakes)
Well I changed the rear...and decided might aswell do the front at the same time.
I removed the 23mm nut that holds the bearing and all that jazz in, removed the 17mm long pivit bolt, and one of the 14mm bolts that hold the calipers on...but I cant get the last one off, cause the tir rod end is in the way...how do I get this last bolt out? My ratchet won't fit, and a wrench cant get in the area.
Crappy pics.
I removed the 23mm nut that holds the bearing and all that jazz in, removed the 17mm long pivit bolt, and one of the 14mm bolts that hold the calipers on...but I cant get the last one off, cause the tir rod end is in the way...how do I get this last bolt out? My ratchet won't fit, and a wrench cant get in the area.
Crappy pics.
Last edited by '84-12A-GSL; 07-16-07 at 05:58 PM.
#2
Royale with cheese
Join Date: Jan 2004
Location: Las Vegas, by way of Poulsbo, WA
Posts: 1,256
Likes: 0
Received 0 Likes
on
0 Posts
in the last pic, that bolt to the left of the one that you have circled, has to come out. One of the joys of doing front brakes on an FB.
#4
callin' tokyo
Join Date: Dec 2002
Location: Windsor, Ontario
Posts: 1,353
Likes: 0
Received 0 Likes
on
0 Posts
A wrench should fit in there. That's how I did mine.
I put the box end on, so it would not slip and gave it a hit with a hammer to start it. After undoing it a little you'll find the wrench is too big to get out so you'll need to pull the bracket to take the slack out of the bolt so that the wrench can slide in and out.
I put the box end on, so it would not slip and gave it a hit with a hammer to start it. After undoing it a little you'll find the wrench is too big to get out so you'll need to pull the bracket to take the slack out of the bolt so that the wrench can slide in and out.
#6
Rotary Enthusiast
Thread Starter
Join Date: May 2007
Location: Canada
Posts: 770
Likes: 0
Received 0 Likes
on
0 Posts
I guess Ill have to stick the wrench in on an angle to get at it.
Ill have to soak it with some WD-40 too, amazing what a little penetrating oil can do. The good old hammer technique is also good on stubborn bolts.
Ill have to soak it with some WD-40 too, amazing what a little penetrating oil can do. The good old hammer technique is also good on stubborn bolts.
#7
Rotary Freak
iTrader: (3)
Ya that bolt sucks. To make life easier, find a Cornwell Tools dealer and buy a 14mm X 15mm offset box end wrench from him - PT# BWP-1415MM
I have tried Offset Craftsman Professional, Bonney and Kobalt (the good ones made by Williams) offset box ends wrenches and nothing works as well as the wrench from Cornwell
Here is their web address:
www.cornwelltools.com
Once you have the bolt out and have removed the rotor you make this an easier job by taking the backing plate off and grinding off some of the material around the bolt. Doing this mod will make the next brake job cake. Remember to nstall with anti-sieze and torque correctly. Check these bolts frequently if you race your car.
I have tried Offset Craftsman Professional, Bonney and Kobalt (the good ones made by Williams) offset box ends wrenches and nothing works as well as the wrench from Cornwell
Here is their web address:
www.cornwelltools.com
Once you have the bolt out and have removed the rotor you make this an easier job by taking the backing plate off and grinding off some of the material around the bolt. Doing this mod will make the next brake job cake. Remember to nstall with anti-sieze and torque correctly. Check these bolts frequently if you race your car.
Trending Topics
#8
Rotary Enthusiast
Thread Starter
Join Date: May 2007
Location: Canada
Posts: 770
Likes: 0
Received 0 Likes
on
0 Posts
I got tired of messing with it, and took my grinder and Dremel to it (before I read mustangs comment about grinding it.). Now the wrench fits! I got er off.
I assume the new calipers come with this bearing thing inside them, cause Mine won't come out. Looks like my dust shield is long gone!.
I assume the new calipers come with this bearing thing inside them, cause Mine won't come out. Looks like my dust shield is long gone!.
#9

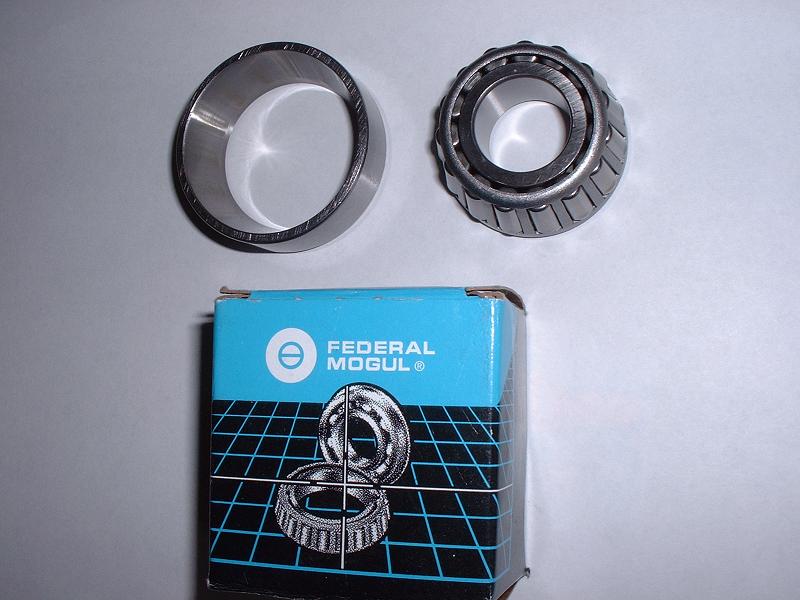

If you can't get your bearings out, napa sells them. (Im sure other people have them too). You will also need new races then if you cant get the old ones out...you can find mosly everything you need on napas site..
http://napaonline.com/masterpages/NO...Id=400&CatId=3
http://napaonline.com/masterpages/NO...Id=400&CatId=3
#11
callin' tokyo
Join Date: Dec 2002
Location: Windsor, Ontario
Posts: 1,353
Likes: 0
Received 0 Likes
on
0 Posts
If you can't get your bearings out, napa sells them. (Im sure other people have them too). You will also need new races then if you cant get the old ones out...you can find mosly everything you need on napas site..
http://napaonline.com/masterpages/NO...Id=400&CatId=3
http://napaonline.com/masterpages/NO...Id=400&CatId=3
#12
Rotary Enthusiast
Thread Starter
Join Date: May 2007
Location: Canada
Posts: 770
Likes: 0
Received 0 Likes
on
0 Posts
I got the bearings out, I didn't notice that they were pressed in. The car had new pads in the glove box, when I bought it for the front, and the rotor are a little over $20 each.
#13
callin' tokyo
Join Date: Dec 2002
Location: Windsor, Ontario
Posts: 1,353
Likes: 0
Received 0 Likes
on
0 Posts
#17
callin' tokyo
Join Date: Dec 2002
Location: Windsor, Ontario
Posts: 1,353
Likes: 0
Received 0 Likes
on
0 Posts
The new rotors do not have the races and will need them. I guess you could use the old races but for the price and time you've spent on this, you might as well replace them.
And remember to do the same thing on the other side of the car.
And don't forget the new bearing grease.
Ya, you could use the old races and bearings, and the old rotors and the old brake pads. But why even start a brake job if you're not going to do a brake job?
And remember to do the same thing on the other side of the car.
And don't forget the new bearing grease.
Ya, you could use the old races and bearings, and the old rotors and the old brake pads. But why even start a brake job if you're not going to do a brake job?
#19
Old Fart Young at Heart
iTrader: (6)
Don't mix and match old races with new bearings. The old ones have worn to each other and may not mate well with the new ones. They are cheap enough, replace all of them and be done with it.
If the old ones are still good, you can tap the races out of the old rotors and install them in the new ones. Be very careful not to damage the thinner edge of the races. This is where a brass drift comes in handy.
If the old ones are still good, you can tap the races out of the old rotors and install them in the new ones. Be very careful not to damage the thinner edge of the races. This is where a brass drift comes in handy.
