Brake caliper rebuild questions
#1
Go Hawks!
Thread Starter
iTrader: (1)
Join Date: May 2004
Location: Cedar Rapids, Iowa
Posts: 1,933
Likes: 0
Received 0 Likes
on
0 Posts
Brake caliper rebuild questions

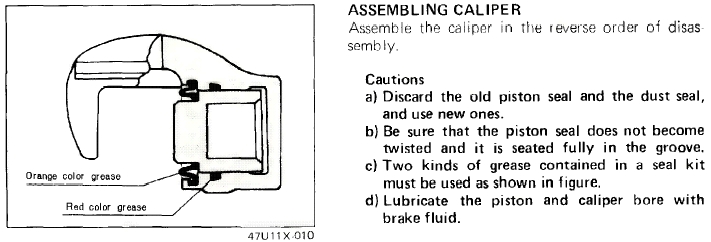

The factory service manual says you need to use an orange color grease and a red color grease when rebuilding brake calipers. My rebuild kits did not include any grease...any idea what type of grease they are and what I can use?

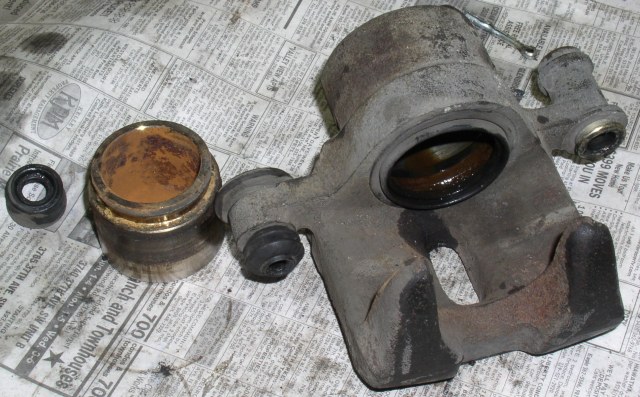

Also, I tore one of the boots protecting the caliper pins (like the one on the left end of the caliper in the attachment). any ideas where I can get one, or how I can MacGyver something?
This is on an '85 GS.
Thanks,
Rich
Also, I tore one of the boots protecting the caliper pins (like the one on the left end of the caliper in the attachment). any ideas where I can get one, or how I can MacGyver something?
This is on an '85 GS.
Thanks,
Rich
Last edited by 64mgb; 01-24-05 at 01:27 PM.
#3
Go Hawks!
Thread Starter
iTrader: (1)
Join Date: May 2004
Location: Cedar Rapids, Iowa
Posts: 1,933
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by IanS
I think you got ripped off. Probably bought it at AZ or something. Mine didnt have grease either though lol. I bought mine at AZ btw. If you need any parts from it, let me know and I will give it to you. I didnt really need it.
#4
Banned. I got OWNED!!!
Red grease is synthetic, IIIRC.
I found a box of the rubber mufugga's in a box a while ago. Let me know if you can't figure something out and I'll see if I can re-find it (I have too much RX-7 ****...) and send you one.
I tore one on one of my racecars not long ago. I think they were designed for longevity... as long as you aren't taking them on and off a lot like on a racecar. Oh, well.
I found a box of the rubber mufugga's in a box a while ago. Let me know if you can't figure something out and I'll see if I can re-find it (I have too much RX-7 ****...) and send you one.
I tore one on one of my racecars not long ago. I think they were designed for longevity... as long as you aren't taking them on and off a lot like on a racecar. Oh, well.
#5
Go Hawks!
Thread Starter
iTrader: (1)
Join Date: May 2004
Location: Cedar Rapids, Iowa
Posts: 1,933
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by christaylor
Red grease is synthetic, IIIRC.
I found a box of the rubber mufugga's in a box a while ago. Let me know if you can't figure something out and I'll see if I can re-find it (I have too much RX-7 ****...) and send you one.
I tore one on one of my racecars not long ago. I think they were designed for longevity... as long as you aren't taking them on and off a lot like on a racecar. Oh, well.
I found a box of the rubber mufugga's in a box a while ago. Let me know if you can't figure something out and I'll see if I can re-find it (I have too much RX-7 ****...) and send you one.
I tore one on one of my racecars not long ago. I think they were designed for longevity... as long as you aren't taking them on and off a lot like on a racecar. Oh, well.
Rich
#6
84SE-EGI helpy-helperton
On the brake caliper rebuild kits, most kits only come with one type of grease. The Mazda FSM reads that you should be using 2 types because back in 1984/85, they wanted to specify that you use a grease on the rubber O-ring that wouldn't cause the rubber to break down and degrade over time.
The grease that goes between the caliper piston and the cylinder wall, this needs to be non-soluble in brake fluid so that it seals the piston to the inside band and prevents brake fluid from seeping past. The second type of grease is synthetic grease that goes between the brake cylinder seal and the dust boot. This grease will not react with the rubber and cause it to break down, which would result in the rubber boot tearing and allowing dirt/grit to get in and destroy the inner seal, thereby causing your brake caliper to leak and fail.
With the greases provided in today's rebuild kits, you only need to use that same type of grease on both locations and feel comfortable that you're doing it right. Just keep a clean work area, take your time, and your rebuild should be fine. HTH,
The grease that goes between the caliper piston and the cylinder wall, this needs to be non-soluble in brake fluid so that it seals the piston to the inside band and prevents brake fluid from seeping past. The second type of grease is synthetic grease that goes between the brake cylinder seal and the dust boot. This grease will not react with the rubber and cause it to break down, which would result in the rubber boot tearing and allowing dirt/grit to get in and destroy the inner seal, thereby causing your brake caliper to leak and fail.
With the greases provided in today's rebuild kits, you only need to use that same type of grease on both locations and feel comfortable that you're doing it right. Just keep a clean work area, take your time, and your rebuild should be fine. HTH,
#7
Go Hawks!
Thread Starter
iTrader: (1)
Join Date: May 2004
Location: Cedar Rapids, Iowa
Posts: 1,933
Likes: 0
Received 0 Likes
on
0 Posts
Thanks for the great info, longduck...I appreciate it. Since my kits didn't come with any grease, what should I use? Will the parts store guy know what I'm talking about if I ask him?
Trending Topics
#8
84SE-EGI helpy-helperton
Well, he should if he knows what he's doing. I would recommend a pretty thick wheel bearing/axle grease that is synthetic in nature.
Some of the organic greases will cause problems with rubber parts, and should be avoided. Don't let him fool you into thinking that 'Brake Quiet' grease is the right thing - because it's not.
You're looking for 'Brake Caliper Piston Grease'. Accept no substitutes...
Some of the organic greases will cause problems with rubber parts, and should be avoided. Don't let him fool you into thinking that 'Brake Quiet' grease is the right thing - because it's not.
You're looking for 'Brake Caliper Piston Grease'. Accept no substitutes...
#9
Go Hawks!
Thread Starter
iTrader: (1)
Join Date: May 2004
Location: Cedar Rapids, Iowa
Posts: 1,933
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by LongDuck
Well, he should if he knows what he's doing. I would recommend a pretty thick wheel bearing/axle grease that is synthetic in nature.
Some of the organic greases will cause problems with rubber parts, and should be avoided. Don't let him fool you into thinking that 'Brake Quiet' grease is the right thing - because it's not.
You're looking for 'Brake Caliper Piston Grease'. Accept no substitutes...
Some of the organic greases will cause problems with rubber parts, and should be avoided. Don't let him fool you into thinking that 'Brake Quiet' grease is the right thing - because it's not.
You're looking for 'Brake Caliper Piston Grease'. Accept no substitutes...
#11
84SE-EGI helpy-helperton
Caution - caliper grease is designed to lube the slider pins that mount the calipers; not the piston seals and dust boots.
Get the right stuff for the job,
Get the right stuff for the job,
#12
TopGunM2k
Join Date: Sep 2004
Location: San Jose, CA
Posts: 161
Likes: 0
Received 0 Likes
on
0 Posts
Hey LongDuck nice ride, those wheels 17 inch diablos? I Have the same wheels on my seven, check out my ride sometime and let me know what you think.http://www.cardomain.com/id/topgunm2k
#13
Go Hawks!
Thread Starter
iTrader: (1)
Join Date: May 2004
Location: Cedar Rapids, Iowa
Posts: 1,933
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by LongDuck
Caution - caliper grease is designed to lube the slider pins that mount the calipers; not the piston seals and dust boots.
Get the right stuff for the job,
Get the right stuff for the job,
Thanks,
Rich
#15
Go Hawks!
Thread Starter
iTrader: (1)
Join Date: May 2004
Location: Cedar Rapids, Iowa
Posts: 1,933
Likes: 0
Received 0 Likes
on
0 Posts

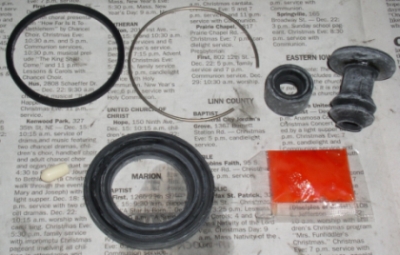

good news! I ruined one of the caliper rebuild kits and ordered another one. I got this one from RockAuto.com and it's a Wagner kit. It included the two rubber boots for the caliper pins as well as the grease. Also, the dust boot fit much better.
Rich
Rich
#17
Go Hawks!
Thread Starter
iTrader: (1)
Join Date: May 2004
Location: Cedar Rapids, Iowa
Posts: 1,933
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by Hades12
Thanks for the site. That is a great looking rebuild kit and they have our NGK plugs for 5.21 each.
