Bonez Race Pipe
#1
Bonez Race Pipe

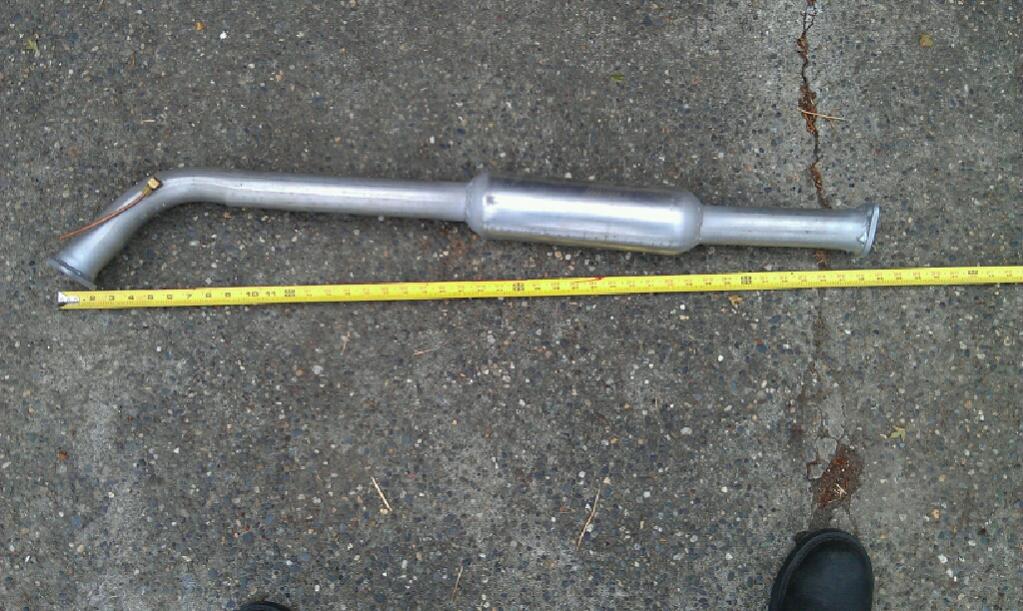

I got my Bonez race pipe for 81-83 in today and I think I might have gotten the wrong one. Mine is just a strait pipe. It does not have the 45 degree upturn on one end where it would bolt to the manifold like the one pictured. Its only about 2' long and doesn't replace the whole mid-pipe. Is this right? I tried calling but they are closed for the weekend. If it is the right one then my exhaust must have been modified more than I thought because I'll only be able to bolt on one end and I'll have a 1-2" gap between it and the manifold. Any help is appreciated.
#4
Round and Round
iTrader: (10)
The 84-85 has the bend in the front. 83 is straight. Sounds like the problem is in the exhaust system. The 81-83 had a main Cat with a smaller "pre-silencer" in front of it. Between the manifold and the pre-silencer is a short stock pipe that has the bend in it. The stock 83 exhaust with the race pipe added should have 5 parts. Exhaust manifold, stock "bent pipe", race pipe, stock mid pipe, and the muffler. When I did mine I had to remove most of the hanger bolts from the exhaust then install the race pipe and snug the bolts down. Once I got the pipe in place I reinstalled the hanger bolts and finished tightening the bolts on the race pipe. I had to do a little pushing and pulling to get the pipe to match up, but it fit fine when I was all done. I don't remember it being 2" off. Maybe an inch, mainly it just wouldn't let me thread the bolts when the rest of the system was bolted in place.

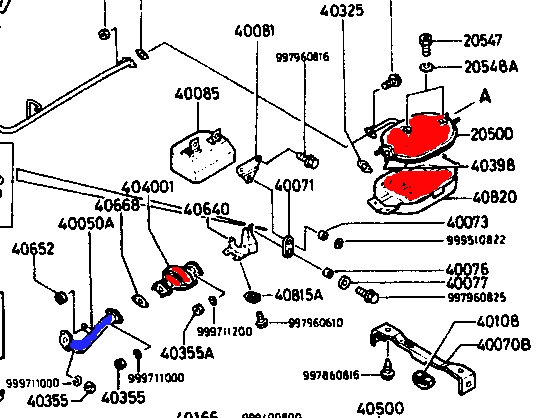

From the 81-83 parts manual...red is what the pipe replaces (main cat and pre-silencer), blue is the stock bent pipe.
From the 81-83 parts manual...red is what the pipe replaces (main cat and pre-silencer), blue is the stock bent pipe.
Trending Topics
#8
Ok. Thanks guys. I guess my exhaust was modified more than I thought. Previous owner removed the pre-cat and welded a strait pipe to the elbow and replaced the main cat and clamped it to the strait pipe and the mid-pipe. So the only flanges left are the manifold and muffler. I guess I'm looking for a stock elbow and mid-pipe now. Definitely not my week. Ugh!
#13
Anytime.....Glad we were able to help out each other.....now if I can only figure out why my FB is STILL making the groaning/Droning noise after replacing the drive shaft.......Open to ideas if anyone has them
