Hi all!

I have a strange issue. My heater blower keeps blowing it's fuse, whenever I start it. I have checked the motor and the resistor by taking the blower down, then checking each post of the wiring connecting it to 12v(works on every speed). So it seems that the resistor is ok too. What could be the problem? Bad ground?

I f anyone has an idea, please share...
Thanks!

JMoneyLSB

I have a '97 TJ that kept blowing resistors, and relays. Always changing the resistor and relays never addressing the actual issue. The blower motor itself... Drawing too much current on a blower motor thats worn out can cause issues to all these thing as well as wiring (melting/burning).

DivinDriver

iTrader: (15)

Could just be that the blower box is full of crud and the fan is dragging, causing excess current draw. dirt and leaves can enter from the cowl plenum & build up over time.

Or it could be the motor bearings going bad, or a winding short that is causing too much current to be drawn.

DreamInRotary

iTrader: (49)

Doing resistors and relays constantly is usually a sign of a worn out motor - I'd just snag another one from a part out for cheap if it was me.

shark_split_CRO

HI Y'ALL!!!

I managed to solve my mystery. During the process I have dismantled and cleaned the blower motor, which was fine and then the switch, which was shorting

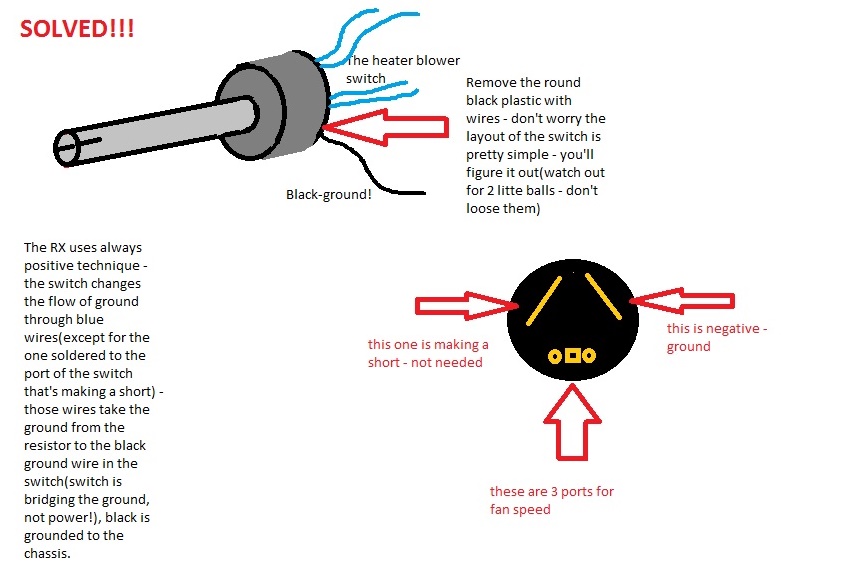

Here's an infographic...

vortexdefense

Thank you for the infographic. Just to confirm; all you needed to do was disconnect that one wire from the switch and it solved your shorting issue? Was there any lost functionality from disconnecting that wire?
