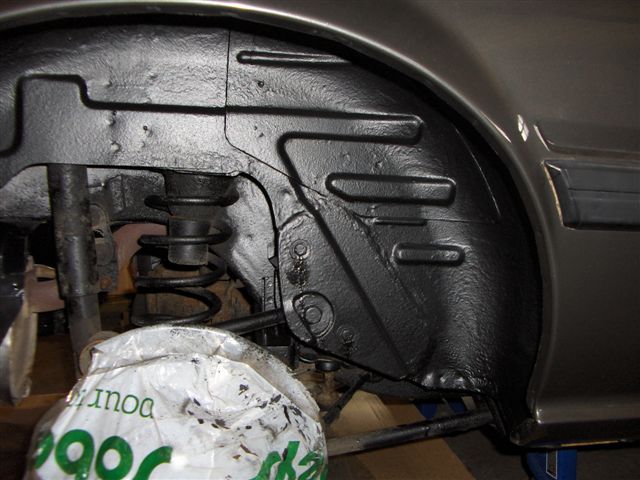

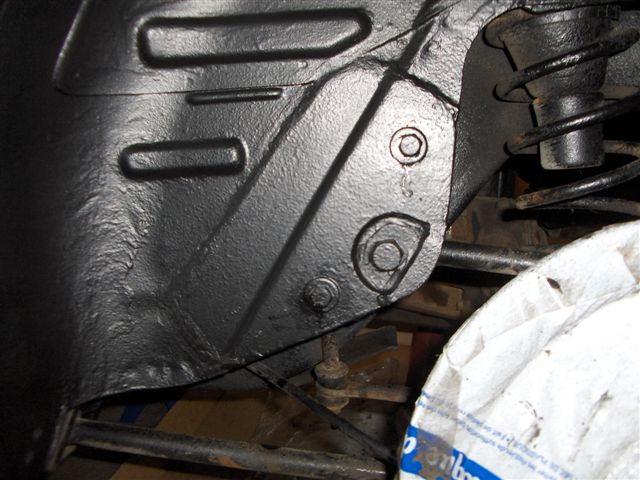

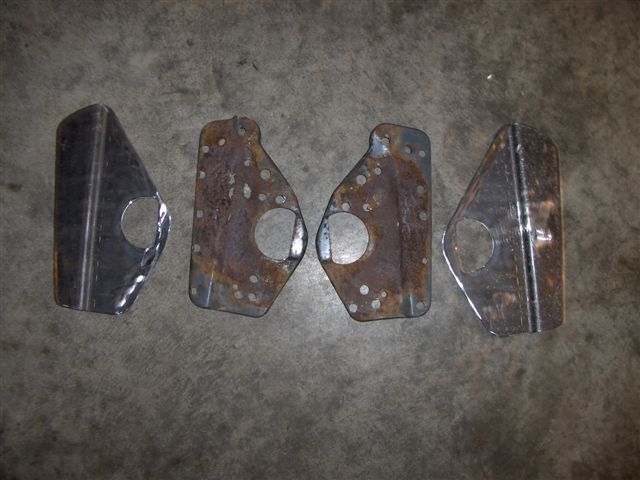

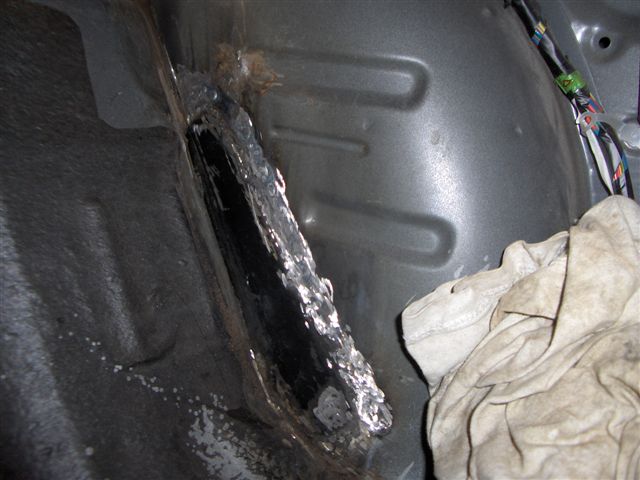

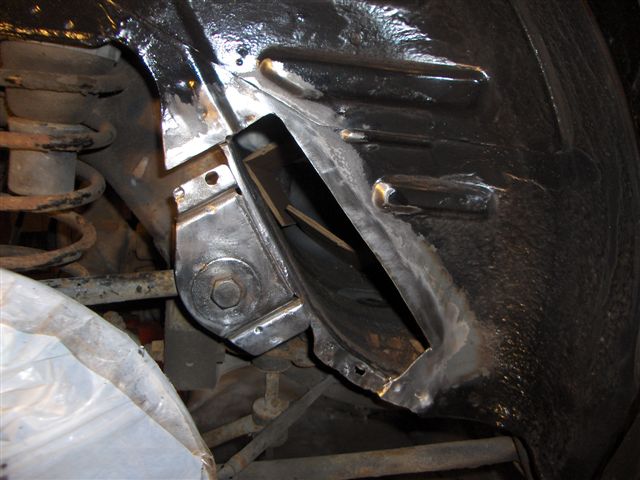

Just testing the picture attach feature, some home made plates for the holes i had to cut out and the final result.



So what gauge of metal did you use for that?



great work , what kind of metal did you use and what kind of paint ?



Very good repair work.



Very nice. Here's a cheap and easy alternative for the back yard mechanic that will probably last the life time of the car:

http://www.cardomain.com/ride/479957/8

http://www.cardomain.com/ride/479957/9



Thanks ya'll, first I replaced the wall with sheet metal reg gauge primed with paint both sides. after that was prepped I used 1/8" thick metal for the bracket and prepped. finished with rock gaurd.



I just finished doing a bin repair. here it is https://www.rx7club.com/1st-generation-specific-1979-1985-18/another-gslse-stripped-fix-633588/page2/



Nice job well done, does anyone know what the drain holes are for? I mean they are well above the floor so you would need 4" or more of water in there. when i removed the rubber plugs I noticed that the holes are threaded.



I believe those were for the rear seat belts.......



ok makes sense.
