15x8 + 20 up front w/ 225/45R15 Anyone ran this?
#3
Moderator
iTrader: (3)
Join Date: Mar 2001
Location: https://www2.mazda.com/en/100th/
Posts: 30,802
Received 2,577 Likes
on
1,831 Posts
but you have 12a brakes? different offset?
i wanna do this too, in the rear, no problem, in the front?
i wanna do this too, in the rear, no problem, in the front?
#4
Old [Sch|F]ool
15x7 +15 with 225/50 required monstrous fender rolling, the front edges of the fender lips had to be pushed out so much that the bottom of the fender was about a 45 degree angle to the car.
Tires baaaaaarely rubbed the springs sometimes.
You'd definitely have to roll as much - the problem isn't the diameter so much as it is the width.
Fortunately, the fenders are so thin that they are one-handable and probably weigh less than street-grade carbon fiber, which means you can roll the lips and then move the fender to where it needs to be just by pulling on it.
Tires baaaaaarely rubbed the springs sometimes.
You'd definitely have to roll as much - the problem isn't the diameter so much as it is the width.
Fortunately, the fenders are so thin that they are one-handable and probably weigh less than street-grade carbon fiber, which means you can roll the lips and then move the fender to where it needs to be just by pulling on it.
#5
Moderator
iTrader: (3)
Join Date: Mar 2001
Location: https://www2.mazda.com/en/100th/
Posts: 30,802
Received 2,577 Likes
on
1,831 Posts

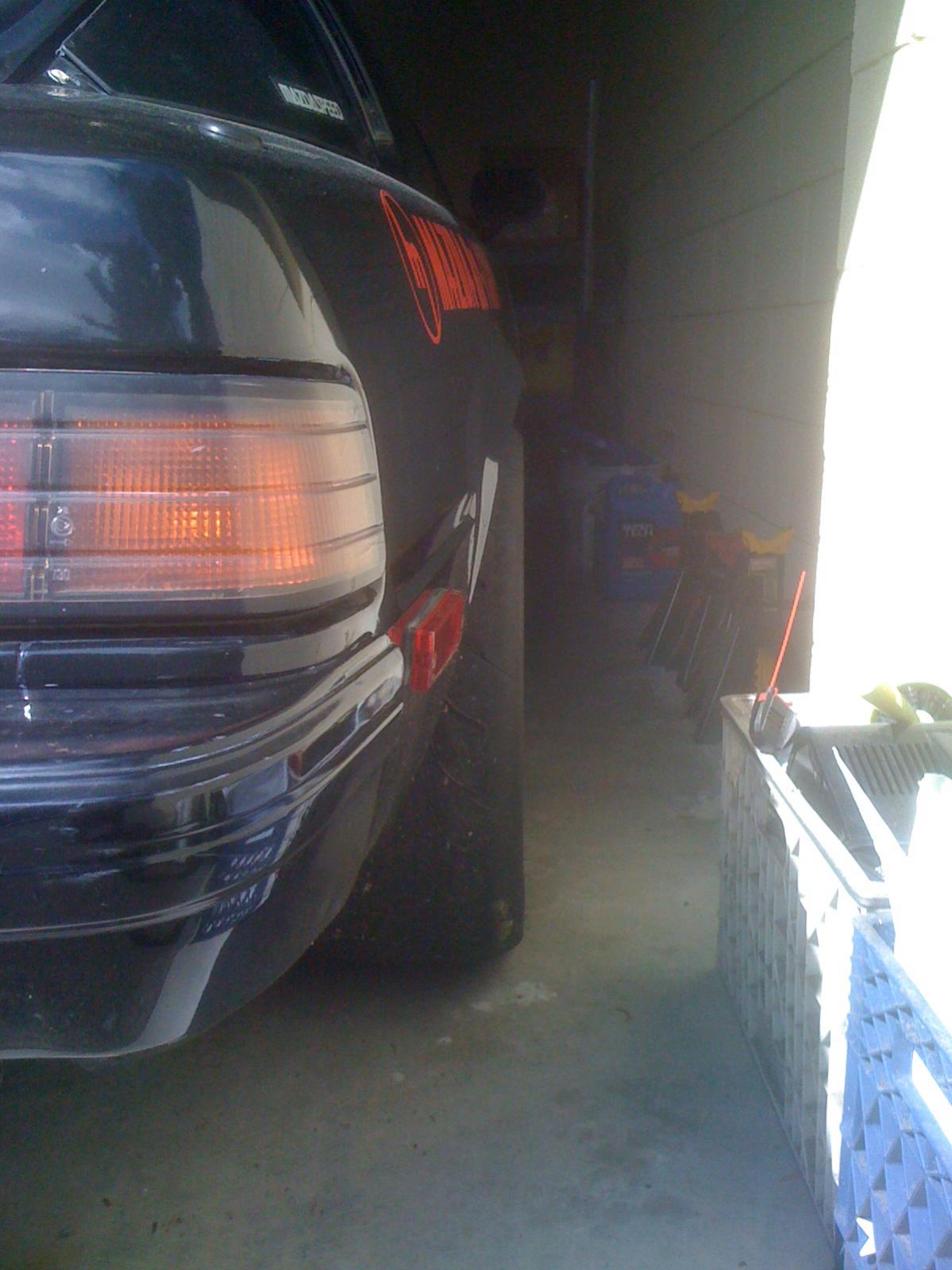

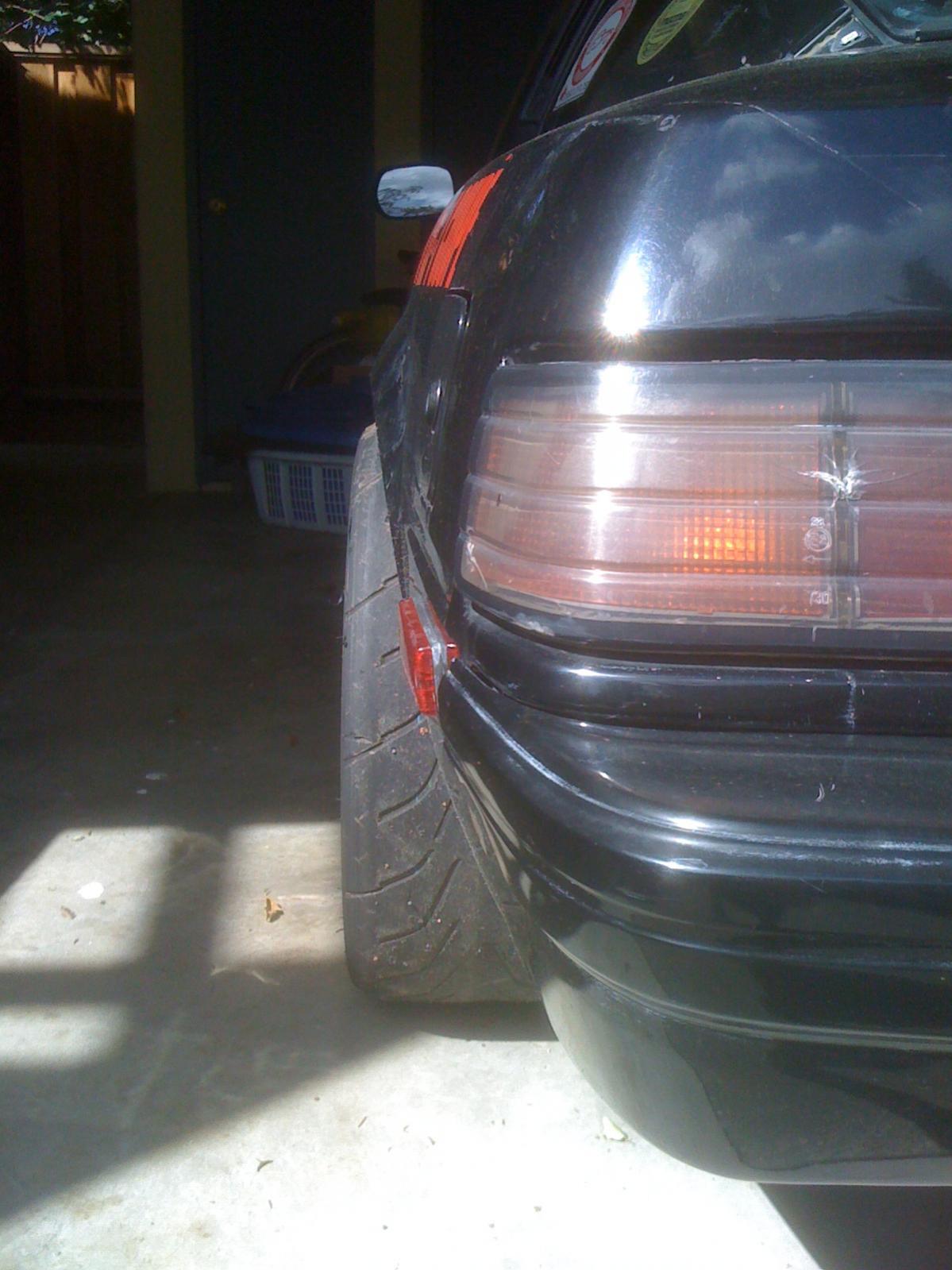

ive got 225/45/15's on 15x7 offset 7 wheels. my problem is actually the rear fender lips, its TIGHT. the front with some camber tucks, and has 1" or so to the strut....
#7
zoom zoom
Join Date: Jan 2010
Location: nederland, texas
Posts: 322
Likes: 0
Received 0 Likes
on
0 Posts
im looking to run this same setup.. i was gonna do 205s in the front and 225s in the back. 15x7 and 15x8 +20 offset... ill roll the fenders if i have to. and im gonna try to run respeed coilovers so i can adjust them
Trending Topics
#11
zoom zoom
Join Date: Jan 2010
Location: nederland, texas
Posts: 322
Likes: 0
Received 0 Likes
on
0 Posts
cuz most of the offsets i see with the 4x110 pattern are +20. if i change bolt patterns the adapter is 15 mm. so id need like a +35 offset or +30 to make it sit right in the fenderwell?
#13
Moderator
iTrader: (3)
Join Date: Mar 2001
Location: https://www2.mazda.com/en/100th/
Posts: 30,802
Received 2,577 Likes
on
1,831 Posts
but yeah, if the offset is 20, the 15mm spacer makes it 5, which in a 15x7 will fit, but 15x8 will stick out
the 13x8's are cool looking too, but i'd have to buy tires cause the race car is 225/45/15
#14
Old [Sch|F]ool
I really wish the aftermarket would use backspacing instead of offset. Stock 12A is 5.5" wheels with 25mm offset. This is almost the same backspacing as 7" wheels with zero offset. (Technically it'd be +6)
Offset tells you the hub face in relation to the centerline of the wheel, which is great if you're concerned with theory. Backspacing tells you how much room you have on the backside of the wheel, which is great if you're concerned with what will actually fit on the car...
#16
Moderator
iTrader: (3)
Join Date: Mar 2001
Location: https://www2.mazda.com/en/100th/
Posts: 30,802
Received 2,577 Likes
on
1,831 Posts
The clearance from strut housing to the inside of the wheel will be 7mm LESS
The outside edge of the wheel will EXTEND an extra 57mm
#19
What's that smell?
Join Date: Jul 2007
Location: Dorset, England
Posts: 217
Likes: 0
Received 0 Likes
on
0 Posts
Hi guys, I'm mulling over fitments at the moment too so if anyone here could throw me a bone and give me an idea what this would fit/look like that'd be great.
So i"m looking at....
15x8 superlites
-4 ET
110mm backspace
I've got a 1983 series 2
I want to use 240z style arches so am trying to achieve wheels that stick out that far just to give you an idea.
Cheers fellas
Tim
So i"m looking at....
15x8 superlites
-4 ET
110mm backspace
I've got a 1983 series 2
I want to use 240z style arches so am trying to achieve wheels that stick out that far just to give you an idea.
Cheers fellas
Tim
#21
Moderator
iTrader: (3)
Join Date: Mar 2001
Location: https://www2.mazda.com/en/100th/
Posts: 30,802
Received 2,577 Likes
on
1,831 Posts
Hi guys, I'm mulling over fitments at the moment too so if anyone here could throw me a bone and give me an idea what this would fit/look like that'd be great.
So i"m looking at....
15x8 superlites
-4 ET
110mm backspace
I've got a 1983 series 2
I want to use 240z style arches so am trying to achieve wheels that stick out that far just to give you an idea.
Cheers fellas
Tim
So i"m looking at....
15x8 superlites
-4 ET
110mm backspace
I've got a 1983 series 2
I want to use 240z style arches so am trying to achieve wheels that stick out that far just to give you an idea.
Cheers fellas
Tim
#22
What's that smell?
Join Date: Jul 2007
Location: Dorset, England
Posts: 217
Likes: 0
Received 0 Likes
on
0 Posts
#23
Moderator
iTrader: (3)
Join Date: Mar 2001
Location: https://www2.mazda.com/en/100th/
Posts: 30,802
Received 2,577 Likes
on
1,831 Posts
The clearance from stut housing to the inside of the wheel will be 8mm LESS
The outside edge of the wheel will EXTEND an extra 56mm
http://marksink.com/tire_wheel_offset/offset.html
should be just about right?
#24
What's that smell?
Join Date: Jul 2007
Location: Dorset, England
Posts: 217
Likes: 0
Received 0 Likes
on
0 Posts
Your new wheel will have the following chracteristics:
The clearance from stut housing to the inside of the wheel will be 8mm LESS
The outside edge of the wheel will EXTEND an extra 56mm
http://marksink.com/tire_wheel_offset/offset.html
should be just about right?
The clearance from stut housing to the inside of the wheel will be 8mm LESS
The outside edge of the wheel will EXTEND an extra 56mm
http://marksink.com/tire_wheel_offset/offset.html
should be just about right?
Hijack over, apologies to OP.
