13B waterpump housing onto 12A?
#1
The Bridgy goes BRAP BRAP
Thread Starter
iTrader: (-1)
Join Date: Mar 2004
Location: Eugene, OR
Posts: 208
Likes: 0
Received 0 Likes
on
0 Posts
13B waterpump housing onto 12A?
Hey, can I put an aluminium water pump housing from a 13b turbo onto a 12a? Will I have space issues? Does it even work? Anyone done it? lemme know!
#3
Hunting Skylines
Join Date: Apr 2001
Location: Brisbane, Queensland, Australia.
Posts: 3,431
Likes: 0
Received 2 Likes
on
2 Posts
I just did this a while ago. I used a S5 housing but the concept is the same.
There are two issues, one is a clearance issue between the back of the housing and the front cover so you need to grind the housing to make it fit. The easiest way is to put some marking dye on the back of the housing so you can see exactly where it touches.
The second problem is the extra stud hole on the late model water pump housing which is also the mounting point for the alternator bracket. What I did was, tap the back of the whole for a 1/4 NPT plug to seal it up. I then tapped the front of the hole for an M12 bolt to attach the alternator bracket. You may also need to modify the bracket depending on which one you use.
There are two issues, one is a clearance issue between the back of the housing and the front cover so you need to grind the housing to make it fit. The easiest way is to put some marking dye on the back of the housing so you can see exactly where it touches.
The second problem is the extra stud hole on the late model water pump housing which is also the mounting point for the alternator bracket. What I did was, tap the back of the whole for a 1/4 NPT plug to seal it up. I then tapped the front of the hole for an M12 bolt to attach the alternator bracket. You may also need to modify the bracket depending on which one you use.
#4
Go Hawks!
iTrader: (1)
Join Date: May 2004
Location: Cedar Rapids, Iowa
Posts: 1,933
Likes: 0
Received 0 Likes
on
0 Posts

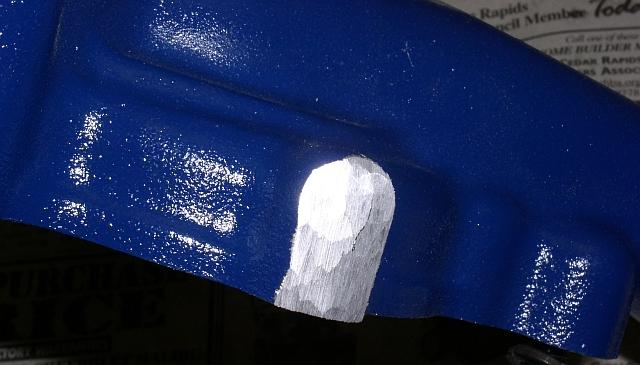

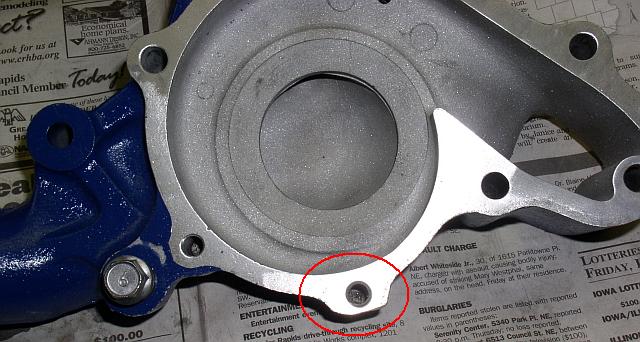

Here's a few pictures of the grinding I had to do to the S5 13B water pump housing I put on my 12A cover.
I didn't have an extra hole to take care of...any pictures of that REVHED?
Rich
I didn't have an extra hole to take care of...any pictures of that REVHED?
Rich
#5
Moderator
iTrader: (2)
Originally Posted by REVHED
The second problem is the extra stud hole on the late model water pump housing which is also the mounting point for the alternator bracket. What I did was, tap the back of the whole for a 1/4 NPT plug to seal it up. I then tapped the front of the hole for an M12 bolt to attach the alternator bracket. You may also need to modify the bracket depending on which one you use.
#6
Go Hawks!
iTrader: (1)
Join Date: May 2004
Location: Cedar Rapids, Iowa
Posts: 1,933
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by 64mgb
Here's a few pictures of the grinding I had to do to the S5 13B water pump housing I put on my 12A cover.
I didn't have an extra hole to take care of...any pictures of that REVHED?
Rich
I didn't have an extra hole to take care of...any pictures of that REVHED?
Rich
Just wanted to clear that up.
Rich
