Is this a 12a rotor?

Thread Tools

Search this Thread

Old 04-10-19, 01:12 PM
  #1
Full Member

Thread Starter
iTrader: (13)

geilkyle2's Avatar

Join Date: Nov 2008
Location: Wisconsin
Posts: 123
Likes: 0
Received 1 Like on 1 Post
Is this a 12a rotor?

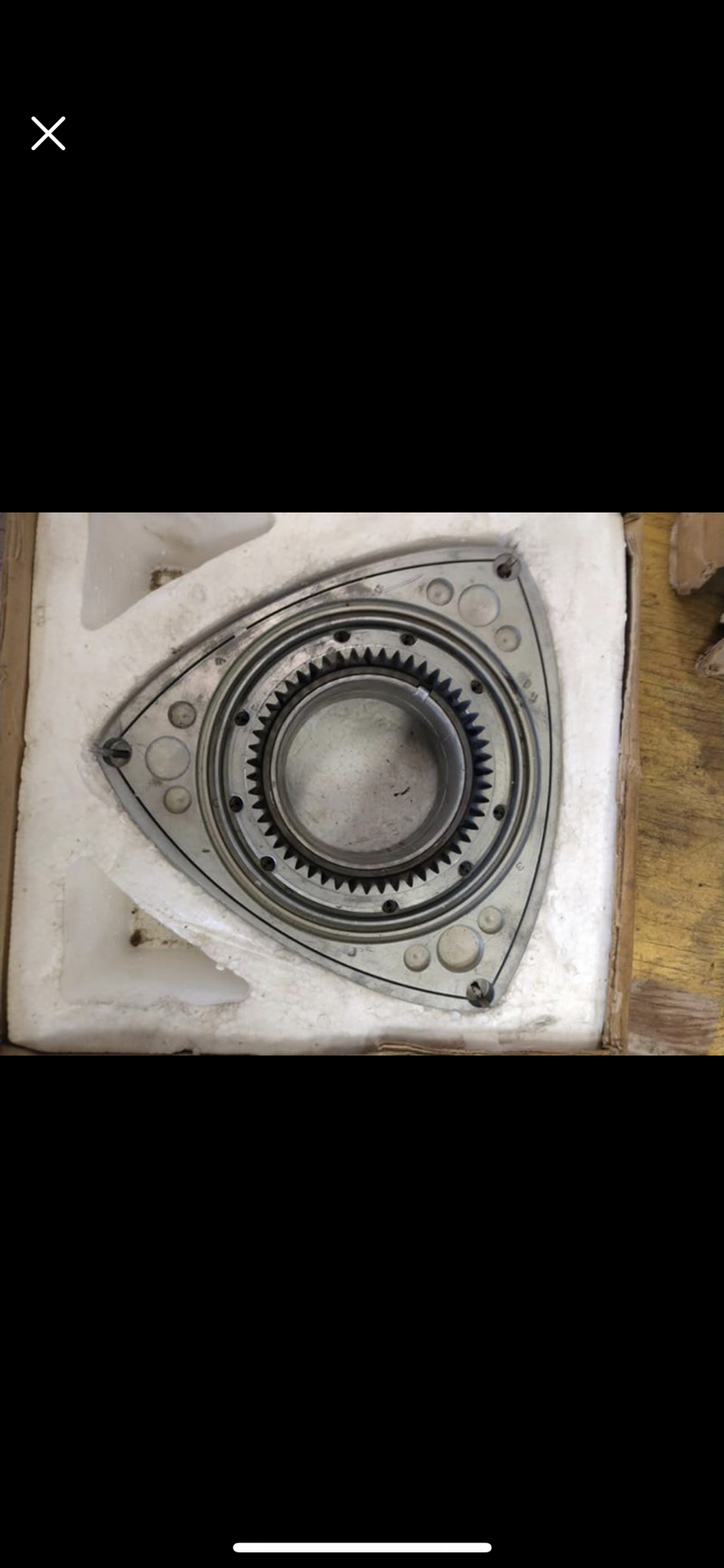

Been searching high and low with no luck by the part number? Anyone here able to shine any light on this part number?

1011 23 104b
Attached Thumbnails Is this a 12a rotor?-photo521.jpg
geilkyle2 is offline
Reply Like
Old 04-10-19, 01:51 PM
  #2
Senior Member

JOE68's Avatar

Join Date: Dec 2018
Location: queens ny
Posts: 325
Received 27 Likes on 23 Posts
could be....take a pic of the combustion side
JOE68 is offline
Reply Like
Old 04-10-19, 05:58 PM
  #3
Out In the Barn


iTrader: (9)

KansasCityREPU's Avatar

Join Date: Mar 2005
Location: KC
Posts: 6,050
Received 1,013 Likes on 799 Posts
12A is 70mm wide/deep. 13B is 80mm.
KansasCityREPU is offline
Reply Like
Old 04-10-19, 06:28 PM
  #4
Full Member

Thread Starter
iTrader: (13)

geilkyle2's Avatar

Join Date: Nov 2008
Location: Wisconsin
Posts: 123
Likes: 0
Received 1 Like on 1 Post

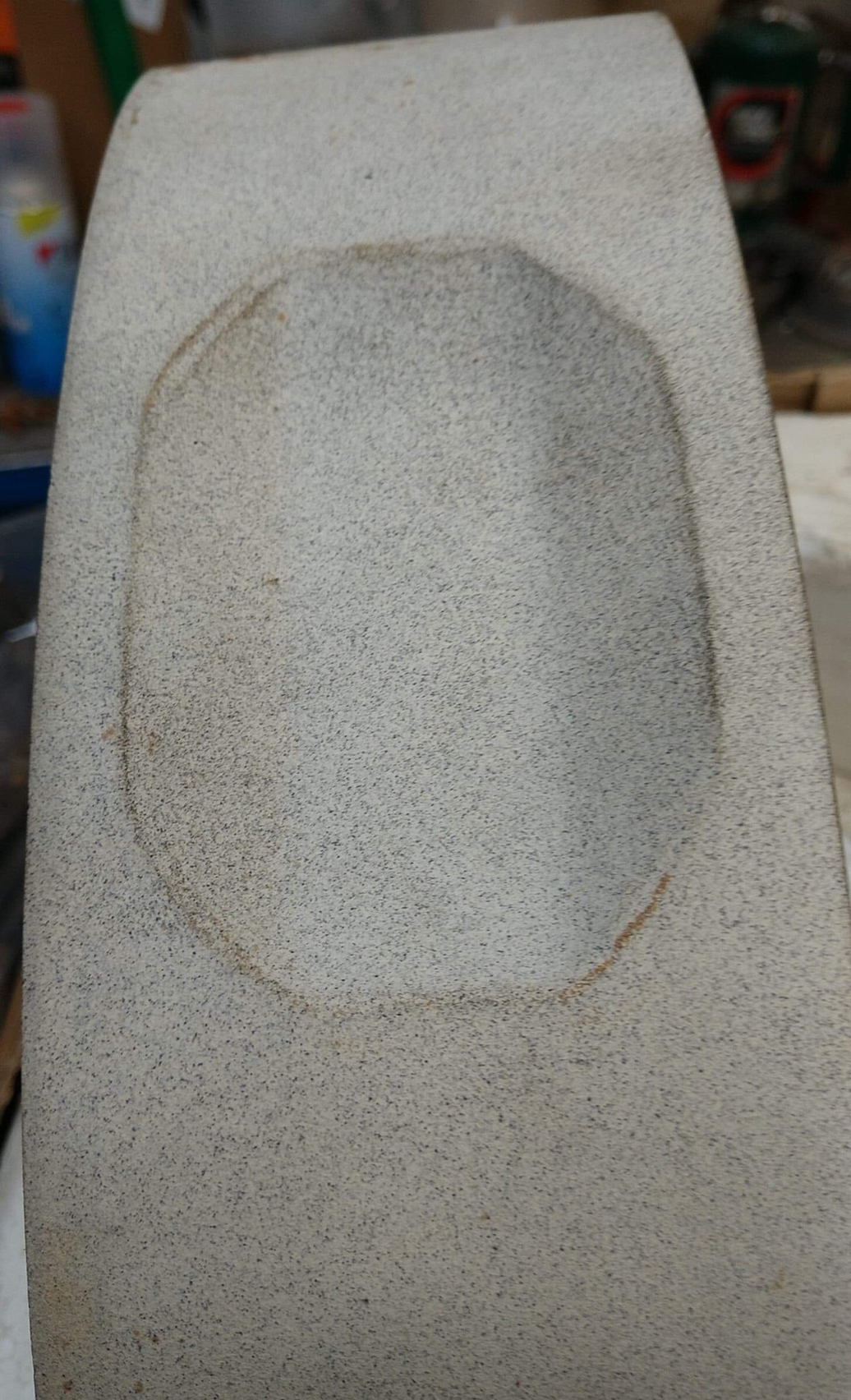

70mm wide, 3mm apex seal groove
Attached Thumbnails Is this a 12a rotor?-photo835.jpg
geilkyle2 is offline
Reply Like
Old 04-10-19, 06:38 PM
  #5
Full Member

Thread Starter
iTrader: (13)

geilkyle2's Avatar

Join Date: Nov 2008
Location: Wisconsin
Posts: 123
Likes: 0
Received 1 Like on 1 Post
No lettering in combustion recesses
What would this be worth, it's brand new in the box still ?
geilkyle2 is offline
Reply Like
Old 04-10-19, 08:54 PM
  #6
Senior Member


84rtaryrcket's Avatar

Join Date: Dec 2007
Location: Upton,Ma
Posts: 268
Received 9 Likes on 9 Posts
Price is hard. I would imagine guys would want a matched set, Atleast I would if I was buying new rotors I'd want two
84rtaryrcket is offline
Reply Like
Old 04-11-19, 03:02 AM
  #7
Senior Member

JOE68's Avatar

Join Date: Dec 2018
Location: queens ny
Posts: 325
Received 27 Likes on 23 Posts
Originally Posted by geilkyle2
70mm wide, 3mm apex seal groove
hav a pair like that..... only asked once but no one could tell me.... maybe somebody knos..
JOE68 is offline
Reply Like

Trending Topics

Old 04-11-19, 09:09 AM
  #8
Moderator

iTrader: (3)

j9fd3s's Avatar

Join Date: Mar 2001
Location: https://www2.mazda.com/en/100th/
Posts: 30,802
Received 2,577 Likes on 1,831 Posts
Originally Posted by geilkyle2
Been searching high and low with no luck by the part number? Anyone here able to shine any light on this part number?

1011 23 104b
its for a 74-75 engine, note that it is MDR and not LDR like all the other 12A rotors. its fine, you would need the pair
j9fd3s is offline
Reply Like
Old 04-11-19, 04:00 PM
  #9
Waffles - hmmm good

iTrader: (1)

t_g_farrell's Avatar

Join Date: Jul 2004
Location: Lake Wylie, N.C.
Posts: 8,783
Received 282 Likes on 232 Posts
Originally Posted by j9fd3s
its for a 74-75 engine, note that it is MDR and not LDR like all the other 12A rotors. its fine, you would need the pair
Had to look up MDR (medium deep recess) and LDR (long deep recess). Learning new things is fun!
t_g_farrell is offline
Reply Like
