12a rotary motor differences
Hello. I need to know differences between my 12a motors. One has a square chunk other has H. On the top of 12a of the front housing has a few number and on the other side has another numbers. Other engine is a normal 12a as well. Please help me

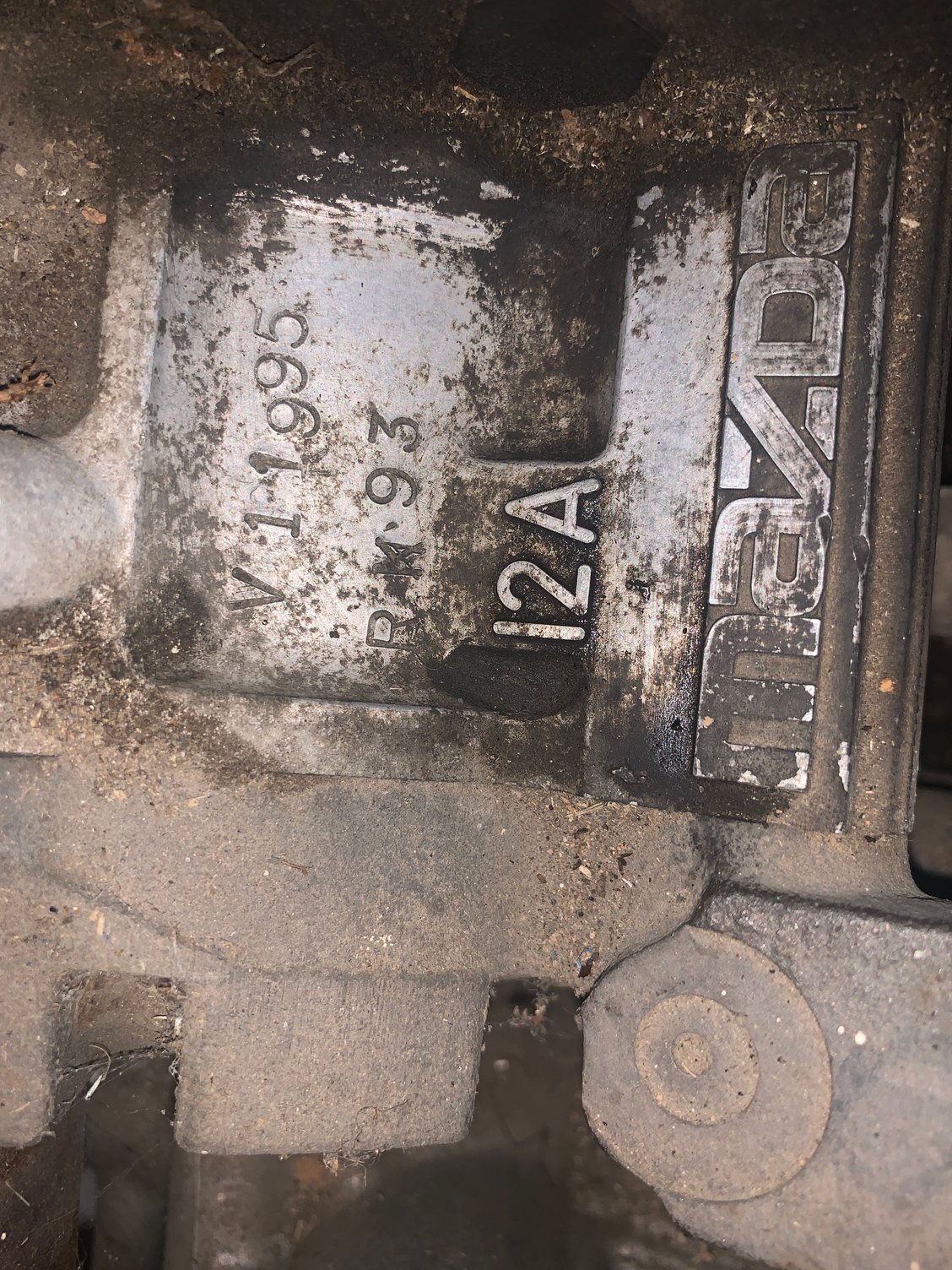

With square chunk

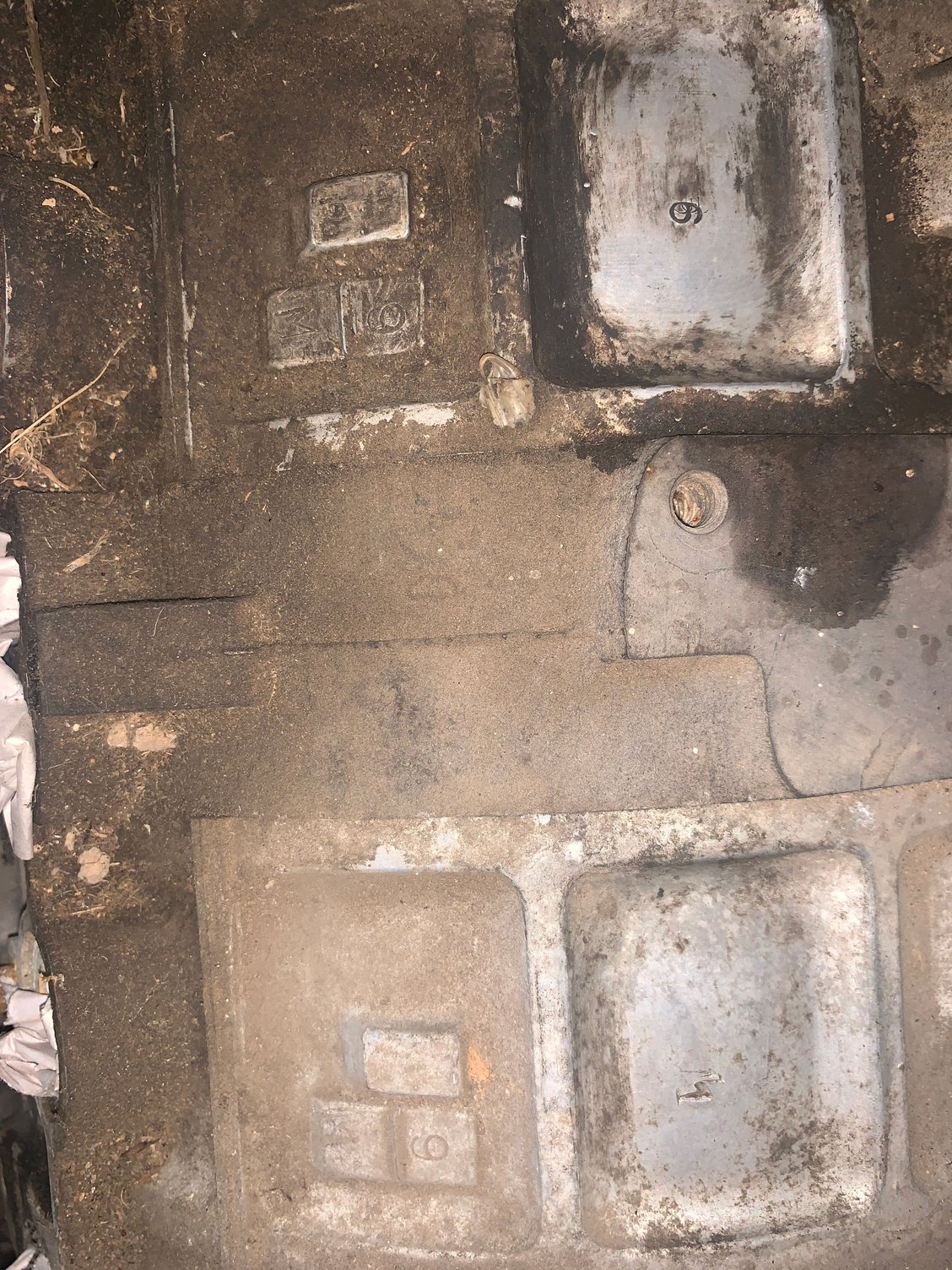

With square chunk and different housing like 13b gsl-se
Square w
With square chunk
With square chunk and different housing like 13b gsl-se
Square w
#2
Moderator
iTrader: (3)
Join Date: Mar 2001
Location: https://www2.mazda.com/en/100th/
Posts: 30,853
Received 2,616 Likes
on
1,853 Posts
the one with the H's is an 81-85 engine, your picture isn't good enough, but an 81 engine has a screw in heater hose connection, the 82 has a pressed in barb and 83-85 have a T to use the beehive oil cooler
the other one is a 79 pr 1980 non California engine. 1980 California has an EGR valve on the top
the stamp is what Mazda used to do on rebuilds. around 1996-1997 they switched to a blue tag glued to the front cover.
the other one is a 79 pr 1980 non California engine. 1980 California has an EGR valve on the top
the stamp is what Mazda used to do on rebuilds. around 1996-1997 they switched to a blue tag glued to the front cover.
The following users liked this post:
7aull (10-06-20)
#3
Newbie
Thread Starter
the one with the H's is an 81-85 engine, your picture isn't good enough, but an 81 engine has a screw in heater hose connection, the 82 has a pressed in barb and 83-85 have a T to use the beehive oil cooler
the other one is a 79 pr 1980 non California engine. 1980 California has an EGR valve on the top
the stamp is what Mazda used to do on rebuilds. around 1996-1997 they switched to a blue tag glued to the front cover.
the other one is a 79 pr 1980 non California engine. 1980 California has an EGR valve on the top
the stamp is what Mazda used to do on rebuilds. around 1996-1997 they switched to a blue tag glued to the front cover.
The following users liked this post:
Frogman (10-05-20)
