12a Rebuild: Oil Control Ring Lip Width
12a Rebuild continued...
Cleaning and measuring the last of the internal parts.
On the Oil Control Rings, the Haynes book specifies .5mm or less on the lip width.

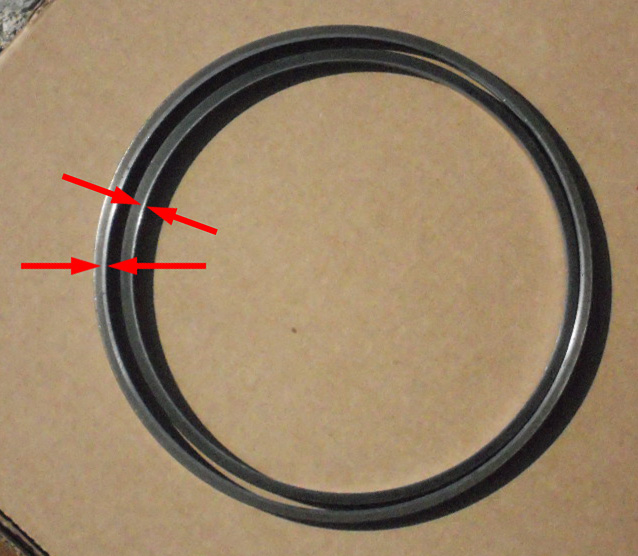

Just confirming the lip-width is the distance between the arrow pairs in the attached image. (If true, then only 1 of the 8 is within spec with some over 1.0mm.)
Thanks for your help as always.
True: This is will be much easier the second time around.
Cleaning and measuring the last of the internal parts.
On the Oil Control Rings, the Haynes book specifies .5mm or less on the lip width.
Just confirming the lip-width is the distance between the arrow pairs in the attached image. (If true, then only 1 of the 8 is within spec with some over 1.0mm.)
Thanks for your help as always.
True: This is will be much easier the second time around.
#2
Out In the Barn
iTrader: (9)
I know this is the 1979 model, but page 2-20 has what you're after plus lots more.
http://www.foxed.ca/rx7manual/manual...ria%201979.pdf
http://www.foxed.ca/rx7manual/manual...ria%201979.pdf
#3
Lapping = Fapping
iTrader: (13)
If you're cheap like some of us, you can reuse those. Be sure to get new Viton o-rings from Atkins (they're slightly thicker than OEM). Also get new competition outer springs. The stock inners can be reused. The engine shouldn't smoke on startup after the break in period. In fact it will probably stop smoking on startup after 50 miles like mine did. Just be sure to NOT resurface the irons. If you do, all bets are off.
#4
Old [Sch|F]ool
You're measuring correctly.
Oil control rings are those kind of things that you tend to hoard if you've dealt with enough engines. If I buy a core engine and everything is trashed but it has good oil rings, I figure that I made out ahead on the deal. I have a small stack of them, and when I build an engine, the best four of each size go in. So far I haven't had to go over spec.
And the lesson is... clean oil and clean air, so you don't wear those expensive little buggers out! I had dirty air and oil cause some rings to get worn completely across the face. That hurt as they were almost as-new when installed.
Oil control rings are those kind of things that you tend to hoard if you've dealt with enough engines. If I buy a core engine and everything is trashed but it has good oil rings, I figure that I made out ahead on the deal. I have a small stack of them, and when I build an engine, the best four of each size go in. So far I haven't had to go over spec.
And the lesson is... clean oil and clean air, so you don't wear those expensive little buggers out! I had dirty air and oil cause some rings to get worn completely across the face. That hurt as they were almost as-new when installed.
#5
Moderator
iTrader: (3)
Join Date: Mar 2001
Location: https://www2.mazda.com/en/100th/
Posts: 30,832
Received 2,603 Likes
on
1,847 Posts
yeah what PJ said... you're measuring the shiny bit, i'll go to like 1mm (its actually hard to measure)
oh and be careful, they look round and harmless, but are actually the sharpest things on the planet. the first engine i built i used blood instead of vaseline, because of one of those...
oh and be careful, they look round and harmless, but are actually the sharpest things on the planet. the first engine i built i used blood instead of vaseline, because of one of those...
#6
I know this is the 1979 model, but page 2-20 has what you're after plus lots more.
http://www.foxed.ca/rx7manual/manual...ria%201979.pdf
http://www.foxed.ca/rx7manual/manual...ria%201979.pdf
#7
If you're cheap like some of us, you can reuse those. Be sure to get new Viton o-rings from Atkins (they're slightly thicker than OEM). Also get new competition outer springs. The stock inners can be reused. The engine shouldn't smoke on startup after the break in period. In fact it will probably stop smoking on startup after 50 miles like mine did. Just be sure to NOT resurface the irons. If you do, all bets are off.
My springs have no paint indicators for front orientation. Still need to measure them.
Thanks for the Viton and competition outer springs recommendations.
(Irons left as found. I was warned some time ago if I lapped them someone would be making a house call.)
Trending Topics
#8
yeah what PJ said... you're measuring the shiny bit, i'll go to like 1mm (its actually hard to measure)
oh and be careful, they look round and harmless, but are actually the sharpest things on the planet. the first engine i built i used blood instead of vaseline, because of one of those...
oh and be careful, they look round and harmless, but are actually the sharpest things on the planet. the first engine i built i used blood instead of vaseline, because of one of those...
Have not sliced a finger yet, but they are like playing with a straight razor.
