1st Gen General Discussion The place for non-technical discussion about 1st Gen RX-7s or if there's no better place for your topic

what is the 3rd fluid container under hood

Thread Tools

Search this Thread

Old 07-04-09, 04:46 PM
  #1
Full Member
Thread Starter

jeepinoffroad04's Avatar

Join Date: Jun 2009
Location: Wilson NC
Posts: 47
Likes: 0
Received 0 Likes on 0 Posts
what is the 3rd fluid container under hood

okay, so i was just filling my washer fluid thing and noticed there is a radiator overflow, a washerfluid and then... container x kinda behind/below the washer fluid one... what is it?
Old 07-04-09, 05:42 PM
  #2
Smoke moar


cmanns's Avatar

Join Date: Aug 2006
Location: The yay, California
Posts: 2,530
Likes: 0
Received 1 Like on 1 Post
Pass side?

Subzero start ****
Old 07-04-09, 08:33 PM
  #3
Eats, Sleeps, Dreams Rotary

iTrader: (17)

twinkletoes's Avatar

Join Date: Apr 2006
Location: Las Vegas, NV
Posts: 3,740
Likes: 0
Received 4 Likes on 2 Posts
Yup, supposed to squirt some of that sub zero fluid in the engine when its cold and supposed to help start it up.
Old 07-05-09, 04:53 PM
  #4
Full Member


sino305's Avatar

Join Date: Jun 2008
Location: Jacksonville,NC
Posts: 158
Likes: 0
Received 0 Likes on 0 Posts
yup^^
Old 07-05-09, 05:16 PM
  #5
Full Member
Thread Starter

jeepinoffroad04's Avatar

Join Date: Jun 2009
Location: Wilson NC
Posts: 47
Likes: 0
Received 0 Likes on 0 Posts
ok

okay thats cool, so basically its pointless? lol... sounds like a good NOS insert lol j/k... def no nos... but is there something i should put in it? never heard of subzero
Old 07-05-09, 05:40 PM
  #6
Censored

iTrader: (14)

ray green's Avatar

Join Date: Jul 2002
Location: Georgia
Posts: 11,368
Received 176 Likes on 137 Posts
What you can do with that fluid container is fill it with oil, wire it to a toogle switch and create a smokescreen when you need to. Crit taught me how to do that.

So it's not totally useless. And some Yankees might even need it, but they need to use antifreeze.
Old 07-05-09, 05:44 PM
  #7
Daily Beaten

iTrader: (3)

TheRX7Project's Avatar

Join Date: May 2008
Location: Milwaukee
Posts: 592
Received 3 Likes on 3 Posts
Or do the toggle-switch mod, and redirect the hose to split hoses in front of the rear tires, and fill it with VHT traction compound for the track... or bleach for some insane burnouts...
Old 07-05-09, 05:44 PM
  #8
Have RX-7, will restore


iTrader: (91)

mazdaverx713b's Avatar

Join Date: Oct 2003
Location: Ohio
Posts: 21,713
Received 1,053 Likes on 892 Posts
the sub zero starting assist was instaled on all non CA spec 7's. it's job was to inject a 10% water/90% antifreeze mix into the intake manifold for de-icing purposes when oil temps were below 32 degrees farenheit. the oil thermo unit in the oil pan sent the signal for the sub zero starting assist to trigger into action. kind of a neat little system. i always keep mine installed.
Old 07-06-09, 01:02 AM
  #9
Full Member
Thread Starter

jeepinoffroad04's Avatar

Join Date: Jun 2009
Location: Wilson NC
Posts: 47
Likes: 0
Received 0 Likes on 0 Posts
yeah that is pretty cool, never heard water in the intake being a good thing lol.. but thats pretty cool, ofcourse in NC it usually isn't that cold, but last winter it got pretty dag on cold a few times... like 15 deg. or so... so maybe i will end up using it.
Old 07-06-09, 08:53 AM
  #10
Round and Round

iTrader: (10)

74RX4's Avatar

Join Date: Aug 2002
Location: SW Florida
Posts: 1,516
Likes: 0
Received 3 Likes on 3 Posts

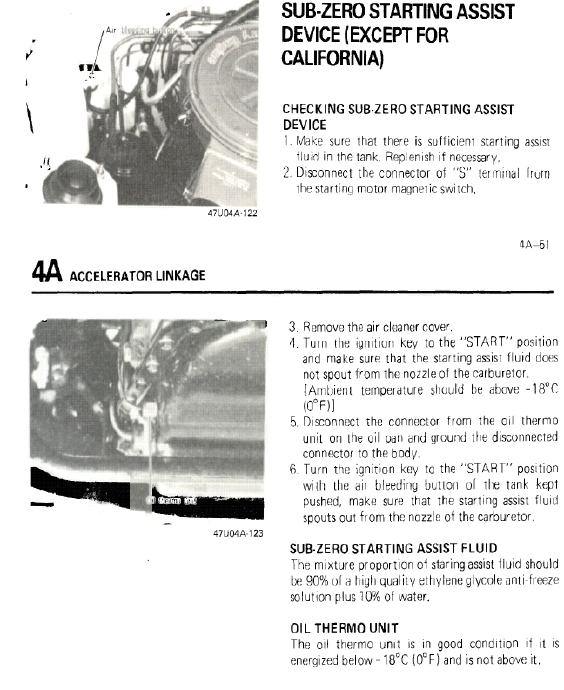

The system is triggered below 0 degrees fahrenheit/-18 C (hense the name) not 32 degrees fahrenheit.
Attached Thumbnails what is the 3rd fluid container under hood-szsa.jpg
Old 07-06-09, 09:01 AM
  #11
Have RX-7, will restore


iTrader: (91)

mazdaverx713b's Avatar

Join Date: Oct 2003
Location: Ohio
Posts: 21,713
Received 1,053 Likes on 892 Posts
i was mistaken. thank you for the correction!! been awhile since i actually drove a 7 in the freezing months and used the sub zero starting assist. again, spon on. thank you.
Old 07-06-09, 09:06 AM
  #12
Round and Round

iTrader: (10)

74RX4's Avatar

Join Date: Aug 2002
Location: SW Florida
Posts: 1,516
Likes: 0
Received 3 Likes on 3 Posts
Been a while since I've needed that system too....like never here in Naples
Old 07-06-09, 09:14 AM
  #13
Have RX-7, will restore


iTrader: (91)

mazdaverx713b's Avatar

Join Date: Oct 2003
Location: Ohio
Posts: 21,713
Received 1,053 Likes on 892 Posts
just be glad you dont see snow down there..or negative temps to boot. this pas t winter was extremely cold up here. cold to the point that you'd be in pain while pumping gas.. i run a 60K btu heater in my garage just to be warm when i'm restoring my yearly 7.
Old 07-06-09, 10:50 AM
  #14
My 7 is my girlfriend.

iTrader: (5)

orion84gsl's Avatar

Join Date: Feb 2006
Location: London, Ontario, Canada
Posts: 3,162
Likes: 0
Received 1 Like on 1 Post
I pulled my subzero and hot start assists off while removing the rats nest. Really cleaned up the engine bay. I don't drive my 7 in the winter, I guess I'd have to be pretty stupid to considering the weather we get, so it's never been needed.
Old 07-06-09, 11:27 AM
  #15
Round and Round

iTrader: (10)

74RX4's Avatar

Join Date: Aug 2002
Location: SW Florida
Posts: 1,516
Likes: 0
Received 3 Likes on 3 Posts
Originally Posted by mazdaverx713b
i run a 60K btu heater in my garage just to be warm when i'm restoring my yearly 7.
I have to deal with Mosquitoes the size of B-52s when working on my cars in the summer. Only the Cessna sized ones are out now, but the big swarms are not far away. Everybody has something they have to deal with, but I haven't found anything you can spray to kill the cold.
Old 07-06-09, 11:33 AM
  #16
Senior Member
iTrader: (5)

BonesZ33's Avatar

Join Date: Apr 2009
Location: Burlington, NC
Posts: 277
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by ray green
What you can do with that fluid container is fill it with oil, wire it to a toogle switch and create a smokescreen when you need to. Crit taught me how to do that.

So it's not totally useless. And some Yankees might even need it, but they need to use antifreeze.
lol
Old 07-06-09, 12:15 PM
  #17
Actin Like I'm Drunk

iTrader: (4)

jshiz's Avatar

Join Date: Jul 2007
Location: Charleston, South Carolina
Posts: 1,663
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by 74RX4
I have to deal with Mosquitoes the size of B-52s when working on my cars in the summer. Only the Cessna sized ones are out now, but the big swarms are not far away. Everybody has something they have to deal with, but I haven't found anything you can spray to kill the cold.
Don't forget about love bugs
Old 07-06-09, 03:47 PM
  #18
Have RX-7, will restore


iTrader: (91)

mazdaverx713b's Avatar

Join Date: Oct 2003
Location: Ohio
Posts: 21,713
Received 1,053 Likes on 892 Posts
those love bugs are horrible. those things fly around attatched together and are all over the plce. found out the hard way about the love bugs last september when i was in Louisiana..
Old 07-06-09, 03:49 PM
  #19
Smoke moar


cmanns's Avatar

Join Date: Aug 2006
Location: The yay, California
Posts: 2,530
Likes: 0
Received 1 Like on 1 Post
Originally Posted by 74RX4
The system is triggered below 0 degrees fahrenheit/-18 C (hense the name) not 32 degrees fahrenheit.
hmm but my car was originally owned in california and such but it has it
Old 07-06-09, 05:25 PM
  #20
Have RX-7, will restore


iTrader: (91)

mazdaverx713b's Avatar

Join Date: Oct 2003
Location: Ohio
Posts: 21,713
Received 1,053 Likes on 892 Posts
odd that it has it. only federal emissions packaged cars should have it.
Old 07-06-09, 06:01 PM
  #21
Censored

iTrader: (14)

ray green's Avatar

Join Date: Jul 2002
Location: Georgia
Posts: 11,368
Received 176 Likes on 137 Posts
But the engine bay looks so cool without it (tonight's photo of the White One)

Old 07-06-09, 06:18 PM
  #22
Smoke moar


cmanns's Avatar

Join Date: Aug 2006
Location: The yay, California
Posts: 2,530
Likes: 0
Received 1 Like on 1 Post
Ray, wanna post how to wire it to make a smoke screen?

I'll never be starting her in temps lower then 40F, and i'd love to **** off those tailgaters
Old 07-06-09, 07:48 PM
  #23
Have RX-7, will restore


iTrader: (91)

mazdaverx713b's Avatar

Join Date: Oct 2003
Location: Ohio
Posts: 21,713
Received 1,053 Likes on 892 Posts
still looking great Ray!! it really opens up that corner of the engine bay doesnt it?
Old 07-07-09, 07:21 AM
  #24
Censored

iTrader: (14)

ray green's Avatar

Join Date: Jul 2002
Location: Georgia
Posts: 11,368
Received 176 Likes on 137 Posts
Thanks Dave, she's actually due for a good bath under the hood, you can see some grime collected on the windshield fluid reservoir. And now I see why my washer fluid light is coming on when I corner or brake hard.

And I do like the neater look, it goes with my philosophy that if it's not performance enhancing, ditch it - less weight, better looks and much easier to work on.

The AC, PS, cruise, hot start assist and a few other things met the same fate and I don't miss them at all. (But the rat's nest gives me much better throttle response and gas mileage, so after a summer without that I put it back in).



Before the 2GDFI installation:







I'd still like to try Crit's trick with the oil and toggle switch sometime, that could be handy for all kinds of things. Here's how one of the OGTA's wired his toggle to a panic button on the steering wheel:


The wiring is straight forward, just run 12V from your toggle to that connector on the bottom of the reservoir, the one that the plug in this photo connects too:

Old 07-08-09, 07:58 AM
  #25
ROTOR > PISTON
iTrader: (2)

connors14's Avatar

Join Date: Jun 2008
Location: milford, connecticut
Posts: 143
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by ray green
What you can do with that fluid container is fill it with oil, wire it to a toogle switch and create a smokescreen when you need to. Crit taught me how to do that.

So it's not totally useless. And some Yankees might even need it, but they need to use antifreeze.
does that actually work?
lol
