What is it?

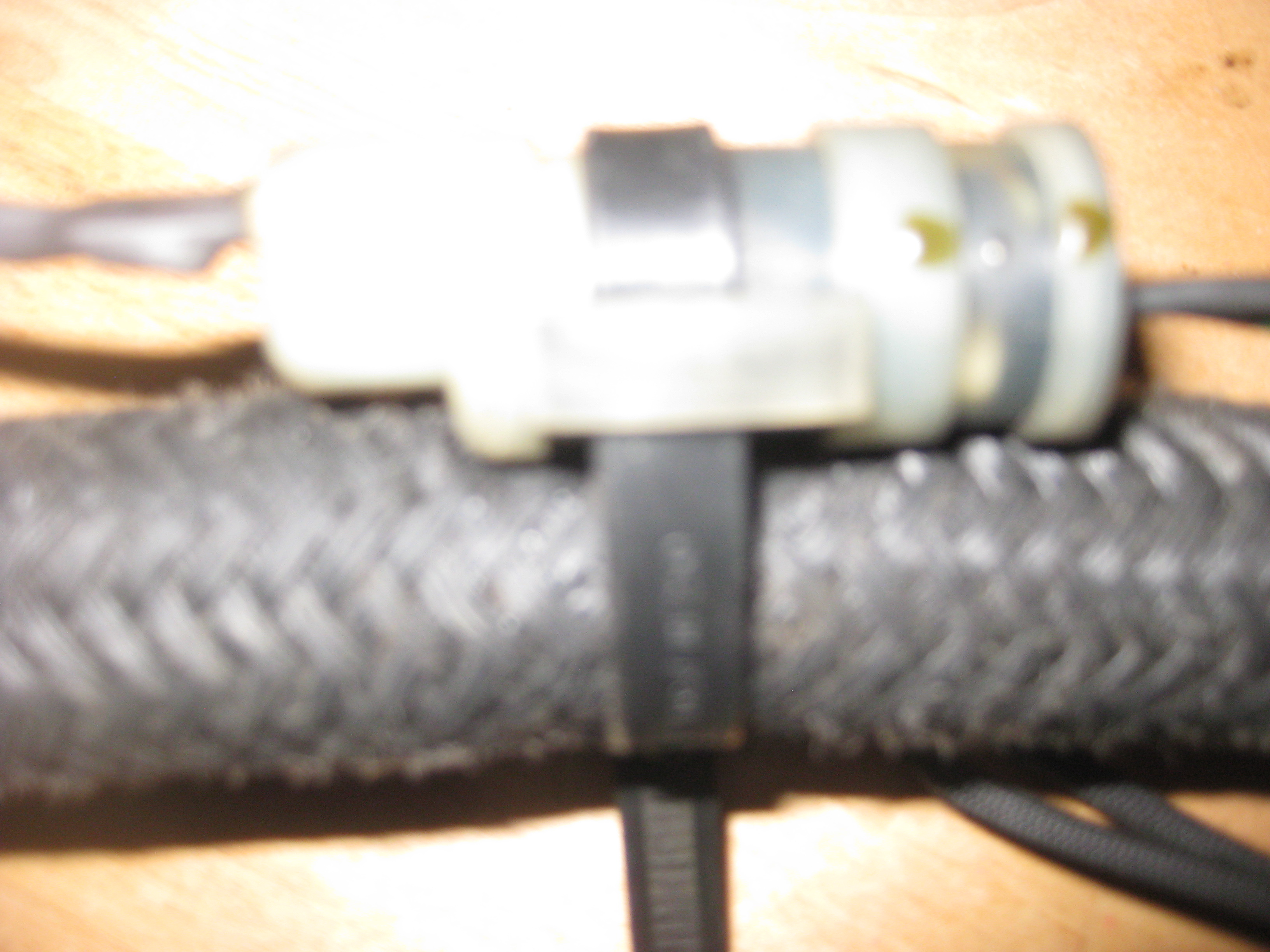

This part is on my '78 SA22. It's a white plastic tube zip tied to the long oil cooler hose. It has two wires, one green one black, coming out of one end and a black with green stripe wire out of the other. See picture attached. I have no idea what it could be. Help.
Attached Thumbnails What is it?-img_2791%5B1%5D.jpg
Last edited by OCDHerb; 09-27-16 at 10:12 PM.
OCDHerb is offline
Reply Like
Old 09-28-16, 04:33 AM
  #2
RX HVN

iTrader: (2)

7aull's Avatar

Join Date: Jan 2003
Location: Arizona
Posts: 3,889
Received 227 Likes on 167 Posts

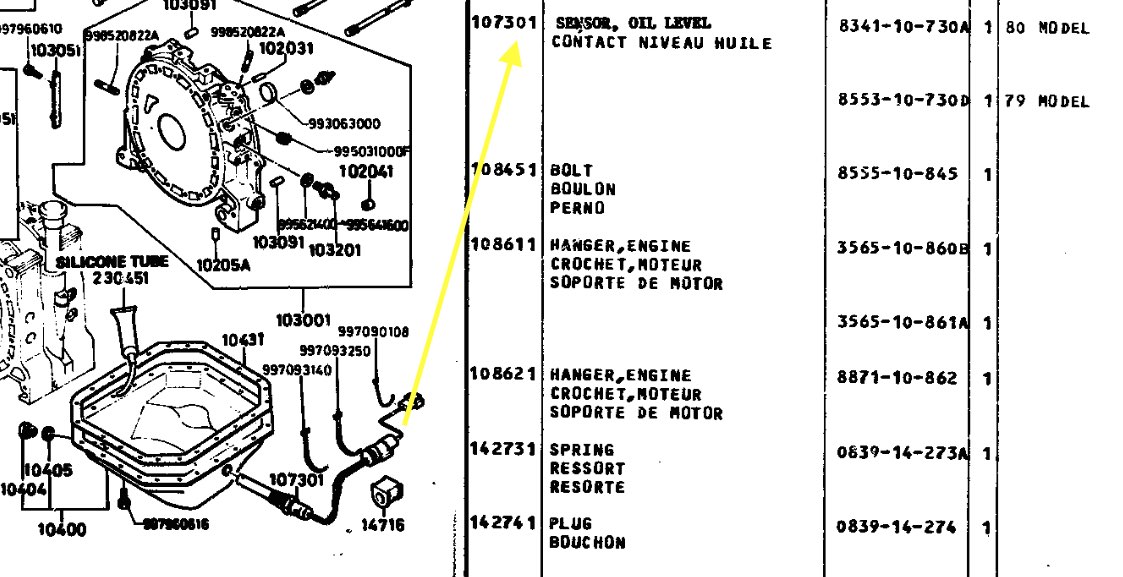

Part of the oil level sensor assy. the front wire should lead to a plug (the sensor) in the oil pan...
fragile bastid so be careful!

Stu Aull
80GS
Alaska
Attached Thumbnails What is it?-oil-sensor.jpg
7aull is offline
Reply Like
Old 09-28-16, 12:08 PM
  #3
Senior Member

Thread Starter

OCDHerb's Avatar

Join Date: Sep 2009
Location: Colorado
Posts: 283
Received 0 Likes on 0 Posts
Thanks again Stu. What would I do without you?

Originally Posted by 7aull
Part of the oil level sensor assy. the front wire should lead to a plug (the sensor) in the oil pan...
fragile bastid so be careful!

Stu Aull
80GS
Alaska
OCDHerb is offline
Reply Like
Old 09-28-16, 08:53 PM
  #4
Senior Member

Thread Starter

OCDHerb's Avatar

Join Date: Sep 2009
Location: Colorado
Posts: 283
Received 0 Likes on 0 Posts
Originally Posted by OCDHerb
Thanks again Stu. What would I do without you?
I located the sensor that goes in the oil pan, Unfortunately, the bag did not contain the threaded collar that holds it in. Any idea how to replace that if I can't find it?

Herb
OCDHerb is offline
Reply Like
Old 09-29-16, 01:38 PM
  #5
Senior Member

Thread Starter

OCDHerb's Avatar

Join Date: Sep 2009
Location: Colorado
Posts: 283
Received 0 Likes on 0 Posts
Originally Posted by OCDHerb
I located the sensor that goes in the oil pan, Unfortunately, the bag did not contain the threaded collar that holds it in. Any idea how to replace that if I can't find it?

Herb
Found the collar. There are two holes in the left front side of the oil pan. The parts manual only shows 1. Which one is for the oil level sensor and which one is for the other thingy that isn't in the parts diagram.
OCDHerb is offline
Reply Like
Old 10-01-16, 03:50 AM
  #6
RX HVN

iTrader: (2)

7aull's Avatar

Join Date: Jan 2003
Location: Arizona
Posts: 3,889
Received 227 Likes on 167 Posts
pix coming....

Stu Aull
80GS
Alaska
