Hi guys, finally getting around to reassembling the manifolds on my S5 NA. Theres a green and white check valve the has a hose going to a tee (not the one under the UIM, I never took that one off), (I think) one end goes to power steering, but not sure where the other attach.. back of the UIM I assume. The manual just isn't quite clear enough for this wannabe rotary guy. Can you please maybe attach a pic of an engine bay showing where these go? Showing all the other vac lines won't upset me either..I dont want to hook them up incorrectly.
Thanks!

clokker

iTrader: (2)

There are only two check valves on the S5, the one you're probably interested in goes to the secondary throttle on the throttle body.

mwpayne

Thanks clokker, I think thats right, but this is my 1st try at doing all this, can you give me an idea of where exactly it goes? There are 2 ports on the back of the throttle body, I need to know where the other end goes as well. Sorry to be so darn needy..

mwpayne

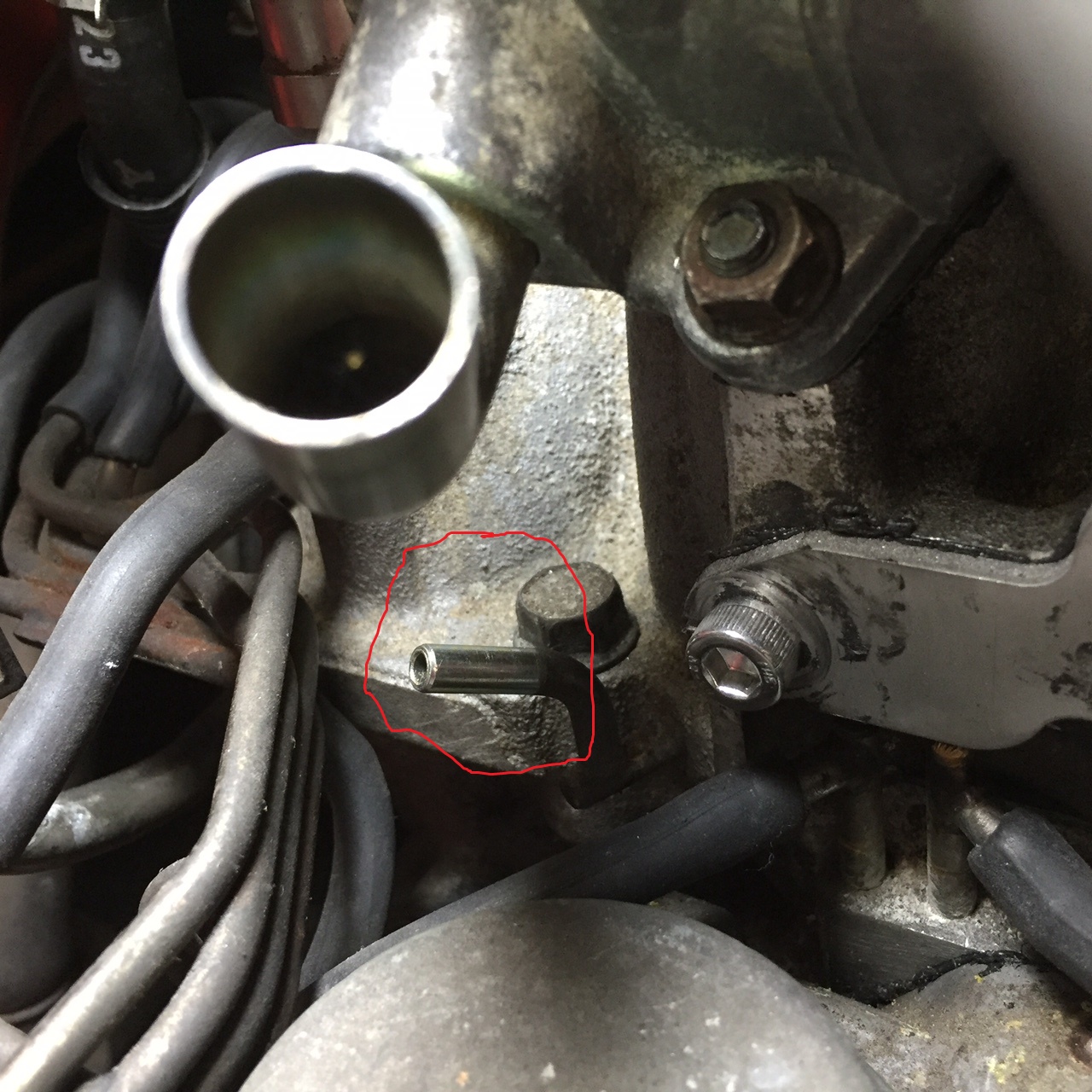

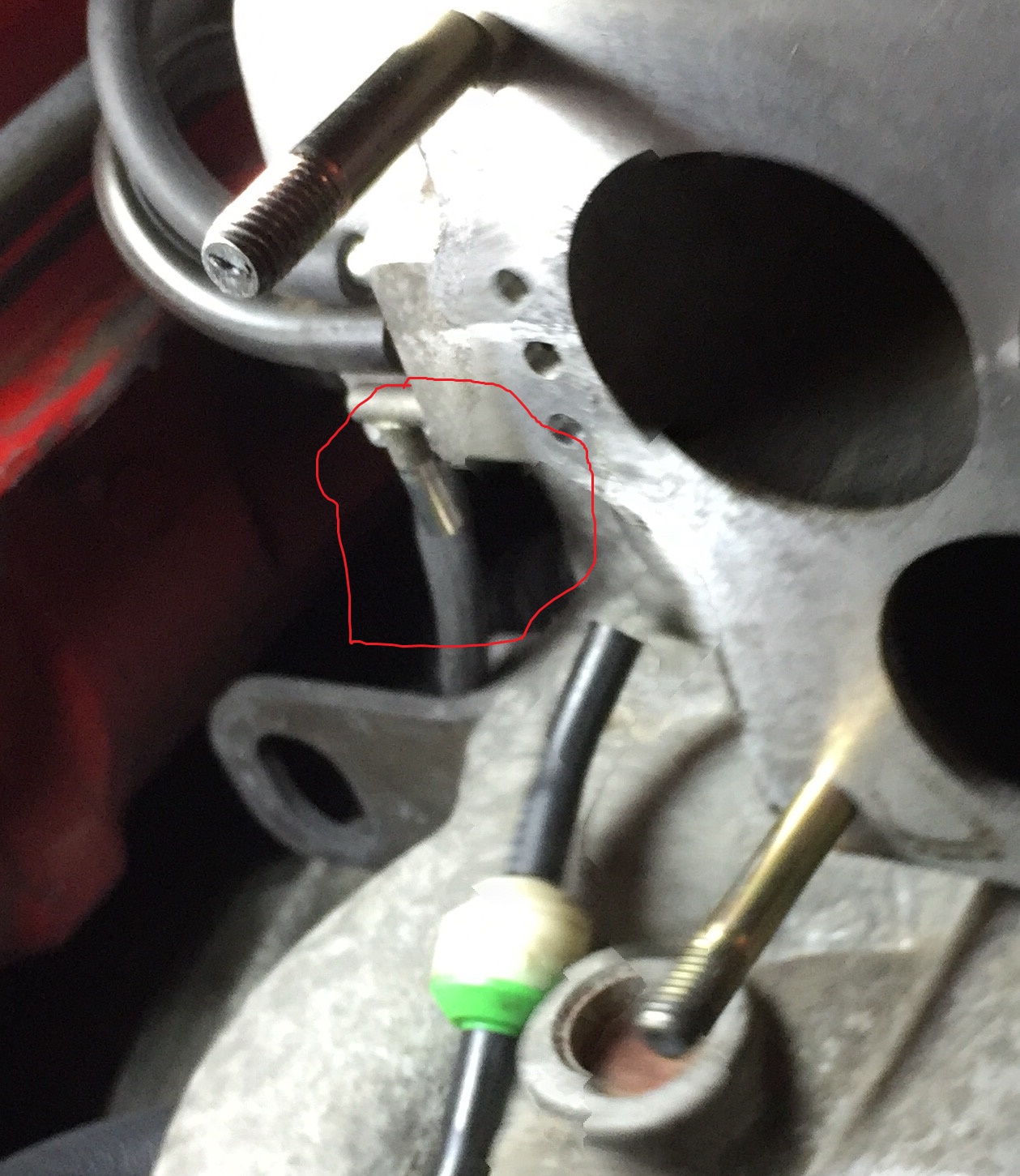

While we're at it, I need a bit of guidance on these as well..

clokker

iTrader: (2)

There are vacuum schematics and more info on the throttle body in the Fuel&Emissions section of the FSM.

mwpayne

Yes I've printed that out and have been using it as best I can. I'll eventually figure it out or drive to Landers place, maybe he'll have an FC I can look at for comparison.

clokker

iTrader: (2)

Oh, OK.
I've deleted my secondaries (tertiaries?) and have none of the support hardware, so I'm not much use here.

mwpayne

Yes this one's bone stock.
