Transmission

When u buy a new clutch kit it comes with a throwout bearing but where do I get the cage and ring to hold the throwout bearing to the pressure plate?
Reply
Old Oct 10, 2023 | 08:51 AM
  #2
KansasCityREPU's Avatar
Out In the Barn
Tenured Member: 20 Years
Liked
Loved
Community Favorite
iTrader: (9)

Joined: Mar 2005
Posts: 6,704
Likes: 1,250
From: KC
The throwout bearing sits in the shift fork and on the input shaft and is operated by the clutch slave cylinder. Its job is to just apply pressure to the pressure plate fingers but doesn't physically attach to it.



Last edited by KansasCityREPU; Oct 10, 2023 at 08:55 AM.
Reply
Old Oct 10, 2023 | 10:25 AM
  #3
Paulieboy72's Avatar
Thread Starter
Paulieboy72

Joined: Sep 2023
Posts: 393
Likes: 28
From: Michigan
I have all that except the locking ring for the PP
Reply
Old Oct 10, 2023 | 11:02 AM
  #4
rxtasy3's Avatar
Moderator
Tenured Member: 20 Years
iTrader: (2)

Joined: Jun 2002
Posts: 9,579
Likes: 290
From: Spartanburg, SC
the bearing doesn't attach to the pressure plate. it's held in place by the fork, which is all within the bellhousing of the transmission.
Reply
Old Oct 10, 2023 | 11:11 AM
  #5
Paulieboy72's Avatar
Thread Starter
Paulieboy72

Joined: Sep 2023
Posts: 393
Likes: 28
From: Michigan

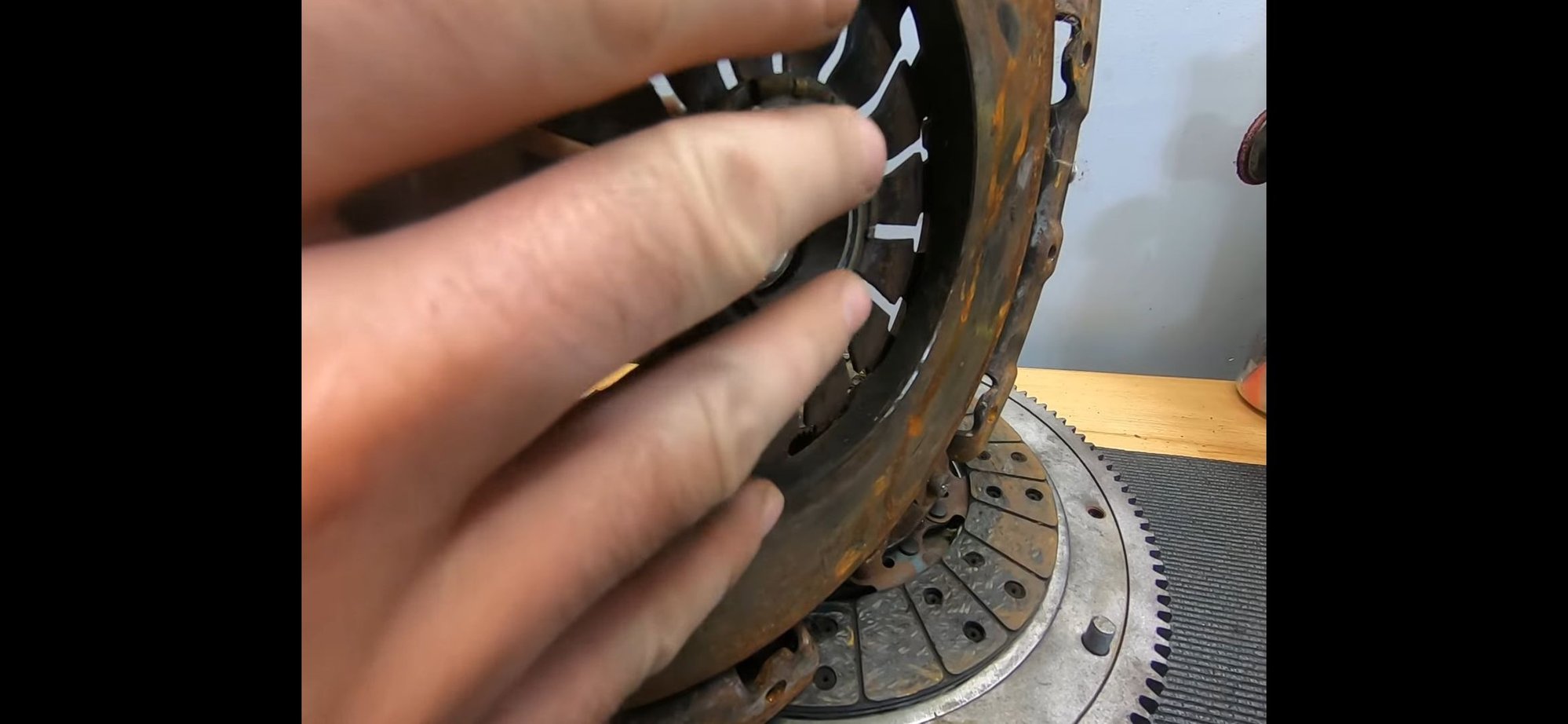

Every video I've looked at shows a metal ring and a cage that attach to the fingers and the throwout bearing to hold the bearing to the fingers

A ring and a cage

That ring in the fingers
Reply
Old Oct 10, 2023 | 11:42 AM
  #6
diabolical1's Avatar
Moderator
Tenured Member: 20 Years
Liked
Loved
Community Favorite
iTrader: (3)

Joined: Feb 2002
Posts: 10,998
Likes: 349
From: FL
if you notice, that's for an FD (Gen 3), they use a pull-type clutch. Gen 1 and Gen 2 cars use a push-type. completely different setup.
Reply
Old Oct 10, 2023 | 11:45 AM
  #7
KansasCityREPU's Avatar
Out In the Barn
Tenured Member: 20 Years
Liked
Loved
Community Favorite
iTrader: (9)

Joined: Mar 2005
Posts: 6,704
Likes: 1,250
From: KC
diabolocal1 bet me to it - That's an FD and has a different type of clutch engagement. The FD uses a Pull Type and the FB uses a Push Type
Reply
Old Oct 10, 2023 | 12:09 PM
  #8
Paulieboy72's Avatar
Thread Starter
Paulieboy72

Joined: Sep 2023
Posts: 393
Likes: 28
From: Michigan
So the throwout bearing just pushes against the fingers not locks into them
Reply
Old Oct 10, 2023 | 12:10 PM
  #9
Paulieboy72's Avatar
Thread Starter
Paulieboy72

Joined: Sep 2023
Posts: 393
Likes: 28
From: Michigan
So there's no ring to unclip?
Reply
Old Oct 10, 2023 | 12:25 PM
  #10
j9fd3s's Avatar
Moderator
Community Builder
Liked
Loved
Community Favorite
iTrader: (3)

Joined: Mar 2001
Posts: 31,833
Likes: 3,232
From: https://www2.mazda.com/en/100th/
Originally Posted by Paulieboy72
So there's no ring to unclip?
yep! only the FD and some Subarus
Reply
Old Oct 10, 2023 | 12:26 PM
  #11
Paulieboy72's Avatar
Thread Starter
Paulieboy72

Joined: Sep 2023
Posts: 393
Likes: 28
From: Michigan
Ok thanks
