Update Time!
Wow, been a while since I did an update. Got lots of progress and real close to cranking her up.
Installed the heat shields, put a 7/8" hole in one so I could lube the front u-joint. Home Depot sells stainless plugs to fit in and seal it up.
Man them fuel lines take gorilla hands to put on. Finally got em on but whoa--what a struggle.
The alternator wires are long enough, even had to cut down the main power lead--that's ok cause the stock connector was all corroded anyways.
Did have to put in some new hose on the brake master vacuum line connecting to the engine.
Had to grind down the SE water pump outlet nozzle a little--it interferes with the air pump bracket.
Still working on the AFM mounting--waiting for some K+N filters to come in. Note the HKS AFM adapter is a 2-3/4" connection. No stores locally had anything to fit up. Everybody stocks 3" filters. K+N does have several to choose from that will fit. I think someone is making a very similar connection but uses 3"--I'd recommend that one over the HKS (Think it's made in Czec. Republic somewhere). Wasted about 3 hours driving around town looking for something to fit--what a drag.
Repainted the tanks on the radiator today, lots of it had flaked off so took the time to do it right.
T2 accelerator cable fit on OK, don't expect problems with the cruise control cable either.
Used the T2 clutch slave and everything else is all FB (including the hose up to the slave). Works like a champ.
Got the intercooler on, looks nice, really want to post an engine pic but will wait till it's finished.
All wiring is done except a ground or two and a fuel kill switch.
Trying not to get in a rush here at the end. Want to make sure everything works correctly. Tomorrow hoping to test the electrical system out, then run and leak check the fuel system, then hopefully crank her up.
Scott
Installed the heat shields, put a 7/8" hole in one so I could lube the front u-joint. Home Depot sells stainless plugs to fit in and seal it up.
Man them fuel lines take gorilla hands to put on. Finally got em on but whoa--what a struggle.
The alternator wires are long enough, even had to cut down the main power lead--that's ok cause the stock connector was all corroded anyways.
Did have to put in some new hose on the brake master vacuum line connecting to the engine.
Had to grind down the SE water pump outlet nozzle a little--it interferes with the air pump bracket.
Still working on the AFM mounting--waiting for some K+N filters to come in. Note the HKS AFM adapter is a 2-3/4" connection. No stores locally had anything to fit up. Everybody stocks 3" filters. K+N does have several to choose from that will fit. I think someone is making a very similar connection but uses 3"--I'd recommend that one over the HKS (Think it's made in Czec. Republic somewhere). Wasted about 3 hours driving around town looking for something to fit--what a drag.
Repainted the tanks on the radiator today, lots of it had flaked off so took the time to do it right.
T2 accelerator cable fit on OK, don't expect problems with the cruise control cable either.
Used the T2 clutch slave and everything else is all FB (including the hose up to the slave). Works like a champ.
Got the intercooler on, looks nice, really want to post an engine pic but will wait till it's finished.
All wiring is done except a ground or two and a fuel kill switch.
Trying not to get in a rush here at the end. Want to make sure everything works correctly. Tomorrow hoping to test the electrical system out, then run and leak check the fuel system, then hopefully crank her up.
Scott
#78
Re: Update Time!
Originally posted by Rex4Life
.
Had to grind down the SE water pump outlet nozzle a little--it interferes with the air pump bracket.
Scott
.
Had to grind down the SE water pump outlet nozzle a little--it interferes with the air pump bracket.
Scott
On a quick read for some reason I was thinking you were talking about some type of mod to the water pump housing to make it work right with the se front cover. Does the gsl-se front cover bolt right on to the t2 motor? I thought I remembered someone mentioning something about needing to grind something, or maybe that was if you were using a 12a front cover?
#79
RX-7 Alumni
Thread Starter
Originally posted by RotaryRevn
Could you please give a little more detail on this? Wouldn't you be using the TII water pump outlet nozzle? Oh, wait I think I get it, to use the stock se radiator hose you used the SE water pump outlet nozzle right?
Could you please give a little more detail on this? Wouldn't you be using the TII water pump outlet nozzle? Oh, wait I think I get it, to use the stock se radiator hose you used the SE water pump outlet nozzle right?
Originally posted by RotaryRevn
On a quick read for some reason I was thinking you were talking about some type of mod to the water pump housing to make it work right with the se front cover. Does the gsl-se front cover bolt right on to the t2 motor? I thought I remembered someone mentioning something about needing to grind something, or maybe that was if you were using a 12a front cover?
On a quick read for some reason I was thinking you were talking about some type of mod to the water pump housing to make it work right with the se front cover. Does the gsl-se front cover bolt right on to the t2 motor? I thought I remembered someone mentioning something about needing to grind something, or maybe that was if you were using a 12a front cover?
Scott
#80
RX-7 Alumni
Thread Starter
Electrical OK!
Tested out the electrical system today. Hooked up the full T2 ECU system and all readings were nominal.
Oh yea, turned it all on and no smoke, that's always a good thing. Put the ECU on a dedicated 3A fuse from the fuse box.
Tomorrow is install the fuel kill switch, radiator/fan, cat converter/conn pipe, fuel pressure test, prelube the rotors and maybe crank it a few times.
Almost there,
Scott
Oh yea, turned it all on and no smoke, that's always a good thing. Put the ECU on a dedicated 3A fuse from the fuse box.
Tomorrow is install the fuel kill switch, radiator/fan, cat converter/conn pipe, fuel pressure test, prelube the rotors and maybe crank it a few times.
Almost there,
Scott
#81
RX-7 Alumni
Thread Starter
CRANK IT UP DAY!!!
The Turbo SE ran today--whew hoo!!
Ok only for about 15 seconds. Went through the rebuild start up procedure to build up oil pressure. Primed the rotor chambers with 2 stroke oil. Got good engine oil pressure, turned over a couple more times. Put back in the EGI fuses and gave her a crank. Took about 12 seconds but finally came up and ran for about another 15 seconds.
Just have the downpipe and cat connected. The garage quickly filled with smoke--I guess this is good smoke. Not nearly as loud as I thought it would be--but smoke everywhere.
Best news is all electrical is working OK and no fluid leaks. Kill switch works good but was a major PITA to install. I put it in the location that a 12a normally has the choke ****. Great place but not easy to install.
Still waiting on the K+N filter, should be here Friday--so yea I was running a little without it--figure it's ok for just in the garage. Hoping to take it to a muffler shop Saturday and get the connecting pipe installed so I have a muffler.
Scott
p.s. I ended up removing the new thermostat I just installed. It was from Victoria British and I noticed it did not have the jiggle pin that is supposed to be on there. So I went by Mazda today and picked up the OEM thermostat. Better safe than sorry. Moral of the story--don't get a thermostat from VB.
Ok only for about 15 seconds. Went through the rebuild start up procedure to build up oil pressure. Primed the rotor chambers with 2 stroke oil. Got good engine oil pressure, turned over a couple more times. Put back in the EGI fuses and gave her a crank. Took about 12 seconds but finally came up and ran for about another 15 seconds.
Just have the downpipe and cat connected. The garage quickly filled with smoke--I guess this is good smoke. Not nearly as loud as I thought it would be--but smoke everywhere.
Best news is all electrical is working OK and no fluid leaks. Kill switch works good but was a major PITA to install. I put it in the location that a 12a normally has the choke ****. Great place but not easy to install.
Still waiting on the K+N filter, should be here Friday--so yea I was running a little without it--figure it's ok for just in the garage. Hoping to take it to a muffler shop Saturday and get the connecting pipe installed so I have a muffler.
Scott
p.s. I ended up removing the new thermostat I just installed. It was from Victoria British and I noticed it did not have the jiggle pin that is supposed to be on there. So I went by Mazda today and picked up the OEM thermostat. Better safe than sorry. Moral of the story--don't get a thermostat from VB.
Last edited by Rex4Life; 01-21-04 at 10:52 PM.
#82
great stuff man, sounds like your almost there! BTW the thermostats sold at Pep Boys don't have the giggle pin either. Sometimes it's just better to go with the factory stuff.
#84
RX-7 Alumni
Thread Starter
Running Pretty Good Now
Thanks Guys, looks like my hard work is paying off.
Ran it today for about an hour. Smoke has died down alot. For a while there I was getting some smoke around the turbo and had me kind of worried. Looks like it's just the kerosene and cleaner that I used to clean up the heat shield and engine parts--whew!!
Getting about 15 inches vacuum at about 1400 rpm. Did have to adjust the hard idle stop to get it, for a while it was at 2000 rpm.
Oh yea TJ, flooding sucks any time. The kill switch has really come in handy. To start I give it about 1 sec on while cranking, then off, then when it starts I flip it back on. Hope it's not going to be like this forever (doubt it). Also, not too worried about lubing the rotors since I'm running premix, so no matter what I'm getting oil in there when it's running.
1st and reverse work OK, so the tranny is doing fine. But, the driveshaft appears to be rubbing on the heat shield, so--looks like I have some banging to do tonight. Gotta wait for it to cool down.
Hoping to get into a muffler shop tomorrow to get the 2" to 2-1/2" connecting pipe fitted.
So far so good (bang on wood).
Scott
Ran it today for about an hour. Smoke has died down alot. For a while there I was getting some smoke around the turbo and had me kind of worried. Looks like it's just the kerosene and cleaner that I used to clean up the heat shield and engine parts--whew!!
Getting about 15 inches vacuum at about 1400 rpm. Did have to adjust the hard idle stop to get it, for a while it was at 2000 rpm.
Oh yea TJ, flooding sucks any time. The kill switch has really come in handy. To start I give it about 1 sec on while cranking, then off, then when it starts I flip it back on. Hope it's not going to be like this forever (doubt it). Also, not too worried about lubing the rotors since I'm running premix, so no matter what I'm getting oil in there when it's running.
1st and reverse work OK, so the tranny is doing fine. But, the driveshaft appears to be rubbing on the heat shield, so--looks like I have some banging to do tonight. Gotta wait for it to cool down.
Hoping to get into a muffler shop tomorrow to get the 2" to 2-1/2" connecting pipe fitted.
So far so good (bang on wood).
Scott
#85
FD > FB > FC
So the stock TII exhaust manifold fit without any problem? I've read tons of times that it doesnt work, but if it works, then I'm wondering what everyone else was smoking....
#86
RX-7 Alumni
Thread Starter
Originally posted by hornbm
So the stock TII exhaust manifold fit without any problem? I've read tons of times that it doesnt work, but if it works, then I'm wondering what everyone else was smoking....
So the stock TII exhaust manifold fit without any problem? I've read tons of times that it doesnt work, but if it works, then I'm wondering what everyone else was smoking....
Scott
#87
RX-7 Alumni
Thread Starter
Rubbing Problem Fixed
Fixed the driveshaft problem of rubbing on the heat shield. Hammer and vise work wonders.
Took it for a very, very gentle spin around the block, all is ok.
Did notice that 3rd gear took a little effort to slip in--didn't just glide in like usual. Then again, maybe I just need to get used to the new tranny--or it isn't fully lubed up everywhere inside.
Tomorrow is connecting pipe and get that darn air filter on the AFM. Then I can show you guys an almost final picture of the engine bay.
Scott
Took it for a very, very gentle spin around the block, all is ok.
Did notice that 3rd gear took a little effort to slip in--didn't just glide in like usual. Then again, maybe I just need to get used to the new tranny--or it isn't fully lubed up everywhere inside.
Tomorrow is connecting pipe and get that darn air filter on the AFM. Then I can show you guys an almost final picture of the engine bay.
Scott
#88
RX-7 Alumni
Thread Starter

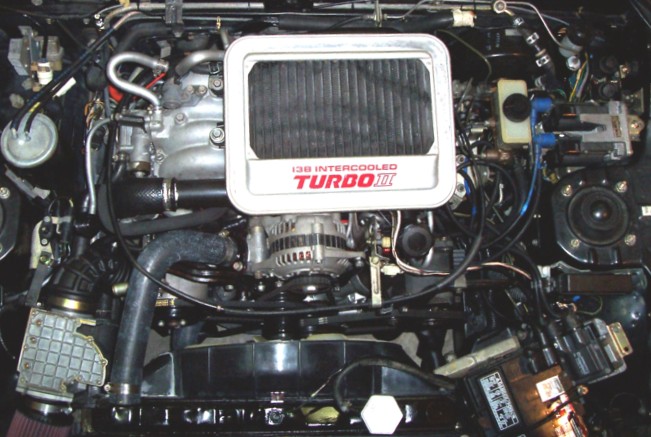

Thought I'd post a pic of the engine bay.
Still need to finish wrapping up some wires, install AC, install washer bottle, cruise control, and coolant overflow.
FWIW, the FC ignition cables are way too long. I'll work on getting some shorter ones.
The AFM mounting is turning out pretty good. Still need to add one bracket but you can see it all fits OK. The K+N filter is a RU-1470 which is canted 10 degrees. This helps fit it in the space allowed. A future mod will be to make a new TID and a nice cold air box around the filter. Still waiting on the air pump filter.
Got the stock FB rear connecting pipe/muffler connected up to the T2 cat. A nice deep growl sound--not loud. Looking forward to improving the exhaust after break-in.
Put on some highway miles today. Only bad thing I notice is it is a little rough between 2500-3000 rpm. Hoping it's the timing or something simple. Other rpms don't seem to have the vibration problem (it's not real bad--just noticable).
I know it isn't the tranny. The tranny has really smoothed out. Very happy with it.
Sure is cool having that turbo--it's definitely a different beast than the SE engine--weird how the manifold pressure comes up (duh). Can't wait to really get some boost going.
Tomorrow I'm cleaning up the wiring around the ECU and will have some before and after pics. Came out perfect.
Scott
Still need to finish wrapping up some wires, install AC, install washer bottle, cruise control, and coolant overflow.
FWIW, the FC ignition cables are way too long. I'll work on getting some shorter ones.
The AFM mounting is turning out pretty good. Still need to add one bracket but you can see it all fits OK. The K+N filter is a RU-1470 which is canted 10 degrees. This helps fit it in the space allowed. A future mod will be to make a new TID and a nice cold air box around the filter. Still waiting on the air pump filter.
Got the stock FB rear connecting pipe/muffler connected up to the T2 cat. A nice deep growl sound--not loud. Looking forward to improving the exhaust after break-in.
Put on some highway miles today. Only bad thing I notice is it is a little rough between 2500-3000 rpm. Hoping it's the timing or something simple. Other rpms don't seem to have the vibration problem (it's not real bad--just noticable).
I know it isn't the tranny. The tranny has really smoothed out. Very happy with it.
Sure is cool having that turbo--it's definitely a different beast than the SE engine--weird how the manifold pressure comes up (duh). Can't wait to really get some boost going.
Tomorrow I'm cleaning up the wiring around the ECU and will have some before and after pics. Came out perfect.
Scott
#89
If I didn't know any better I would swear that was an oem install, Good job. Also, do you plan on sticking with the stock TII intercooler or are plans for front mount in the future? Again good job, looks beautiful.
#90
RX-7 Alumni
Thread Starter
Thanks Rotor13B
Originally posted by Rotor13B
If I didn't know any better I would swear that was an oem install, Good job. Also, do you plan on sticking with the stock TII intercooler or are plans for front mount in the future? Again good job, looks beautiful.
If I didn't know any better I would swear that was an oem install, Good job. Also, do you plan on sticking with the stock TII intercooler or are plans for front mount in the future? Again good job, looks beautiful.
And yep, I tried to maintain the stock FC look as much as possible. It also helps when using the stock wiring harness--you only have so many options if you go that route.
Scott
#91
I can has a Hemi? Yes...
iTrader: (2)
Originally posted by Rotor13B
If I didn't know any better I would swear that was an oem install, Good job. Again good job, looks beautiful.
If I didn't know any better I would swear that was an oem install, Good job. Again good job, looks beautiful.
Was your car or interior originally another color?
I don't recall black with grey interior being in option in 84
