Turblown

iTrader: (12)

We now have EFR's IN STOCK including the 7064, 7670, 8374 , 9180 , 6758 , 6258 units!

Borg Warner EFR Turbos | Borg warner EFR Turbochargers | Borg Warner EFR Series

If you have any questions please call us on our toll free number;

888.924.0924

Grizzly

That 8374 looks tasty. Do you have any plans on Running one on the dyno

Turblown

iTrader: (12)

Not at the moment. We have a few members interested in turbo systems, but they are all out of state/country.

0piston

iTrader: (8)

Which EFR turbo closely compares to the TD61/TDX61 turbo that you sell? what would be the differences between them? please pm me the price on that one interested

thanks

Turblown

iTrader: (12)

The 8374 in a 1.05 A/R T4 twinscroll (external WG)

That turbo is Extremely close to a TDX61

$2000 shipped

Grizzly

Would you say the 8374 is simalar to the S362 FMW?

Turblown

iTrader: (12)

We are out of stock of the 1.05 external wastegate 8374 s units.

Turblown

iTrader: (12)

We've got most of the units back in stock! We've sent out a few complete turbo systems, waiting to hear back for results...

chohakai

iTrader: (1)

subscribing.. please post some updates. I'd love to see how the 8374 compares to 9180.. Especially at moderate boost levels.. 15psi or so..

Turblown

iTrader: (12)

We have 7 in the works, and I will be personally tuning one on a car we are building. Here is a blog we just uploaded about the Internal Wastegate Housing( IWG) option.

BorgWarner EFR IWG turbochargers and the Rotary Engine | TurboSource

David Hayes

iTrader: (6)

So Elliot, what do you think about using one of the EFRs with an internal waste gate on a 20B?

Turblown

iTrader: (12)

I'm not sure it would be a good idea on 20b. Unfortunately the only size efr I would use would be the 9180 and its iwg housing is t3 frame. Furthermore the wg runners and 42mm valve might not be big enough to run less than 25psi. You would have to run the shaft speed sensor and run the compressor near its edge to reduce wg flow demands. However the t3 volute and a/r would surely restrict the engine on the top end. I would play it safe and run the t4 free float housings for a 20B.

David Hayes

iTrader: (6)

Do you think the 9180 with a 1.05 AR and twin scroll external WG would spool quickly on a 20B? I know it can support the HP level of the 20B - I run between 12.5 PSI and 18 PSI on low and high boost - which for me is around 575 and 675 on a T78 Precision BB turbo. I've been looking at the BG EFR turbos for some time and originally felt the 8374 was the best fit, given I want quick spool and more usable HP. The 9180 keeps coming up in conversation though but I am concerned on how quickly it can spool. I am trying to decide on what would be best for street use and then about 6 track events each year.

Turblown

iTrader: (12)

The 8374 will do great for spool time, and low/midrange, but the top end will suffer, and don't expect to see more than 550 out of it.

David Hayes

iTrader: (6)

That's no good then. What do you think the spool will be like with the 9180?

Turblown

iTrader: (12)

I would imagine 1 bar by 3800 rpm at the latest, but probably sooner than that depending upon the setup and tune.

Turblown

iTrader: (12)

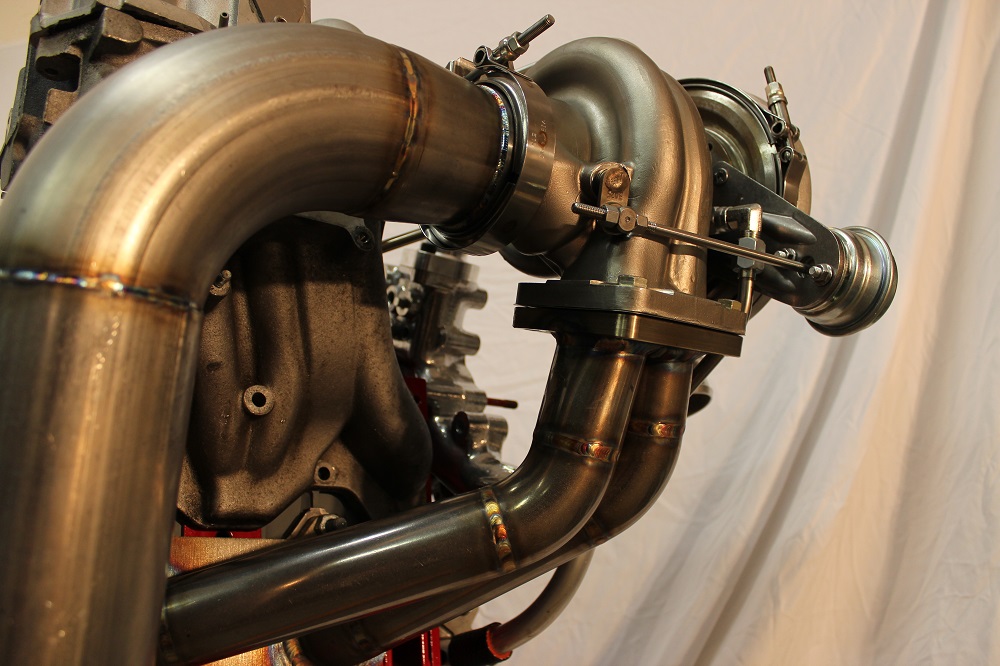

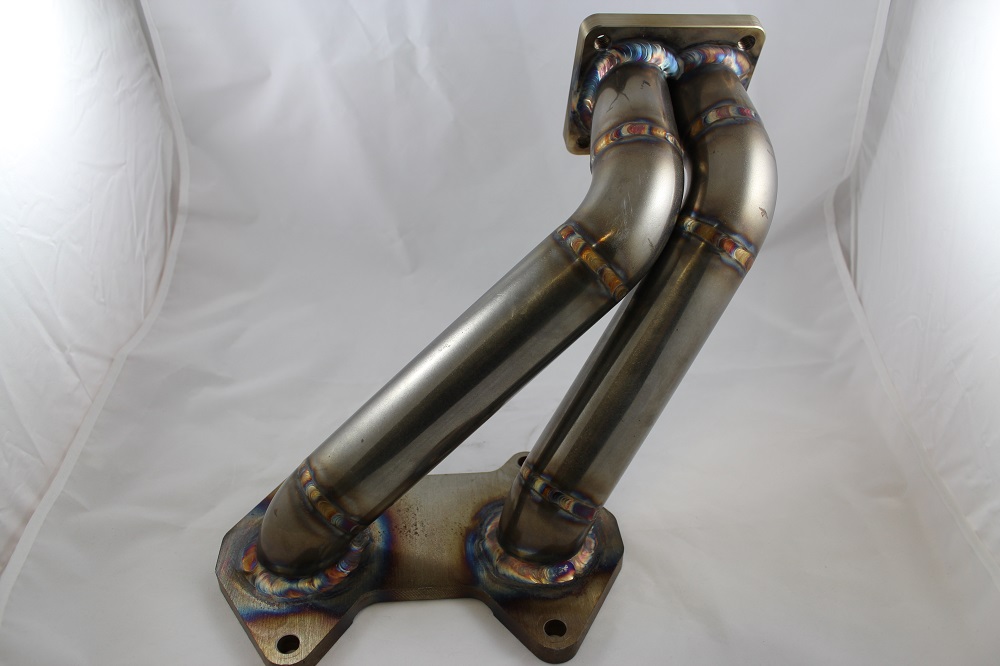

FC3S IWG EFR goodies...

Turblown

iTrader: (12)

FD iwg results coming soon! We've got turbo systems for all makes and models in the works, except the iwg t3 9180...

Turblown

iTrader: (12)

I forgot about this thread. We have had many forum users complete their installation of our 8374 IWG FD3S turbo system.

Everyone has been blown away at the boost response and power output.

Unique Precision Rotary Made 400rwhp on pump gas at 10psi with one of their raceport engines. More information and pictures below.

BorgWarner EFR IWG FD3S Turbo System

Turblown

iTrader: (12)

The price on the EFRs is raising considerably in 2 weeks! Get your order in before its too late...

Turblown

iTrader: (12)

EFR 9180 T4 IWG actually dropped price( only EFR to lower). It was $2800;

Borg Warner EFR 9180 Turbocharger

Its also a bolt in upgrade for anyone running our 8374 IWG kit FYI!

Turblown

iTrader: (12)

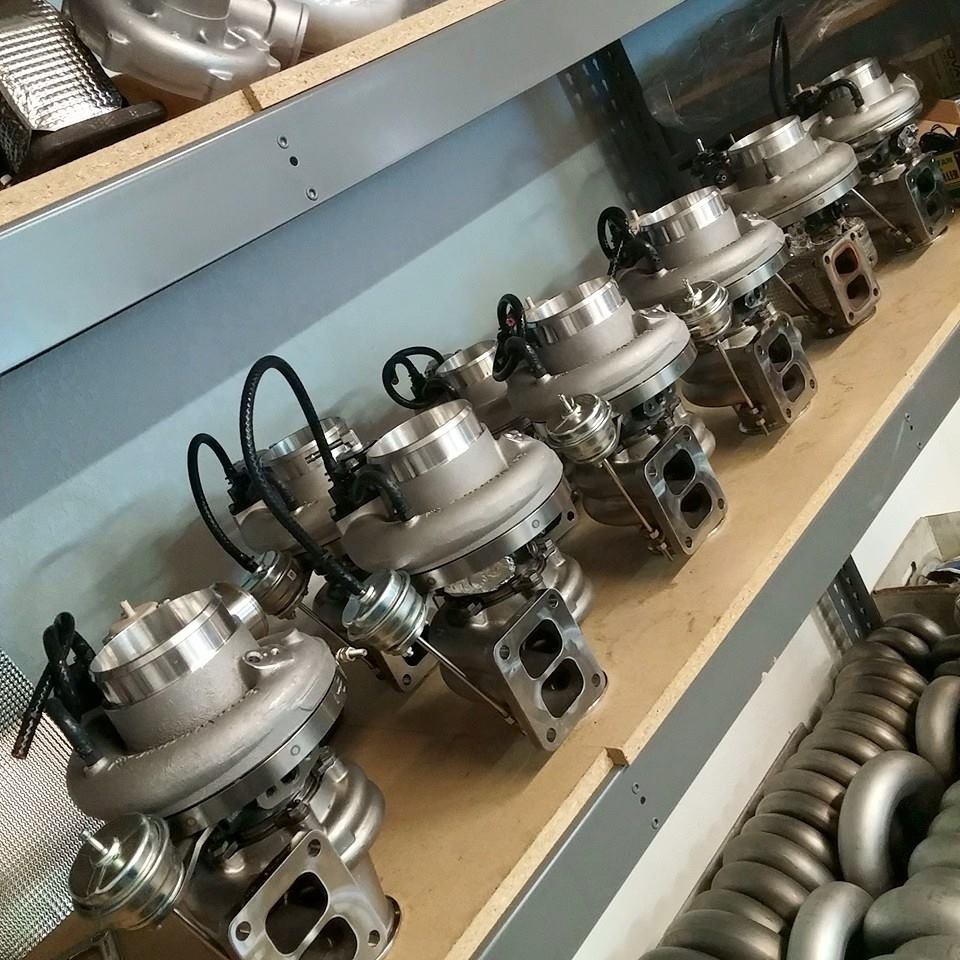

We have plenty of stock!

No one on this forum has more experience with these on rotaries than us!

kevinbtz

iTrader: (4)

Do you have the T4 IWG 9180 .92 a/r in stock?

Thanks for your time,
Kevin

Turblown

iTrader: (12)

We sure do, its even pictured there.

We have EVER EFR that fits an Rx-7 in stock, and every turbine housing combination too..
