My V8 northstar project
#126
Mechanical Engineering
Thread Starter
Originally Posted by 88IntegraLS
I think that this is an interesting swap. How about a status update.............
So this is what I have thought as far as the engine is concerned:
.020" overbore
11.5:1 or 12.0:1 CR forged pistons
total seal rings
Eagle H beam rods
Kelford performance cams
Ti retainers
2JZ springs
more porting
ARP head studs
ARP rodbolts
ARP Bottum end bolts
klevite bearings
thermal coat piston heads
teflon sideskirt coat
thats what I have as far as upgrades go and my expectations for the motor are atleast 100bhp/L and a reliable package. Since the 1UZ has sported an average life about about 200K-300K miles I want it to keep that something in its repetuar (sp?). but right now getting money for all this and paying off a speeding ticket do not lend itself to progress.
That is all for now, i'll update next time when I have something substantial to report.
#127
I think this might be the same engine but someone stuck a supercharger on it.
http://video.google.com/videoplay?do...rcharged&hl=en
http://video.google.com/videoplay?do...rcharged&hl=en
#128
Mechanical Engineering
Thread Starter
Originally Posted by setzep
I think this might be the same engine but someone stuck a supercharger on it.
http://video.google.com/videoplay?do...rcharged&hl=en
http://video.google.com/videoplay?do...rcharged&hl=en
#132
Mechanical Engineering
Thread Starter
Originally Posted by Karack
no offense but where did you find the 200-300K average mile markers for a northstar? we had at least one apart in the shop at any given time, some with less than 60k on them. the head stud kit is a good idea to prevent some of the normal issues with the engine though.
But I gave up on the Northstar just because of how big it was and also very little part availability.
So its now toyota.
BUT since I am posting now I would like to show my progress on designing an ITB system for the 1UZ using GSXR750 throttle bodies.
PICTURE TIME!!
This is my first design to adapt the throttle bodies to make them stick straight up, but I determined the injectors would be fouling because of the angle
This is my second design making it so the Throttle bodies are at an angle to promote better flow. and a better 1 piece adaptor.
So as you can see I have been doing more designing and research then anything else. I am also designing these for sale once they are done, I am trying to make a kit for $500-$600 less the throttle bodies.
Also I am CADing up the adapter plate so a 1UZ U1 bellhousing can be mated to a T56.
So I will update on that later.
But while you are waiting check out my site in my sig.
#133
Senior Member
Join Date: Nov 2004
Location: Fallston, MD
Posts: 627
Likes: 0
Received 0 Likes
on
0 Posts
I would suggest matching the port shape and taper it into the throttle body shape. I don't quite remember, but if the injectors protrude into the head, as it looks like they do, it would probably be best to fill in the head at those spots and use smaller runners, if you're planning on using the GSXR injector locations.
Those are some awesome renderings, too.
Those are some awesome renderings, too.
#134
Mechanical Engineering
Thread Starter
Originally Posted by rarson
I would suggest matching the port shape and taper it into the throttle body shape. I don't quite remember, but if the injectors protrude into the head, as it looks like they do, it would probably be best to fill in the head at those spots and use smaller runners, if you're planning on using the GSXR injector locations.
Those are some awesome renderings, too.
Those are some awesome renderings, too.

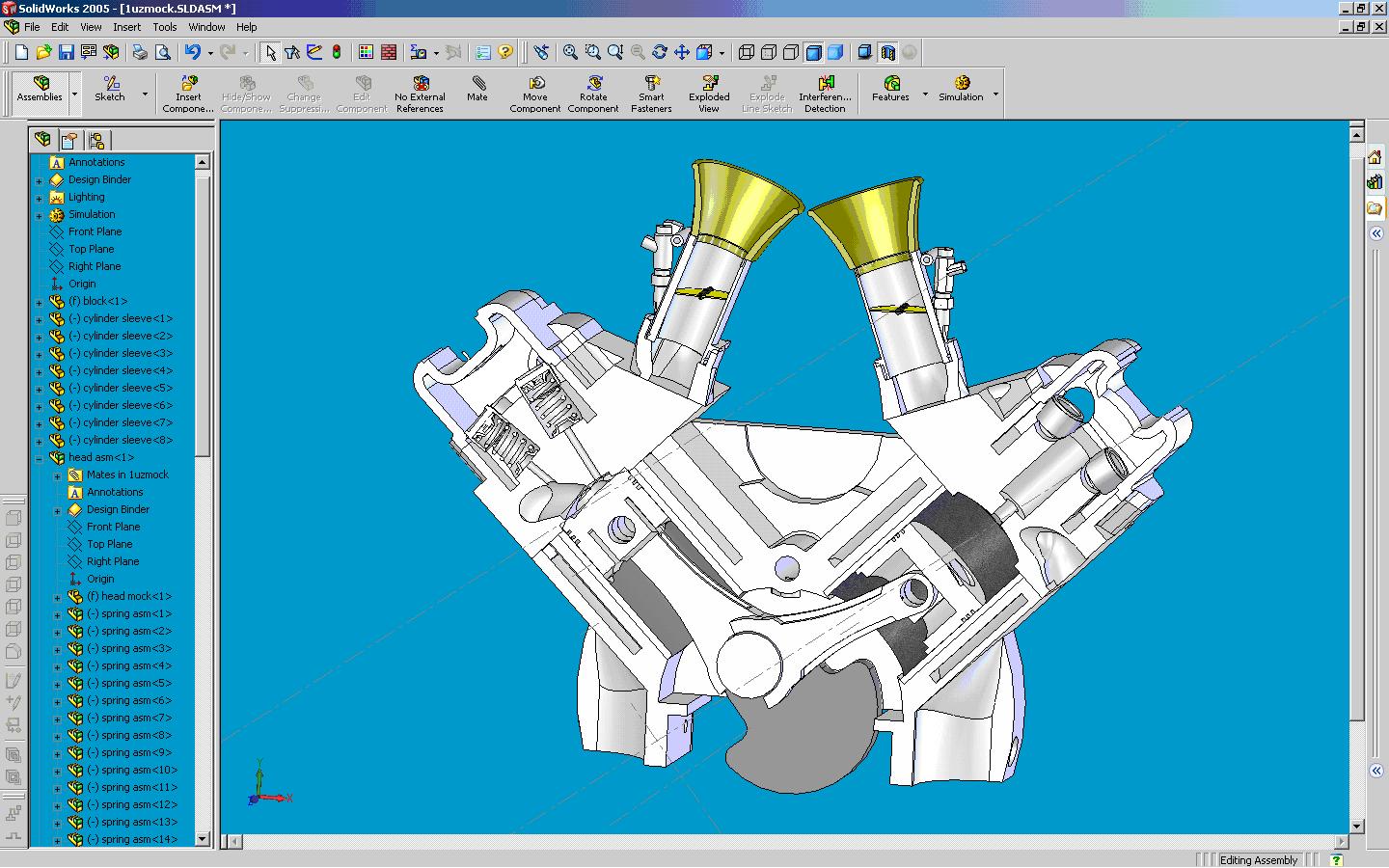

Here is a cutaway of the port and injector to show you that it is almost shotting directly in the chamer.
#136
Mechanical Engineering
Thread Starter
Originally Posted by digitalsolo
An 11.5-12.0 CR is going to make that car ping like crazy on pump gas unless you're running some huge cams to bring the DCR down.
What's your plan for that?
What's your plan for that?
As far as cams go I am most likely going with some cams from Camshaft shop or Kelford seeing as they are the only ones that supply cams for the engine. The ones I will most likely go with are the 288 or 272 intake and 240 or 232 exhaust. They have some race cams that are for supposed 430-470hp but they require the shims to be replaced with diffent type buckets.
My goal ultimatley is to get the engine as close as I can to a Ferrari F430 spec in a 4.0 package which is putting out 483hp from a 4.3 liter engine. So if i can get 112hp/liter or damn close to it I will be happy with a 400-450hp output at the crank.
BTW the ferrari only runs 11.3 CR
#139
RX-347
iTrader: (2)
Originally Posted by rarson
11.5:1 shouldn't be too hard on pump. A lot of K-series Honda guys are running 12.5:1 and up.
#140
Mechanical Engineering
Thread Starter
Originally Posted by digitalsolo
Yes, with variable valve timing and big cams. Your DCR matters more then your SCR, but you still have to assure your cam timings can keep your DCR low enough to avoid detonation.
#141
registered user
iTrader: (1)
Join Date: Jan 2006
Location: San Diego
Posts: 2,469
Likes: 0
Received 0 Likes
on
0 Posts
Here is a decent explanation of DCR with a dynamic compression caluculator.
http://www.rbracing-rsr.com/comprAdvHD.htm
http://www.rbracing-rsr.com/comprAdvHD.htm
#142
Senior Member
Join Date: Nov 2004
Location: Fallston, MD
Posts: 627
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by digitalsolo
Yes, with variable valve timing and big cams. Your DCR matters more then your SCR, but you still have to assure your cam timings can keep your DCR low enough to avoid detonation.
#143
Mechanical Engineering
Thread Starter
So I have been reading a lot of articles concerning this "dynamic compression" business and I have gathered that most street engines have a DCR between 7.5:1 and 8.5:1 and 8.5:1 DCR is near the upper limits of the "otto" cycle on 91-93 pump. Race engines can get away with a higher CR and DCR (around 8.8:1 and 9:1) because of race gas.
Yet what I am still trying to figure out where I can find the after bottum dead center where the intake closes, so I can compare stock engines to race engines.
if anyone can give me more info on the it would be awesome, or if someone could find out the DCR of the F430 engine
Yet what I am still trying to figure out where I can find the after bottum dead center where the intake closes, so I can compare stock engines to race engines.
if anyone can give me more info on the it would be awesome, or if someone could find out the DCR of the F430 engine
#144
Mechanical Engineering
Thread Starter
well I havent updated in a while so I thought I would give a little snippet of info
what has happened since last update...nothing
as far as anything done to the car goes, but I have made progress on reverse engineering the 1UZ a little more.
I am also just pissed off to tears that I do not have this thing going (mostly due to my indecisivness(sp?)) but then again I am 150 miles from it and can only hope to find a cheap T56 I can use for dimensioning and so on.

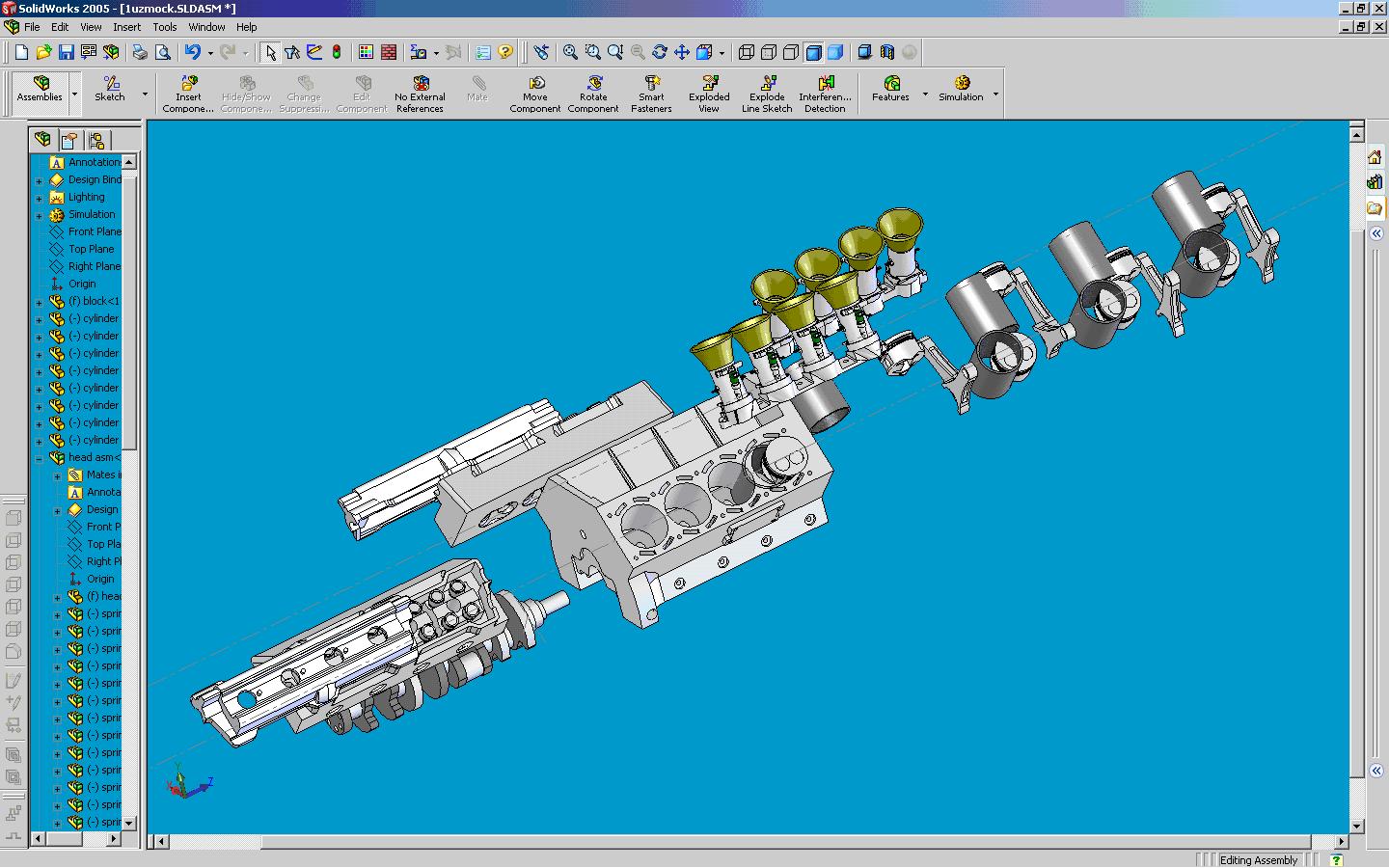

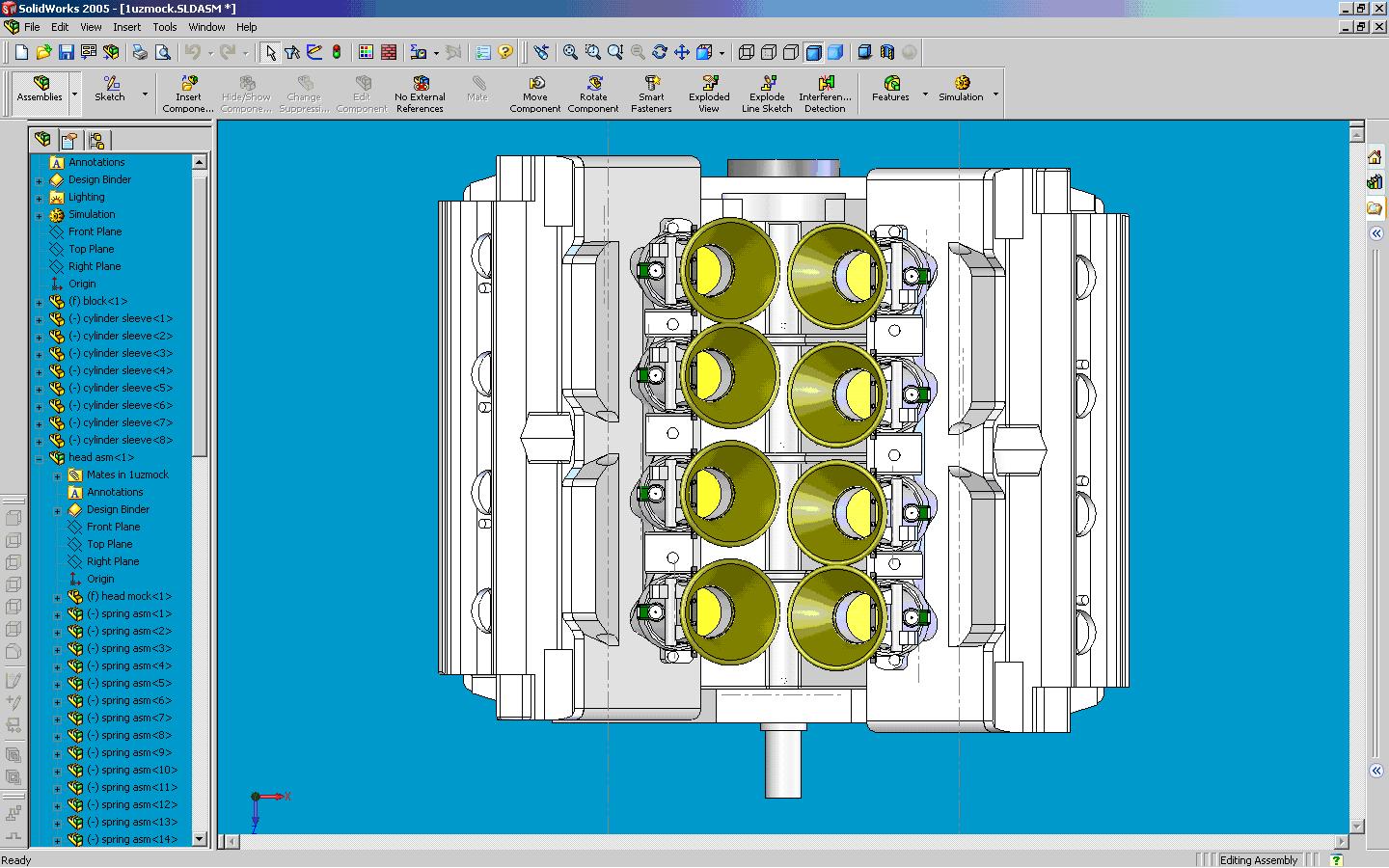

but here are the pics

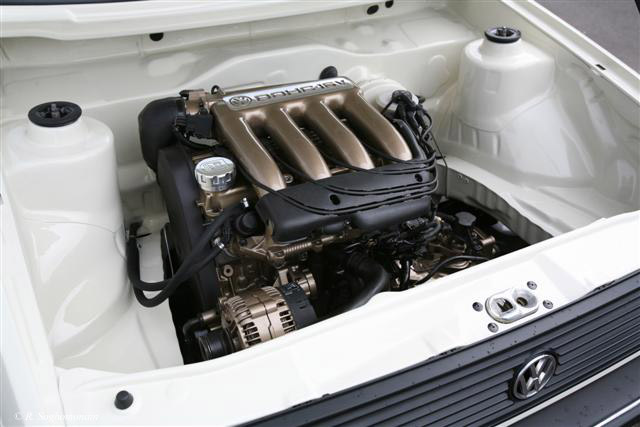

The last picture shows my inspiration for my engine bay clean and simple hopefully I can get there!
what has happened since last update...nothing
as far as anything done to the car goes, but I have made progress on reverse engineering the 1UZ a little more.
I am also just pissed off to tears that I do not have this thing going (mostly due to my indecisivness(sp?)) but then again I am 150 miles from it and can only hope to find a cheap T56 I can use for dimensioning and so on.
but here are the pics
The last picture shows my inspiration for my engine bay clean and simple hopefully I can get there!
#147
Mechanical Engineering
Thread Starter
linky
hopefully I can find a nice one later on that I don't have to do any work to.
