462 cubic inch big block chevy in a 1987 turbo 2 fc

462 cubic inch big block chevy in a 1987 turbo 2 fc

Old 11-27-10, 02:45 PM
  #51
Full Member
Thread Starter

Join Date: Mar 2010
Location: portbyron il.
Posts: 145
Likes: 0
Recieved 0 Likes on 0 Posts
been working a ton of overtime but still workin on my rx-- i have finished the frame work for the drivers side upper radiator support now .all thats left is the flat work and to finish the latch hook mechanism ----question----has anyone ever moved the original brake booster and master to under the dash ----i think i have came up with a better idea than using a hydro boost .by way of using a slave cylinder to push the booster that would in turn push the master cylinder (same way the hydro boost works) but it will only cost me 50 bucks instead of $1600.00
gearhead670 is offline
Old 01-28-11, 08:12 AM
  #52
Full Member
Thread Starter

Join Date: Mar 2010
Location: portbyron il.
Posts: 145
Likes: 0
Recieved 0 Likes on 0 Posts
almost have the upper radiator support done-geesh its taken a lil longer than i thought and had to work more than i thought---here is a picture so far and i still need to make a few more parts as well as a shroud bracket for the radiator-----
gearhead670 is offline
Old 01-28-11, 08:46 AM
  #53
Full Member
Thread Starter

Join Date: Mar 2010
Location: portbyron il.
Posts: 145
Likes: 0
Recieved 0 Likes on 0 Posts
gearhead670 is offline
Old 01-28-11, 08:55 AM
  #54
Full Member
Thread Starter

Join Date: Mar 2010
Location: portbyron il.
Posts: 145
Likes: 0
Recieved 0 Likes on 0 Posts
been a while and i still need a better camera

hope this goes on here
Attached Thumbnails 462 cubic inch big block chevy in a 1987 turbo 2 fc-021.jpg
gearhead670 is offline
Old 01-28-11, 09:01 AM
  #55
Full Member
Thread Starter

Join Date: Mar 2010
Location: portbyron il.
Posts: 145
Likes: 0
Recieved 0 Likes on 0 Posts

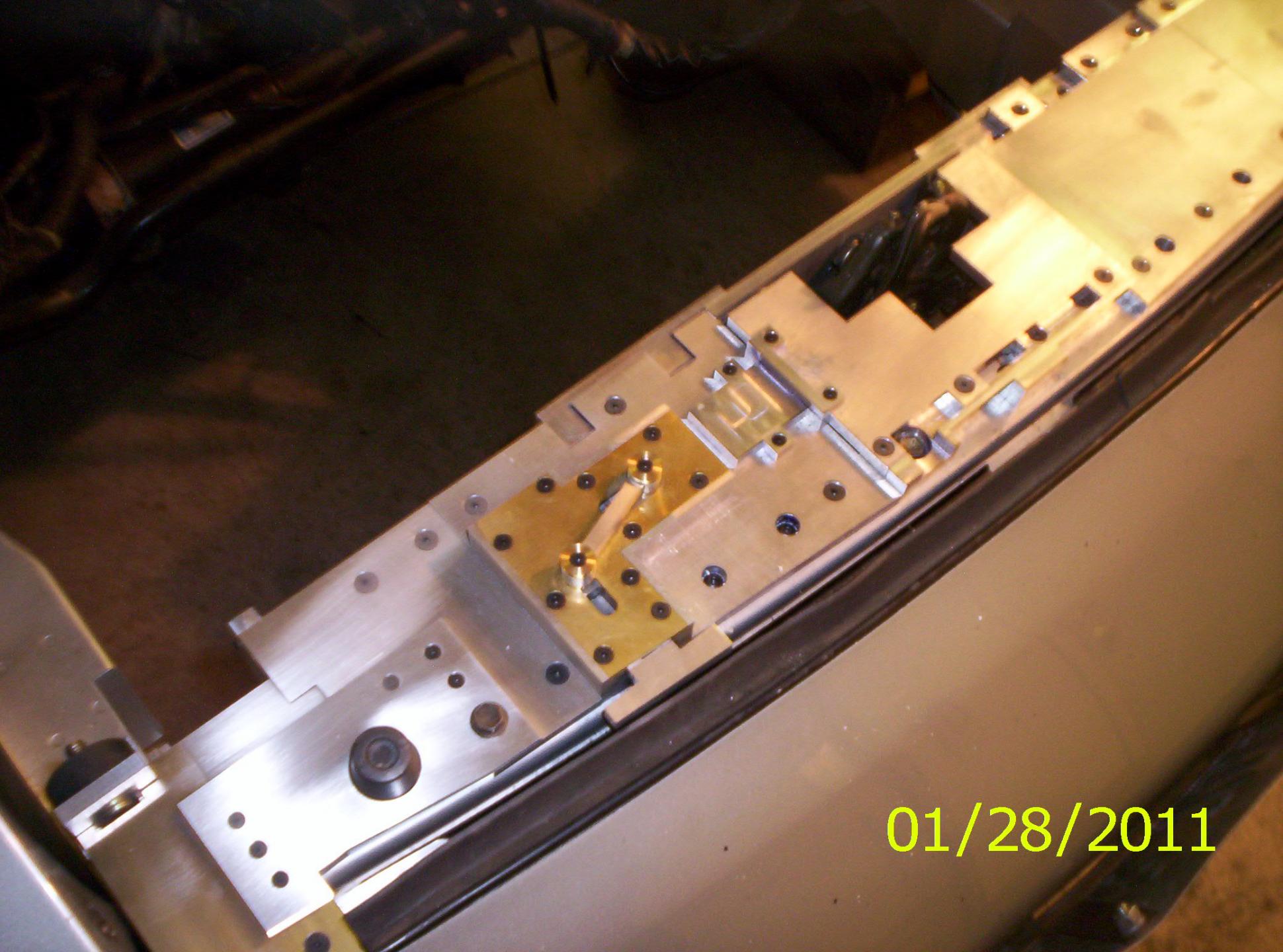

the brass part with the handle is to operate the latch hook -when i get the other side done (cover and bracket for the hood bumper) ill put the radiator back in and ----hopefully take a better picture with a newer camera-there is also a support under the latch that is bolted to the upper and lower support .
gearhead670 is offline
Old 02-06-11, 08:33 PM
  #56
Full Member
Thread Starter

Join Date: Mar 2010
Location: portbyron il.
Posts: 145
Likes: 0
Recieved 0 Likes on 0 Posts
well at last i went and bought a new camera havent taken any pictures yet -also bought some material to build a cover for the front of the radiator and round disks to use as vents for the cover -should work out ok -ill take some pictures tommorrow .
gearhead670 is offline
Old 02-14-11, 01:24 PM
  #57
Full Member
Thread Starter

Join Date: Mar 2010
Location: portbyron il.
Posts: 145
Likes: 0
Recieved 0 Likes on 0 Posts

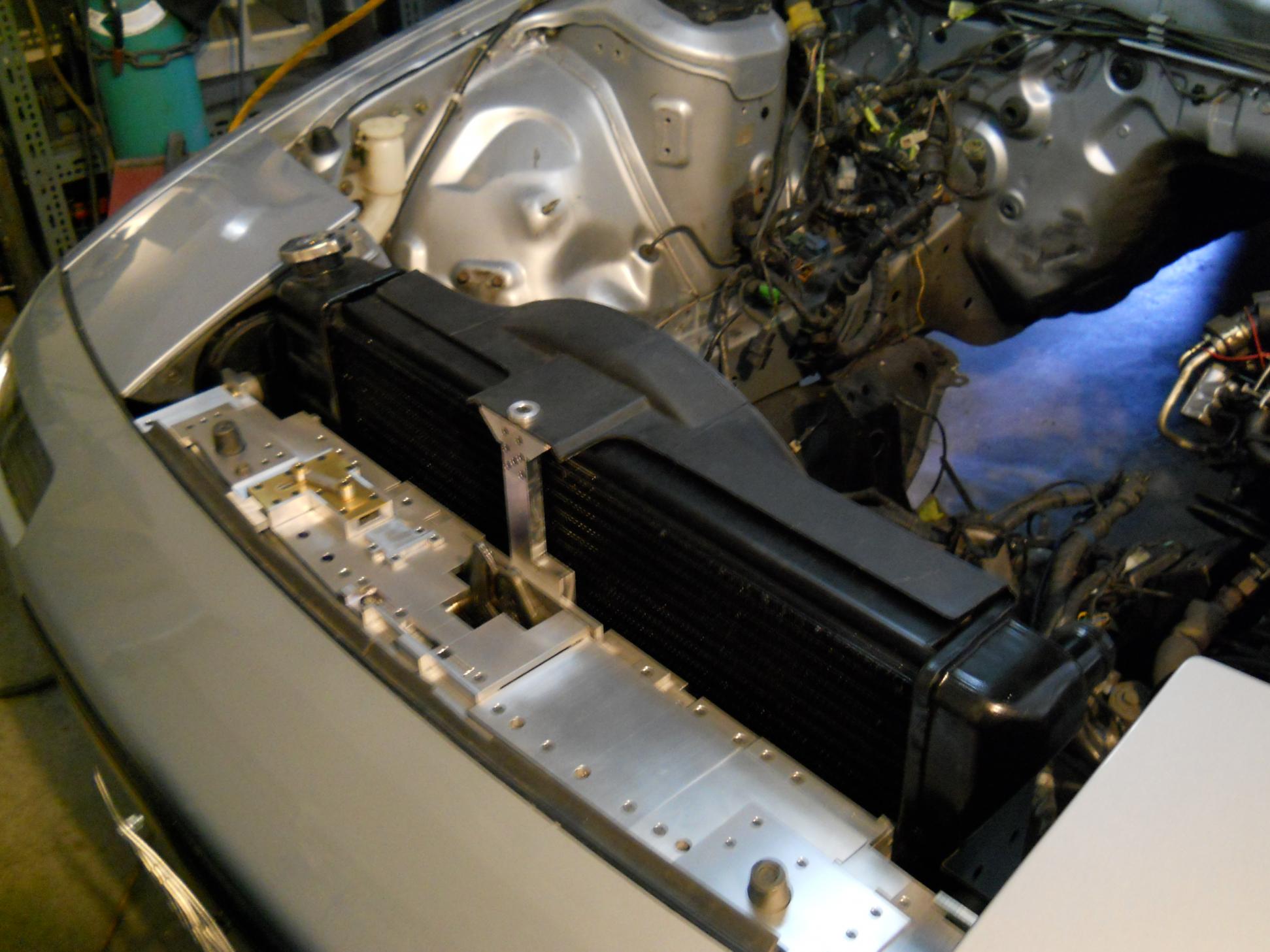

well i finally got my new camera to put a stinkin picture on here --so not a computertech.here --i think ill stick for the most part to the car end ---hope the pictures look a lil better now ........oh also didnt like the disk idea afterall ----so i just made 1 strong support for the shroud instead of adding weight for no reason ---all thats left is where to route the hood release cable now --but i think ill wait till i redo the sheetmetal next to the headlights and the sheetmetal support that runs across from fender to fender---also going to build a bar the connects the tow hooks to the frame rails to stiffen up the front end ---and make for a good jack point for the front -------------jason
Attached Thumbnails 462 cubic inch big block chevy in a 1987 turbo 2 fc-dscn0033.jpg

Last edited by gearhead670; 02-14-11 at 01:30 PM.
gearhead670 is offline
Old 02-15-11, 02:43 PM
  #58
Junior Member

Join Date: Jul 2010
Location: Oregon
Posts: 11
Likes: 0
Recieved 0 Likes on 0 Posts
That rad mount looks like a fitting on the space shuttle. You do real nice work.
overbese is offline
Old 02-15-11, 09:44 PM
  #59
Full Member
Thread Starter

Join Date: Mar 2010
Location: portbyron il.
Posts: 145
Likes: 0
Recieved 0 Likes on 0 Posts
adding the support to the front really stiffened up the area+worked out good-ive seen people mount their radiator on an angle using an ls engine wont work for me .but i have to say that the ls engine in the rx is a very neat swap +no dist. to get in the way of the firewall.........jason
gearhead670 is offline
Old 03-04-11, 08:23 PM
  #60
Full Member
Thread Starter

Join Date: Mar 2010
Location: portbyron il.
Posts: 145
Likes: 0
Recieved 0 Likes on 0 Posts
has anyone changed front coil springs on an fc to a higher spring rate? does anyone make a higher spring rate for the fc? or is there a spring from another car that would work ?
gearhead670 is offline
Old 03-15-11, 08:20 AM
  #61
Full Member
Thread Starter

Join Date: Mar 2010
Location: portbyron il.
Posts: 145
Likes: 0
Recieved 0 Likes on 0 Posts

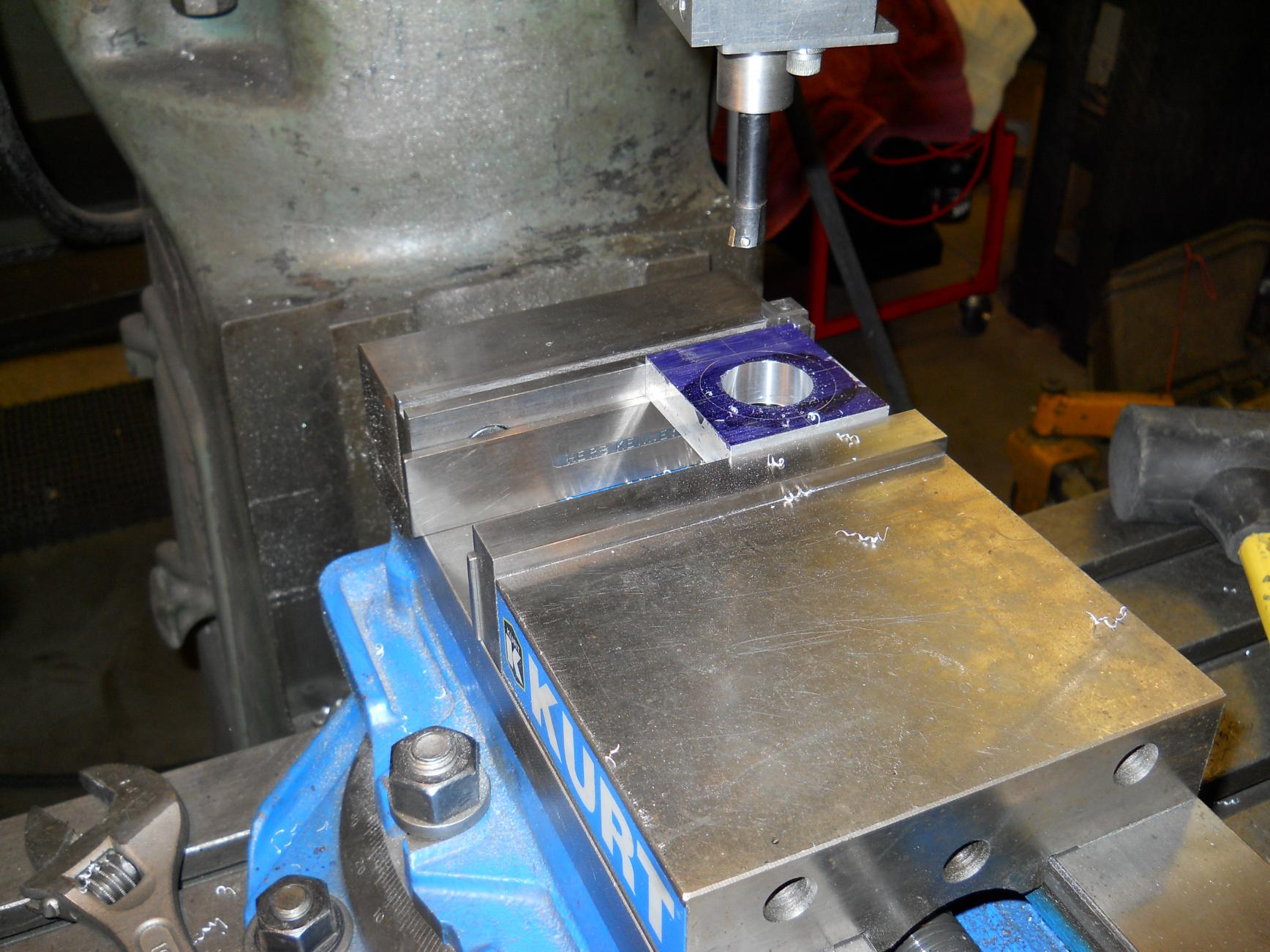

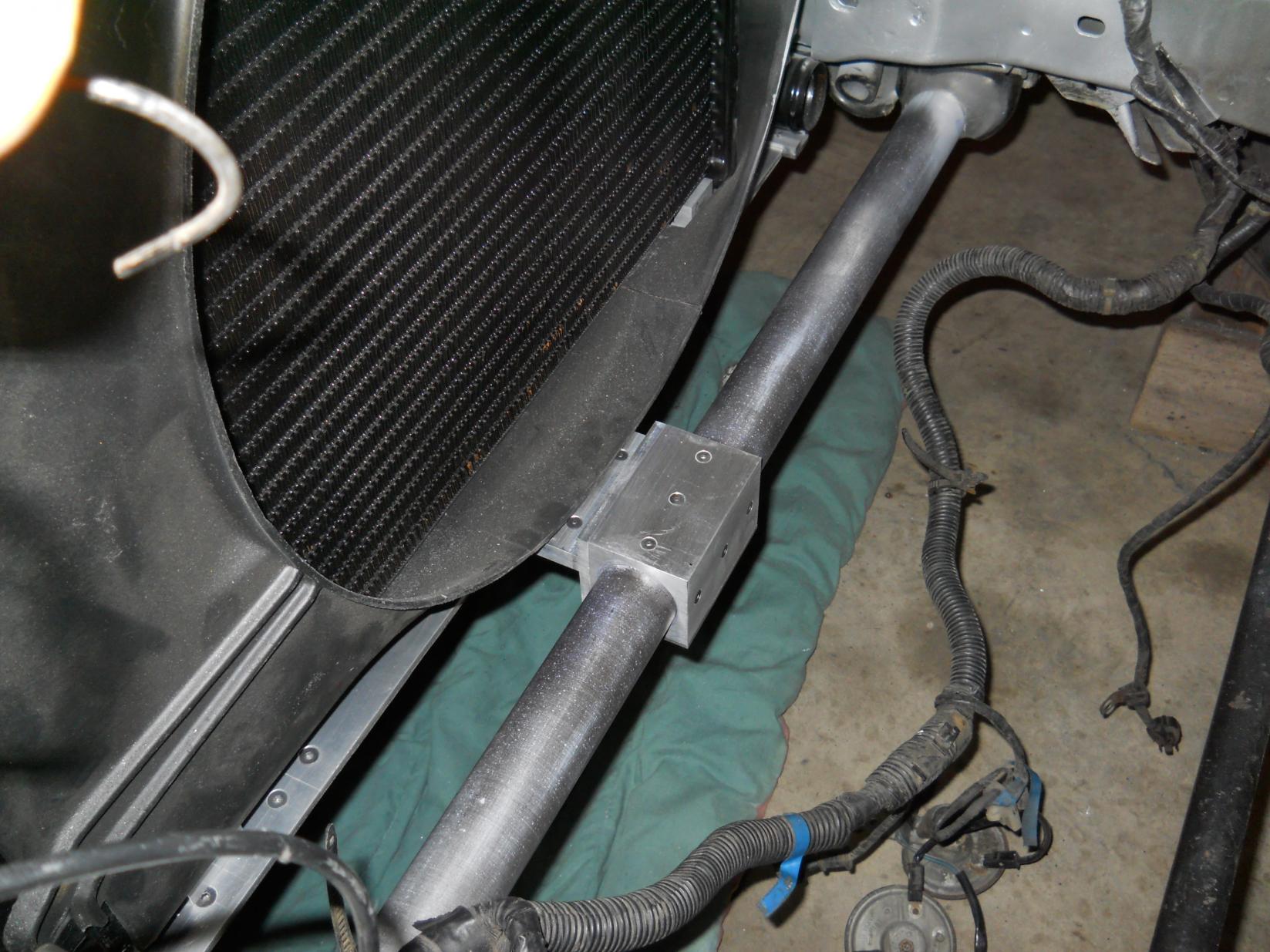

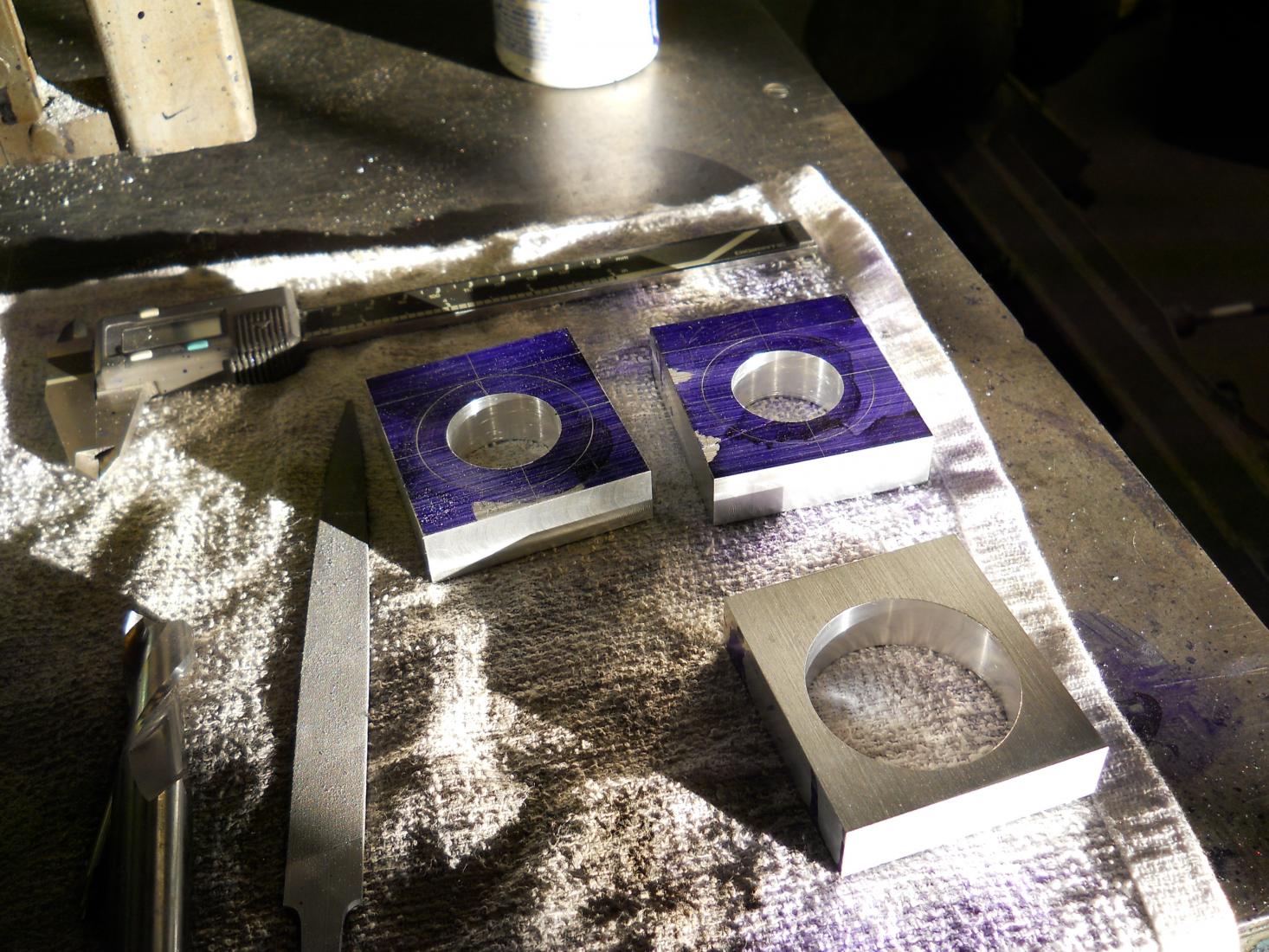

this is the lower bar so far ----there is a 1 inch hole bored in the bottom of the block as well to fit from a floor jack to the center of the car so i can jack the entire front of the car easily with car on the ground -plus it will have wire looms for the front harness--so far so good ---jason
Attached Thumbnails 462 cubic inch big block chevy in a 1987 turbo 2 fc-dscn0035.jpg   462 cubic inch big block chevy in a 1987 turbo 2 fc-dscn0036.jpg   462 cubic inch big block chevy in a 1987 turbo 2 fc-dscn0037.jpg
gearhead670 is offline
Old 03-15-11, 01:23 PM
  #62
Senior Member
5 Year Member
iTrader: (2)

13B Etc's Avatar

Join Date: Apr 2007
Location: Kansas City, KS
Posts: 575
Likes: 0
Recieved 0 Likes on 0 Posts
Groovy project. Maybe these springs are akin to what you're looking for?

Racing Beat Spring Sets
13B Etc is offline
Old 03-15-11, 02:10 PM
  #63
Highwayman
5 Year Member

chiefboon's Avatar

Join Date: Nov 2008
Location: Houston
Posts: 570
Likes: 0
Recieved 0 Likes on 0 Posts
Very cool project Jason -- newer pics looking very decent. Keep the updates coming!

Stephen
chiefboon is offline
Old 03-16-11, 03:17 AM
  #64
Full Member
Thread Starter

Join Date: Mar 2010
Location: portbyron il.
Posts: 145
Likes: 0
Recieved 0 Likes on 0 Posts
thanks --the springs say that they have 20percent more load rating i guess and a drop of 1 inch ---my last car had a cast iron 327(550) pounds i believe and a steel hood with a ---i must say a heavy duty hood scoop that i built (40 pounds)---it was made out of 1/8 steel ---over kill-but it didnt warp when i welded it all up --as i hear the stock steel hood weighs 100 pounds ---this car will have a an aluminium hood as well as the scoop will be made out of aluminium as well---big block weighs-----675 pounds so i will be real close to the same weight as the last car ---the only time i ever had any issues with handling with that car is when i would take a 45 mph corner by my house at 90... so i might jusr try those springs who makes the best shocks?---ive seen some that are like coil overs that are adjustable........jason
gearhead670 is offline
Old 03-16-11, 10:32 AM
  #65
RX-347
iTrader: (2)

digitalsolo's Avatar

Join Date: May 2003
Location: Fort Wayne, IN
Posts: 2,115
Likes: 0
Recieved 0 Likes on 0 Posts
Doesn't that radiator kind of stick out of the hood?
digitalsolo is offline
Old 03-17-11, 03:20 AM
  #66
Full Member
Thread Starter

Join Date: Mar 2010
Location: portbyron il.
Posts: 145
Likes: 0
Recieved 0 Likes on 0 Posts
it sure does --full size big block camaro radiator-kept it up to keep the scrub line clear otherwise it would hang below the front spoiler---i have to scoop the hood anyways so the scoop will be as wide as the front part of the hood and made out of aluminium to keep the weight as low as possible--plus the radiator has been moved 5 inches forward to make room for the big block ---as it looks so far the balancer will be forward of the sway bar unlike how the small block fit with the bar right behind the balancer that also means the pan has to be up in the air enough to clear the sway bar as im not going to cut and reshape it because the engine has a 7 quart oil pan and i want to keep good ground clearance ------i havent test fit the engine yet but i believe the lakewood scattershield im going to use will be a close fit to the topside of the transmission tunnel ---we shall see in about another 2-3 months -i still have to box the headlight supports back in and make mounts for all the relays +horns and make a new radiator support bar that runs behind the radiator--but ill keep peckin at it--------jason
gearhead670 is offline
Old 03-31-11, 12:13 PM
  #67
Full Member
Thread Starter

Join Date: Mar 2010
Location: portbyron il.
Posts: 145
Likes: 0
Recieved 0 Likes on 0 Posts
still working on the wire looms --they are on there just have to take the bar back out and tap the rest of the holes ..and while ive been doing that i got out the tape measure again and checked the distance ground to firewall and ground to stablizer bar -then front of the oil pan to where the top of the scattershield will be ---looks like im going to need another 2.5 inches .the engine has a 7 quart oilpan and i want to keep it as close to the bottom of the crossmember as i can .so this means the transmission tunnel will hit the scattershield .so ive figured out that if i raise the body 2.5 inches that i can solve that problem ++i also found a place that will make me coil springs just for my car !------keeps me busy jason
gearhead670 is offline
Old 09-26-11, 03:31 AM
  #68
Full Member
Thread Starter

Join Date: Mar 2010
Location: portbyron il.
Posts: 145
Likes: 0
Recieved 0 Likes on 0 Posts
havent been working on my rx too much lately ---built a few custom aquarium stands(another hobby) should hopefully get back to it soon.........jason
gearhead670 is offline
Old 07-19-15, 06:49 PM
  #69
Full Member
Thread Starter

Join Date: Mar 2010
Location: portbyron il.
Posts: 145
Likes: 0
Recieved 0 Likes on 0 Posts
Ok finally back to working on my rx..made the top radiator support bar and built a fan shroud adapter of my very large electric fan..ill take pictures when i box back in the sides of the radiator.
gearhead670 is offline
Old 07-19-15, 06:55 PM
  #70
Full Member
Thread Starter

Join Date: Mar 2010
Location: portbyron il.
Posts: 145
Likes: 0
Recieved 0 Likes on 0 Posts
LOL i read back on the stuff i posted...i wasted time got involved in other stuff upgraded my machine shop..built an old chevy pick up messed with aquarium stuff..time to get going on this car.
gearhead670 is offline
Old 12-03-18, 08:16 PM
  #71
Can Post Only in New Member Section

Join Date: Dec 2018
Location: IDAHO
Posts: 2
Likes: 0
Recieved 0 Likes on 0 Posts
Originally Posted by gearhead670 View Post
LOL i read back on the stuff i posted...i wasted time got involved in other stuff upgraded my machine shop..built an old chevy pick up messed with aquarium stuff..time to get going on this car.

Just wondering if you ever got the BBC installed and running?

I did a low dollar Pontiac 455 install about 10 years ago,
- a .030 over engine so also the same 462 cu displacement, still have the car- but needs work (lots) of it since I started with a 220,000 mile FB , been parked for a few years. i also need to get back on it..

455dan is offline
