1979 Rx-7 Turbo LS powered.

Old 02-06-14, 11:46 AM
  #51
Rotary Enthusiast
Thread Starter
iTrader: (2)

vxturboxv's Avatar

Join Date: Jul 2003
Location: Wichita KS
Posts: 1,047
Likes: 0
Recieved 0 Likes on 0 Posts

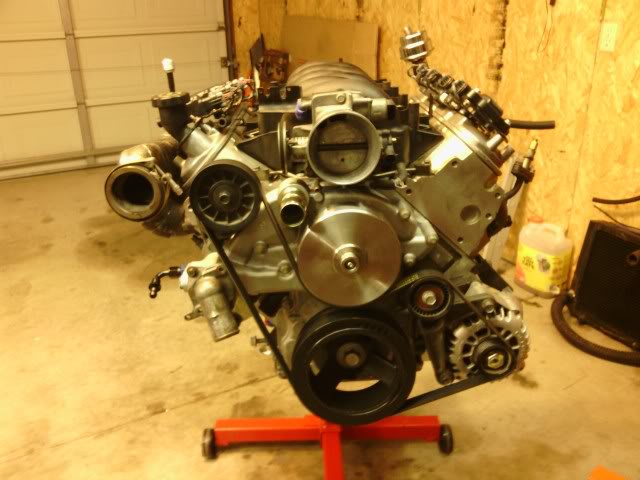

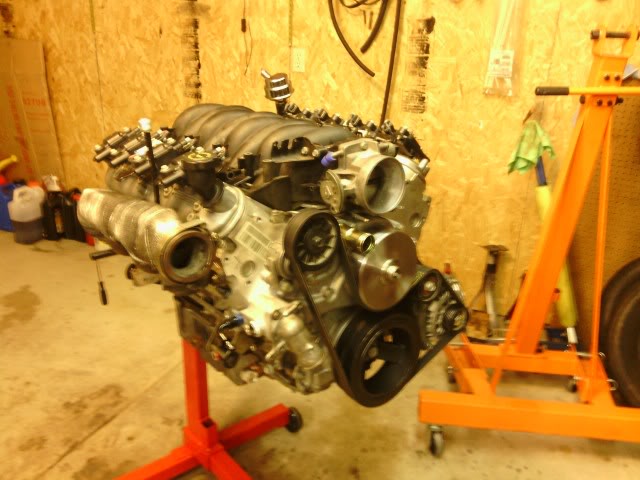

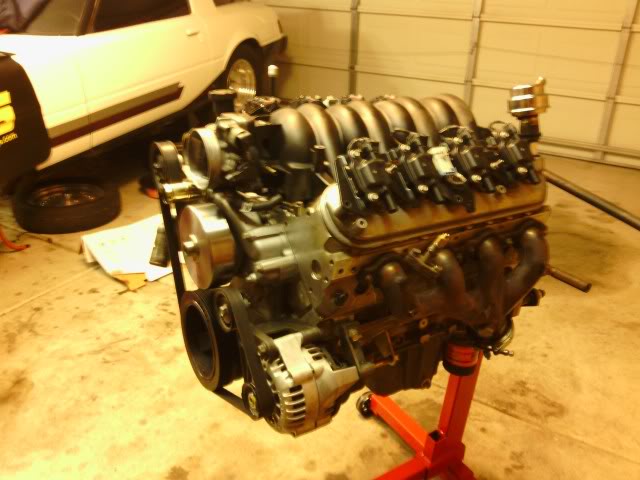

Pretty much got this thing ready to drop in. Trans is away being refreshed at the moment. Haven't decided if I'm redoing the hotside or not at this point. May see how the new setup does first.

Name:  IMG_20140126_190234_zpsd4fca63a.jpg
Views: 380
Size:  57.7 KB

Name:  IMG_20140126_190228_zps5b852ee9.jpg
Views: 363
Size:  49.7 KB

Name:  IMG_20140126_190215_zps5f6b02e8.jpg
Views: 362
Size:  50.0 KB
vxturboxv is offline
Old 05-01-14, 04:26 PM
  #52
35r 13b first gen
iTrader: (3)

zaridar's Avatar

Join Date: Apr 2002
Location: Richland Center WI
Posts: 1,289
Likes: 0
Recieved 0 Likes on 0 Posts
And?!?...
zaridar is offline
Old 05-01-14, 09:59 PM
  #53
Rotary Enthusiast
Thread Starter
iTrader: (2)

vxturboxv's Avatar

Join Date: Jul 2003
Location: Wichita KS
Posts: 1,047
Likes: 0
Recieved 0 Likes on 0 Posts
Originally Posted by zaridar View Post
And?!?...

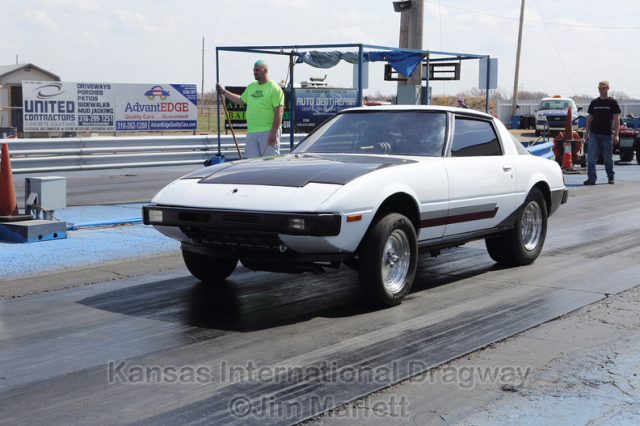

Nothing good!

Down on power an insane amount compared to last year... been to the track 3 times or so best of a 9.8 @ 144. Can't figure out what the deal is... 10mph down from last year at the same boost levels...

compression is good 160+ all cyls
Converter isn't slipping excessively. (under 6%)
I'v tried 10.5-11.5 afr's with not much of a change
tried 12-22* of timing without much of a change

I think is has something to do with the gen4 58t crank signal and the AEM... hard to say though. I ordered a megasquirt box to try.

Still good to have it out cruising the streets again!

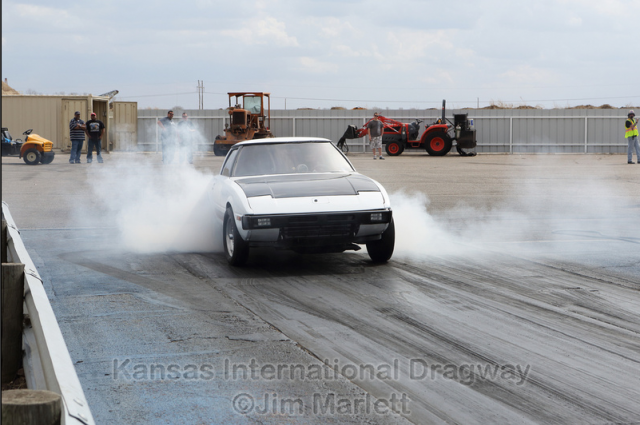

Name:  image002_zps05f85423.png
Views: 368
Size:  399.9 KB
Name:  image001_zps139b7fd6.png
Views: 370
Size:  460.4 KB
vxturboxv is offline
Old 05-02-14, 09:18 PM
  #54
35r 13b first gen
iTrader: (3)

zaridar's Avatar

Join Date: Apr 2002
Location: Richland Center WI
Posts: 1,289
Likes: 0
Recieved 0 Likes on 0 Posts
Which is more than I can say.. Any ideas o. Why the powers down? Did you go with another 5.3. I thought I saw 4.8 in there somewhere further back...
zaridar is offline
Old 05-03-14, 12:09 AM
  #55
Rotary Enthusiast
Thread Starter
iTrader: (2)

vxturboxv's Avatar

Join Date: Jul 2003
Location: Wichita KS
Posts: 1,047
Likes: 0
Recieved 0 Likes on 0 Posts
Originally Posted by zaridar View Post
Which is more than I can say.. Any ideas o. Why the powers down? Did you go with another 5.3. I thought I saw 4.8 in there somewhere further back...
No idea really. I didn't degree the cam on install, the grind could be off. Also the gen4 motor has a more complicated crank signal that the AEM doesn't seem to like. This could also be an issue.

I originally bought a 4.8. But I found a 08 alum 5.3 for 500 local so I had to jump on it. Still have the 4.8.
vxturboxv is offline
Old 05-20-14, 04:44 PM
  #56
Rotary Enthusiast
Thread Starter
iTrader: (2)

vxturboxv's Avatar

Join Date: Jul 2003
Location: Wichita KS
Posts: 1,047
Likes: 0
Recieved 0 Likes on 0 Posts
vxturboxv is offline
Old 05-20-14, 04:52 PM
  #57
Rotary Enthusiast
Thread Starter
iTrader: (2)

vxturboxv's Avatar

Join Date: Jul 2003
Location: Wichita KS
Posts: 1,047
Likes: 0
Recieved 0 Likes on 0 Posts
Tore the front of the motor down and put a degree wheel on the cam. It was way retarded. Ordered a new cam thinking the cam was off. (smaller 212/212 @112) Installed it. Same amount of retard. Tried new OEM gear set… same thing. I think the keyway on the crank was cut 6* retarded from where it should have been. (this may have been related to the (Drive on Demand crap) So I installed an adjustable timing set and was able to get the new smaller cam within .5* advanced form the cam card.

The cars a freekin beast now. Sounds totally different, cranking compression went from 160 to 195+. Old tune was lean, so I added 20% fuel. (which was a bit much as it’s low 10’s AFR wise) and dropped timing to 12*. With my boost controller all the way down I’d manage 12lbs earlier this year. Now I can’t get it under 16-17lbs. It’s very snappy and spools fast. Totally worthless on the street at these boost levels.

Vid doesn’t look like much, but this is with the trans in high gear (1:1 like 4th gear in a manual), 3.25 gear and 295/60 15 drag radials. Rolling into the throttle very slowly. GPS peaked 93mph that’s where the tires started to spin. AFR’s were in the low 10’s and as soon as they hit 11.0 the tires spun.

Next TNT is May 30th. We’ll see what this sucker can do!


vxturboxv is offline
Old 06-06-14, 04:05 PM
  #58
Rotor Powered
iTrader: (1)

Speed Demon2288's Avatar

Join Date: Jan 2008
Location: Why dose it rain so much, Oregon
Posts: 75
Likes: 0
Recieved 0 Likes on 0 Posts
Awesome work! Im picking up a 79 tomorrow, and Ive been thinking about throwing in my spare LS1 in. Do you have pictures of your engine mount set up and oil pan?
Speed Demon2288 is offline
Old 06-07-14, 01:23 PM
  #59
Rotary Enthusiast
Thread Starter
iTrader: (2)

vxturboxv's Avatar

Join Date: Jul 2003
Location: Wichita KS
Posts: 1,047
Likes: 0
Recieved 0 Likes on 0 Posts
Originally Posted by Speed Demon2288 View Post
Awesome work! Im picking up a 79 tomorrow, and Ive been thinking about throwing in my spare LS1 in. Do you have pictures of your engine mount set up and oil pan?
Motor mounts are just solid angle iron setup on the OEM pedestal. Running an Fbody pan unmodified and dropped the steering rod down 2" with some steel blocks to clear the pan.

Name:  mounts-1.jpg
Views: 344
Size:  35.0 KB
vxturboxv is offline
Old 06-07-14, 07:10 PM
  #60
Rotor Powered
iTrader: (1)

Speed Demon2288's Avatar

Join Date: Jan 2008
Location: Why dose it rain so much, Oregon
Posts: 75
Likes: 0
Recieved 0 Likes on 0 Posts

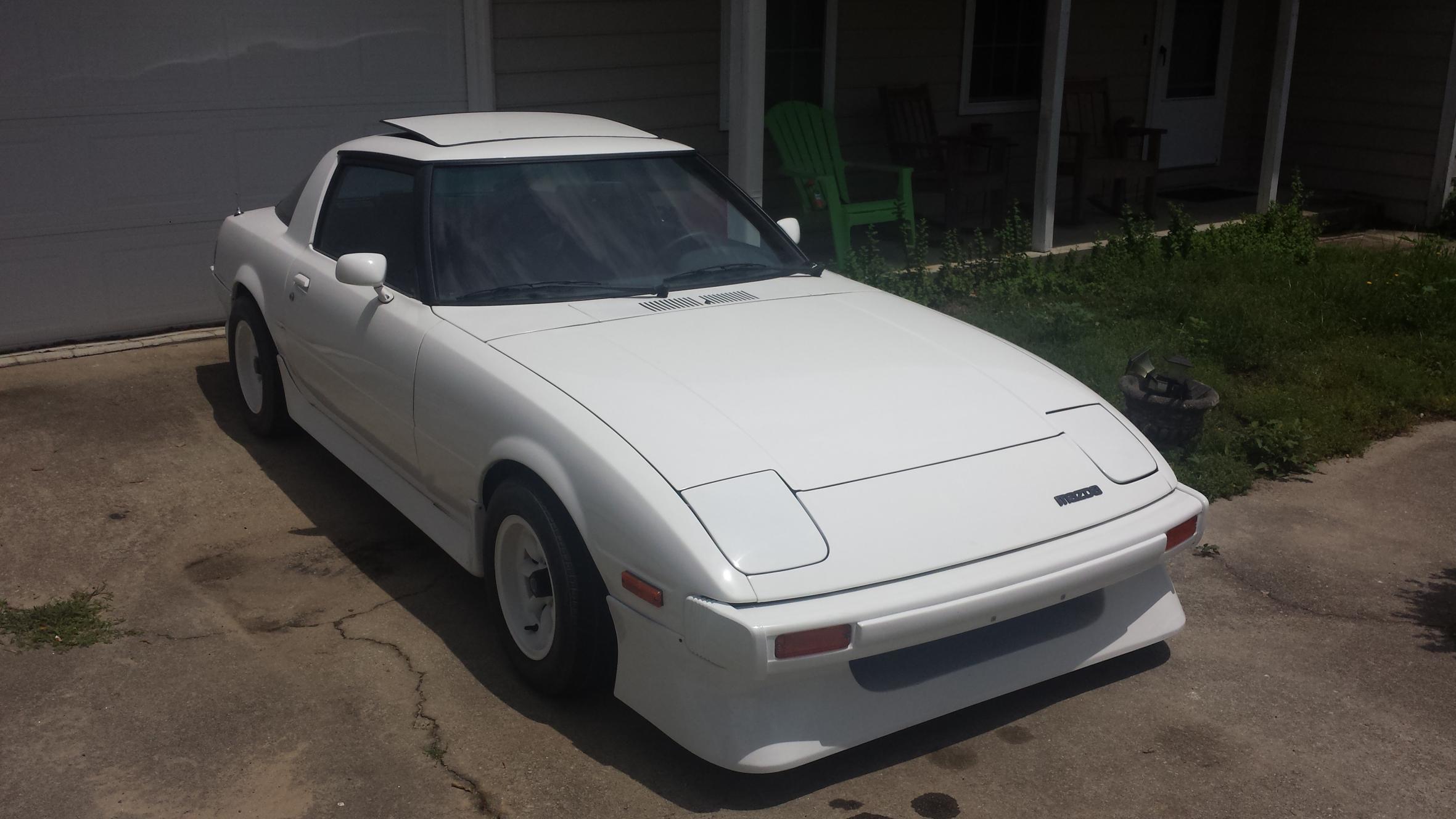

Oh ok cool I'll have to think about that if I swap mine
Attached Thumbnails 1979 Rx-7 Turbo LS powered.-20140607_124143.jpg
Speed Demon2288 is offline
Old 06-14-14, 06:58 PM
  #61
Rotary Enthusiast
Thread Starter
iTrader: (2)

vxturboxv's Avatar

Join Date: Jul 2003
Location: Wichita KS
Posts: 1,047
Likes: 0
Recieved 0 Likes on 0 Posts
Made it to the track finally. Blew my charge pipes off 5 times and called it quits. Manage to trap 150 and a 149 on the video pass below. Spun bad both times. Seems to be unloading when the front end comes down. I tried adding more boost but then I'd spin on the line.

This is a 4-5lb t-brake launch. (9lbs to 5500 on the boost controller and ramps in 20-21lbs after 5500.

Need to get some sort of bead on the throttle body. Threw my slicks back on to try for next time as well.

You can hear the tires spin when the nose comes back down.

vxturboxv is offline
Old 06-21-14, 05:52 PM
  #62
Rotary Enthusiast
Thread Starter
iTrader: (2)

vxturboxv's Avatar

Join Date: Jul 2003
Location: Wichita KS
Posts: 1,047
Likes: 0
Recieved 0 Likes on 0 Posts
Getting faster again... Need to iron out the 60' and I'd have some 8 second passes again.

Unfortunately I didn't have the nice HD cam going. I guess it doesn't' work well at night. This was taken with an Iphone. Can't get much from it, other than the driver side is still coming up much higher than the passenger side. Time slip will be at the end of the video...



vxturboxv is offline
Old 06-28-14, 11:42 AM
  #63
Rotary Enthusiast
Thread Starter
iTrader: (2)

vxturboxv's Avatar

Join Date: Jul 2003
Location: Wichita KS
Posts: 1,047
Likes: 0
Recieved 0 Likes on 0 Posts
Strapped the front end down and played with the ladder bars a bit. Bars were setup neutral without driver previously. Now I have them setup neutral with me in the car. (slip fit FWD mount bolt on pass side bar with driver.)

Seems to launch pretty straight. Ithink with a some fine tuning on the bars and loosening up the straps a bit I'll get my 1.3x's back. I managed solid 1.40-1.44 60's all night. Kinda boring now just hooks and goes!

60' 1.43
1/8 5.89 @121.49
1/4 9.02 154.27


60' 1.40
1/8 5.84 @ 122.6
1/4 9.01 @ 155.4

vxturboxv is offline
Old 07-09-14, 08:16 AM
  #64
RXT
Junior Member

Join Date: Feb 2014
Location: Amissville, VA
Posts: 6
Likes: 0
Recieved 0 Likes on 0 Posts
Man, that's a monster of a car, I love it. Great job.
RXT is offline
Old 07-09-14, 09:29 AM
  #65
Rotary Enthusiast
Thread Starter
iTrader: (2)

vxturboxv's Avatar

Join Date: Jul 2003
Location: Wichita KS
Posts: 1,047
Likes: 0
Recieved 0 Likes on 0 Posts

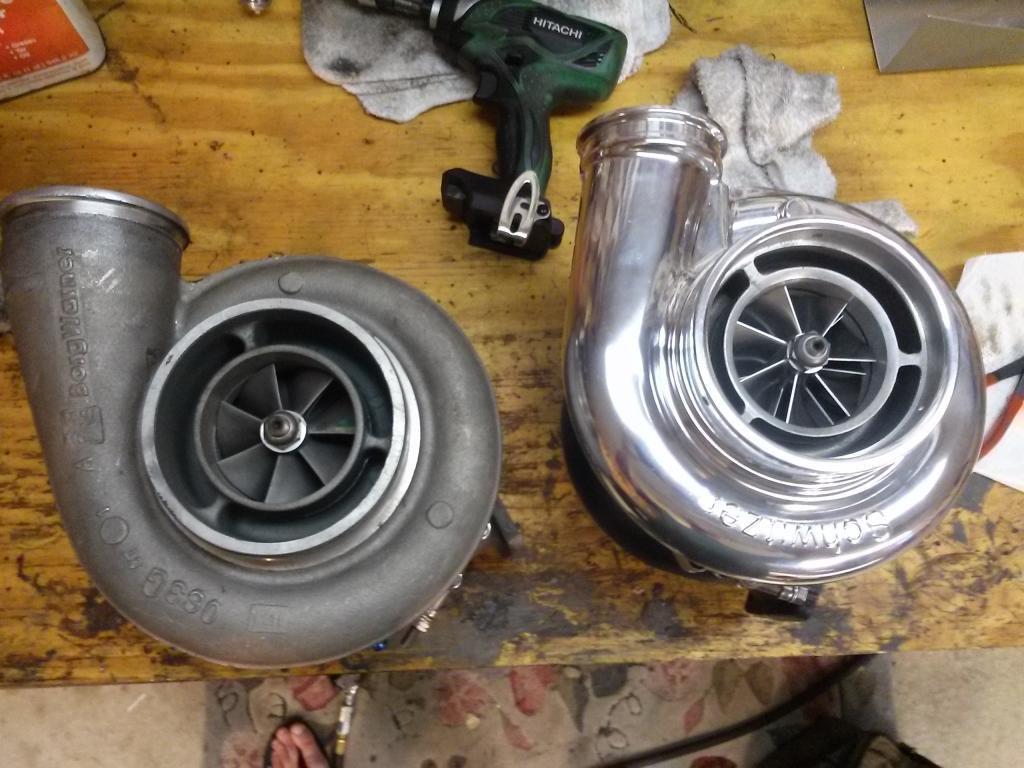

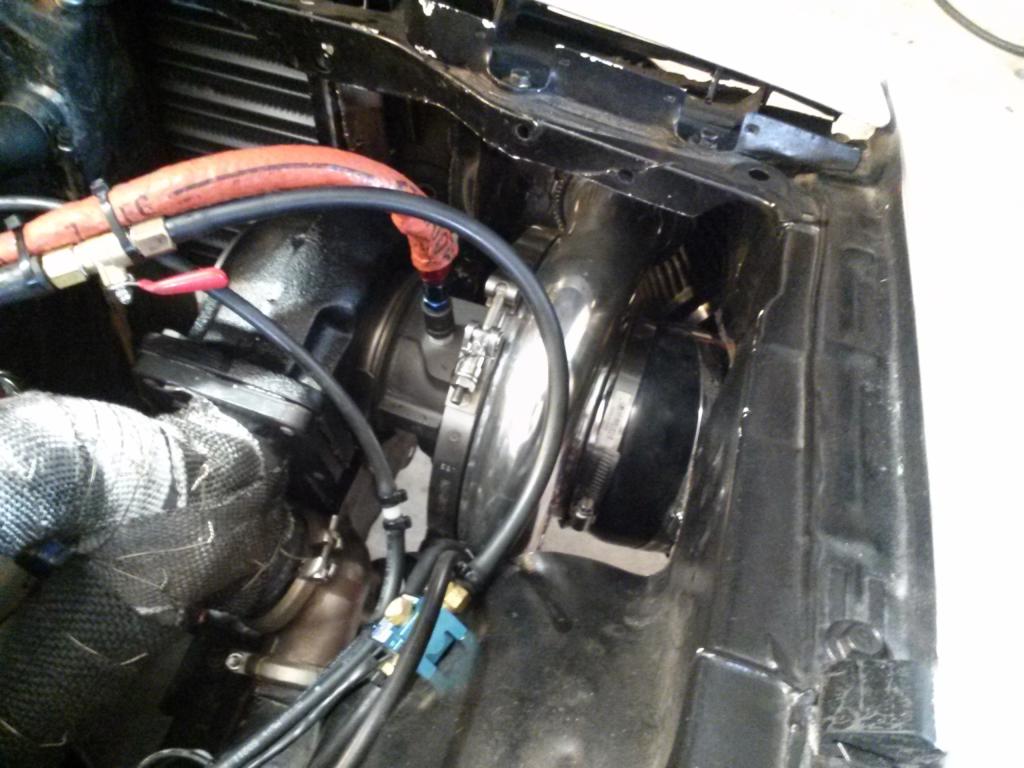

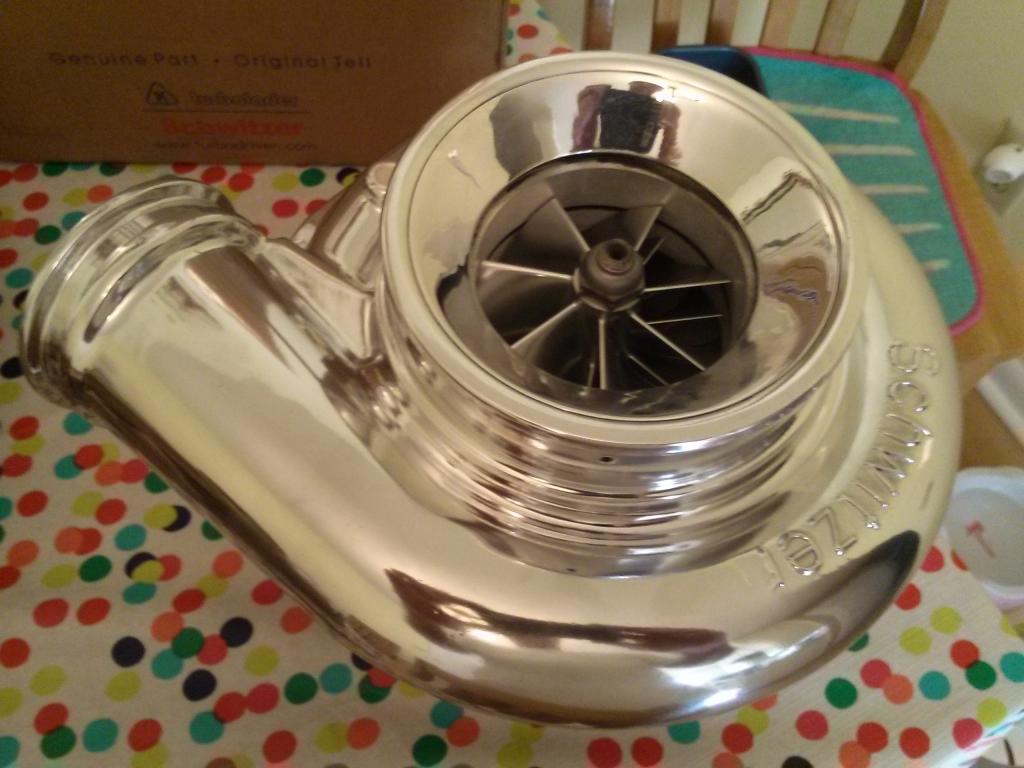

Thanks... New shiny turbo to try out this weekend.

Old turbo was a T4 1.10AR 83/74 exh wheel. 74.5mm cast compressor.

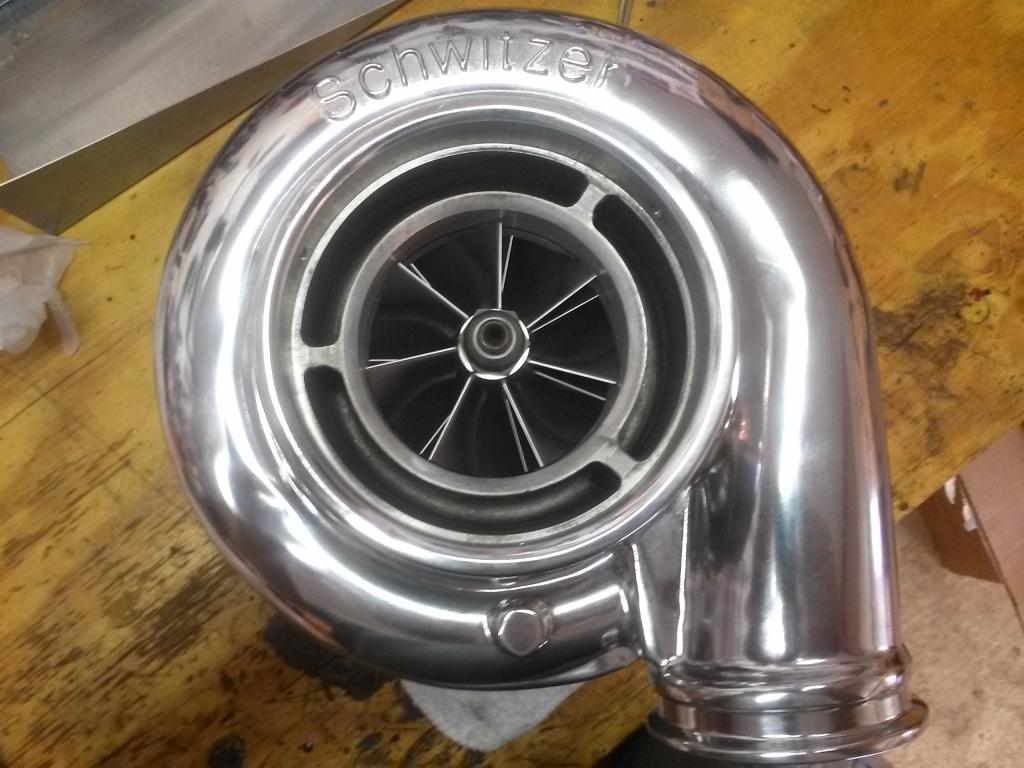

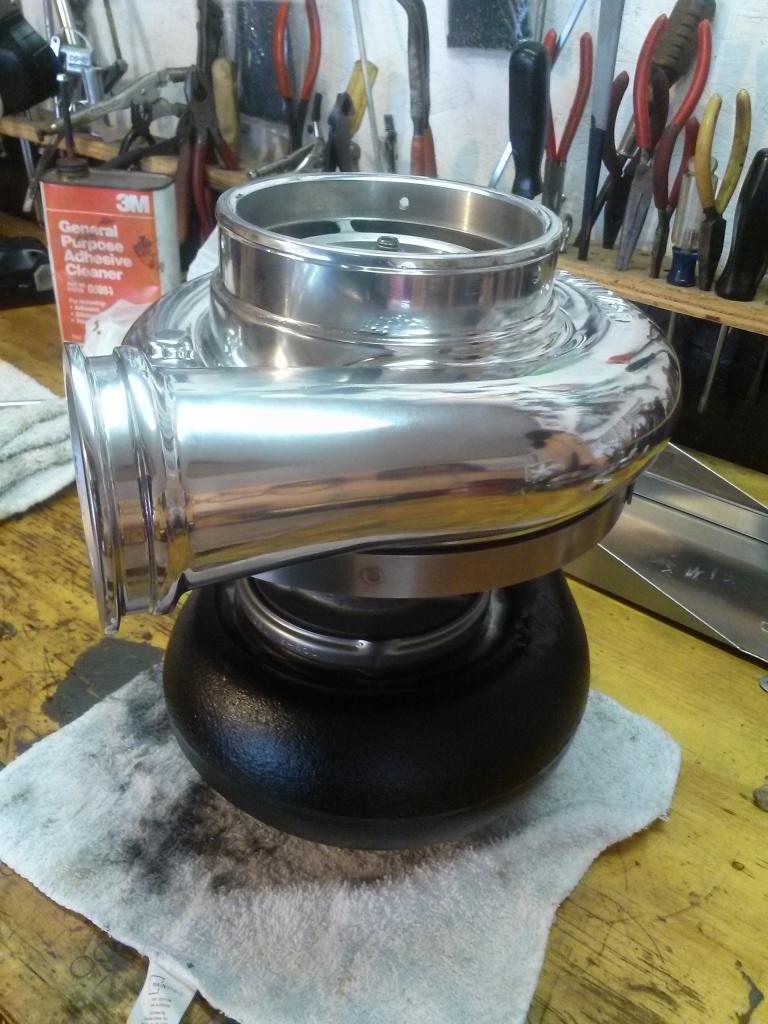

New turbo is an T4 1.25AR 87/77.5 exh wheel. 76mm billet compressor.

Name:  CAM00069_zpsa5dfjevx.jpg
Views: 364
Size:  84.6 KB

Popped the silencer ring out. Should be obnoxious! :yup:

Name:  CAM00078_zpsjmksicvs.jpg
Views: 351
Size:  97.0 KB


Name:  CAM00077_zpsmv5j2hht.jpg
Views: 348
Size:  109.7 KB

Name:  CAM00137_zpspyeewibz.jpg
Views: 345
Size:  96.7 KB

Name:  CAM00132_zpst26zofsu.jpg
Views: 367
Size:  107.5 KB
vxturboxv is offline
Old 01-20-15, 02:02 PM
  #66
Rotary Enthusiast
Thread Starter
iTrader: (2)

vxturboxv's Avatar

Join Date: Jul 2003
Location: Wichita KS
Posts: 1,047
Likes: 0
Recieved 0 Likes on 0 Posts

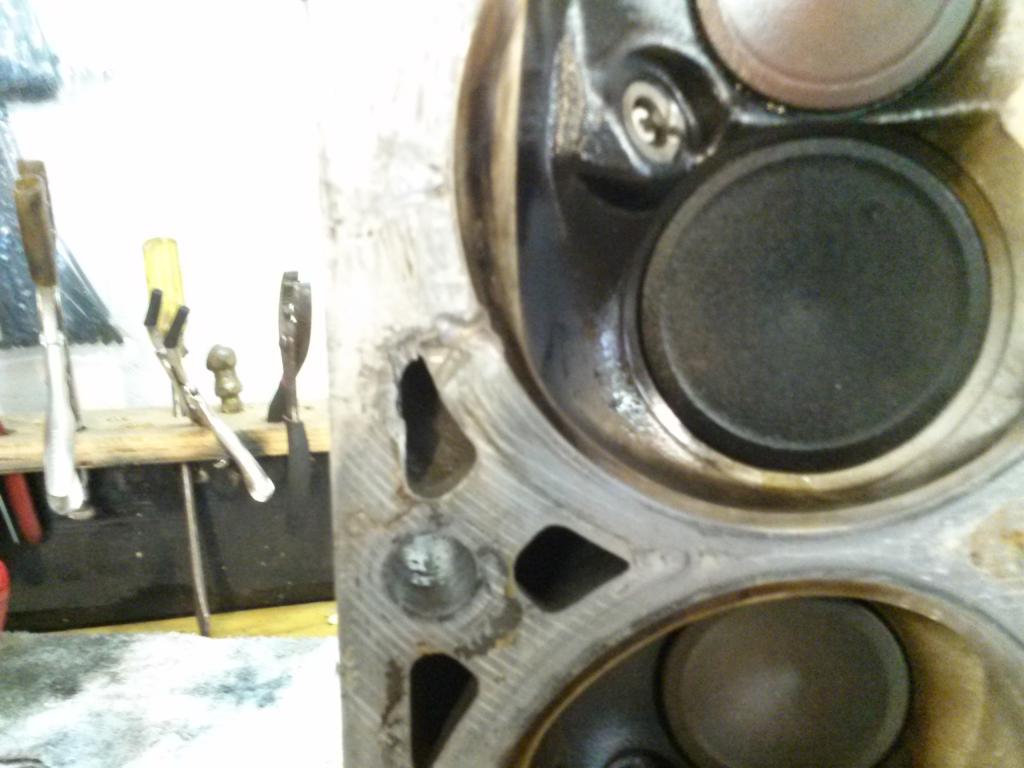

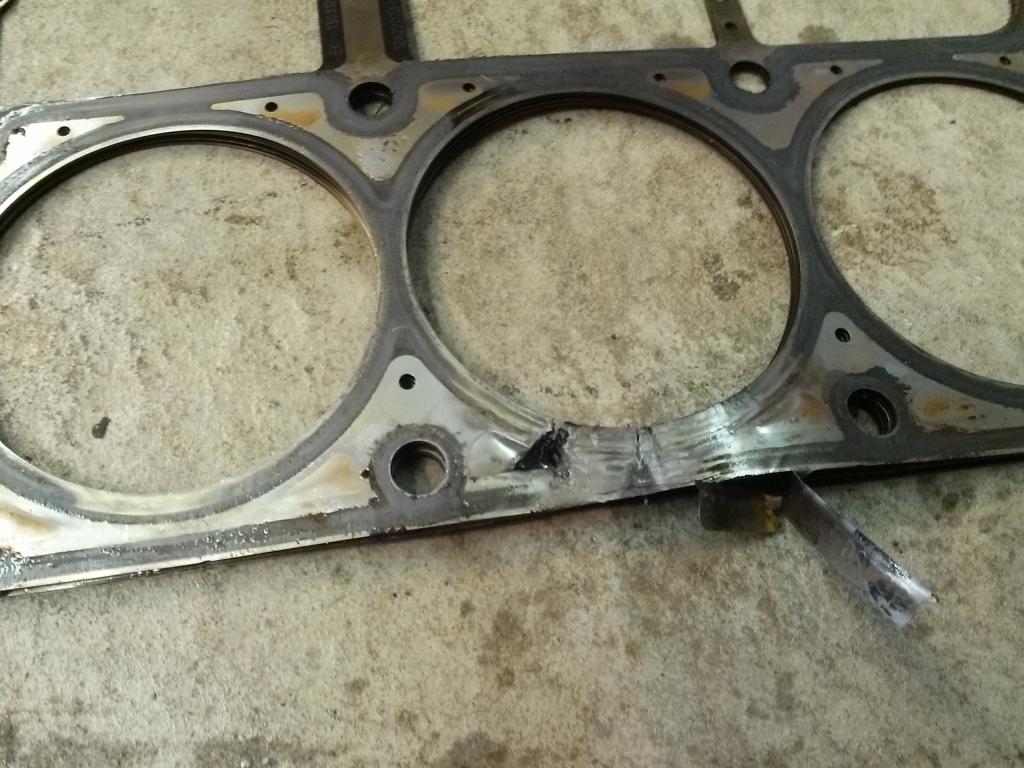

With the 5.3 I went several 8.9x passes at 159ish with the new turbo at 24-25lbs. Then blew the HG. Blew it bad enough that it took out the deck and head.

Name:  CAM00189_zpsnjxbi3vc.jpg
Views: 373
Size:  116.8 KB
Name:  CAM00186_zpsfu2joq8s.jpg
Views: 339
Size:  75.5 KB



So I tossed an a spare 4.8. Upgraded from an ls1 to an ls6 intake and went to a Treadstone intercooler from a cheapo china IC I was running. Went 9.1 @ 150 at 19lbs for the rest of the year! Pretty impressed with the 4.8's performance. After the race season was over I damaged the #8 rod due to a clogged fuel injector.

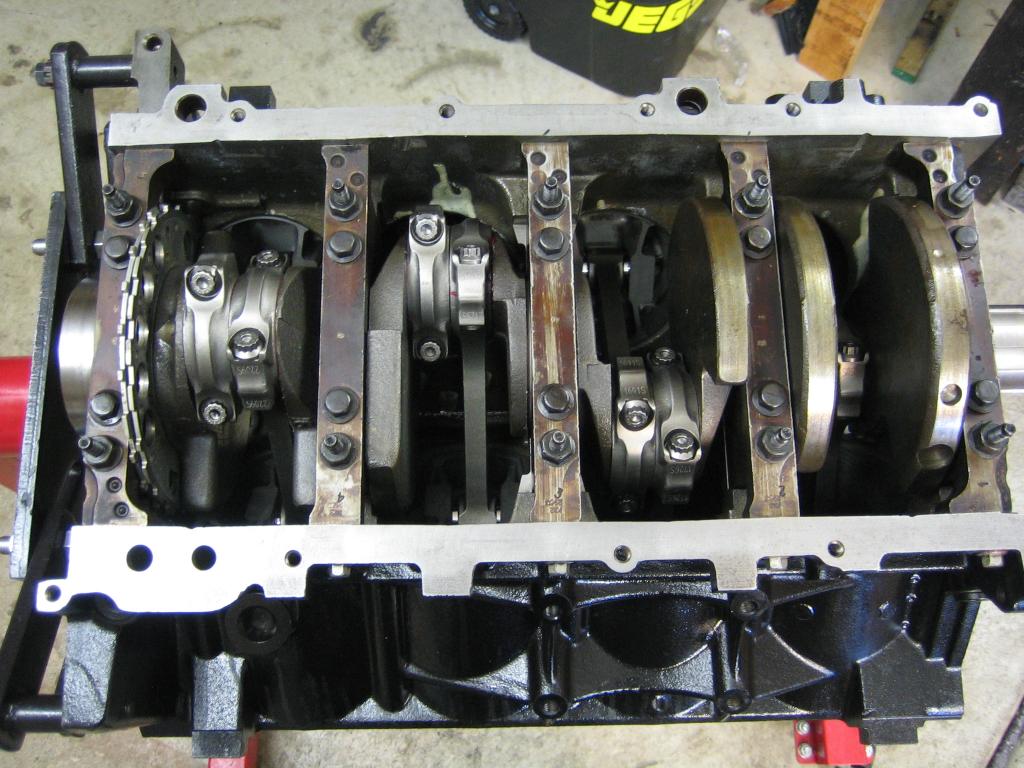

Putt together a forged 6.0 for this season and re-designed my hotside. Also added a 12pt cage and parachute to keep the tech guys happy.

370 cubic inches ready to go!



Name:  370assy1_zps51284d04.jpg
Views: 362
Size:  123.6 KB
vxturboxv is offline
Old 01-20-15, 02:05 PM
  #67
Rotary Enthusiast
Thread Starter
iTrader: (2)

vxturboxv's Avatar

Join Date: Jul 2003
Location: Wichita KS
Posts: 1,047
Likes: 0
Recieved 0 Likes on 0 Posts

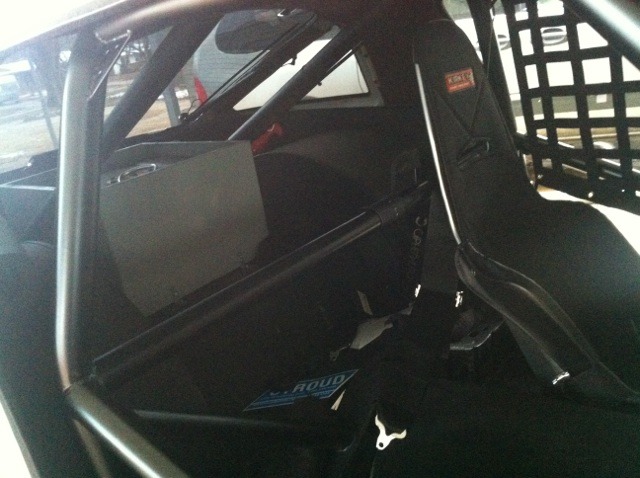

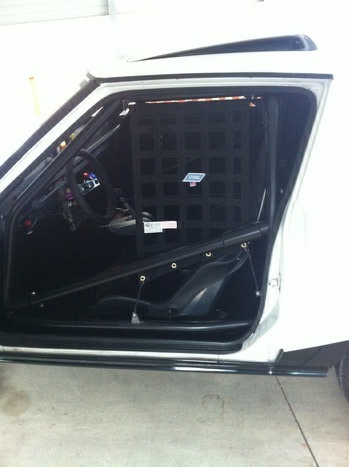

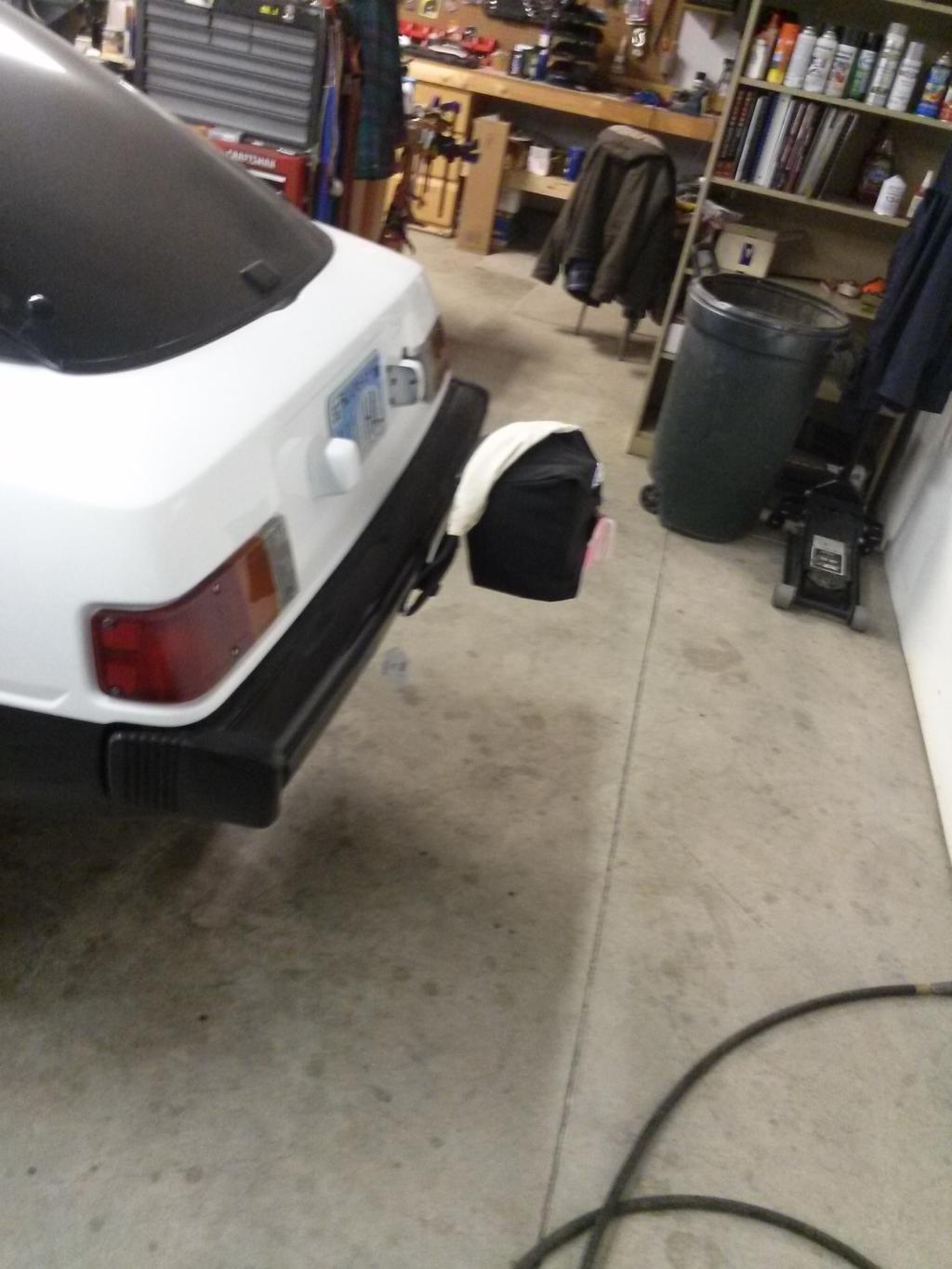

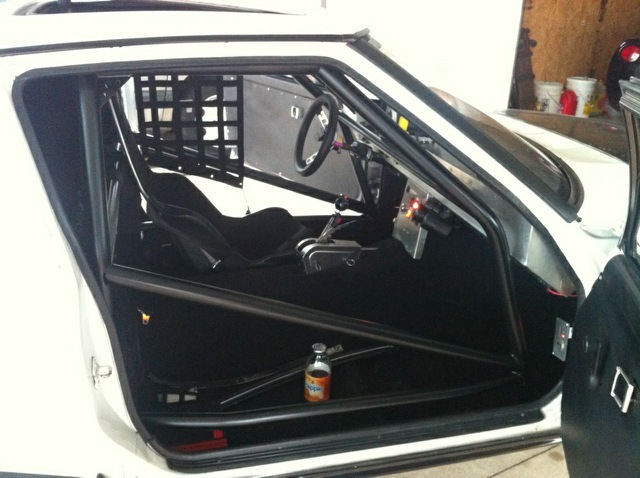

Cage and chute. Even got the window net to make it all legal like.


Name:  CAM00561_zps9bfpb7wi.jpg
Views: 343
Size:  121.3 KB


Name:  IMG_6187_zps7q3sag05.jpg
Views: 347
Size:  39.4 KB
Name:  IMG_6189_zpsskqpq5rl.jpg
Views: 343
Size:  87.2 KB
Name:  IMG_6190_zps2juogind.jpg
Views: 335
Size:  85.4 KB

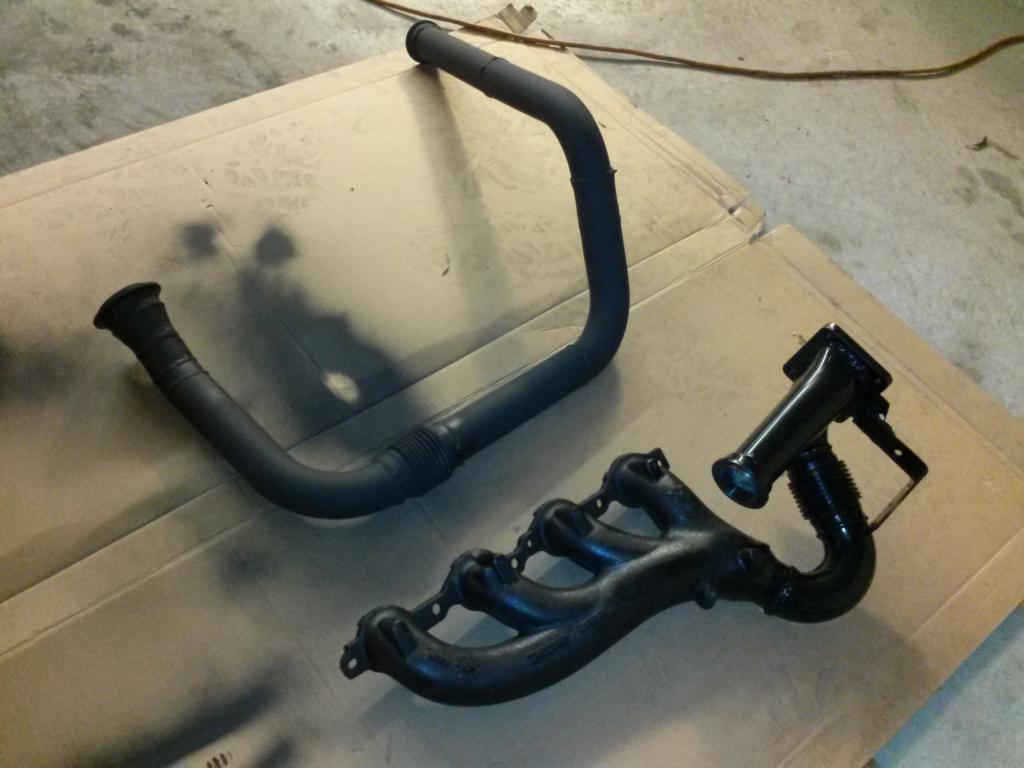

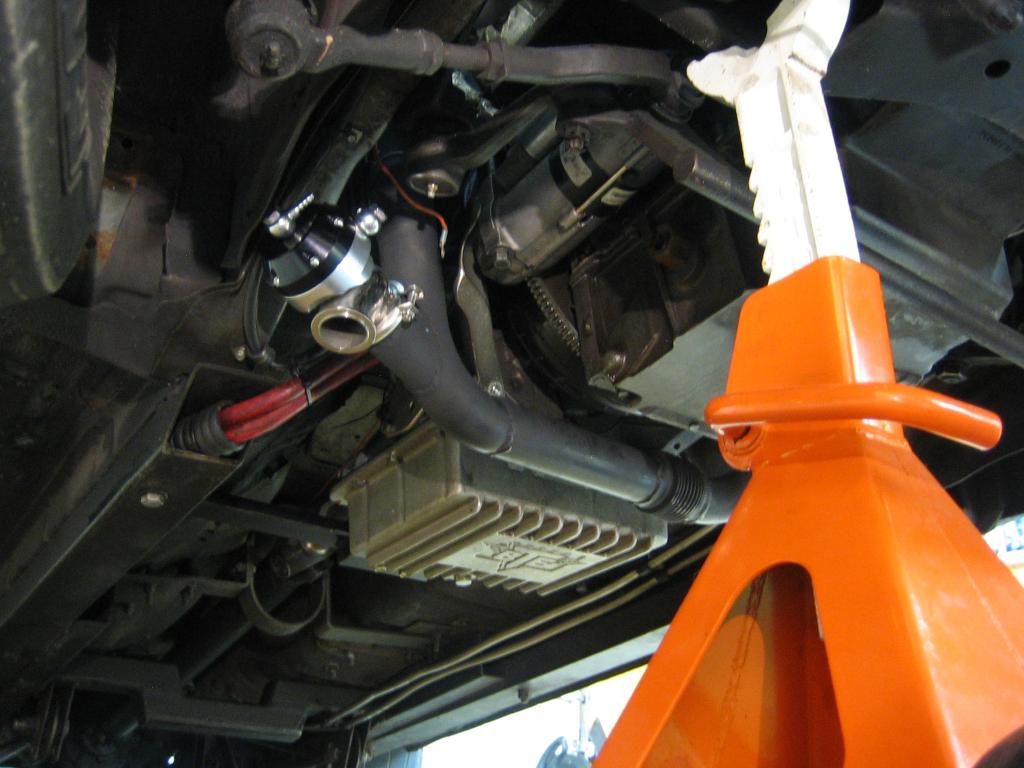

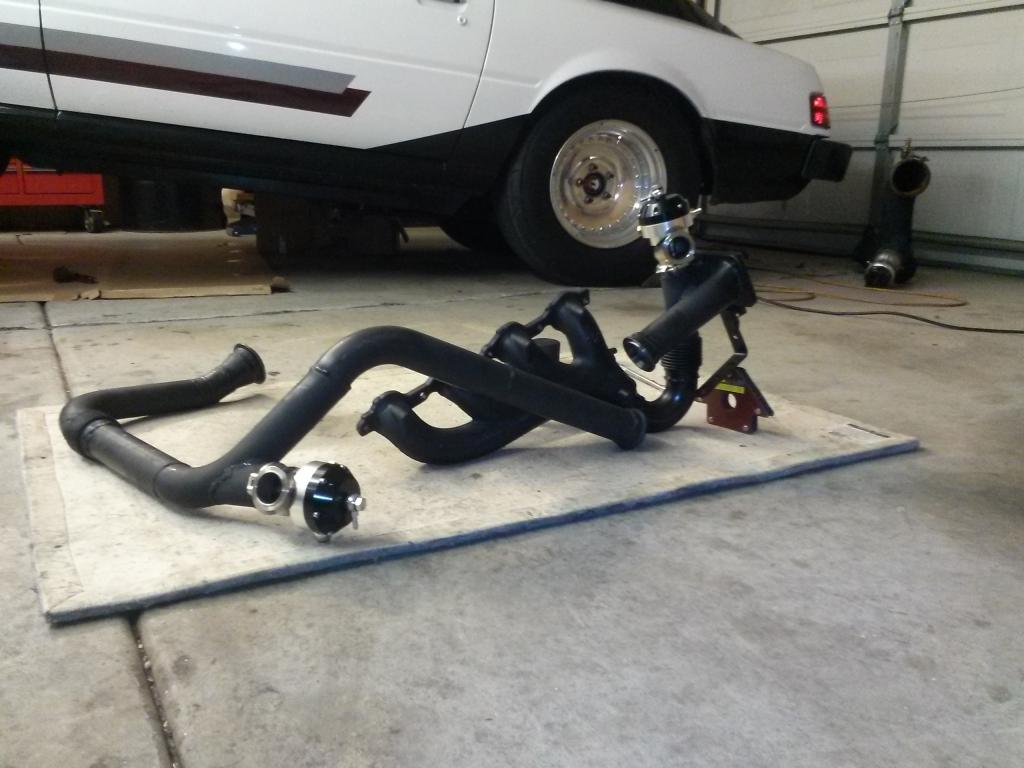

New hotside...

Name:  CAM00589_zpstt5ti5sl.jpg
Views: 341
Size:  73.8 KB

Name:  CAM00604_zps7uxavzdv.jpg
Views: 336
Size:  82.9 KB
Name:  WGpsssside_zps9c2e695e.jpg
Views: 345
Size:  84.3 KB
vxturboxv is offline
Old 01-26-15, 02:50 PM
  #68
Slowly but surely
iTrader: (9)

craaaazzy's Avatar

Join Date: May 2011
Location: GA
Posts: 1,658
Recieved 7 Likes on 7 Posts
wow!!! this thing is a beast!
craaaazzy is offline
Old 01-26-15, 02:53 PM
  #69
Rotary Enthusiast
Thread Starter
iTrader: (2)

vxturboxv's Avatar

Join Date: Jul 2003
Location: Wichita KS
Posts: 1,047
Likes: 0
Recieved 0 Likes on 0 Posts

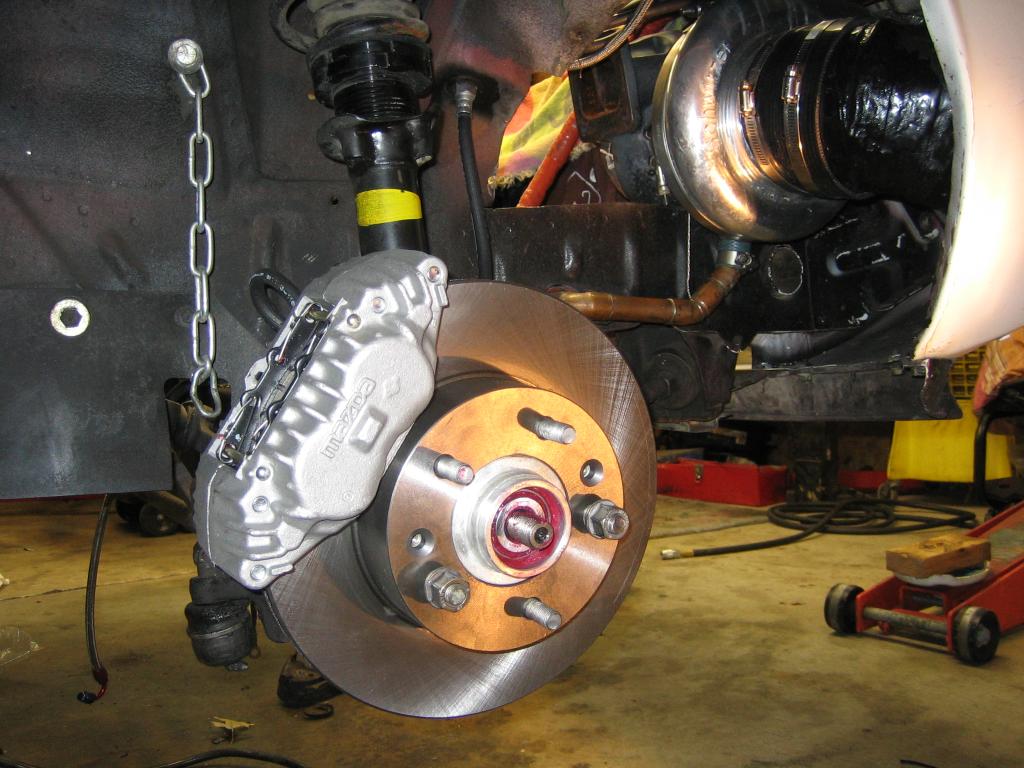

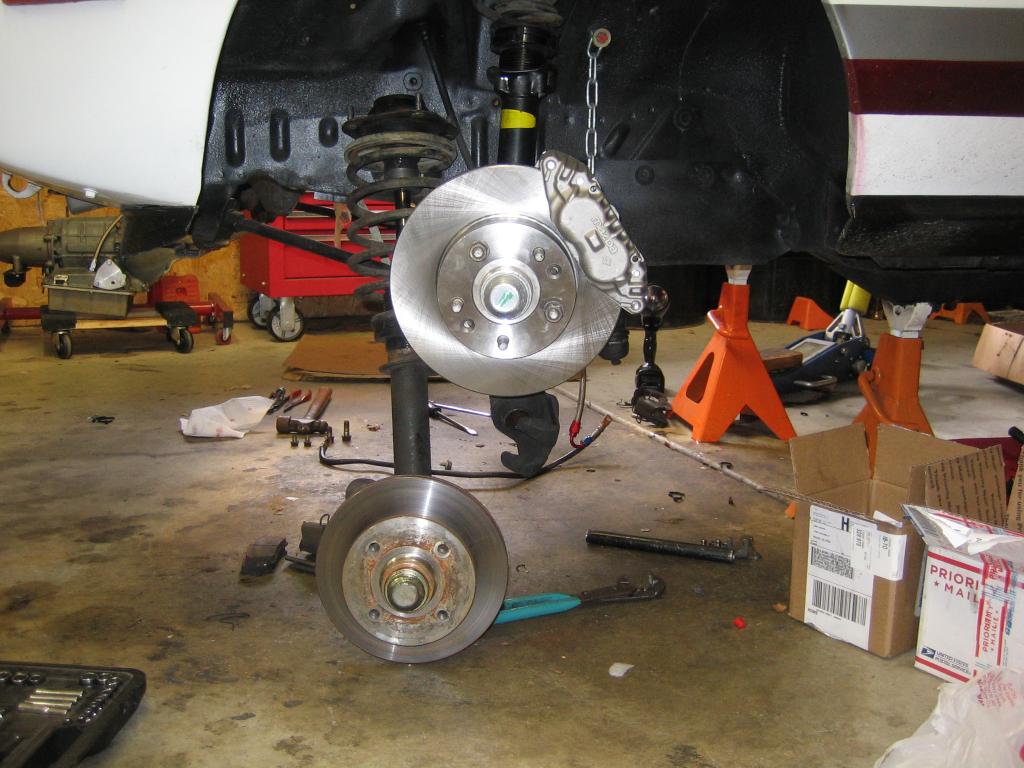

Played with brakes/struts a little saturday.

Name:  IMG_5549_zpsnzx5zcto.jpg
Views: 342
Size:  108.4 KB

Name:  new%20brakes%201_zps0feb9e1z.jpg
Views: 347
Size:  113.3 KB

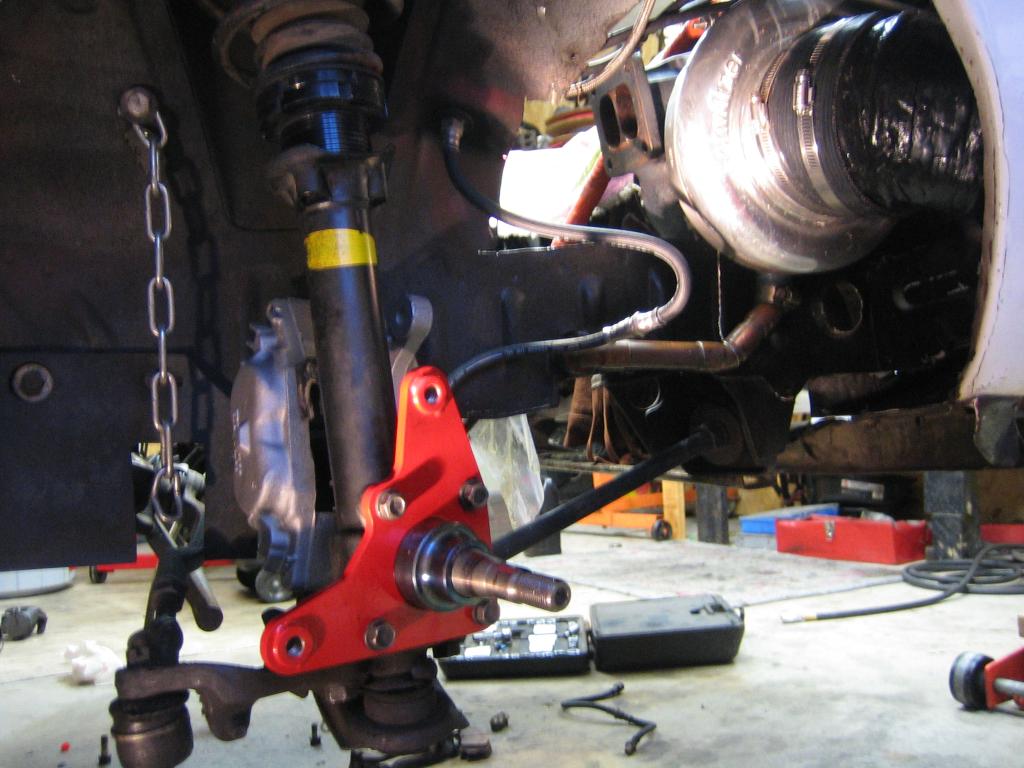

Got the new 1985 RX7 Struts on with the bigger spindles. This allows me to run a "Big Brake Kit". Came with a adaptors to run the 87+ Turbo Rx-7 brake Hubs and calipers. Ordered reman calipers form RockAuto (4 piston calipers) with OEM brake lines. Went with the Hawk HP+ brake pads.

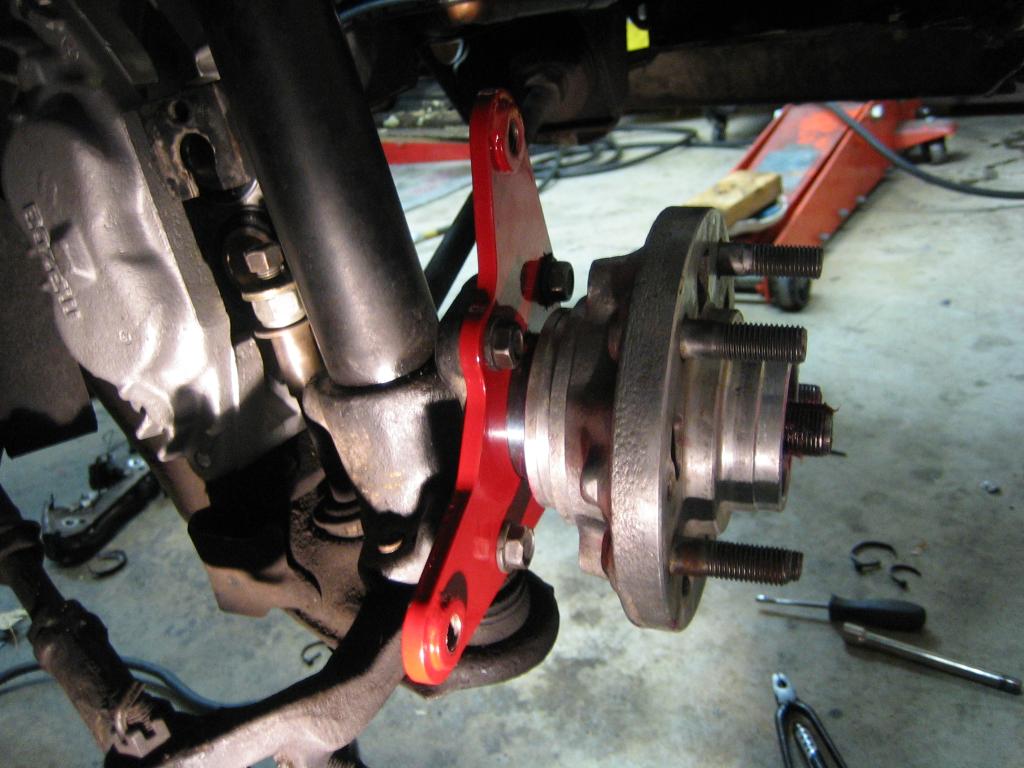

New caliper plate and slip on adaptor for TII RX-7 hub and bearings.

Name:  IMG_5575_zpsoaz1uos2.jpg
Views: 333
Size:  97.4 KB
Name:  IMG_5585_zpsmpr8yb4o.jpg
Views: 339
Size:  94.7 KB

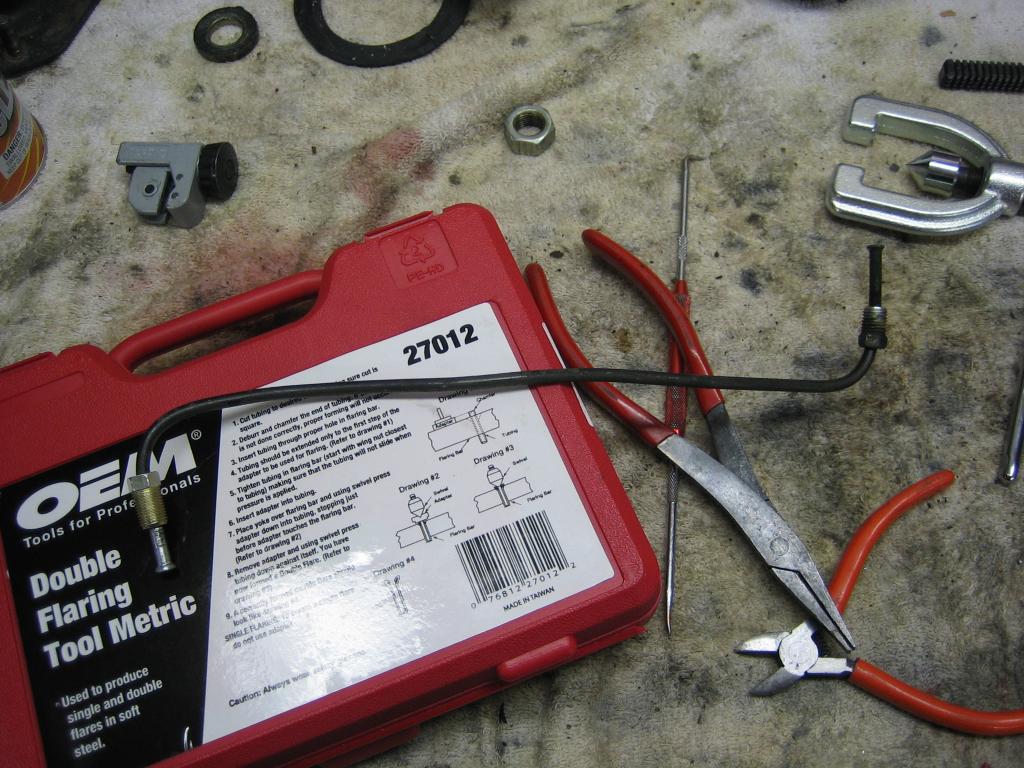

Had to cut the oddball 1.25 M10 fittings off and install M1.0 fittings. Other than that, everything bolted right up.

New M10 1.0 fitting.
Name:  IMG_5570_zps7n5j3bjb.jpg
Views: 341
Size:  141.2 KB

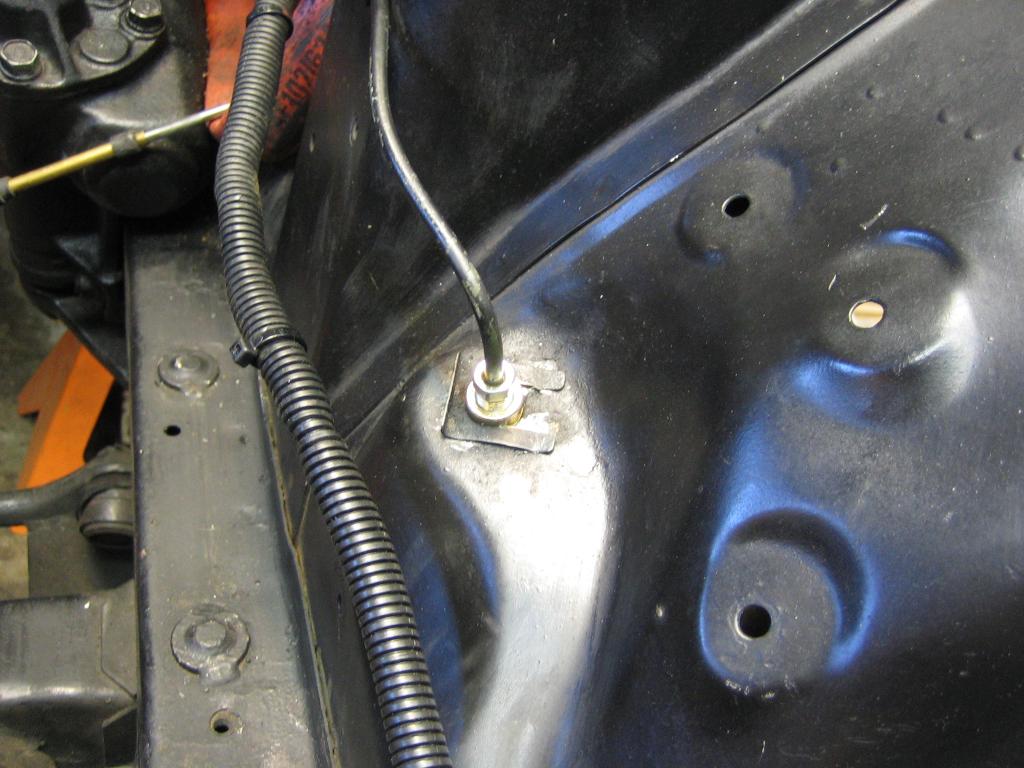

Threads right into th TII factory replacement tubing
Name:  IMG_5573_zpska08nb7c.jpg
Views: 331
Size:  98.7 KB
vxturboxv is offline
Old 05-02-15, 12:51 AM
  #70
Rotary Enthusiast
Thread Starter
iTrader: (2)

vxturboxv's Avatar

Join Date: Jul 2003
Location: Wichita KS
Posts: 1,047
Likes: 0
Recieved 0 Likes on 0 Posts
New personal best ET, 8.88 @ 156! 19lbs creeping to 21 in the upper RPM. 12* of timing. Still doesn't hit the tires like I think it should. I'll have several videos up shortly. Logging back pressure now as well. Seeing 2.3:1 at peak boost. I think it's time for a bigger exh. wheel!


vxturboxv is offline
Old 10-22-18, 07:33 AM
  #71
Rotary Enthusiast
Thread Starter
iTrader: (2)

vxturboxv's Avatar

Join Date: Jul 2003
Location: Wichita KS
Posts: 1,047
Likes: 0
Recieved 0 Likes on 0 Posts
RX7 is still alive and kicking. Someone made me an offer on teh old engien combo so it's sporting a 500$ bone stock 4.8 with a small cam and larger T6 1.32 S480 turbo.

Our local 1/4 track was closed this weekend so a friend offered to tow the mazda to a new (newly reopened anyway) 1/8th mile strip in Ark City Kansas. "Mid America Dragway"

No real other changes and it's back to dead hooking 1.3X 60's with the 4.8/S480 combo. Only a few runs but basically all the same. 5.7x- 5.8x @ 120-122 mph. @)lbs of boost and 14* of timing. Got to run a few other really nice LS swapped vehicles in the vids below. The Chevy II was running 5.5x @ 128 with twin S366's at 25lbs with nice heads, intake, cam setup. Chevelly was a SBE stock headed 5.3 with a baby cam and LJMS S480.

Couple vids







This was the run against the Chevelle above. Was trying to prove I could cut a light with the 4.8 spooling the big S480... Almost worked!


vxturboxv is offline
