First time out with the FC

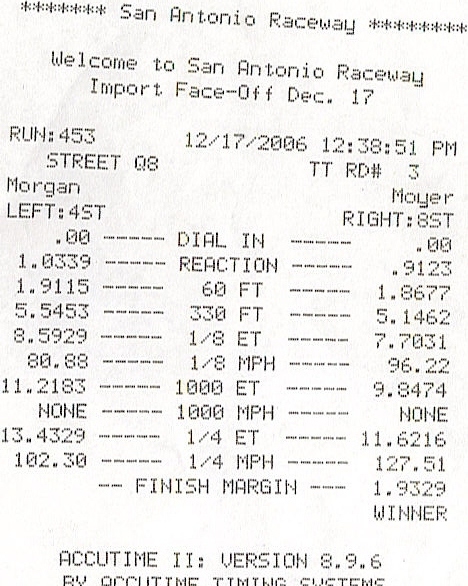

20psi. S5 street port. OSGiken twin plate, T66 96a/r p-tim, SSAC front mount with water injection. 225/50/15 BFG drag radials. (old and 95% worn out) 2715lbs with me in the car. Right lane.
with a better 60' that car could see 10's no problem.
01-16-07, 08:33 PM
#5
Senior Member
Thread Starter
Join Date: Jun 2002
Location: S.A. Texas/Tokyo Japan
Posts: 420
Likes: 0
Received 0 Likes
on
0 Posts
Here's a few vids of the run.
http://www.putfile.com/sleeper7
You can see I was shifting slow at 7000rpms. The motor only had 1-1.5 hours of run time since put together so I was taking it easy.
I think the next time out it will do a 10 second pass, hope anyways. (Now that I said that, the motor will let go.) Replaced the OSGiken twinplate set up for the heavier stock flywheel with ACT clutch kit. Also replaced the rear tire. from some worn out BFGs to MT Streets. Also got some good rear shocks on it now. also increasing the boost to 25psi. But keeping the tune at 10.2afrs.
chuck
http://www.putfile.com/sleeper7
You can see I was shifting slow at 7000rpms. The motor only had 1-1.5 hours of run time since put together so I was taking it easy.
I think the next time out it will do a 10 second pass, hope anyways. (Now that I said that, the motor will let go.) Replaced the OSGiken twinplate set up for the heavier stock flywheel with ACT clutch kit. Also replaced the rear tire. from some worn out BFGs to MT Streets. Also got some good rear shocks on it now. also increasing the boost to 25psi. But keeping the tune at 10.2afrs.
chuck
Trending Topics
01-17-07, 09:48 AM
#8
Senior Member
Thread Starter
Join Date: Jun 2002
Location: S.A. Texas/Tokyo Japan
Posts: 420
Likes: 0
Received 0 Likes
on
0 Posts
The gauge thats in the lower right is not the afr gauge, it's the air temp gauge. Sorry. I mounted the air temp gauge sensor in the LIM to see how well the water injection was working.
The afr gauge in on the gauge cluster. The three in the middle are, from left to right, fuel pressure, boost and egt.
The afr gauge in on the gauge cluster. The three in the middle are, from left to right, fuel pressure, boost and egt.
01-17-07, 02:48 PM
#11
Full Member
Join Date: Apr 2005
Location: Melbourne. Australia
Posts: 155
Likes: 0
Received 0 Likes
on
0 Posts
Can I ask why you swapped out the OS giken clutch? I've got the same twinplate in my FC I think (although its 6 puck and unsprung). It's a bit of a ***** to drive, but seems to cope with any abuse I can give it.. it's only got about 2mm of meat left on it, so I'm deciding whether to rebuild it or to go with something else.
01-17-07, 03:13 PM
#12
Senior Member
Thread Starter
Join Date: Jun 2002
Location: S.A. Texas/Tokyo Japan
Posts: 420
Likes: 0
Received 0 Likes
on
0 Posts
Weight of the stock flywheel is better suited for drag racing, IMO. For street stuff the OSGiken is great. Just did'nt like it at the track.
J-Rat, anything big happening your way over the summer. 1/4 mile?
J-Rat, anything big happening your way over the summer. 1/4 mile?
01-17-07, 03:27 PM
#13
Originally Posted by chuck8313BTSDS
J-Rat, anything big happening your way over the summer. 1/4 mile?
01-20-07, 10:33 AM
#14
F**K THE SYSTEM!!
buy that bobo bolt in roll cage from ebay...
OH and how r you running to much boost without... controlling timing....
20 psi on a t66 without timing.... is that safe?
OH and how r you running to much boost without... controlling timing....
20 psi on a t66 without timing.... is that safe?
01-20-07, 03:44 PM
#16
Boost in..Apex seals out.
Join Date: Nov 2003
Location: Maryland, 21794
Posts: 1,931
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by junito1
buy that bobo bolt in roll cage from ebay...
OH and how r you running to much boost without... controlling timing....
20 psi on a t66 without timing.... is that safe?
OH and how r you running to much boost without... controlling timing....
20 psi on a t66 without timing.... is that safe?
Translation:
You should get that the bolt-on roll cage that someone sells on EBay.
Oh, and, question: How are you running so much boost, with no timing control?
20 psi on a T66 doesn't seem safe without a way to control timing.
01-20-07, 07:56 PM
#18
Full Member
Join Date: Apr 2005
Location: central Cali
Posts: 92
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by J-Rat
damn.. Too bad you aren't in Tucson, I could use some competition.
What happened to that?
I know of a couple quick 7's out here.
01-21-07, 10:08 PM
#20
Banned. I got OWNED!!!
Join Date: Jun 2006
Location: South East
Posts: 698
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by chuck8313BTSDS
No timing controll for me. SDS is a fuel only ECU. I use a unlocked 1st gen dizzy.
that's what i did for a long time in my old turbo 12a setups
worked fuggin great!
01-24-07, 09:42 PM
#22
Senior Member
Thread Starter
Join Date: Jun 2002
Location: S.A. Texas/Tokyo Japan
Posts: 420
Likes: 0
Received 0 Likes
on
0 Posts
No 12a-T dizzy. just a stock n/a one.
The stock dizzy has a full mech advance of 19-22 deg. So if you set your timing on the leading marks of a turboII crank pulley which is -5before TDC. Your total advance will be in the area of 14-17deg Before TDC. I run between 17-21deg before TDC at 20 and up PSI. Been doing this for years.
The stock dizzy has a full mech advance of 19-22 deg. So if you set your timing on the leading marks of a turboII crank pulley which is -5before TDC. Your total advance will be in the area of 14-17deg Before TDC. I run between 17-21deg before TDC at 20 and up PSI. Been doing this for years.
01-25-07, 06:44 PM
#25
Senior Member
Thread Starter
Join Date: Jun 2002
Location: S.A. Texas/Tokyo Japan
Posts: 420
Likes: 0
Received 0 Likes
on
0 Posts
I set my timing at 4000rpms when the mechanical advance is at it's max (18deg BTDC) and let the idle timing fall were ever it wants. I do not use the vacuum advance part of the distributor.
Can't get any easier than that.
Can't get any easier than that.
