12.7 @ 109 hybrid turbo

Best run of the night borrowing a set of slicks from a friend.
Mods:
Freelance motorsports built engine with polished intake, large exhaust port.
FD rotors
S4 housings
S5 irons

Megasquirt ECU (no offical tune or dyno runs yet)
BNR stage 1 turbo
RB 2.5 in downpipe,resonator and catback
NA drive train(car was originally 4 lug, swapped to 5 lug turbo setup)
Vmount intercooler (evo 8 intercooler)
kyb agx and eibach sport springs

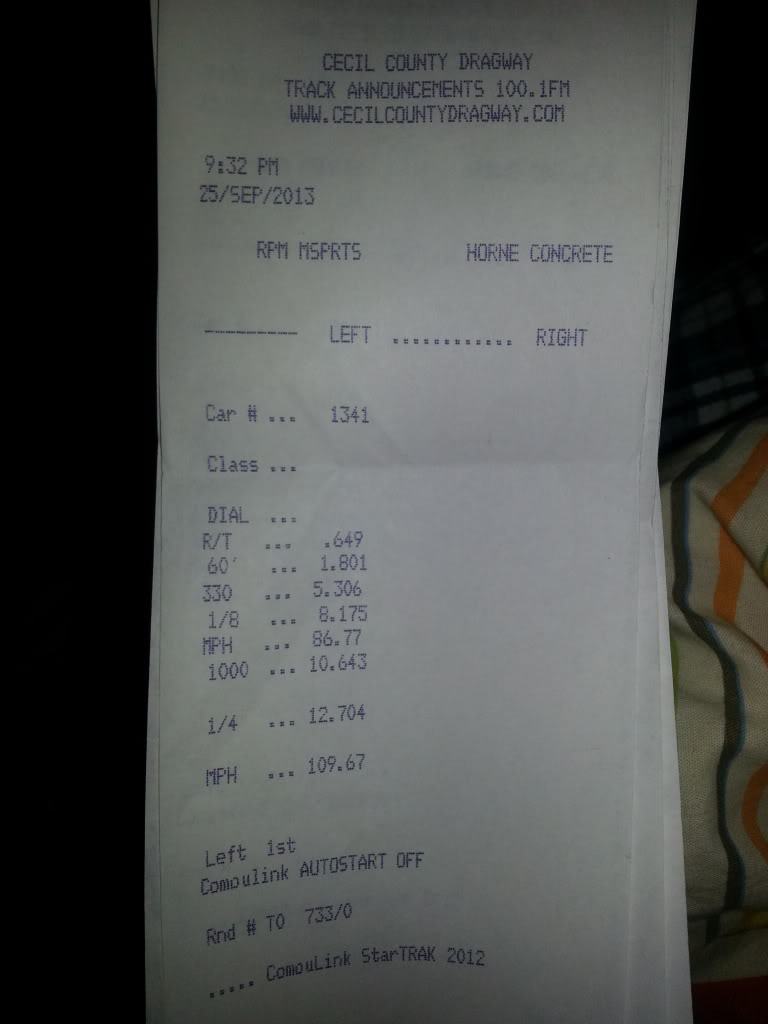

Name:  20130925_231511_zps97af94a6.jpg
Views: 97
Size:  54.9 KB



let me know if i missed anything else or you have any questions!
Reply
Old Sep 27, 2013 | 11:41 PM
  #2
MrGoodnight's Avatar
Senior Member
Tenured Member 10 Years
iTrader: (1)

Joined: Feb 2010
Posts: 620
Likes: 4
From: Tacoma Washington
How much boost?
Reply
Old Sep 27, 2013 | 11:45 PM
  #3
con-3-fc3s's Avatar
Full Member
Tenured Member: 15 Years

Joined: Oct 2007
Posts: 181
Likes: 0
From: hI,MaUi
What size were the slicks?...
Reply
Old Sep 27, 2013 | 11:48 PM
  #4
MrGoodnight's Avatar
Senior Member
Tenured Member 10 Years
iTrader: (1)

Joined: Feb 2010
Posts: 620
Likes: 4
From: Tacoma Washington
Originally Posted by con-3-fc3s
What size were the slicks?...
To go with this how did the NA drivetrain hold up with slicks?
Reply
Old Sep 27, 2013 | 11:57 PM
  #5
con-3-fc3s's Avatar
Full Member
Tenured Member: 15 Years

Joined: Oct 2007
Posts: 181
Likes: 0
From: hI,MaUi
Originally Posted by MrGoodnight
To go with this how did the NA drivetrain hold up with slicks?
It's probably why he didn't burn out!..lol seems pretty good with a NA drivetrain...
Reply
Old Sep 28, 2013 | 06:35 PM
  #6
driftxsequence's Avatar
Thread Starter
Rotisserie Engine
Tenured Member: 15 Years
Liked
Loved
Community Favorite
iTrader: (8)

Joined: Jan 2007
Posts: 1,944
Likes: 107
From: Wilmington, DE
Boost goes up to 13 psi and tapers off down to around 8 or 9 psi. its a rebuilt bnr stage 1 with a manual boost controller. you can see the boost drop off on the gauge on the pillar.

The NA drivetrain did a lot better than I expected. I got crazy wheel hop with my stock tires and I'm pretty sure I would have broken something. The diff didnt even clunk when launching at 7k on the slicks.

Keep in mind this was a 4 lug car so I have an open diff. That is partially why I didnt do a burnout, one tire would have been wet while the other would have been toasty. The other reason I didnt do a burnout was so I didnt put even more stress on the drivetrain.

The slicks were 26x8.50x16LT They were borrowed from a friend's speed3. no rubbing without any spacers. launching at 7k only caused wheel spin if I dumped the clutch(second video posted above). The LSD I have should help with that..

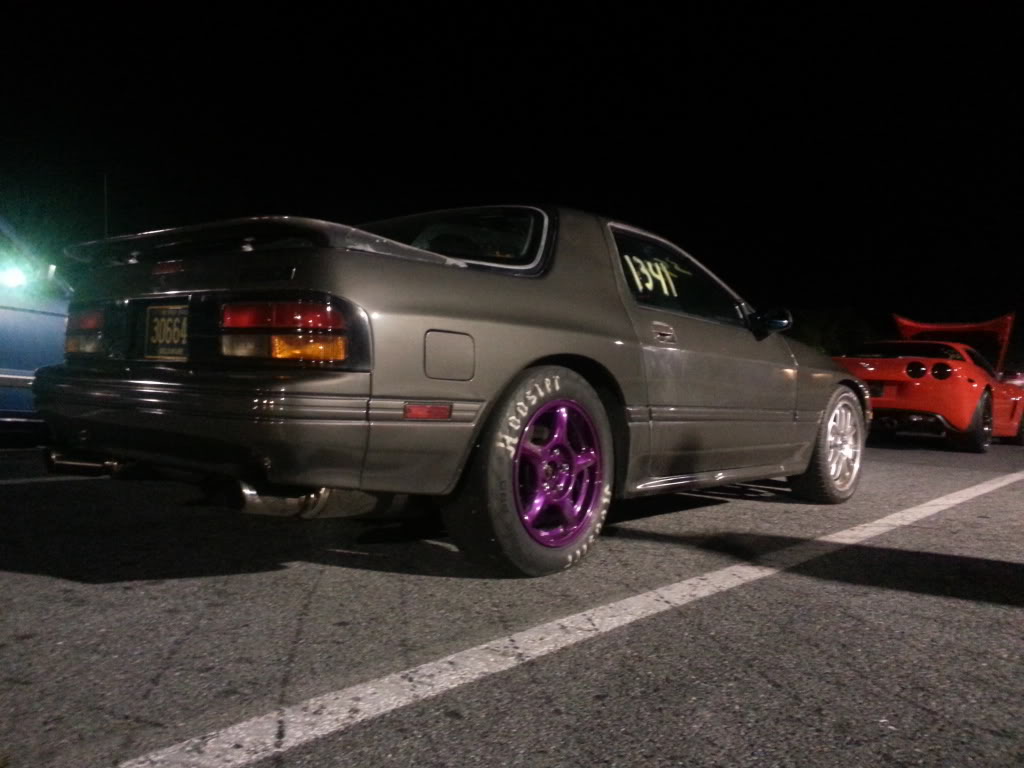

Name:  20130925_212601_zpsfea60c5d.jpg
Views: 89
Size:  91.2 KB
