422 RWHP 324 TRQ @ 16PSI on BDC HBP & Aspec 500r

Old 04-08-13, 03:55 PM
  #1
Back in the BOOST Game
10 Year Member
Thread Starter
iTrader: (15)

Captain_Panic's Avatar

Join Date: Jun 2003
Location: Chicago IL
Posts: 700
Likes: 0
Received 0 Likes on 0 Posts
IL 422 RWHP 324 TRQ @ 16PSI on BDC HBP & Aspec 500r

Was looking to hit the 500RWHP Club....while maintain creature comforts of AC, Power Steering, and Cruise Control. Time to do more work on the exhaust.

Aspec 500r series 1 - 1.06 Hot Side with Tial 44 wastgate with 16PSI spring, half bridge port, pre turbo meth/water injection (wannaspeed), Aspec GT Spec FMIC, CJ Rails with 2x725 ID Pri, 2X2000 ID Sec injectors, Racing Beat Exhaust with resonanted MP, aeromotive 340lph stealth pump, Battery relocation, Cruise Control, PowerSteering, and AC.

Done on a dynojet with Intake temps in the high 30s Celsius. Intake pipes were cool to grab even after back to back power pulls. ~11.0 afrs. Wannaspeed pre turbo kit is doing its job in an incredible fashion.

Took the Apsec 500r to 18psi, but exhaust is too restrictive to put down substanitally more power with boost above 16psi. Left it to 16psi for now until I can improve the exhaust situation to allow this setup to really take off. Aspec long tube headers has this setup spooling to 5psi by 2500 rpm, and at 10psi at 3400rpm. Full boost by 3700 (16psi) all the way through the power band to 7500rpm.

Steve Kan did the tune.

500 still within reach with a better exhaust and up the boost. Need to research how to resonate the exhaust and still keep it somewhat calm at idle.

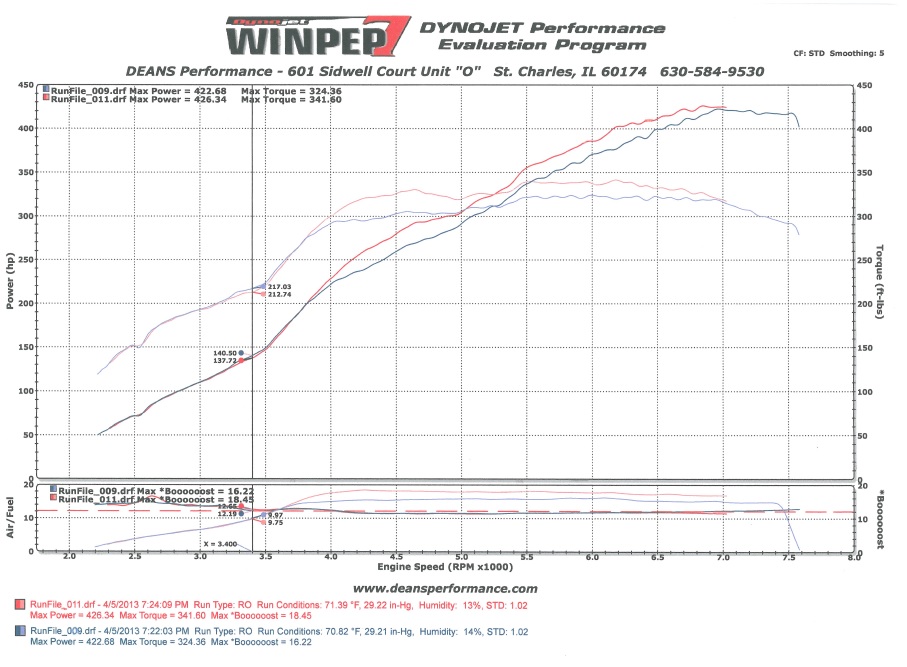

Attached Thumbnails 422 RWHP 324 TRQ @ 16PSI on BDC HBP & Aspec 500r-2013-hbp-dyno.jpg
Captain_Panic is offline
Old 04-08-13, 06:07 PM
  #2
Boilermakers!
iTrader: (114)

ZE Power MX6's Avatar

Join Date: Nov 2002
Location: Chicago, IL
Posts: 2,445
Received 33 Likes on 29 Posts
Looks good man I think that's pretty good power level for the street, which MP are you running? I have a straight through MP if you ever wanna get rid of that resonated MP
ZE Power MX6 is offline
Old 04-08-13, 06:45 PM
  #3
Back in the BOOST Game
10 Year Member
Thread Starter
iTrader: (15)

Captain_Panic's Avatar

Join Date: Jun 2003
Location: Chicago IL
Posts: 700
Likes: 0
Received 0 Likes on 0 Posts
I have the new magnaflow resonated mp. Keeps my neighbors from giving me dirty looks like boosted414 gets when he drives in my neighborhood.
Captain_Panic is offline
Old 04-08-13, 08:59 PM
  #4
Boilermakers!
iTrader: (114)

ZE Power MX6's Avatar

Join Date: Nov 2002
Location: Chicago, IL
Posts: 2,445
Received 33 Likes on 29 Posts
I think he likes the dirty look lol.
ZE Power MX6 is offline
Old 04-08-13, 10:22 PM
  #5
547hp at the flywheel
5 Year Member
iTrader: (30)

Join Date: Oct 2008
Location: Chicago
Posts: 1,223
Likes: 0
Received 0 Likes on 0 Posts
oh I like it dirty. my boost spiked up to 26lbs tonight, easily 500hp in the car at that level.
boosted414 is offline
Old 04-12-13, 12:18 PM
  #6
Back in the BOOST Game
10 Year Member
Thread Starter
iTrader: (15)

Captain_Panic's Avatar

Join Date: Jun 2003
Location: Chicago IL
Posts: 700
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by boosted414 View Post
oh I like it dirty. my boost spiked up to 26lbs tonight, easily 500hp in the car at that level.
She's gonna Blow! :P
Captain_Panic is offline
Old 04-12-13, 04:22 PM
  #7
Turbo Lover
10 Year Member
iTrader: (6)

Ball joint's Avatar

Join Date: Feb 2003
Location: Cleveland
Posts: 784
Likes: 0
Received 0 Likes on 0 Posts
I doubt your lack of power has anything to do with the exhaust, I run basically stock frame turbos with 3" DP, RX7.com resonated mid pipe, and a E-bay exhaust and made 452whp on a older setup.

I know of many other cars that have easily cracked into the 450's and above with 3" exhausts.

There isn't anyway you could post the map is there?
Ball joint is offline
Old 04-20-13, 01:50 AM
  #8
Nice Wankel
iTrader: (12)

TougeSpirit's Avatar

Join Date: Aug 2011
Location: North America
Posts: 423
Likes: 0
Received 0 Likes on 0 Posts
I believe thewird has taken to racing beat up to 500 hp as well, although I may be mistaken. I'm also unsure of his midpipe setup.
TougeSpirit is offline
Old 04-20-13, 03:11 AM
  #9
Seismic Disturbance
10 Year Member
iTrader: (29)

juicyjosh's Avatar

Join Date: Mar 2004
Location: San Francisco
Posts: 612
Likes: 0
Received 0 Likes on 0 Posts
CA

I was tuned on my RacingBeat duals at 14 psi. I switched in my Greddy Evo2 (which actually isn't that much louder), and with the same tune (on a Power FC and AVC-R), my FD was boosting over 17psi.

Then on a warm day, 4th gear uphill pull at about 6k, I blew the engine. Again. Meh.

I still drove it another 80 miles on one rotor. I wasn't about to wait 2 hours for roadside.
juicyjosh is offline
Old 07-07-13, 03:09 AM
  #10
Junior Member

Join Date: Jul 2013
Location: del rio, tx
Posts: 6
Likes: 0
Received 0 Likes on 0 Posts
have you timed the car on the 1/4?if so what was your time?
omtype_dc2 is offline
Old 07-08-13, 07:52 PM
  #11
547hp at the flywheel
5 Year Member
iTrader: (30)

Join Date: Oct 2008
Location: Chicago
Posts: 1,223
Likes: 0
Received 0 Likes on 0 Posts
hes over 500hp now, no 1/4 mile time on the previous boost level
boosted414 is offline
Old 07-08-13, 08:17 PM
  #12
Boilermakers!
iTrader: (114)

ZE Power MX6's Avatar

Join Date: Nov 2002
Location: Chicago, IL
Posts: 2,445
Received 33 Likes on 29 Posts
My friend got a couple pictures of you 2 at the Promenade last weekend.
ZE Power MX6 is offline
Old 07-13-13, 10:38 AM
  #13
547hp at the flywheel
5 Year Member
iTrader: (30)

Join Date: Oct 2008
Location: Chicago
Posts: 1,223
Likes: 0
Received 0 Likes on 0 Posts
Be the last running pics of that car lol. Anywhere we can see them?
boosted414 is offline
Old 07-22-13, 01:54 AM
  #14
Senior Member
iTrader: (26)

Join Date: Aug 2004
Location: Chicago
Posts: 708
Likes: 0
Received 14 Likes on 13 Posts
Speaking of exhaust, Aspec did a wonderful custom setup utilizing a 3.5" 2 stage re packable muffler. Pretty quiet with this single can however could add another for the neighborhood issues.
Brekyrself is online now
