10.39 @ 131.93 time slip and video

Old 11-12-11, 03:38 PM
  #1
Rotary Enthusiast
10 Year Member
Thread Starter
iTrader: (5)

tom94RX-7's Avatar

Join Date: Apr 2005
Location: Pittsburgh, PA
Posts: 1,489
Likes: 0
Received 1 Like on 1 Post
10.39 @ 131.93 time slip and video

10.39 @ 131.93 with a 1.39 60 ft! Today I ran pre turbo water injection, pump gas, 24 psi boost. 11.6-11.9 AFR during this pass. Time slip and video below. Check out the reaction time too haha.

5 other passes in the mid to high 10s today. I was trying a few different things to get traction in first gear, this run was about perfect. Also had a 1.44 and 1.48 60 ft times today, but 2nd best ET today was 10.61 , I ran lower air pressures today which helped, about 10-13 psi depending on the gauge used.

I guess I'll have to go for 9s next year.

http://www.youtube.com/watch?v=0oDWqPHjUsg

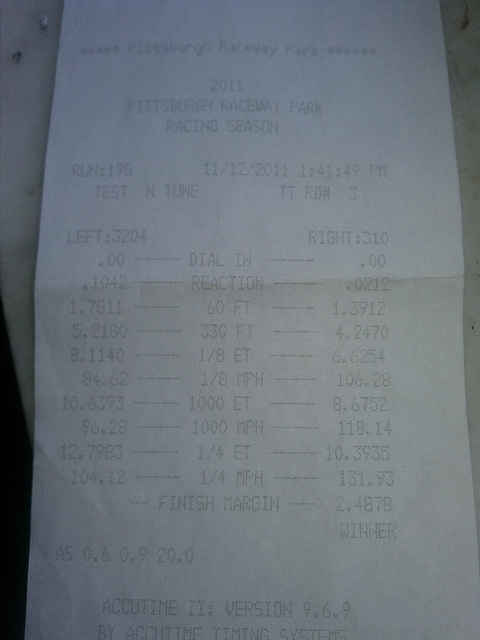

Attached Thumbnails 10.39 @ 131.93 time slip and video-6337764181_34e47f4c9c_z.jpg
tom94RX-7 is offline
Old 11-13-11, 06:25 AM
  #2
Rare for a Reason
iTrader: (13)

Narfle's Avatar

Join Date: Nov 2002
Location: Dagobah
Posts: 5,645
Received 142 Likes on 99 Posts
Awesome pass!
Sounds like you're got some gear left. What rear end ratio are you running?
Narfle is offline
Old 11-13-11, 08:46 AM
  #3
Rotary Enthusiast
10 Year Member
Thread Starter
iTrader: (5)

tom94RX-7's Avatar

Join Date: Apr 2005
Location: Pittsburgh, PA
Posts: 1,489
Likes: 0
Received 1 Like on 1 Post
Thx. Ya plenty of gear left, 4.10s
tom94RX-7 is offline
Old 11-13-11, 08:57 AM
  #4
Eats, Sleeps, Dreams Rotary
iTrader: (9)

RCCAZ 1's Avatar

Join Date: Jun 2002
Location: Phoenix, AZ
Posts: 3,305
Received 32 Likes on 29 Posts
Wow.... impressive run Tom. Probably one of the best launches I've ever seen with an FD. What RPM are you launching at? Stock rear end?
RCCAZ 1 is offline
Old 11-13-11, 09:12 AM
  #5
Rotary Enthusiast
10 Year Member
Thread Starter
iTrader: (5)

tom94RX-7's Avatar

Join Date: Apr 2005
Location: Pittsburgh, PA
Posts: 1,489
Likes: 0
Received 1 Like on 1 Post
The Crane 2 step rev limiter was set at 7500 rpms but it logged at about 6700. I released the clutch with about 11-13 psi boost, revs dropped to 6100 with boost then at 20 psi, revved out to 8100 with 24 psi. TII rear diff in the stock fd housing, stock axles and stock gears. Banzai diff brace, stock rear springs, Koni Sport shocks softest setting, rotary extreme toe links & trailing arms, solid diff mounts. Tilton clutch flow control valve=awesome.

I think the front tires definitely came off the ground, it looks like it and the car turned a little unexpectedly which it usually doesn't do.
tom94RX-7 is offline
Old 11-13-11, 10:19 AM
  #6
Eh
iTrader: (55)

djseven's Avatar

Join Date: Aug 2002
Location: Nashville, TN
Posts: 6,232
Received 54 Likes on 50 Posts
If you hit 9s on a 67mm turbo and pump gas that would be unbelievable. Hell your times are already incredible. And to imagine, all this on small street ported engine with steel seals, pump gas and tuned by yourself. Keep up the great work.
djseven is offline
Old 11-13-11, 10:32 AM
  #7
Rotary Enthusiast
10 Year Member
Thread Starter
iTrader: (5)

tom94RX-7's Avatar

Join Date: Apr 2005
Location: Pittsburgh, PA
Posts: 1,489
Likes: 0
Received 1 Like on 1 Post
Thanks! I'm sure I'll need like 3 to 4 more psi boost, I don't even know how far I can go with this turbo? Probably need a lot more hp to hit 9s, will my motor hold up? Haha. I need some bigger injectors to run more boost. My tuning skills are always improving haha.
tom94RX-7 is offline
Old 11-13-11, 01:00 PM
  #8
It's finally reliable
iTrader: (18)

MOBEONER's Avatar

Join Date: May 2004
Location: NEW YORK CITY
Posts: 3,498
Received 4 Likes on 4 Posts
just simply awesome
MOBEONER is offline
Old 11-13-11, 05:42 PM
  #9
REPU Garage
iTrader: (17)

Join Date: Jun 2007
Location: Northern Colorado
Posts: 623
Likes: 0
Received 0 Likes on 0 Posts
Awesome man!
Turbo8 is offline
Old 11-13-11, 06:02 PM
  #10
Turbo vert
10 Year Member
iTrader: (33)

just startn's Avatar

Join Date: Aug 2005
Location: Elyria, OH
Posts: 2,696
Likes: 0
Received 0 Likes on 0 Posts
You can hit 9's on that 67mm...please do
just startn is offline
Old 11-14-11, 09:24 PM
  #11
Junior Member

Join Date: Aug 2011
Location: california
Posts: 9
Likes: 0
Received 0 Likes on 0 Posts
speechless.

awsome run. 9sec, let us know how you will do
v5e_nsx is offline
Old 11-14-11, 10:24 PM
  #12
Rotary Enthusiast
10 Year Member
Thread Starter
iTrader: (5)

tom94RX-7's Avatar

Join Date: Apr 2005
Location: Pittsburgh, PA
Posts: 1,489
Likes: 0
Received 1 Like on 1 Post
Thanks guys. Has anyone hit 9s with a 67mm turbo? I was thinking maybe I should get a larger A/R turbine housing to make more power in the upper revs for drag racing, it's a .96 now. I think I need to get up to at least 136-140 mph. It took me like 4 years of running low 11's with the stock turbos to finally hit 10's, so if I make 9s my next goal I hope it don't take that long haha, but I know it will be hard.
tom94RX-7 is offline
Old 11-15-11, 12:47 PM
  #13
Rotary Enthusiast
10 Year Member
Thread Starter
iTrader: (5)

tom94RX-7's Avatar

Join Date: Apr 2005
Location: Pittsburgh, PA
Posts: 1,489
Likes: 0
Received 1 Like on 1 Post
Now I have a .96 undivided turbine housing, I think I'm gonna buy a 1.24 A/R garrett divided housing for cheap, from what I have read that should be more power for drag racing (matched up to my divided manifold), not really concerned about longer spool up time on the street, just have to be in the right gear to get the quick response.
tom94RX-7 is offline
Old 11-22-11, 01:43 AM
  #14
Full Member
iTrader: (8)

JonnyQuestions's Avatar

Join Date: Jul 2011
Location: Las Vegas
Posts: 146
Likes: 0
Received 0 Likes on 0 Posts
Great job Tom, hows that tilton valve? Im thinking of getting one. which orfice you using
JonnyQuestions is offline
Old 11-22-11, 10:31 AM
  #15
Rotary Enthusiast
10 Year Member
Thread Starter
iTrader: (5)

tom94RX-7's Avatar

Join Date: Apr 2005
Location: Pittsburgh, PA
Posts: 1,489
Likes: 0
Received 1 Like on 1 Post
Its great, with it and the crane 2step it makes launching the car super easy, fast and consistent. The only thing I do now is change the amount of time holding it full throttle to build more or less boost on the 2 step, trying not to overpower the tires and spin too much, and I only hold it full throttle for a half a second or less then drop the clutch and the tilton flow control valve makes the clutch engage a little slower so it gives it a good amount of slip to launch good and no worries of breaking anything even with low tire air pressure and traction. I use the .028 orifice, the larger .040 didn't really feel any different than stock.

Update on my car, I ordered a 1.32 A/R turbine housing and I'm getting a custom 4" exhaust made for it now, downpipe and a magnaflow race series round muffler in the midpipe part # 14163. I'll use that for drag racing and getting my 3" greddy catback modified to bolt up to the 4" midpipe with a vband to use that for street driving. Going all in lol. Hopefully this will make more power with the high boost levels, it should decrease backpressure in the exhaust manifold/turbine housing and greatly reduce it after the turbo.
tom94RX-7 is offline
Old 11-23-11, 09:54 PM
  #16
Full Member
iTrader: (8)

JonnyQuestions's Avatar

Join Date: Jul 2011
Location: Las Vegas
Posts: 146
Likes: 0
Received 0 Likes on 0 Posts
Very impressed with that Stock drivetrain holding up. You def getting me sold on that tilton valve. Tom, you have any datalogit logs of your latest dyno run or 10 sec passes?
JonnyQuestions is offline
Old 11-23-11, 10:25 PM
  #17
Rotary Enthusiast
10 Year Member
Thread Starter
iTrader: (5)

tom94RX-7's Avatar

Join Date: Apr 2005
Location: Pittsburgh, PA
Posts: 1,489
Likes: 0
Received 1 Like on 1 Post
Ya here are my maps and datalogs from my 10.39 pass, see attachment zip file. I'll get back to the dyno asap after getting the exhaust done and the new turbine housing. thanks.
Attached Files
File Type: zip
1039-ET-log-and-maps.zip (57.5 KB, 146 views)
tom94RX-7 is offline
Old 11-24-11, 12:29 AM
  #18
Full Member
iTrader: (8)

JonnyQuestions's Avatar

Join Date: Jul 2011
Location: Las Vegas
Posts: 146
Likes: 0
Received 0 Likes on 0 Posts
Thanks Tom! Im still learning tuning myself. So the more info and examples, the better I get at it
JonnyQuestions is offline
Old 11-24-11, 02:14 PM
  #19
RN, BSN
5 Year Member
iTrader: (6)

JStrib's Avatar

Join Date: Mar 2007
Location: Gluckstadt, MS
Posts: 844
Likes: 0
Received 0 Likes on 0 Posts
Very cool.
JStrib is offline
Old 11-24-11, 03:27 PM
  #20
Full Member
iTrader: (8)

JonnyQuestions's Avatar

Join Date: Jul 2011
Location: Las Vegas
Posts: 146
Likes: 0
Received 0 Likes on 0 Posts
Looking at the map I see the section on the leading timing map that you changed. Since the trailing is cut off during 2 step then it doesn't matter what you put on for the trailing map in those cells, right?
JonnyQuestions is offline
Old 11-24-11, 03:34 PM
  #21
Rotary Enthusiast
10 Year Member
Thread Starter
iTrader: (5)

tom94RX-7's Avatar

Join Date: Apr 2005
Location: Pittsburgh, PA
Posts: 1,489
Likes: 0
Received 1 Like on 1 Post
Ya, I can't look at it right now but the split should be like the same as other cells around it, shouldn't be negative split since those cells may get used at other times besides for the 2 step.
tom94RX-7 is offline
Old 11-24-11, 10:34 PM
  #22
Rotary Enthusiast
10 Year Member
Thread Starter
iTrader: (5)

tom94RX-7's Avatar

Join Date: Apr 2005
Location: Pittsburgh, PA
Posts: 1,489
Likes: 0
Received 1 Like on 1 Post
Oh nevermind I see I added more split in that section of the map for the cells that are used during the 2 step, I forgot about that haha. So ya actually that's not needed I could have let the split be 6, 8 and 10s, but it doesn't really matter.
tom94RX-7 is offline
Old 12-07-11, 08:02 AM
  #23
Rotor Nut.
iTrader: (33)

Join Date: Feb 2002
Location: RI
Posts: 2,156
Likes: 0
Received 0 Likes on 0 Posts
i need to setup my car better for launching. i can only dream of cutting 1.6 60's nevermind a 1.39 that is sick. im running a billet 67mm turbo. my 1 only clean run was a 10.69 at 139.88mph with a 1.91 60'. i did run a 10.55 on the 2nd pass with a 1.78 60' but had a slave cyl issue and it wouldnt fully release the clutch.
smg944 is offline
Old 12-07-11, 08:42 AM
  #24
Rotary Enthusiast
10 Year Member
Thread Starter
iTrader: (5)

tom94RX-7's Avatar

Join Date: Apr 2005
Location: Pittsburgh, PA
Posts: 1,489
Likes: 0
Received 1 Like on 1 Post
What's your setup for launching? What dyno did you make 525 rwhp on, seems like you should be making more power than that to go 140 mph which is awesome, unless it's just the better turbo compared to mine that helps you.
tom94RX-7 is offline
Old 12-07-11, 09:21 AM
  #25
Rotor Nut.
iTrader: (33)

Join Date: Feb 2002
Location: RI
Posts: 2,156
Likes: 0
Received 0 Likes on 0 Posts
I don't have a 2 step or a clutch valve. I'll be looking it to those at some point. I made that power on a dynojet. All the dyno types in my area read the same. We tested a dynojet , mustang dyno , dynapack, and a land and sea dyno with a friends cobra and all were 435-440 whp. I think he got the highest number on a mustang dyno. For comparison when I made 450whp with my 35r I was trapping 131-132.
smg944 is offline
