Thanks Carlos. So, FWIW, mine at +50 rub the trailing arm. The 5mm spacer I bought from Fritz was I believe made by CCW for an RX7, so SOMEBODY else's CCW's must've rubbed too.
Old 06-23-10, 03:06 AM
  #27
R.I.P. Icemark

Thread Starter
iTrader: (2)

staticguitar313's Avatar

Join Date: Sep 2004
Location: gilbert, arizona
Posts: 4,229
Likes: 0
Received 1 Like on 1 Post
more pictures less jibber jabber
Old 06-23-10, 05:49 AM
  #28
Corn-to-Noise Converter


iTrader: (6)

Carlos Iglesias's Avatar

Join Date: Mar 2002
Location: The Elysian Fields (Texas)
Posts: 1,527
Received 386 Likes on 154 Posts
I prefer "banter" to "jibber jabber myself. ;-)

But being that I am a generous character, I grace those in need with my car's rotary goodness...

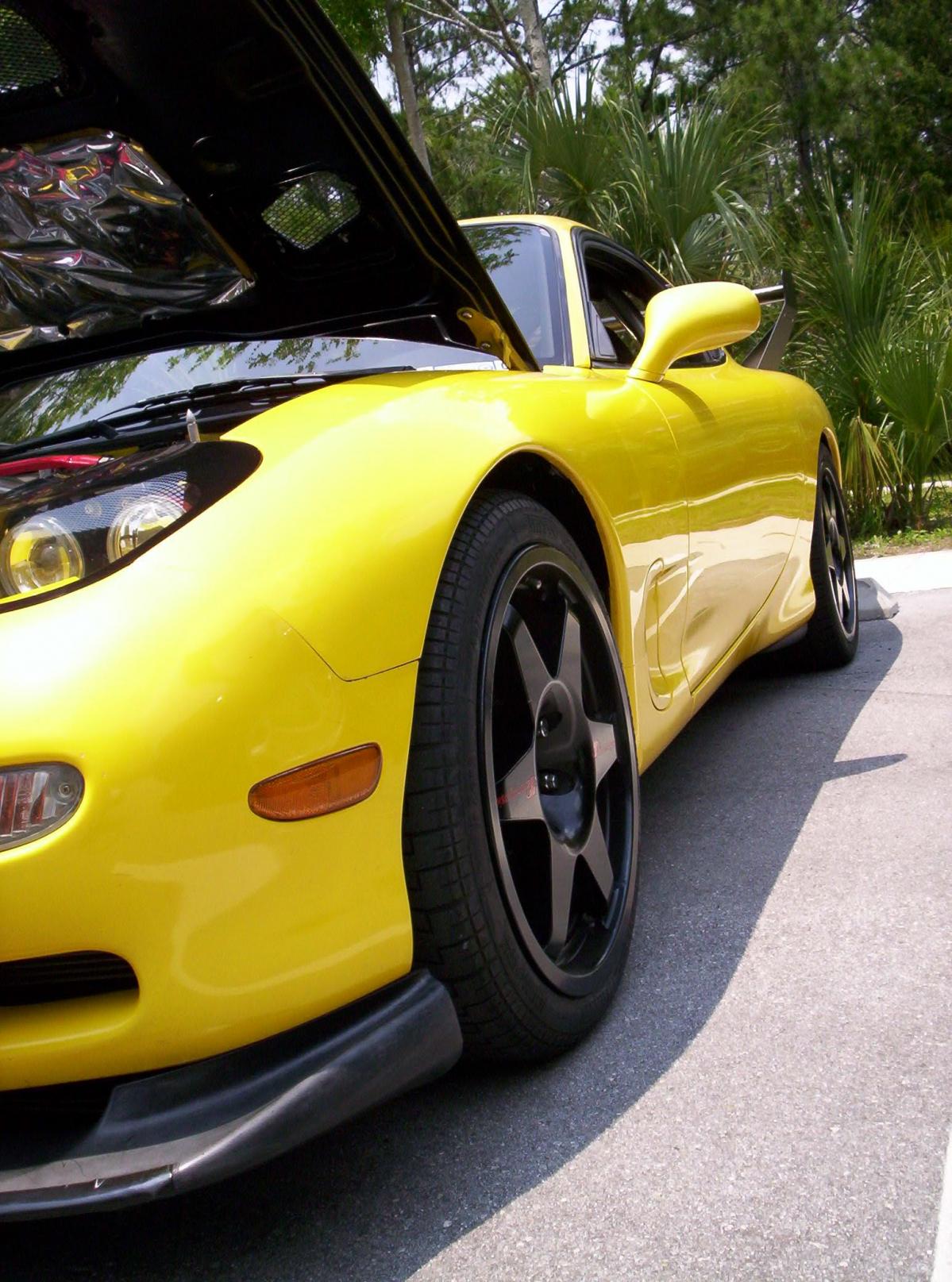

BTW, 285/30-18's with the same fitment as Peter's.


Originally Posted by staticguitar313
more pictures less jibber jabber
Attached Thumbnails Wanting fitment pics for FD with 10" wide fronts.-cym-%40-jax-bbq-may05-driver-side-.jpg
Old 06-24-10, 05:41 PM
  #29
MODERATOR


iTrader: (137)

Alex Rodriguez's Avatar

Join Date: Jan 2005
Location: Houston Texas
Posts: 6,441
Received 9 Likes on 8 Posts
18x10 front with a +38 offset

Last edited by Alex Rodriguez; 06-24-10 at 06:07 PM.
Old 06-24-10, 06:02 PM
  #30
bow leggin'

iTrader: (25)

Scrub's Avatar

Join Date: Jul 2002
Location: Delaware
Posts: 6,061
Received 5 Likes on 5 Posts
Originally Posted by Alex Rodriguez
18x10 front with a +18 offset
No.... 18x10+38 front 18x10+18 rear
Old 06-24-10, 06:08 PM
  #31
MODERATOR


iTrader: (137)

Alex Rodriguez's Avatar

Join Date: Jan 2005
Location: Houston Texas
Posts: 6,441
Received 9 Likes on 8 Posts
it was one of those two lol wasnt sure thanks for the clear up
Old 06-24-10, 09:25 PM
  #32
Rotary Enthusiast


Eggie's Avatar

Join Date: Jan 2002
Location: 15143
Posts: 859
Likes: 0
Received 0 Likes on 0 Posts
Alex, what are your tire sizes?
Old 06-24-10, 10:01 PM
  #33
MODERATOR


iTrader: (137)

Alex Rodriguez's Avatar

Join Date: Jan 2005
Location: Houston Texas
Posts: 6,441
Received 9 Likes on 8 Posts
Sorry to thread jack but EGGIE

18x10 +38mm offset 265-35-18
18x9 +38mm offset 235-40-18

No spacers, no pull or roll, and enough drop to do full lock without fender damage.
Old 06-24-10, 10:39 PM
  #34
Senior Member

iTrader: (6)

finger lock's Avatar

Join Date: Feb 2009
Location: Bay Area
Posts: 252
Likes: 0
Received 1 Like on 1 Post
I'm running 10.5x18 CCWs with 285/30/18 rolled fenders front and rear.



Old 06-25-10, 01:55 AM
  #35
Rotary Freak

iTrader: (22)

ARD T2's Avatar

Join Date: Mar 2001
Location: Silicon Valley, CA.
Posts: 2,775
Received 14 Likes on 12 Posts
any idea the backspacing on the CCW?
Old 06-25-10, 10:08 AM
  #36
Senior Member

iTrader: (6)

finger lock's Avatar

Join Date: Feb 2009
Location: Bay Area
Posts: 252
Likes: 0
Received 1 Like on 1 Post
I'll measure the backspace on my CCWs this weekend.
Old 07-01-10, 04:09 AM
  #37
R.I.P. Icemark

Thread Starter
iTrader: (2)

staticguitar313's Avatar

Join Date: Sep 2004
Location: gilbert, arizona
Posts: 4,229
Likes: 0
Received 1 Like on 1 Post
Yeah I'd really like to see 18x10" +25 up front, I already did a slight pull on my front fenders. This is why i want to see +25 up front:



pretty much dead set on these and the only decent size they come in 18x10 +25
Old 07-01-10, 03:35 PM
  #38
Can Post Only in New Member Section

Zidus's Avatar

Join Date: Apr 2010
Location: NC
Posts: 1
Likes: 0
Received 0 Likes on 0 Posts
Wanted to see if anyone knew what rims came stock on the 99 and where i could get a set
Old 07-01-10, 04:05 PM
  #39
Full Member

iTrader: (2)

krayton's Avatar

Join Date: Jun 2008
Location: Tucson
Posts: 96
Likes: 0
Received 0 Likes on 0 Posts
10.5 +50ish prob to much poke and stretch for most.





if you remind me this weekend i can throw a 25mm spacer on my vs-xx thatll match how much a 10+25 sticks out.

if you were in tucson, youd be more then welcome to come test it out. but i think youl need wide fenders for sure.



add +25 to these fronts

Old 07-01-10, 09:33 PM
  #40
Rotary Freak

iTrader: (3)

Josh18_2k's Avatar

Join Date: Jan 2003
Location: Gresham, OR
Posts: 2,024
Likes: 0
Received 1 Like on 1 Post
that doesnt look like +50 at all... more like +15
Old 07-01-10, 10:38 PM
  #41
Full Member

iTrader: (2)

krayton's Avatar

Join Date: Jun 2008
Location: Tucson
Posts: 96
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by Josh18_2k
that doesnt look like +50 at all... more like +15
they dont have the stickers on them, but they are 10.5 wide

they stick a tad bit out more (if not equal) then my vsxx which sits at 9"+38. if my math is correct that puts the 10.5 rims around 50ish offset to match the same outside edge of the wheel
Old 07-02-10, 07:02 PM
  #42
Rotary Freak

iTrader: (3)

Josh18_2k's Avatar

Join Date: Jan 2003
Location: Gresham, OR
Posts: 2,024
Likes: 0
Received 1 Like on 1 Post
still doesnt seem right...
heres a pic of 18x9.5 +38 all around. definately doesnt poke like yours

Old 07-04-10, 06:13 AM
  #43
R.I.P. Icemark

Thread Starter
iTrader: (2)

staticguitar313's Avatar

Join Date: Sep 2004
Location: gilbert, arizona
Posts: 4,229
Likes: 0
Received 1 Like on 1 Post
more pics of 10 with with low offsets plz
Old 07-09-10, 02:29 PM
  #44
digging for gasoline

iTrader: (14)

ThaiTea's Avatar

Join Date: Feb 2010
Location: In a van down by the river
Posts: 89
Likes: 0
Received 0 Likes on 0 Posts
10 on front for ya!




Old 07-11-10, 08:51 PM
  #45
Planning my come back

iTrader: (7)

MR_Rick's Avatar

Join Date: Feb 2003
Location: Austin, Tx
Posts: 3,393
Likes: 0
Received 0 Likes on 0 Posts
So from this post and examples I seen a 18x10 at 45mm with 265/35-18 tire will not be a problem, right?
Old 07-11-10, 09:46 PM
  #46
I

iTrader: (2)

FDNena's Avatar

Join Date: Aug 2004
Location: In your dreams!
Posts: 749
Likes: 0
Received 2 Likes on 2 Posts
Correct Honda. I rolled mine and have a +38, no issues. I run HKS hipermax coilovers set to 25.25" from the ground.

ThaiTea car looks great with those wheels.
