racerxrx7

I'm in the market for buying some swaybars for my FD but I don't see many to choose from. I want something that can be adjusted. Let me know what you guys think.

Racerxrx7.

DamonB

The only true adjustable ones I know of are from Tripoint Engineering. I think the Racing Beat rear bar has two settings but the RB front only one.

the_saint

I put on a set of the Racing Beat springs last year (this year), and have been asking myself why I didn't do it years ago!

They definitely improve the handling of the car. I am running the rear on the "stiffest" setting, and the tail is definitely more eager to step out, but the car is much more fun to drive.

The front Racing Beat swaybar is a monster

I am very pleased with them, plus they were very easy to install

patfat

What do you plan on using the car for? Track, daily driving?

If you are serious about tracking your car and want to do it right then the Tripoint bar.

If you are just looking to spend some cash then upgrade the sway bar bushings and call it a day

gnx7

iTrader: (10)

I have the TriPoint hollow adjustable "speedway" style bar with adjustable end links and Widefoot billet CNC mounts. This retail would be about $1500 and is about the best front sway bar you can buy for an FD. This is a full race setup but can easily be driven on the street.

I love the sway bar and the car handles phenominally (see sig). I haven't really messed with the adjustment settings; however it does sit rather low under the car. I have only scraped it once and that was with a bump of freshly laid gravel on the road with a dip before it. Gotta love San Francisco streets....

If you don't plan on racing this bar is total overkill.

streldoc

iTrader: (1)

I made a custom adjustable "speedway" style rear bar to go along with the Tripoint front bar. It is 1" and 0.250" wall thickness. There are 2 positions to adjust, and you can buy smaller wall thickness bars. I found that for autocross, it is too stiff in sharp turns and lifts the rear wheel of the ground briefly allowing the torsen to slip. It did provide good handling otherwise, and if you are doing track events or have a clutch style limited slip it would work well. $100.

artowar

iTrader: (1)

And for reference, this thread shows that at least one FD owner installed an adjustable front bar with blade style ends:

https://www.rx7club.com/3rd-generation-specific-1993-2002-16/installed-stoptech-big-brake-kit-today-304001/#post3122509

DamonB

I kicked around doing that a while back but the bearings the blades fit into are just too damn expensive. I had it figured out but I can't justify the expense when the "plain" Tripoint bar works. I would love not having to crawl under the car and having an infinitely adjustable bar though

Xeros

hey can anyone post a picture of a suspension techniques rear bar installed. I'm a little worried about mien for some reason.

streldoc

iTrader: (1)

BTW, I was looking at my bar and it is 0.125" wall thickness, not 0.250".

racerxrx7

I went on tripoint's website but I didn't find one for the FD. I probably have to call them. Anybody know how much it is? does it come with all bushings?

Thanks for the help. I'm definitely tracking this car so I want the adjustability.


Racerxrx7

Xeros

450.00 new and then another 200.00 for the reinforcement things is the pricing i got last time i called.

FDNewbie

iTrader: (10)

I thought the Widefoot upgraded mounts had fitment issues w/ the Tripoint swaybar?

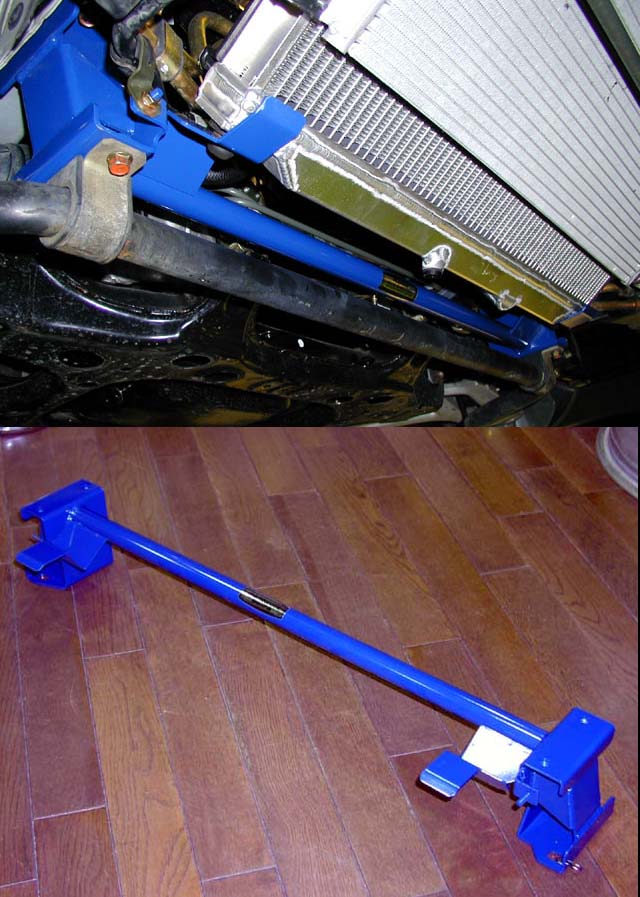

Oh and btw, RE Amemiya makes what they call a "stabilizer bar." Forgive the noob (me ) but it looks to be upgraded swaybar mounts + a bar stabilizing the mounts themselves...and still allows the use of stock/upgraded sway bars. Am I correct? (Isn't the black bar right under the RE bar the stock front swaybar?) What do you guys think of the design?

Mine's on the way as we speak...can't wait!

KevinK2

Monster it is.

Like the ST front bar, it is 1.25" solid steel, no adjustments. Puhn formula yields about 1500 lb/in for a bench test. That's 2x the oem bar rate. Correcting for spring location, RB front bar gives extra 1200 lb/in spring rate vs 600 with stock bar ... that's for single wheel hit. For body roll, the bar bench rate is doubled, for 2400 lb/in added spring. So if stock 280's springs, you now have 2680 effective rates at each corner for anti roll, but corners are now less independendent. Hit a bump on outer front on a corner and both front wheels will react. Single wheel rate is 1200+280 = 1480 combined RB bar and oem spring.

Better front suspension would use oem hollow bar (like 1200 lb springs in roll) and 800 lb coil overs, for 2000 lb/in roll control rate per corner. Single wheel rate would be 280 + 1200 = 1480 combine, but much more independent controlled suspension vs with the monster bar.
1/8" wall 1.25" tripoint adjustable, and hollow 19mm RB rear would work well with right coilovers.

other bars exist too .. hks, tanabe, mazdaspeed

DamonB

No. There are only fitment issues if you use Tripoint's solid bronze bushings. If you use the standard plastic bushings you can bolt the Tripoint to whatever stock or aftermarket mounts you wish.

I built custom mounts from steel tube for my car. They are stock height but have a completely different bottom footprint so I can bolt the Tripoint bronze bushings on directly without Tripoint's extra braces. Bulletproof and cheap. I refused to pay a couple hundred bucks for what I have $25 worth of materials in.

FDNewbie

iTrader: (10)

Damon, thanks for the info. Mind commenting on the RE stabilizer bar? It's not a sway bar, right? Just stabalizing and reinforcing the sway bar mounts, correct? Impressions (from looking @ the design)?

Thanks
~Ramy

DamonB

It appears to be of a very intelligent and strong design. But I'm sure it costs way too much


Right.

Yep. The design is very efficient from a structural standpoint as the added tube between the mounts keeps them from twisting or rocking where they attach to the chassis (which is the big problem with the stock Mazda mounts).

Only one minor issue with that design. It is not legal for stock class autox competition because SCCA rules specifically state that the sway bar mounts cannot be tied together. The rules allow aftermarket sway bar mounts, but they cannot be attached to eachother. Anyone not autoxing in an SCCA stock class won't care and would be very happy with mounts such as the RE Amemiya ones I am sure

FDNewbie

iTrader: (10)

Considering you made mounts for $25, I'm sure the bar would be what...another $40 tops in material? And a few hours labor? Definitely not worth paying for an RE one if you have that kind of skill (my hat's off to you )

The bar's not that expensive (compared to say, other RE parts haha), and compared to the Widefoot upgraded mounts ($150 - $180 w/ the group buy). The RE bar's a lil over $200, but add onto it taxes, shipping, Customs fee (which, according to RE is 30% ), etc you're looking at about $375 realistically to have it in your hands when all's said and done lol. Sheesh.

Wow...didn't know that. Thanks for the info and impressions.

~Ramy

racerxrx7

Obviously there is some good discussion's as far as what to do. I'd like to get the Tripoint Swaybar. Question. Can you use the stock mounts?if no, I'd like to see how Damon has setup his so I can mirror his. I'd like to get rid of some of the roll without sacrificing the independent suspension. I have some pretty strong springs. I have the Tein HT with 20/1119
RS200-A1150 1119lb/in spring rate.

Thanks

Racerxrx7

KevinK2

Tripoint with std bushings use stock mounts, but stock mounts should be upgraded with widefoot, prior blue ones, RB plate, or other methods.

Tripoint Front with 1/4" or 3/16" thk tubing, and RB rear bar. With 20kg springs, I'd stay with std front bushings.

old, but still has some TP data:

http://www.fd3s.net/anti-sway_bars.html

rynberg

20kg springs?

I sincerely doubt you need any more anti-roll built into the front end, unless you are just looking to tame that seriously wicked oversteer you're going to have.

racerxrx7

I'm actually not to worried about the front sway bar. I really feel the roll in the rear. I still feel it in the front. That's why I want to make sure that I have the adjustability.

Thanks for the info.


Racerxrx7

Xeros

Hahaha wow another HT owner. How does the car feel on those springs ??? DO you drive it on the streets at all?
