Enkei PF01

Thread Tools

Search this Thread

Old Apr 22, 2014 | 09:37 AM
  #1
BLKTOPTRVL's Avatar
Thread Starter
Rotary Freak
Tenured Member 20 Years

Joined: Jul 2001
Posts: 1,817
Likes: 16
From: South Carolina
Enkei PF01

I ordered a set of wheels this week and I am curious to know what lug nuts you are using if you have a set of these wheels?
Reply
Old Apr 27, 2014 | 03:06 PM
  #2
BLKTOPTRVL's Avatar
Thread Starter
Rotary Freak
Tenured Member 20 Years

Joined: Jul 2001
Posts: 1,817
Likes: 16
From: South Carolina
Wheels arrived.

I ordered 17" x 8.5" (front) and 18" x 9.5 (rear)
They actually measure 18.5" x 9.375" and 19.5" x 10.375

I didn't expect the specified size to be that far off from the measured size. The real shock is how wide the rear looks. But based on the fact that the 16" oems measure ~17" diameter
and the 17" am wheels on my Vert measure ~18" diameter, I assume the PF01s are the correct size.

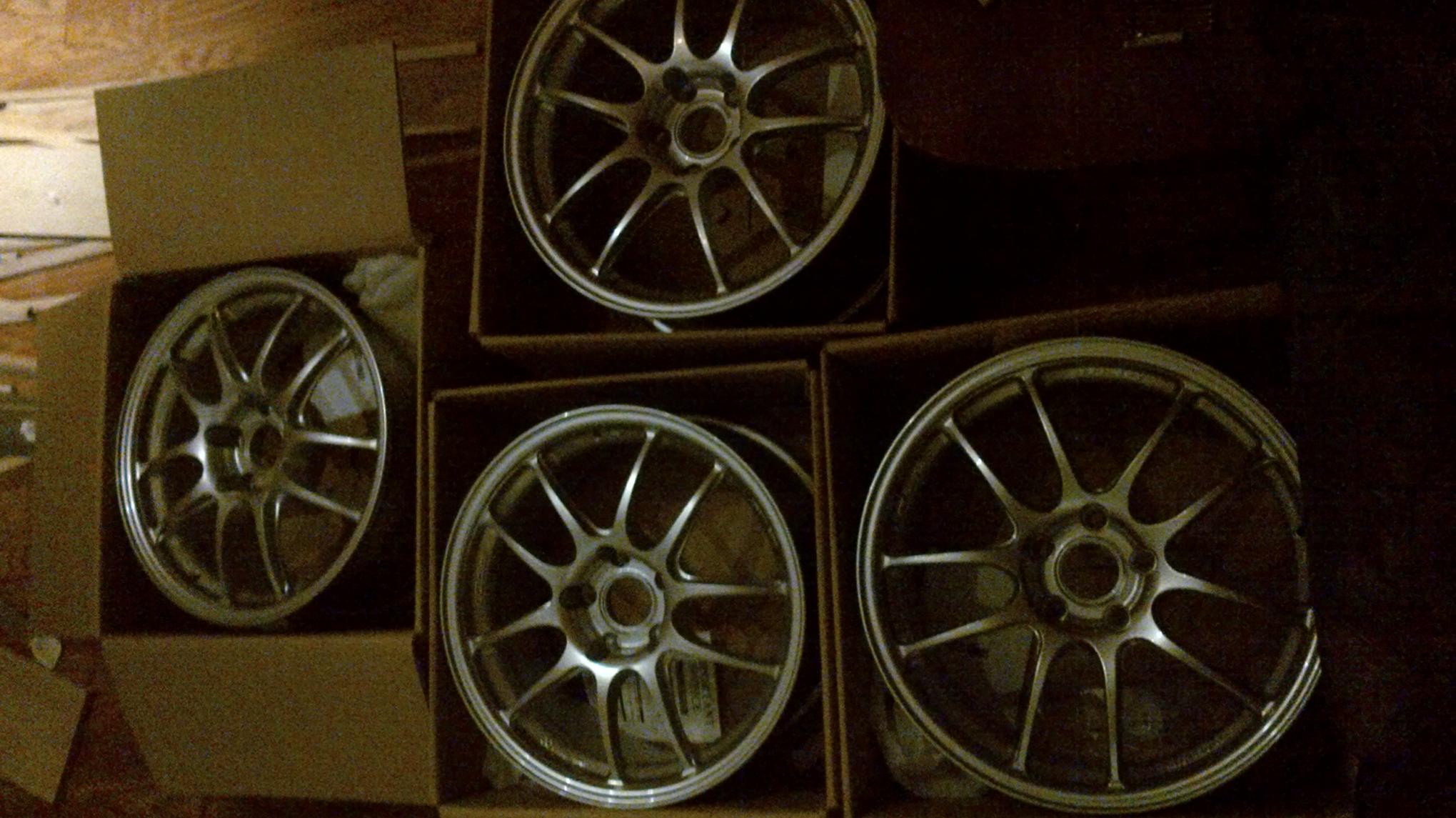

Attached Thumbnails Enkei PF01-new-94-wheels.jpg
Reply
Old Apr 27, 2014 | 03:33 PM
  #3
BLUE TII's Avatar
Rotary Motoring
Tenured Member: 25 Years
Liked
Loved
Community Favorite
iTrader: (9)

Joined: Mar 2001
Posts: 8,479
Likes: 933
From: CA
Yep, nominal wheel width is always measured across the tire bead and the rule of thumb is an aluminum wheel is 1" wider actual width than rim size width.

I also found my Enkei PF01 were a little narrower than the usual aluminum wheel.

As you probably found you can use even stock lug nuts with Enkei's included long reach thin wall socket, but if your lug pockets are anything like my 18x10.5 +38 PF01 its a pain not to scrape the paint.

I prefer a small steel open end lug nut like Muteki "short open" that also comes with a long thin socket that you can put another deep well socket on.
Reply
Old Apr 27, 2014 | 05:24 PM
  #4
BLKTOPTRVL's Avatar
Thread Starter
Rotary Freak
Tenured Member 20 Years

Joined: Jul 2001
Posts: 1,817
Likes: 16
From: South Carolina
Originally Posted by BLUE TII
Yep, nominal wheel width is always measured across the tire bead and the rule of thumb is an aluminum wheel is 1" wider actual width than rim size width.

I also found my Enkei PF01 were a little narrower than the usual aluminum wheel.

As you probably found you can use even stock lug nuts with Enkei's included long reach thin wall socket, but if your lug pockets are anything like my 18x10.5 +38 PF01 its a pain not to scrape the paint.

I prefer a small steel open end lug nut like Muteki "short open" that also comes with a long thin socket that you can put another deep well socket on.
Thanks for the reply. Yes I am going to look for as narrow an acorn as I can find. I think I will also dip the socket in some kind of rubber coating.

The wheels will definitely bring the FD into the 'teens.
Reply
Old Apr 27, 2014 | 08:50 PM
  #5
ZDan's Avatar
Senior Member
Tenured Member 05 Years

Joined: Sep 2011
Posts: 682
Likes: 4
From: Pawtucket, RI
I have those same wheels in those sizes
Did you go with +35 or +45 for the rears? I went +45. Using splined lug nuts (don't know the brand).

Reply
Old Apr 27, 2014 | 08:58 PM
  #6
eage8's Avatar
1308ccs of awesome
Tenured Member: 20 Years
iTrader: (9)

Joined: Sep 2003
Posts: 6,189
Likes: 18
From: Woodbine, MD
I use 17mm gorilla lug nuts on my wheels, with a normal (non-impact) 17mm deep socket they work pretty well and doesn't mess up the paint:

17mm Gorilla lug nuts 17mm Gorilla lug nuts
Reply
Old Apr 28, 2014 | 11:04 AM
  #7
BLKTOPTRVL's Avatar
Thread Starter
Rotary Freak
Tenured Member 20 Years

Joined: Jul 2001
Posts: 1,817
Likes: 16
From: South Carolina
Originally Posted by ZDan
I have those same wheels in those sizes
Did you go with +35 or +45 for the rears? I went +45. Using splined lug nuts (don't know the brand).

Just where do you think I got the idea from? I ordered exactly what you posted because I like the look you got. I hope you still are liking the ride quality.

Last edited by BLKTOPTRVL; Apr 28, 2014 at 11:09 AM.
Reply
Old Apr 30, 2014 | 08:00 PM
  #8
ZDan's Avatar
Senior Member
Tenured Member 05 Years

Joined: Sep 2011
Posts: 682
Likes: 4
From: Pawtucket, RI
Ha, sweet! Ride quality is better on these with Michelin Pilot Super Sports than Z1 StarSpecs in 255/40-17 front 265/40-17 rear on my TE37s. Pretty damn smooove, especially since I got the Ohlins <3
Reply
Old May 1, 2014 | 01:34 PM
  #9
BLKTOPTRVL's Avatar
Thread Starter
Rotary Freak
Tenured Member 20 Years

Joined: Jul 2001
Posts: 1,817
Likes: 16
From: South Carolina
Originally Posted by ZDan
Ha, sweet! Ride quality is better on these with Michelin Pilot Super Sports than Z1 StarSpecs in 255/40-17 front 265/40-17 rear on my TE37s. Pretty damn smooove, especially since I got the Ohlins <3
I was thinking about going for a smaller tread in front. I don't need any more grip and I don't want the car to start wandering, hunting, or overworking the front shocks.
Reply
Old May 3, 2014 | 02:00 PM
  #10
ZDan's Avatar
Senior Member
Tenured Member 05 Years

Joined: Sep 2011
Posts: 682
Likes: 4
From: Pawtucket, RI
Originally Posted by BLKTOPTRVL
I was thinking about going for a smaller tread in front. I don't need any more grip and I don't want the car to start wandering, hunting, or overworking the front shocks.
245/40-17 PSS don't cause the car to wander at all. 245 is only 9% wider than the stock OEM tires that came on the car. They certainly won't "overwork" the front shocks!

That said, 235/40-17 or 235/45-17 would be fine as well, but I wouldn't go 225/45.

What size rears? I went with 275/35-18.

Depends on what you like/want/need, but personally I try to go with a tire size that has its "measuring rim" width the same as my wheels. I don't like the tires to look either stretched or pooched, and like to have a little forgiveness for curbs.
Reply
Old May 5, 2014 | 09:46 PM
  #11
BLKTOPTRVL's Avatar
Thread Starter
Rotary Freak
Tenured Member 20 Years

Joined: Jul 2001
Posts: 1,817
Likes: 16
From: South Carolina
I won't be ordering tires for a while, I still need to wear out what I have. But i appreciate the input.
Reply
Old Jun 21, 2014 | 08:59 AM
  #12
BLKTOPTRVL's Avatar
Thread Starter
Rotary Freak
Tenured Member 20 Years

Joined: Jul 2001
Posts: 1,817
Likes: 16
From: South Carolina
Ordered and mounted my tires.

Sumitomo HTR ZIII

I chose 265/35/18 rear the entire package is 48.5 lbs. (10 lbs. heavier).
245/40/17 front the entire package is 44.5 lbs. (6 lbs. heavier.)

This weight surprises me, thats a lot of weight, but then they are 1 and 1.5 inches wider and I am comparing worn out to new rubber.
But being this much heavier, I wouldn't be surprised if newer shocks - better tuned to this heft - would help the car.

Looks wise, it looks like a brand new car. Although heavier, the wheels look much lighter. I think it also looks newer because the OEM wheels are kinda cruddy. When I recondition them, I will paint them the same bright silver as the Enkeis.

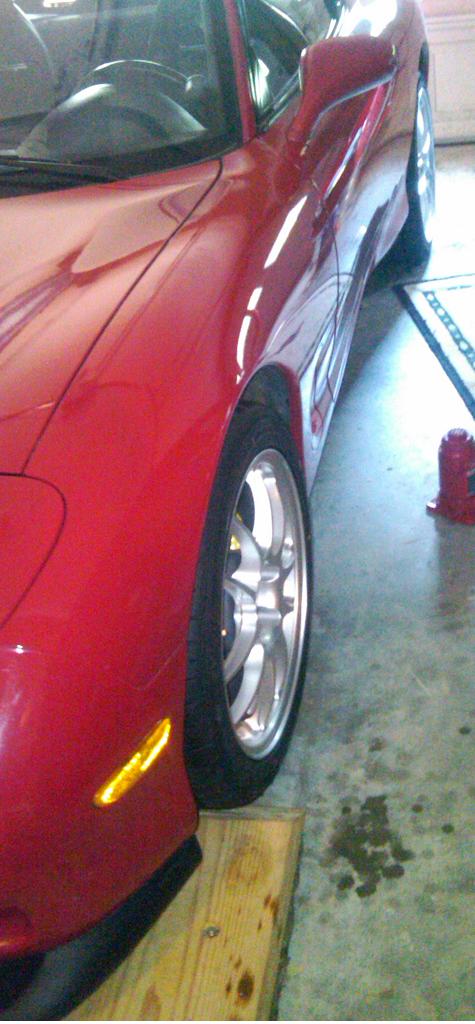

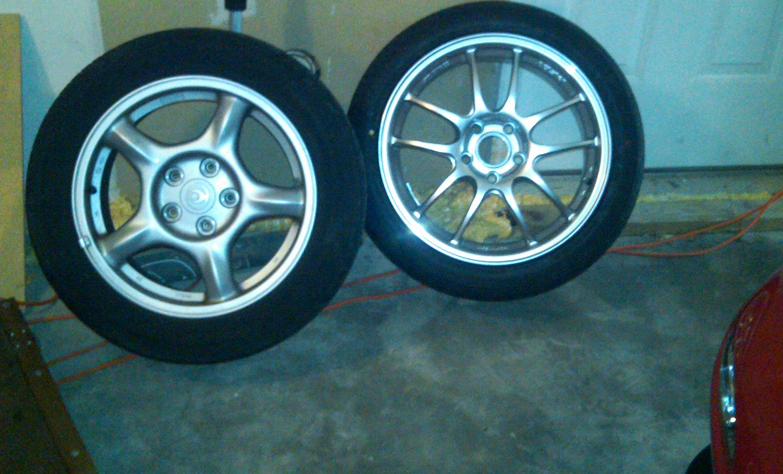

Attached Thumbnails Enkei PF01-wheel-color.jpg   Enkei PF01-wheel-extend.jpg

Last edited by BLKTOPTRVL; Jun 21, 2014 at 09:12 AM.
Reply
Old Jun 21, 2014 | 10:13 AM
  #13
BLKTOPTRVL's Avatar
Thread Starter
Rotary Freak
Tenured Member 20 Years

Joined: Jul 2001
Posts: 1,817
Likes: 16
From: South Carolina
Originally Posted by BLKTOPTRVL
Ordered and mounted my tires.

Sumitomo HTR ZIII

I chose 265/35/18 rear the entire package is 48.5 lbs. (10 lbs. heavier).
245/40/17 front the entire package is 44.5 lbs. (6 lbs. heavier.)

This weight surprises me, thats a lot of weight, but then they are 1 and 1.5 inches wider and I am comparing worn out to new rubber.
But being this much heavier, I wouldn't be surprised if newer shocks - better tuned to this heft - would help the car.

Looks wise, it looks like a brand new car. Although heavier, the wheels look much lighter. I think it also looks newer because the OEM wheels are kinda cruddy. When I recondition them, I will paint them the same bright silver as the Enkeis.
Because the wheels are a little more convex than I expected, there is good opportunity for curb rash - especially if I experience a senior moment.

So, I think I will install a modern day curb feeler...

Led Park Distance Control System - Buy Park Distance Control System,Anti-collision Sensor,Radar Sensors For Cars Product on Alibaba.com
Reply
Old Jun 21, 2014 | 04:34 PM
  #14
BLKTOPTRVL's Avatar
Thread Starter
Rotary Freak
Tenured Member 20 Years

Joined: Jul 2001
Posts: 1,817
Likes: 16
From: South Carolina

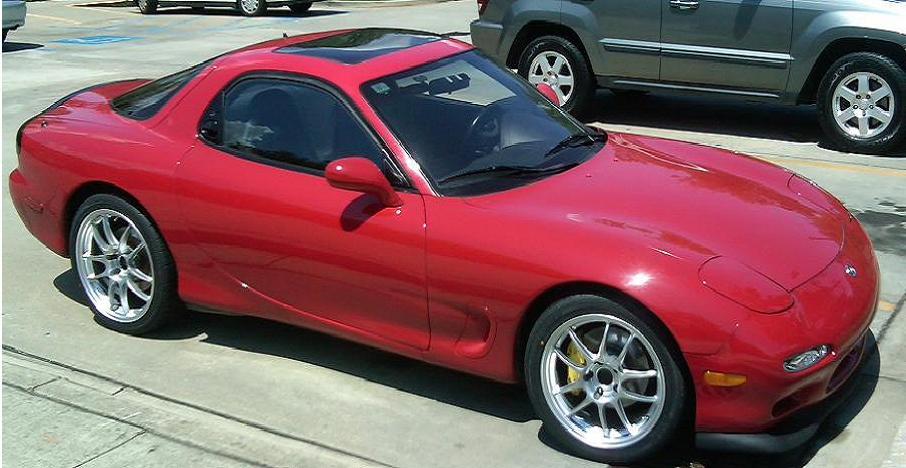

New Boots
Attached Thumbnails Enkei PF01-pf01.jpg

Last edited by BLKTOPTRVL; Jun 21, 2014 at 04:48 PM.
Reply
Old Jun 21, 2014 | 08:26 PM
  #15
HiWire's Avatar
Rotary Freak
Tenured Member: 15 Years
Liked
Loved
Community Favorite

Joined: Apr 2009
Posts: 1,560
Likes: 256
From: Toronto
Looks good. I am shopping for a set of 235/45-17 in Matte Black.
Reply
Old Jun 22, 2014 | 04:08 AM
  #16
BLKTOPTRVL's Avatar
Thread Starter
Rotary Freak
Tenured Member 20 Years

Joined: Jul 2001
Posts: 1,817
Likes: 16
From: South Carolina
Originally Posted by HiWire
Looks good. I am shopping for a set of 235/45-17 in Matte Black.
Thanks.

What color is your car?
Reply
Old Jun 22, 2014 | 12:30 PM
  #17
HiWire's Avatar
Rotary Freak
Tenured Member: 15 Years
Liked
Loved
Community Favorite

Joined: Apr 2009
Posts: 1,560
Likes: 256
From: Toronto
Montego Blue. I'm not sure if the black paint will hold up to an accidental kerbing... not a habit, but just in case. Also, I like to take my car to the track – I think the PF01 are lighter than the Work Emotion CR Ultimates that I wanted before.
Reply
Old Jun 22, 2014 | 12:51 PM
  #18
BLKTOPTRVL's Avatar
Thread Starter
Rotary Freak
Tenured Member 20 Years

Joined: Jul 2001
Posts: 1,817
Likes: 16
From: South Carolina
Originally Posted by HiWire
Montego Blue. I'm not sure if the black paint will hold up to an accidental kerbing... not a habit, but just in case. Also, I like to take my car to the track – I think the PF01 are lighter than the Work Emotion CR Ultimates that I wanted before.
I think that on a silver or gray car, you'd have to look close to see the curbing on a wheel. I would also think it would easily show on black.. But then I have no experience in that area.
Reply
Old Jun 24, 2014 | 02:39 PM
  #19
BLKTOPTRVL's Avatar
Thread Starter
Rotary Freak
Tenured Member 20 Years

Joined: Jul 2001
Posts: 1,817
Likes: 16
From: South Carolina
Sorry. I meant on a silver or grey "wheel".
Reply
Old May 23, 2015 | 11:04 AM
  #20
HiWire's Avatar
Rotary Freak
Tenured Member: 15 Years
Liked
Loved
Community Favorite

Joined: Apr 2009
Posts: 1,560
Likes: 256
From: Toronto
I noticed on the Enkei website that the PF01 wheel has a 75 center bore but the FD has 67.1 bore... do I need an adapter to mount these wheels?
Reply
Old May 24, 2015 | 11:02 PM
  #21
ZDan's Avatar
Senior Member
Tenured Member 05 Years

Joined: Sep 2011
Posts: 682
Likes: 4
From: Pawtucket, RI
Originally Posted by HiWire
I noticed on the Enkei website that the PF01 wheel has a 75 center bore but the FD has 67.1 bore... do I need an adapter to mount these wheels?
They should be able to supply them with appropriate rings so that they are hubcentric on the FD. I ordered mine through Tire Rack and they came with rings fitted to fit the FD hubs. You could run them without rings and rely on the lugs to center the wheel, but IMO no reason not to have them
Reply
Old May 25, 2015 | 01:10 AM
  #22
HiWire's Avatar
Rotary Freak
Tenured Member: 15 Years
Liked
Loved
Community Favorite

Joined: Apr 2009
Posts: 1,560
Likes: 256
From: Toronto
Thanks! I'll make sure to get the rings if I order them.
Reply
Old May 25, 2015 | 05:33 PM
  #23
lOOkatme's Avatar
Rotary Enthusiast
Tenured Member: 20 Years
iTrader: (19)

Joined: Apr 2002
Posts: 1,171
Likes: 11
From: Colorado Springs, CO
I would run the 18x10.5 +47 PF01 wheel size with 265/35/18 or 285/30/18 tires. Not sure if they work with the stock springs, but will work with coilovers who have 2.5" diameter springs.
