Suspension/Wheels/Tires/Brakes

22 offset rims on an FD?

Thread Tools

Search this Thread

Old May 13, 2007 | 02:57 AM
  #1
BlueCoupe's Avatar
Thread Starter
Newbie

Joined: May 2003
Posts: 4
Likes: 1
From: b.c
Thumbs up 22 offset rims on an FD?

just got a used set of 18's that came with a 22 offset since they were on a 03/04 cobra ,the only prob is that they rub in the front(over bumps and turning) ,the front tires are 245/40/18 couldi just got with a lower profile to stop the rubbing? ,i would love to keep these rims but seliing them wouldn't be a prob,any thoughts thanks????
Reply
Old May 13, 2007 | 05:52 AM
  #2
zonblitz's Avatar
Gone to the dark side
Tenured Member 10 Years
iTrader: (9)

Joined: Jun 2005
Posts: 1,066
Likes: 0
From: New Orleans, LA
I don't think that offset can work in the front without wider fenders.

When I bought my car it had +25 offset in front and anytime I drove up a curb no matter how slow I tried to go it would hit the fenders and bend them out.

Sorry man but unless you are sporting some FEED fronts I don't think you can keep those wheels.
Reply
Old May 13, 2007 | 12:25 PM
  #3
jimlab's Avatar
Super Snuggles
Tenured Member 20 Years

Joined: Feb 2001
Posts: 10,091
Likes: 34
From: Redmond, WA
Stock offset is +50mm front and rear. Stay in the +45mm range if possible.
Reply
Old May 13, 2007 | 12:41 PM
  #4
BlueCoupe's Avatar
Thread Starter
Newbie

Joined: May 2003
Posts: 4
Likes: 1
From: b.c
this sounds likethe rims might have to go ,geeze they make my car look so much nicer lol and i got them for cheap damitt lol ,
Reply
Old May 13, 2007 | 01:27 PM
  #5
7envy's Avatar
Senior Member
Tenured Member 15 Years
iTrader: (1)

Joined: Feb 2007
Posts: 279
Likes: 0
From: PA

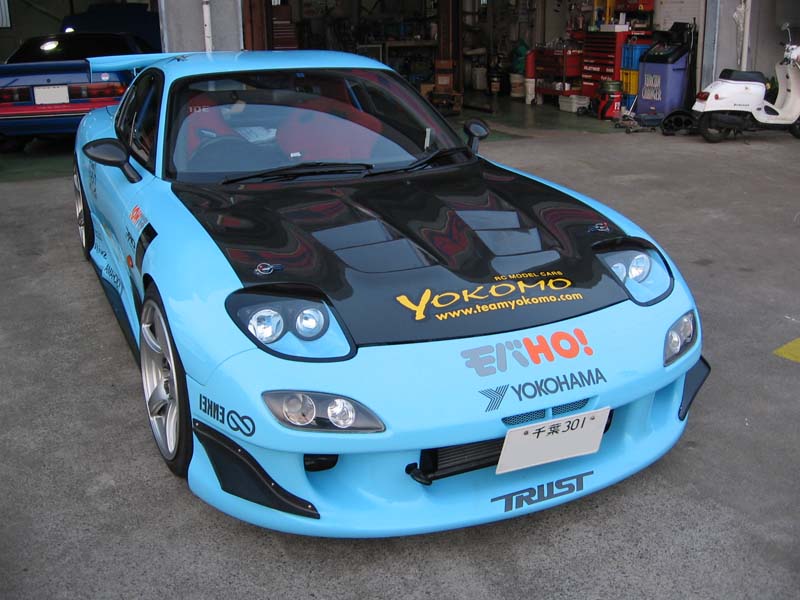

RE Amemiya runs Enkei 18x9 and 18x10 RP-03s with +18 and +22 offset without any wide fenders in front or rear. However, they do cut and pull their fenders. Here's a picture.

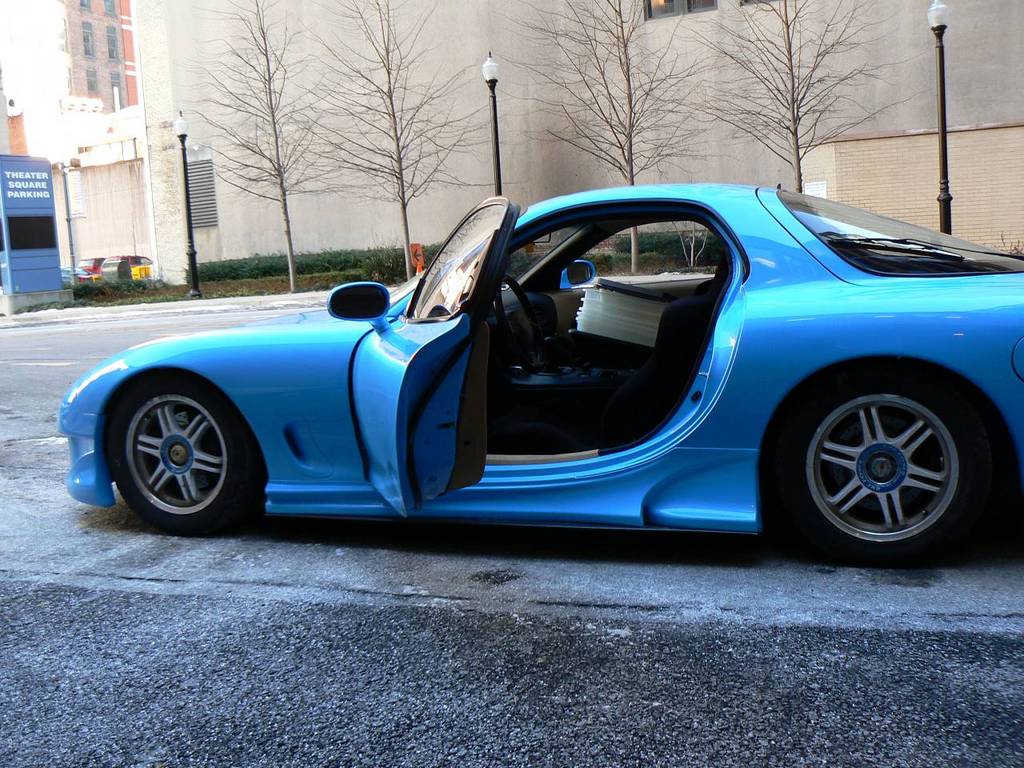

edit: more pictures. You can compare their fender with mine (stock)
Attached Thumbnails 22 offset rims on an FD?-06_fd_street_legal_7.jpg   22 offset rims on an FD?-070129_03.jpg   22 offset rims on an FD?-070129_09.jpg   22 offset rims on an FD?-070129_10.jpg   22 offset rims on an FD?-p1000964_1280_x_1024.jpg


Last edited by 7envy; May 13, 2007 at 01:33 PM.
Reply
Old May 13, 2007 | 01:51 PM
  #6
wptrx7's Avatar
Newb Photog
Tenured Member 10 Years

Joined: Jul 2001
Posts: 2,171
Likes: 0
From: new jersey
Originally Posted by 7envy
RE Amemiya runs Enkei 18x9 and 18x10 RP-03s with +18 and +22 offset without any wide fenders in front or rear.
Originally Posted by 7envy
However, they do cut and pull their fenders. Here's a picture.
Do you think what you just said makes since?
Reply
Old May 13, 2007 | 01:59 PM
  #7
7envy's Avatar
Senior Member
Tenured Member 15 Years
iTrader: (1)

Joined: Feb 2007
Posts: 279
Likes: 0
From: PA
First you cut, then you pull? I don't know how else to explain the flare on the top of the wheel arch. Anyway, why do you have to take such a condescending tone.

And hey, if you've any better ideas on how they could've done that on their FD, I'm all ears. Because I intend fit RP-03s at 18x9 +18 and 18x10 +22.
Reply
Old May 14, 2007 | 10:25 AM
  #8
dclin's Avatar
Perpetual Project
Tenured Member 20 Years
iTrader: (4)

Joined: Feb 2001
Posts: 2,667
Likes: 2
From: Texas
Originally Posted by 7envy
First you cut, then you pull? I don't know how else to explain the flare on the top of the wheel arch. Anyway, why do you have to take such a condescending tone.

And hey, if you've any better ideas on how they could've done that on their FD, I'm all ears. Because I intend fit RP-03s at 18x9 +18 and 18x10 +22.
Since it's a track car, they also run a fair amount of negative camber too, tucking in the top the tire into the fender. Not a problem for a track car, which spends most of its time around corners, but which means burning through tires every few thousand miles for a street car (you'll burn thru to the belt on the inner part of the tread, while the tread on the outer part will look untouched, unless you constantly remount the tires).

I've seen a couple threads now talking about using overly narrow tires on wheels with numerically smaller offsets; terrific if you're a drifter and don't care about a)grip, b)tire wear, or c)handling, things foreign to a drifter, but not so good if you actually want a car that handles well (at least in the traditional sense) or don't have to buy new tires for every few months.
Reply
Old May 14, 2007 | 11:33 AM
  #9
wptrx7's Avatar
Newb Photog
Tenured Member 10 Years

Joined: Jul 2001
Posts: 2,171
Likes: 0
From: new jersey
Originally Posted by 7envy
First you cut, then you pull? I don't know how else to explain the flare on the top of the wheel arch. Anyway, why do you have to take such a condescending tone.

And hey, if you've any better ideas on how they could've done that on their FD, I'm all ears. Because I intend fit RP-03s at 18x9 +18 and 18x10 +22.
I think you failed at understanding my question. You said it didn't need modification, than in the very next sentence, said it would require this sort of modification. It just didn't make any sense. Stock offset starts at +50, you have to be close to that with stock fenders, you are showing offsets that are half that. You can try to fit the wheels with tires, but as explained above, you are putting yourself at risk. You need to sell the wheels you have unless you plan on modifying your fenders.

Edit: from another thread:
Originally Posted by Mahjik
Offsets can and do effect the size of the tires in the sense of how much tire can you fit without tearing up your fenders. i.e. with a higher offset number, you can use a larger tire size. With a lower offset number, you generally have to use a smaller tire or do what is the new crazy of "stretching" tires (i.e. using a tire too small for the wheel).

For instance, if you got a 17x9 wheel, with a +43-47 offset, you could fit a 255 size tire up front. However, with a lower offset, say +38-40 you would be using around a 225 or a 235 tire since you are closer to the fenders. Same wheel, different offset, different tire sizes. Just has to do with what type of driving you will be doing, fender pulling/rolling, suspension, etc. All of those things play a part in wheel fitments.
Reply
Old May 14, 2007 | 06:28 PM
  #10
7envy's Avatar
Senior Member
Tenured Member 15 Years
iTrader: (1)

Joined: Feb 2007
Posts: 279
Likes: 0
From: PA
I said he can run those offsets "without any wide fenders in front or rear." I did not say "without modification." I think you might have to re-read what I posted. I don't know how much negative camber Amemiya is running on their cars, but it doesn't seem to be insane.

Btw, he runs 255/35 all around.

edit: ADVAN  (F235/40R-18 R265/35R18)

Originally Posted by wptrx7
I think you failed at understanding my question. You said it didn't need modification, than in the very next sentence, said it would require this sort of modification. It just didn't make any sense. Stock offset starts at +50, you have to be close to that with stock fenders, you are showing offsets that are half that. You can try to fit the wheels with tires, but as explained above, you are putting yourself at risk. You need to sell the wheels you have unless you plan on modifying your fenders.

Edit: from another thread:

Last edited by 7envy; May 14, 2007 at 06:46 PM.
Reply
Old May 14, 2007 | 09:29 PM
  #11
dclin's Avatar
Perpetual Project
Tenured Member 20 Years
iTrader: (4)

Joined: Feb 2001
Posts: 2,667
Likes: 2
From: Texas
Originally Posted by 7envy
I said he can run those offsets "without any wide fenders in front or rear." I did not say "without modification." I think you might have to re-read what I posted. I don't know how much negative camber Amemiya is running on their cars, but it doesn't seem to be insane.

Btw, he runs 255/35 all around.

edit: ADVAN  (F235/40R-18 R265/35R18)
Sounds like you've done your homework; nevermind us, carry on.
Reply
Old May 14, 2007 | 10:02 PM
  #12
7envy's Avatar
Senior Member
Tenured Member 15 Years
iTrader: (1)

Joined: Feb 2007
Posts: 279
Likes: 0
From: PA
lol ^_^ I'm an Amemiya nerd. Sorry!

Originally Posted by dclin
Sounds like you've done your homework; nevermind us, carry on.
Reply
Old May 15, 2007 | 11:21 AM
  #13
rynberg's Avatar
Lives on the Forum
Tenured Member: 20 Years

Joined: Dec 2001
Posts: 14,716
Likes: 10
From: San Lorenzo, California
Originally Posted by BlueCoupe
just got a used set of 18's that came with a 22 offset since they were on a 03/04 cobra ,the only prob is that they rub in the front(over bumps and turning) ,the front tires are 245/40/18 couldi just got with a lower profile to stop the rubbing? ,i would love to keep these rims but seliing them wouldn't be a prob,any thoughts thanks????
Well, for one thing, the tires are nearly 1" too tall. Proper size would be 245/35. Secondly, the offset is too low. Low price doesn't automatically mean good deal.
Reply
Old May 15, 2007 | 03:42 PM
  #14
mrb63083's Avatar
Lives on the Forum
Tenured Member 20 Years
iTrader: (4)

Joined: Feb 2002
Posts: 5,748
Likes: 1
From: Dallas
A friend of mine had some Volks on his 240sx that were +22 offset. I put them on my FD to see how they would look. You would defiantly have to have some wide front fenders for them to look...decent. Even if you did, it would still look weird because there is so much space between the wheel and the hub...kinda..low-rider style, if you will. It looked funny. I agree with Jimlab, stay in the 40's.
Reply
Old May 15, 2007 | 07:07 PM
  #15
unicorn_squad's Avatar
Senior Member

Joined: Oct 2006
Posts: 415
Likes: 0
From: Colorado
Originally Posted by BlueCoupe
just got a used set of 18's that came with a 22 offset since they were on a 03/04 cobra ,the only prob is that they rub in the front(over bumps and turning) ,the front tires are 245/40/18 couldi just got with a lower profile to stop the rubbing? ,i would love to keep these rims but seliing them wouldn't be a prob,any thoughts thanks????

you could do a lower profile, or a narrower tire, or both. yes.
Reply
