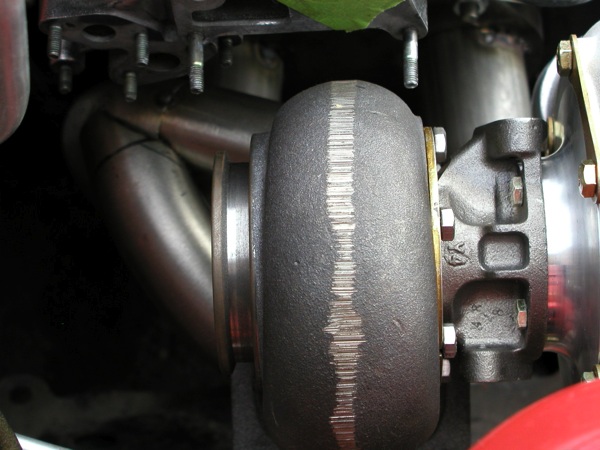

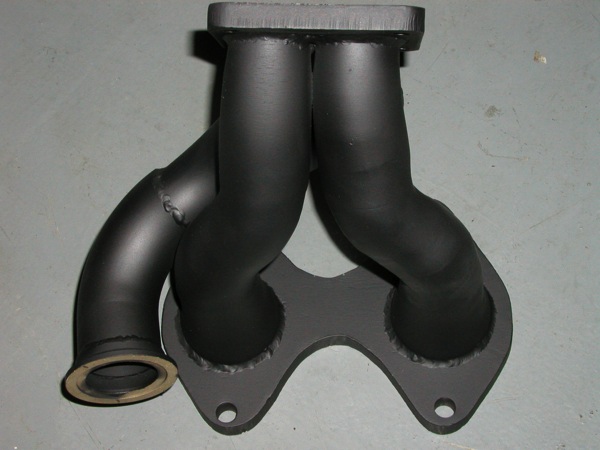

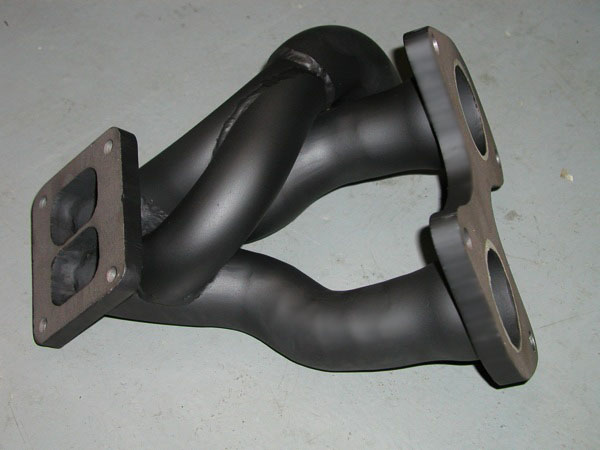

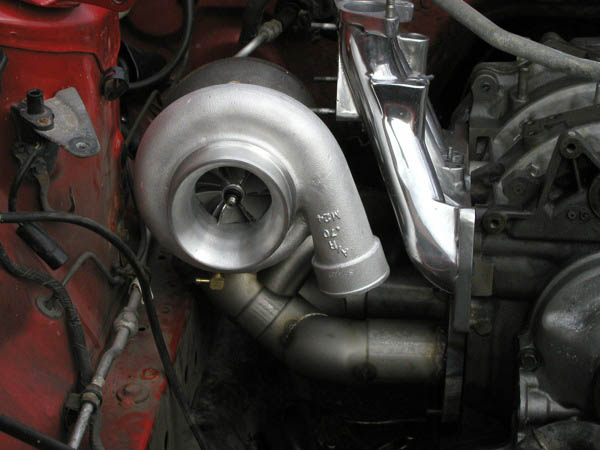

Here are some pics of the FC kit for the 35RT4. Well at least the manifold and a pic during mockup but it gives you the idea. Let me know if you have any questions.



Thanks! The runners look equally good but appear to have ripples in them. Was this a first run manifold?



There isn't any ripples, it is a tapered manifold I think what your seeing is the coating.

-S-



Looks very nice, This would me my # 1 choice . When I upgrade the to4e .



I thought so but had to ask. I'm sure the lighting is playing with it. A BIG thanks again!



how much are you guys selling just the manifold for?



I am also intrested in the manifold, how much



I'm not quite sure if or how I want to sell manifolds yet. They wont be cheap as some others because I'm not mass producing them. Each one would be made after the order is placed. But I will stand behind them as long as you own them.



The FC kit looks great Sean. Should we expect to see the same type of boost response as the FD's who currently run this turbo? I just wasn't sure what the differences in the manifolds were between this one and the FD manifold. Thanks in advance for the info.

Zach



These are slightly shorter in length, response should be very similar.



Hey Sean, are these manifolds SS as well? I was just wondering because the color of them looks odd to me. Unless they are coated with something.

Zach



Yes stainless, the black one your looking at is ceramic coated.



Just wanted to let everyone know that I just received either the first, or one of the first of these kits for the FC. It's sweet. I waited a while, but hey, FC Guys, It's worth it.



Whats the cost of this and whats included? Wastegate?



Mine came with a downpipe, kindof, it needs some modification because I have an aftermarked exhaust and need to weld my own flange on. Included a Tial 44mm wastegate vented to atmosphere, the manifold and assorted fittings for oil and water cooling. The only thing that wasn't included to hook it all up was a 12mm x 1.5 to -4 an adapter to install in the front engine plate. This is where the included -4AN ine will attach. I just ordered that fitting from Summit racing. I'll let you know for sure if it fits once it comes in. Also all connections for turbo, wastegate and DP are V-band which makes installation pretty easy.

--Rick



Sean, can you give us any info on pricing? Please PM me if you don't want to post it here. Thanks.



Pricing is listed in the GT35R thread, I will list it here sorry.



Everything is included for hookup. you get manifold, DP,44mm gate, lines,fittings etc.

Rick, unfortunately got stuck being number one.So time sucked and block to feed fitting is included as well.

-S-



MazdaRick,

Have you had a chance to get your car tuned yet? How soon are you seeing full boost? Also, what are the specs on the turbo you have? I wasn't sure if you got the RS wheel or what size A/R you are using on your turbine housing. Thanks in advance.

Zach



what kind of numbers can be expected from this kit?

ill be running a microtech on an SP 90 TII engine if it helps any



A lot of that depends on parts and tune. I have guys getting anywhere from 410-460whp on pump gas. You may do better or worse

-S-



So, I recently purchased one of your manifolds and was told it was for an FC. Looking at these pics it looks like its actually for an FD. Is there any hope of making it work?



how much does the kit run for?
