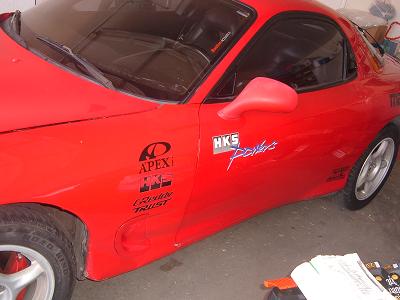

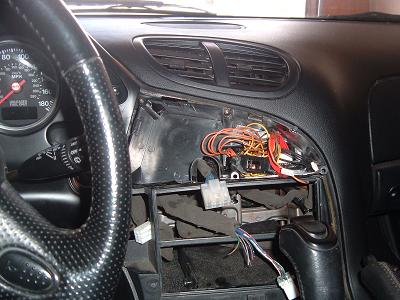

What up. I recently bought this 93 RX7 from a mechanic that ownes a shop in moore ok. He offered it pretty cheap and claims that their isnt anything wrong wit it but it was broken into and the gauges and timer were ripped out. Well The car runs great but is missing the AC and heater panel as well. I havent decided on keeping or selling after I do some work. Like I said its running great and I did the compressiong check and that reads at least 100psi. I changed the plugs and the oil. He said he took it to dallas and they changed the pully and belts. Im posting pics on here hoping that anyone might recognize it and tell me some history on it. Also I dont understand the setup it has with the intaks and blowoff valves. Im new to RX7'S so any help would be great. let me know if a better pics are needed.



that's the Pettit Cold Air Intake.

well, its missing the A/P so that pipe on the right should be capped. Or you can remove the entire metal piping and leave the CRV and ABV vented. The metal piping is more or less to get fresh air to the A/P and quite the discharge. The BOV usually blows the air pump filter off.

Your front turbo filter is also on the hot side of the heat shield...sucking the hot air off the radiator fans.
