Single Turbo RX-7's Questions about all aspects of single turbo setups.

What turbo do I have?

Thread Tools

Search this Thread

Old May 19, 2011 | 02:59 PM
  #1
walken's Avatar
Thread Starter
Registered Loser
Tenured Member 05 Years
iTrader: (6)

Joined: Dec 2002
Posts: 2,224
Likes: 0
From: Whiterock
Question What turbo do I have?

I was told this was a GT3574 then today I noticed it was water cooled. I searched the numbers on it into google and nothing at all displayed.

.70 AR coldside M 24 / EC-1 Garrett

1A060 stamped into the iron on the cartridge and a garrett plate that says mhm114020 i can't read
the top numbers. 7xx451-5005 or 5065

1679-18 stamped on the T4 flange

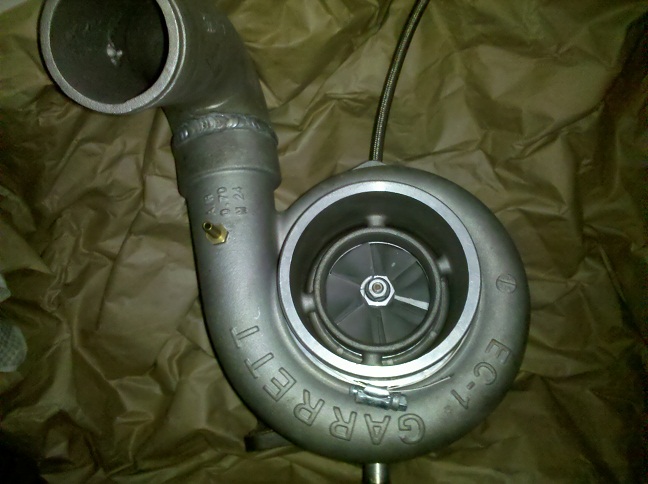

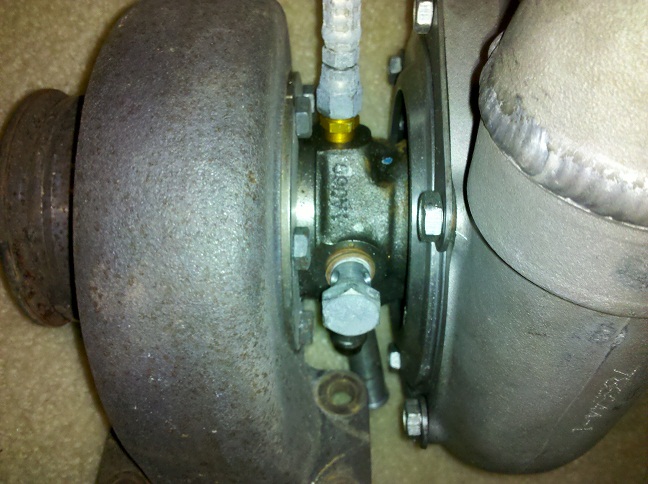

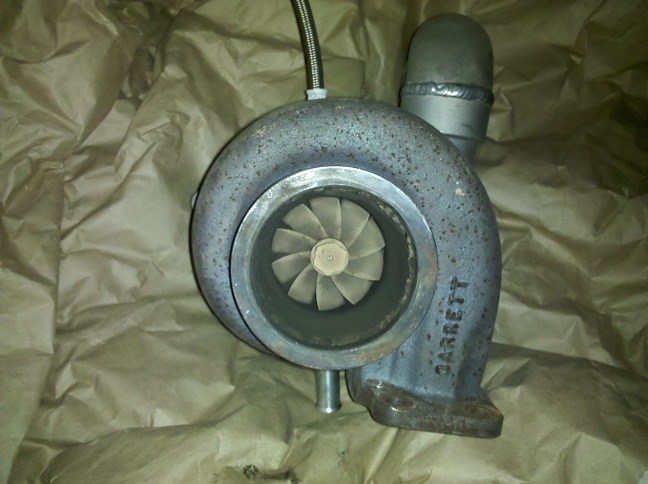

Attached Thumbnails What turbo do I have?-img_20110425_122728.jpg   What turbo do I have?-img_20110519_132318.jpg   What turbo do I have?-img_20110425_122751.jpg
Reply
Old May 19, 2011 | 03:22 PM
  #2
ProjectD's Avatar
I'm on a Boat!
Tenured Member 10 Years
iTrader: (15)

Joined: May 2003
Posts: 1,824
Likes: 0
From: OK
The GT3574 is water cooled. I can't find the pic but mine came from a-spec and had gt3574 stamped onto the back of the compressor housing.
Reply
Old May 19, 2011 | 03:47 PM
  #3
Zero R's Avatar
Just in time to die
Tenured Member 10 Years
iTrader: (1)

Joined: Nov 2001
Posts: 4,143
Likes: 2
From: look behind you
That's not a 3574 or 3574R, measure the wheels inducer and exducer and that will tell you a lot.

~S~
Reply
Old May 19, 2011 | 04:33 PM
  #4
walken's Avatar
Thread Starter
Registered Loser
Tenured Member 05 Years
iTrader: (6)

Joined: Dec 2002
Posts: 2,224
Likes: 0
From: Whiterock
706451-5005 came up as GT3582R

then it seemed the flange might be a T3. The wastegate and manifold are GReddy.
Reply
Old May 20, 2011 | 02:50 PM
  #5
Trots*88TII-AE*'s Avatar
4th string e-armchair QB
Tenured Member 15 Years
iTrader: (11)

Joined: May 2005
Posts: 2,745
Likes: 0
From: North Bay, Ontario
standard p-trims have 11 turbine blades, the GT series and Turbonetics F1 series have 10 blades. It is most likely a standard GT3582R, but you should measure it as Sean said to find out exactly what it is...
Reply
