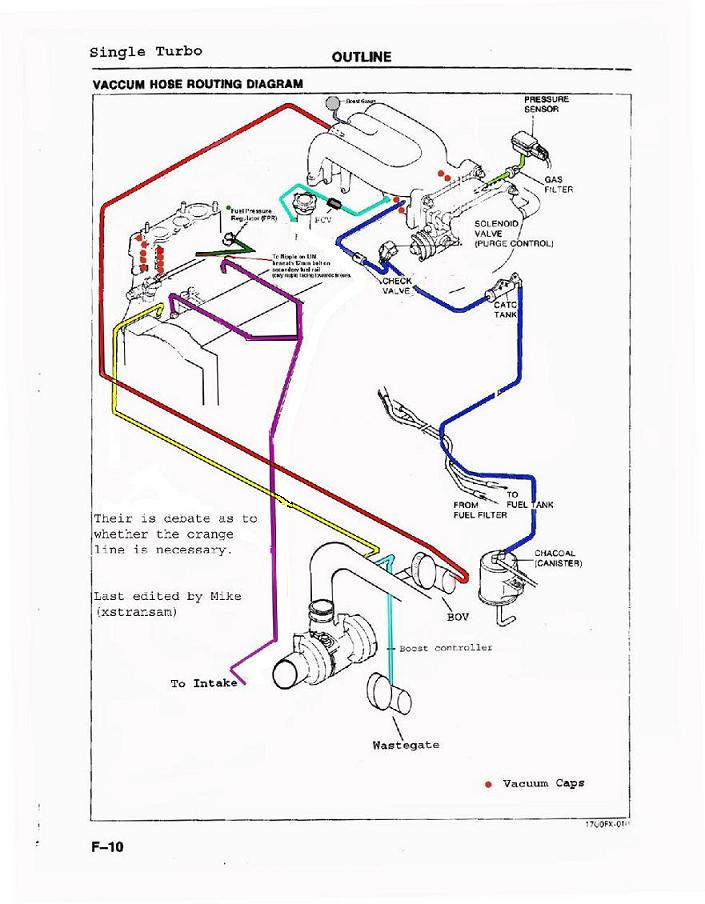

What have you done with the oil injectors vacuum? (blue circle) we don't have a place to hook them up anymore. Have you installed a nipple on the turbo intake pipe? I think it needs to see vacuum, not pressure.

what about the red circle? i beleive this is for fuel atomisation, please correct me if i am wrong.

Can i just hook it up to any pressure source? Is it a bad thing if it sees vacuum? Can i plug it after the throttle body?

thanks a lot

puma



I believe this thread has some comments regarding those two lines.

https://www.rx7club.com/showthread.p...hlight=diagram



i didnt cap them, just let them vent to atmosphere.

brandon



blue i didnt cap them, just let them vent to atmosphere.
red i caped it.

brandon



the blue i vented to amtosphere and red i capped

no problems at all

brandon
