Single Turbo RX-7's Questions about all aspects of single turbo setups.

what do you do with the fuel atomization line ?

Thread Tools

Search this Thread

Old May 28, 2006 | 10:07 AM
  #1
FJDRX7's Avatar
Thread Starter
Back to the DrawingBoard.
Tenured Member 15 Years
iTrader: (32)

Joined: Aug 2004
Posts: 2,526
Likes: 0
From: Va
Question what do you do with the fuel atomization line ?

what do you do with this line, i have it conected to the boost controler " in a T" to the turbo , an i was having some major boost leak, do you cap it or hoocked up some place else, should be there for a reason, anyone ?
Reply
Old May 28, 2006 | 11:03 AM
  #2
cewrx7r1's Avatar
Eye In The Sky
Tenured Member: 25 Years
iTrader: (2)

Joined: Feb 2001
Posts: 7,941
Likes: 133
From: In A Disfunctional World
What line are you talking about, never heard of that name?

Basic hose connections:
(1) turbo out (anywhere from turbo outlet to the throttle body where boost can be measured) to a "T": one side to the bottom of the WG, the other to the BC solenoid input.
(2) solenoid output to top of WG.
(3) UIM pressure hose to boost controller.
Reply
Old May 28, 2006 | 11:22 AM
  #3
FJDRX7's Avatar
Thread Starter
Back to the DrawingBoard.
Tenured Member 15 Years
iTrader: (32)

Joined: Aug 2004
Posts: 2,526
Likes: 0
From: Va

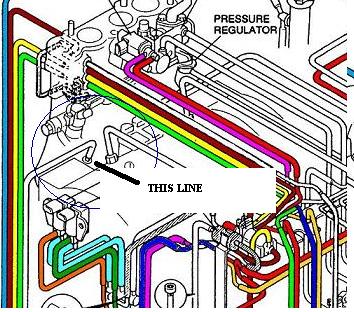

see pic, is the fuel injector atomization

Attached Thumbnails what do you do with the fuel atomization line ?-vacroute3.jpg

Last edited by FJDRX7; May 28, 2006 at 11:42 AM.
Reply
Old May 28, 2006 | 06:41 PM
  #4
cewrx7r1's Avatar
Eye In The Sky
Tenured Member: 25 Years
iTrader: (2)

Joined: Feb 2001
Posts: 7,941
Likes: 133
From: In A Disfunctional World
That line which allows air to mix with the primary injectors can be left as is or not used at all. Does not make any difference. First time I have heard it's NAME.
I learned something today.

When I went to a Efini "Y pipe", I discovered that the fitting on mine was full of welding slag and was stopped up and not working. The car had been running like that for 5 years without any problems.

Since it is on the "Y" pipe outlet, it can be used as a souce or boost pressure.

Last edited by cewrx7r1; May 28, 2006 at 06:50 PM.
Reply
Old May 28, 2006 | 07:34 PM
  #5
FJDRX7's Avatar
Thread Starter
Back to the DrawingBoard.
Tenured Member 15 Years
iTrader: (32)

Joined: Aug 2004
Posts: 2,526
Likes: 0
From: Va
cool, i didn't know the name, until last year, but i hook it up the wrong way for about 7 months now, having a little bit of trouble with boost " long story", with the line out works fine now, a cap it for now until, thanks
Reply
Old May 28, 2006 | 08:59 PM
  #6
books's Avatar
Rotary Freak
Tenured Member: 20 Years
iTrader: (8)

Joined: Mar 2002
Posts: 1,751
Likes: 46
From: St. Louis
There was a thread discussing this some time ago. Mine has been welded shut for a few thousand miles without any noticeable effects.
Reply
