Went Single, question about wiring harness/fuel line. (pics)
10-01-12, 08:49 AM
#1
50/50
Thread Starter
iTrader: (4)
Join Date: Jan 2004
Location: Chicago
Posts: 129
Likes: 0
Received 0 Likes
on
0 Posts
Went Single, question about wiring harness/fuel line. (pics)
Hello everyone.
I will start off by saying I have searched through countless build threads and searches, but couldn't find a solid answer.

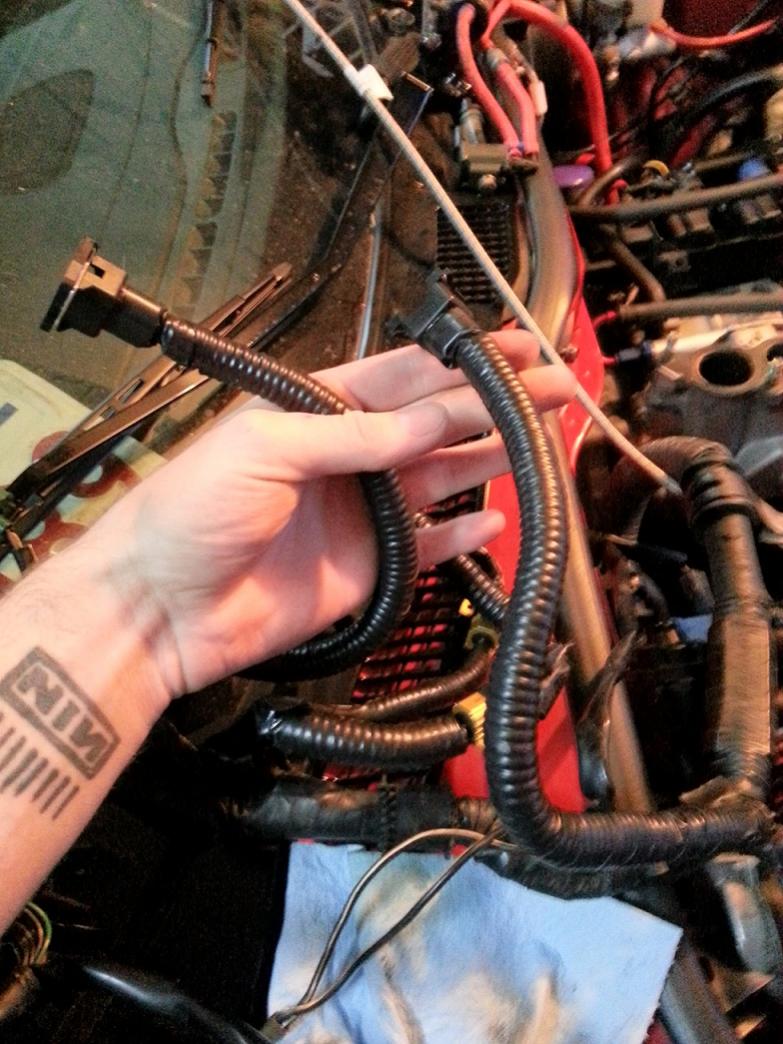

I have purchased a single turbo harness from allrotor93. It is in great shape the only thing I have noticed comparing it to my stock harness, is it appears there are resistors wired into the primary injector circuits and not the secondaries. I have a picture and i would like like to confirm this. My factory harness has resistors in the secondaries ( I have stock primaries, and 1600cc secondaries). So would I have to take the resistors out of the primaries and put them in the secondaries? Also, since it was rewired, its impossible to tell which one is for the front injector clip and which is for the back. I assume it matters since there is the beige tape on the factory harness to denote which one is which.
Advise welcome!

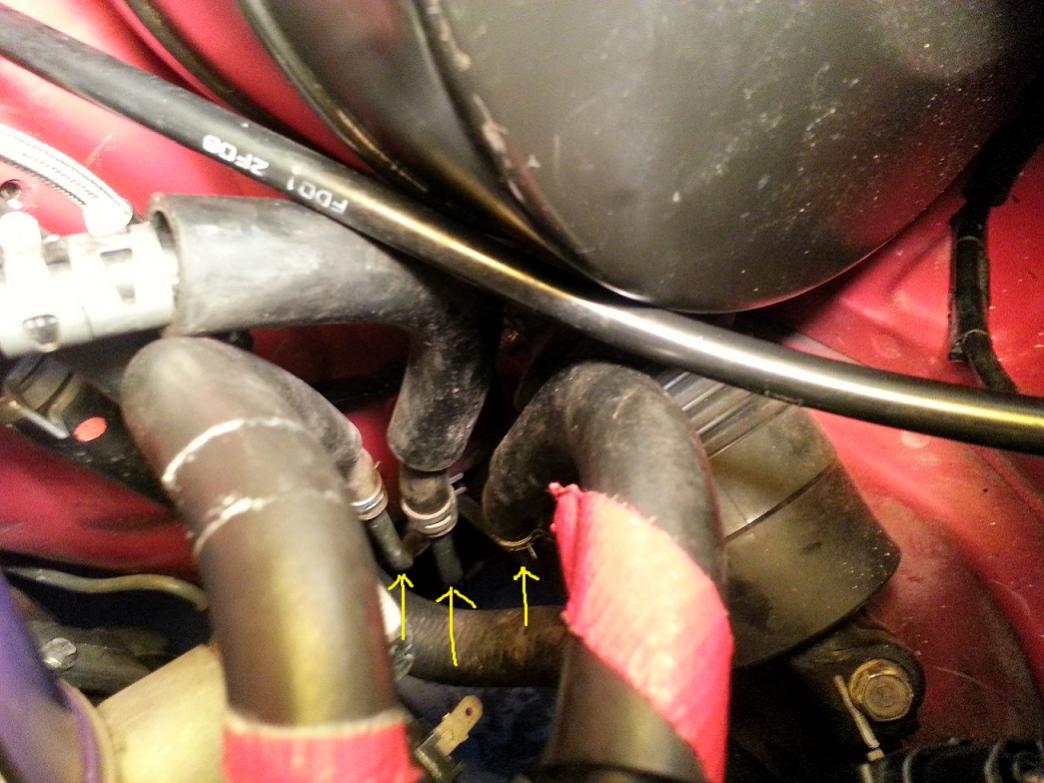

Also with the fuel lines, It has been a while that they have been off, but if anyone could, from the transmission to the driver side of the vehicle tell me which line does what. I think the one nearest to the transmission (hard line) is the line that goes from charcoal canister to the vacuum line that has the filter in it. Also have a picture attached. I just want to make sure I am hooking my fuel lines up properly.
Thank you all in advance!
I will start off by saying I have searched through countless build threads and searches, but couldn't find a solid answer.
I have purchased a single turbo harness from allrotor93. It is in great shape the only thing I have noticed comparing it to my stock harness, is it appears there are resistors wired into the primary injector circuits and not the secondaries. I have a picture and i would like like to confirm this. My factory harness has resistors in the secondaries ( I have stock primaries, and 1600cc secondaries). So would I have to take the resistors out of the primaries and put them in the secondaries? Also, since it was rewired, its impossible to tell which one is for the front injector clip and which is for the back. I assume it matters since there is the beige tape on the factory harness to denote which one is which.
Advise welcome!
Also with the fuel lines, It has been a while that they have been off, but if anyone could, from the transmission to the driver side of the vehicle tell me which line does what. I think the one nearest to the transmission (hard line) is the line that goes from charcoal canister to the vacuum line that has the filter in it. Also have a picture attached. I just want to make sure I am hooking my fuel lines up properly.
Thank you all in advance!
