Water Lines & Wiring Questions
10-01-16, 11:57 AM
#1
Water Lines & Wiring Questions
Hello all, I've been absent from RX7Club for a while now, focusing on more pressing issues, but have now had time to get back into my S4.5 build. Let me first start off by saying that I am by no means, an expert on rotary engines. Just a simple man trying my hand at a "not so simple" car. 😅

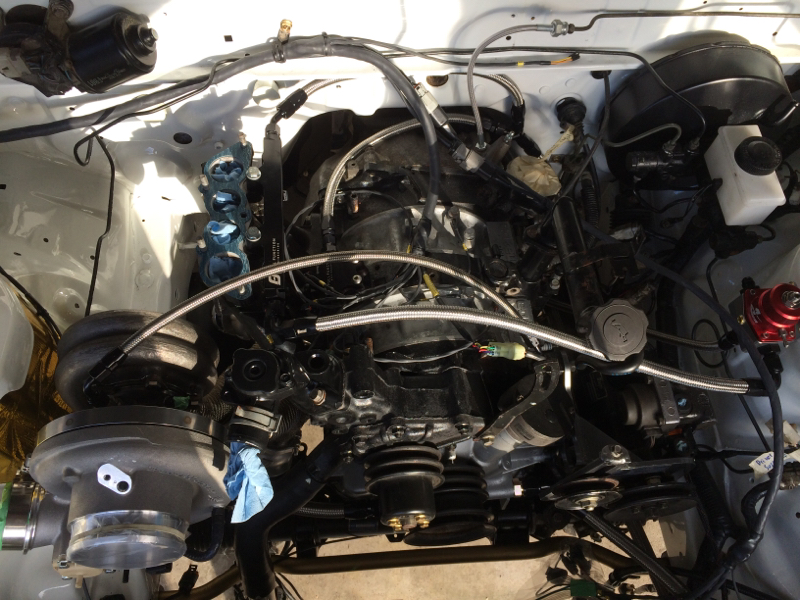

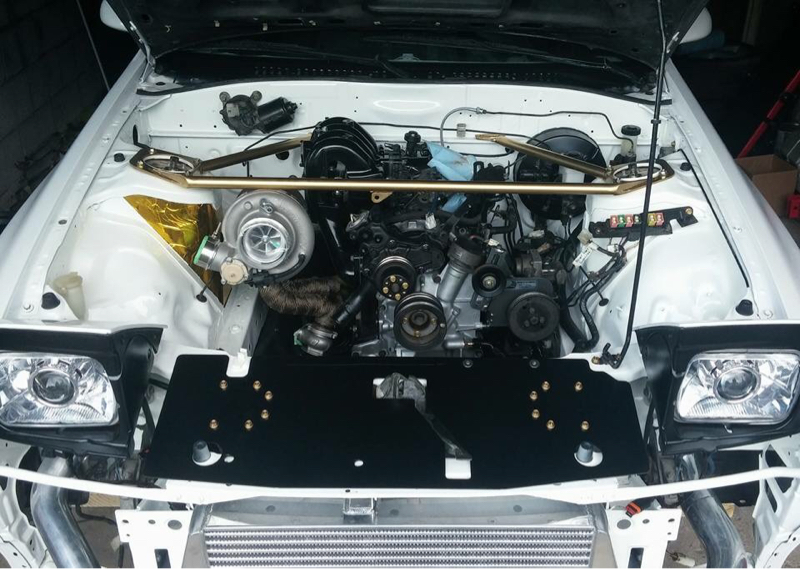

The car is a 1987 GXL with an S5 TII engine.
Water lines: -The car is running a Turblown EWG manifold equipped with a Borg Warner EFR 8374 and twin TurboSmart 38MM wastegates.
Want to know: -Details for all the water lines to feed the turbo and both wastegates, as well as the return lines (where to where).
Wiring: The car is running an LMS-EFI harness attached to a Haltech PS1000 ECU. I'm also using 4 IGN-1A smart coils for a direct fire system. The adaptive suspension was removed and replaced with coilovers, and I've retrofitted Morimoto mini projectors in place of the factory sealed beams. The car is also fitted with an FD alternator.

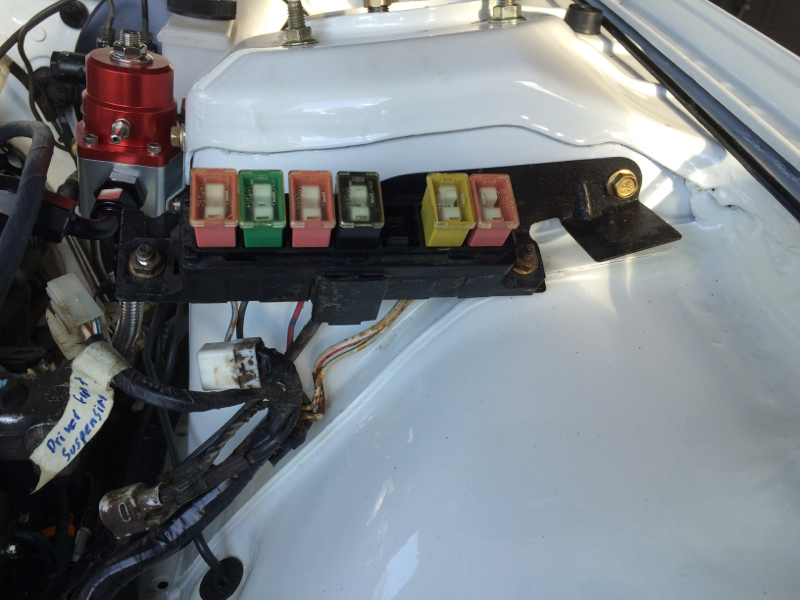

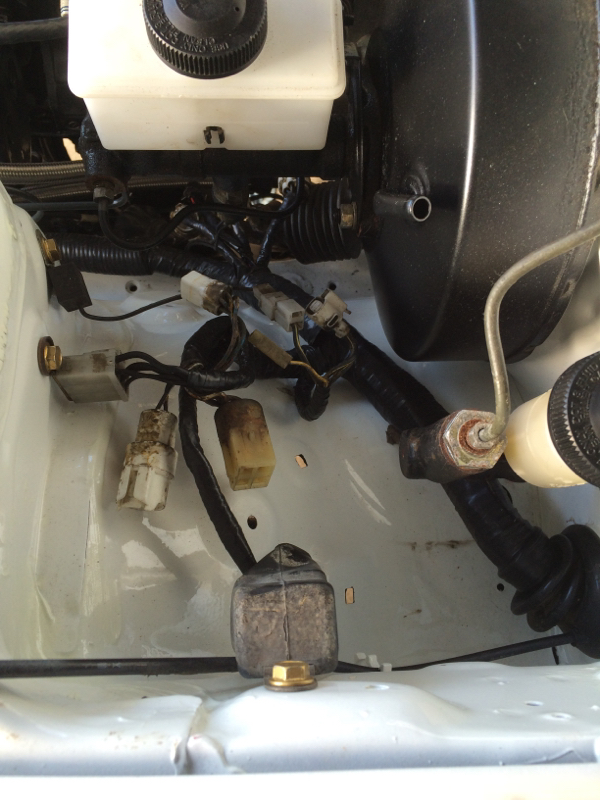

Want to know: -What wires/connectors can I get rid of? Do I need the fuse block in the engine bay still? If yes, has anyone relocated it to a different location?
Feel free to PM with your responses or simply add your comments to this thread. Any help, wisdom, and opinion is welcome.
Thank you all,
Ryan H.
The car is a 1987 GXL with an S5 TII engine.
Water lines: -The car is running a Turblown EWG manifold equipped with a Borg Warner EFR 8374 and twin TurboSmart 38MM wastegates.
Want to know: -Details for all the water lines to feed the turbo and both wastegates, as well as the return lines (where to where).
Wiring: The car is running an LMS-EFI harness attached to a Haltech PS1000 ECU. I'm also using 4 IGN-1A smart coils for a direct fire system. The adaptive suspension was removed and replaced with coilovers, and I've retrofitted Morimoto mini projectors in place of the factory sealed beams. The car is also fitted with an FD alternator.
Want to know: -What wires/connectors can I get rid of? Do I need the fuse block in the engine bay still? If yes, has anyone relocated it to a different location?
Feel free to PM with your responses or simply add your comments to this thread. Any help, wisdom, and opinion is welcome.
Thank you all,
Ryan H.
10-05-16, 03:24 PM
#3
Really can't do much with the front harness. It feeds the main relay, which pretty much powers all the important stuff. Even with our engine harness, you'll still need to get power through the relay to turn the ECU and engine fuse box on. You also have your alternator wiring up there. It can be simplified and made to look cleaner. But it's not an easy proposition.
10-05-16, 05:56 PM
#4
(Terraplane)
Mine are plumbed parallel.

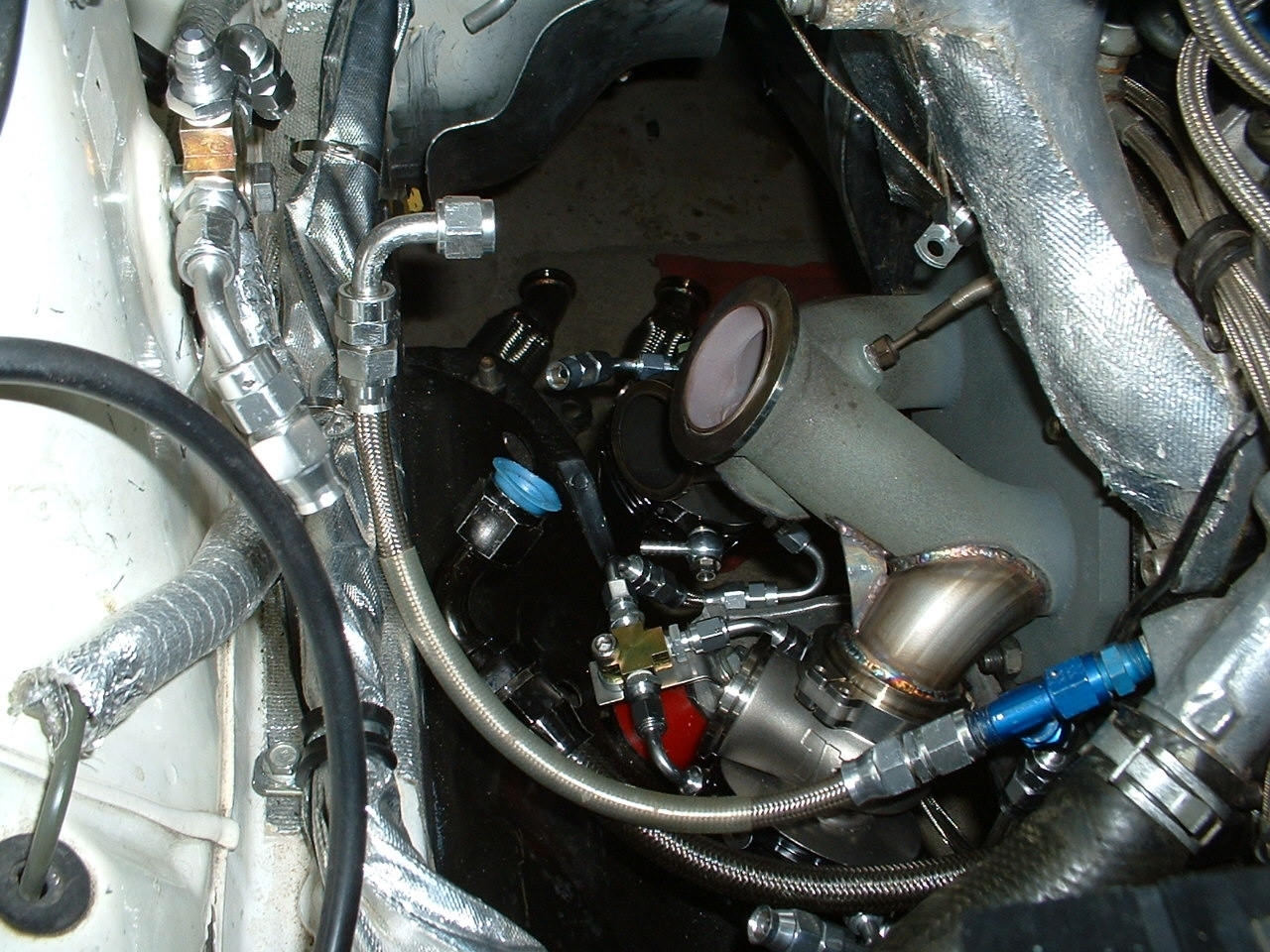

Single inlet from lower radiator inlet at water pump (No paint Dual WG Asm front lower right) to brass Tee (middle of pic) which goes to each WG. Return is brass tee (upper left) back to Tee fitting behind thermostat housing (no pic).
Hose in forefront goes to turbo.
Red poly motor mount pic shows inlet tube and routing from Tee to WGs.
Lots of 4-AN hose, fittings and Tees. All routed away from exhaust manifold.
Working great, no leaks or issues.
Single inlet from lower radiator inlet at water pump (No paint Dual WG Asm front lower right) to brass Tee (middle of pic) which goes to each WG. Return is brass tee (upper left) back to Tee fitting behind thermostat housing (no pic).
Hose in forefront goes to turbo.
Red poly motor mount pic shows inlet tube and routing from Tee to WGs.
Lots of 4-AN hose, fittings and Tees. All routed away from exhaust manifold.
Working great, no leaks or issues.
10-06-16, 03:24 PM
#5
Mine are plumbed parallel. Single inlet from lower radiator inlet at water pump (No paint Dual WG Asm front lower right) to brass Tee (middle of pic) which goes to each WG. Return is brass tee (upper left) back to Tee fitting behind thermostat housing (no pic). Hose in forefront goes to turbo. Red poly motor mount pic shows inlet tube and routing from Tee to WGs. Lots of 4-AN hose, fittings and Tees. All routed away from exhaust manifold. Working great, no leaks or issues.
10-06-16, 03:29 PM
#6
Really can't do much with the front harness. It feeds the main relay, which pretty much powers all the important stuff. Even with our engine harness, you'll still need to get power through the relay to turn the ECU and engine fuse box on. You also have your alternator wiring up there. It can be simplified and made to look cleaner. But it's not an easy proposition.
10-06-16, 03:40 PM
#7
(Terraplane)
So you ran from the water pump neck to a T and then back to the water pump housing?
The water pump neck feeds the turbo and the WGs. This water is the coolest because it is the return from the radiator.
The Tee at the thermostat housing is the return for the turbo and the WGs. This is hot water from the engine going to the radiator.
Could you do a return line to the radiator instead of going back to the water pump housing?
Trending Topics
10-12-16, 11:25 AM
#8
I have a Tee at the water pump neck (lower hose) and a tee at the rear of the water pump thermostat housing. The water pump neck feeds the turbo and the WGs. This water is the coolest because it is the return from the radiator. The Tee at the thermostat housing is the return for the turbo and the WGs. This is hot water from the engine going to the radiator. Yes.
11-08-16, 11:50 AM
#10
NOT a Junior Member
Join Date: Mar 2011
Location: In my shop
Posts: 46
Likes: 0
Received 0 Likes
on
0 Posts

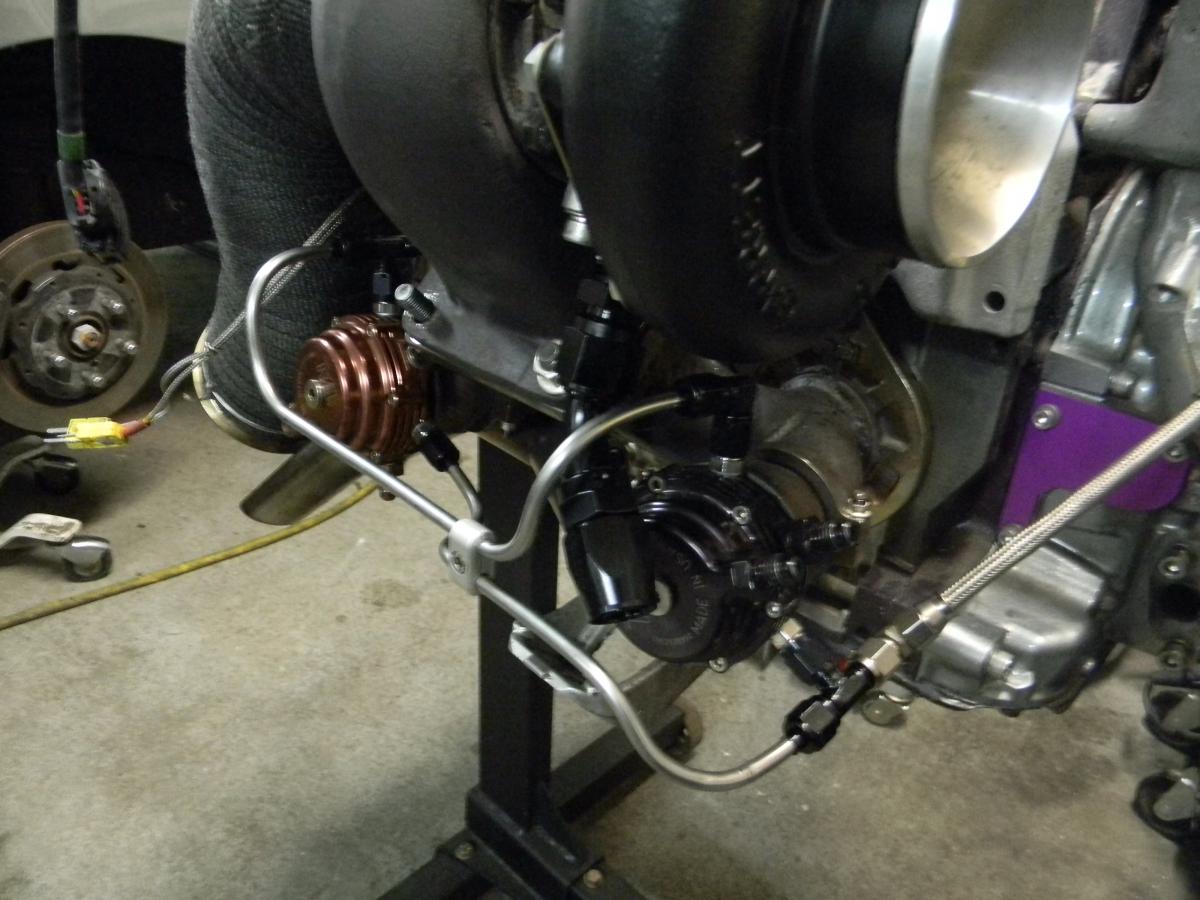

I actually use the rear iron to supply coolant to the WG's, and the inlet on the lower waterpump as the return for the WG cooling.
Back of the waterpump housing to feed the turbo, and then uphill to the AST. Turbo clocked 14* to get the autosiphon going when the engine is shut down
Back of the waterpump housing to feed the turbo, and then uphill to the AST. Turbo clocked 14* to get the autosiphon going when the engine is shut down
11-09-16, 10:34 AM
#11
I actually use the rear iron to supply coolant to the WG's, and the inlet on the lower waterpump as the return for the WG cooling. Back of the waterpump housing to feed the turbo, and then uphill to the AST. Turbo clocked 14* to get the autosiphon going when the engine is shut down
Thanks,
Ryan H.
11-10-16, 08:45 AM
#12
NOT a Junior Member
Join Date: Mar 2011
Location: In my shop
Posts: 46
Likes: 0
Received 0 Likes
on
0 Posts
I'll see if I can find any that don't require linking... I have a whole build thread on the other forum. They basically snake around the LIM, between the DP and the block. I think there's a street tee on both wastegates, they're run in parallel.
You should ALWAYS have an AST. There are also a few spots on the waterpump housing that they can be plumbed back into, in fact, my WG's are plumbed back in that way.
You should ALWAYS have an AST. There are also a few spots on the waterpump housing that they can be plumbed back into, in fact, my WG's are plumbed back in that way.
Last edited by TitaniumTTRE; 11-10-16 at 08:50 AM.
11-14-16, 08:46 AM
#14
NOT a Junior Member
Join Date: Mar 2011
Location: In my shop
Posts: 46
Likes: 0
Received 0 Likes
on
0 Posts
Great minds and all that.... I should check that thread to see where I left off... Some things may have changed since last pics were taken. I wanted to rock a hardline from the front WG to the WP housing but the bends we're just too tight to make it clean.... so braided line for that
11-14-16, 08:47 AM
#15
NOT a Junior Member
Join Date: Mar 2011
Location: In my shop
Posts: 46
Likes: 0
Received 0 Likes
on
0 Posts
That pic does a pretty good job of showing the difference in heat associated with the rear WG. After running the car for a year and seeing that is when I decided to go for the watercooling
11-14-16, 11:39 AM
#16
So everyone seems to be returning the wastegate water lines to the lower water pump neck. Unfortunately, I don't have a lower neck with a return location on it (S4 N/A) water pump. Where would you return the lines if you don't have an AST or water pump location?
(This was kind of the reason for posting the thread, due to my lack of possible locations) 😕
(This was kind of the reason for posting the thread, due to my lack of possible locations) 😕
11-17-16, 08:44 AM
#19
NOT a Junior Member
Join Date: Mar 2011
Location: In my shop
Posts: 46
Likes: 0
Received 0 Likes
on
0 Posts
That's how I'm running the return from the AST. Plumbs into the heatercore return line on the lower WP leg.
I'm also running and FD WP and housing which makes things significantly easier over the FB/FC WP housings.
I'm also running and FD WP and housing which makes things significantly easier over the FB/FC WP housings.
11-18-16, 09:22 PM
#20

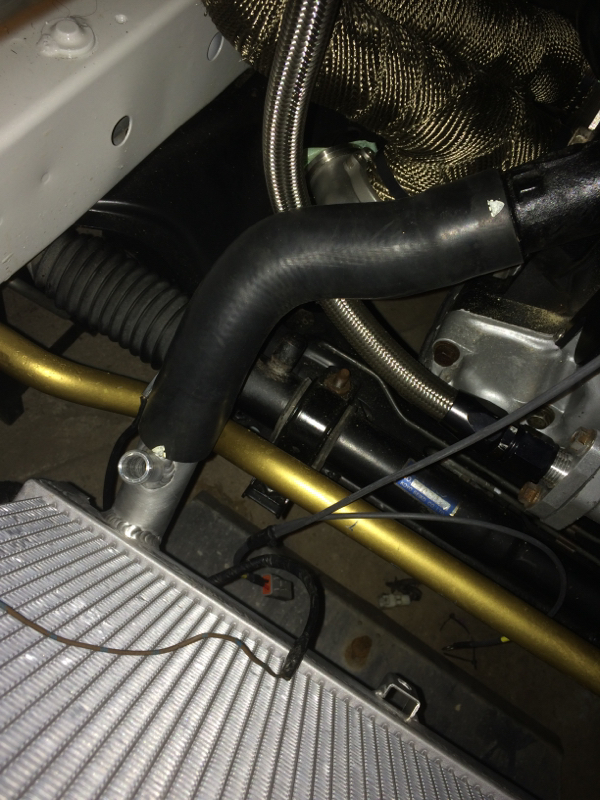

Can I return all the lines to the same port? If I use -6AN return for the turbo and a -4AN line for the turbo. Could I use a Y adaptor and return them to the same location? I have a location on my lower radiator hose that is big enough to handle that. Would that work?
Here's a pic.
Here's a pic.
11-19-16, 09:25 AM
#21
Retired Moderator, RIP
iTrader: (142)
Join Date: Sep 2005
Location: Smiths Falls.(near Ottawa!.Mapquest IT!)
Posts: 25,581
Likes: 0
Received 131 Likes
on
114 Posts

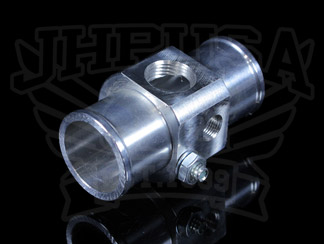

Maybe You could get a rad hose adapter that has a threaded port on it.
like this one?
You'd have to be sure that the port size is bigger than the one I has (for my temp gauge sensor)
like this one?
You'd have to be sure that the port size is bigger than the one I has (for my temp gauge sensor)
11-21-16, 08:55 AM
#22
NOT a Junior Member
Join Date: Mar 2011
Location: In my shop
Posts: 46
Likes: 0
Received 0 Likes
on
0 Posts
Can I return all the lines to the same port? If I use -6AN return for the turbo and a -4AN line for the turbo. Could I use a Y adaptor and return them to the same location? I have a location on my lower radiator hose that is big enough to handle that. Would that work?
Here's a pic.
Here's a pic.
